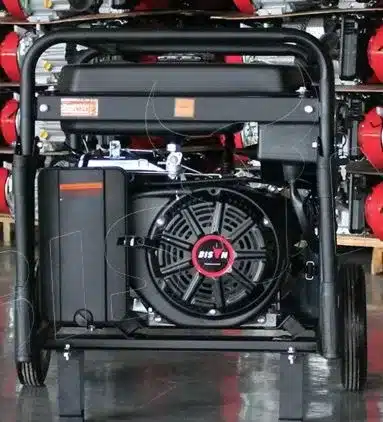

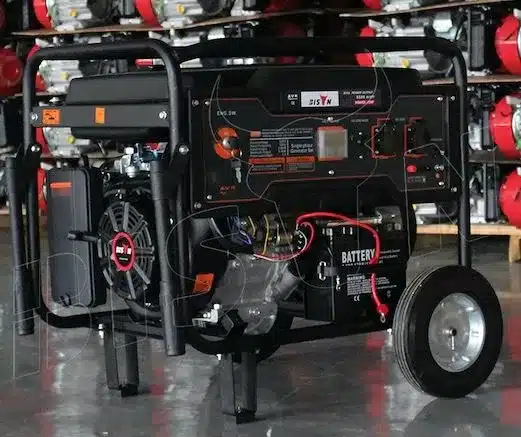

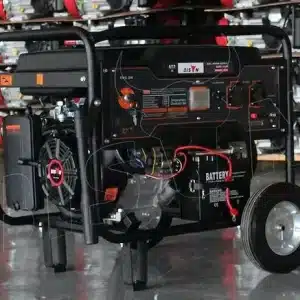

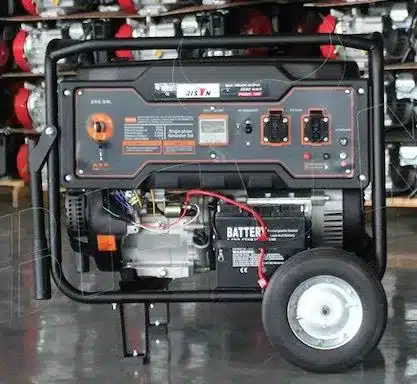

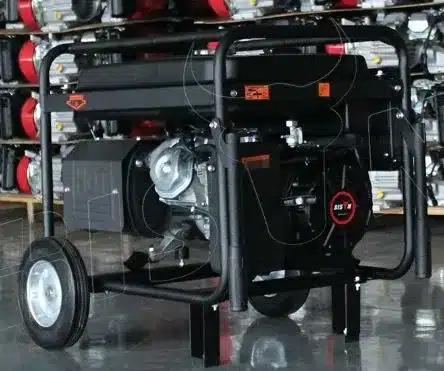

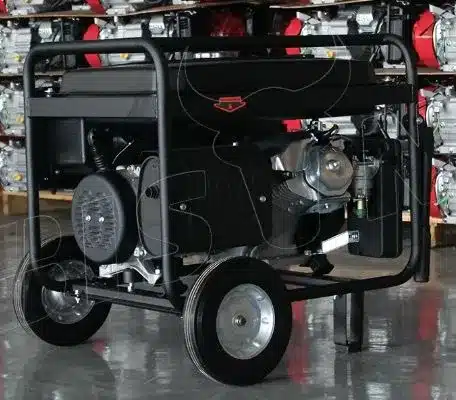

homage 5KVA generator with gas Kit
- 5500 watts/ 5000 rated watts (gasoline/petrol)
- 10″ tire wheels for all-terrain mobility are stable.
- Low oil alert to protect generators
- Voltage switch equipped for full power operation
| no brand | 30 sets |
| OEM standard | 50 sets |
| OEM special | 100 sets |
BS6500 Specifications
| Model | BS6500 |
|---|---|
| Maximum Power of the Generator (KW) | 5500 W |
| Rated Power of the Generator (KW) | 5000W |
| Rated output voltage (Volt) | 1 Phase / 3 Phases (Optional) |
| Over Load Protector (OLP) | YES |
| Rated frequency (Hz) | 50 / 60 Hz |
| Rated Current (Amp) | Depends On Your Socket And Generator Power |
| Power factor | 1.0 (Single Phase) / 0.8 (Three Phases) |
| Fuel Tank Capacity | 25L |
| Fuel option | #92, #95 Unleaded Gasoline |
| Socket rating | 16A/32A |
| Self start motor | Recoil start/Electric start |
| Fuel consumption at 100% Load | 3.0kg/h |
| Fuel consumption at 75% Load | 2.8kg/h |
| Fuel consumption at 50% Load | 2.6kg/h |
| Continuous Duration of operation at Rated load (hour) | 6 |
| Ignition system | T.C.I |
| Noise Level (dB) at rated load (from 4-meter distance) | 95 |
| Engine & Emission Specifications | |
|---|---|
| Engine Model | BS190F |
| Fuel Type | Gasoline |
| Engine Speed | 3000(50 Hz) / 3600(60 Hz) RPM |
| Bore × Stroke | 90*66mm |
| Engine Displacement | 420cc |
| Engine/Motor Type | 1-Cylinder, Air-Cooled, 4-Stroke, Direct Injected，OHV |
| Engine Oil grade | #5W-40 |
| Fuel Capacity | 1.1L |
| Low Oil Shutdown/Alert | Yes |
| Recoil Start | Yes |
| Electric Start | Optional |
| Alternator | |
|---|---|
| Type of alternator | 100% Copper (Corrective Wave) |
| Rotor RPM | 3000 |
| Alternator Size | 190*140mm |
products description
The best 5kva generators to keep your home running
With extreme weather events becoming more frequent, portable generators have become fairly common. Anyone who lives in a suburban area often hit with power outages after storms is familiar with the sound of dozens of generators humming throughout the neighborhood. But emergency power backup isn’t their only use. Portable generators are often used on construction sites, for tailgating and camping, and at barbecues and other events such as 5k runs, parades, fairs, or anyplace that can’t be reached by an extension cord. And with prices coming down, portable generators are becoming more attainable for just about anyone who wants to keep one handy.
Take a quick look at our five top options or scroll down to find out what you need to know about generators and the full reviews.
A class core parts
Dive deep into the world of BISON high-quality gasoline generators, where unrivaled performance meets highest reliability.
100% all-copper motor
Offering durability and superior energy efficiency
Domestic top carburetor
high atomization level, ensuring optimal fuel efficiency and smooth engine operation.
Powerful pull plate
Easy to start pull plate, guarantee more than 10,000 pulls
robust frames
Professional welding and painting process to ensure the beauty and stability of the rack
tight quality contorl
homage 5KVA generator with gas Kit assembly process
- Use special equipment to assemble, ensure the beaning, oil seal, governor gear effectively fit
- When assembling nuts for each muffler, spring pads need to be installed to ensure the fit of each component and the maximum noise reduction effect
- Use a special air gun, and use different torque standards for different parts
- Water test is required in each engine assembly to ensure the tightness of itself
- Pay attention to small details, add thread glue and spring washers to the bolts; add support feet to the motor bracket
- More than 20 debugging processes throughout the whole process to ensure that the machine 100% meets the factory requirements
homage 5KVA generator with gas Kit inspection process
Inspection process leaves no room for compromise, ensuring that every gasoline generator we produce is flawless.
- Water Test: Ensures 100% cylinder tightness, detecting any possible leaks.
- Unit Comprehensive Intelligent Test Cabinet: Each generator undergoes a full inspection to confirm reliability and accuracy.
- Withstand Voltage Tester Inspection: Every generator is fully inspected, ensuring precise electrical safety measurements.
- Strengthened Laboratory Standards: Our lab exceeds national sampling standards, resulting in superior product durability.
Professional technicians with 15-20 years of experience
Performance Commissioning
Machine Assembly
Artwork QA
Full Inspection
Generator Specialized Inspection
Parts assembly
Core Assembly
Power Specialized Inspection
QC System
During the production of our product, we do care about the quality for each sets, that’s why we strictly follow the step of our QC system. Every product will be well test during the production line, we separate the faulty one to special area-faulty zone, where the place will collect faulty product and send to repair.
Production system
From the beginning of the production,our workers skilled operate equipment for production to manufacture high level quality products. All steps by our own workers.
Warranty Information
Discounted Accessories
24-hour online, 5-minute response
Engineer on-site service
Packaging & Delivery
Packaging Details: brown strong carton, generator is protected with poly bag, wooden, 1pc / carton. Lead Time: Shipped in 25 days after payment.
