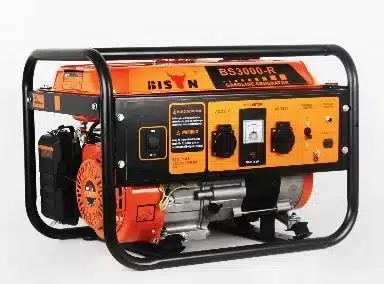

gasoline generator household small mini
- Lifting eye standard on all GL models
- Rotating field, brushed alternator
- Starter safety relay included to prevent accidental starting after the engine has already fired up

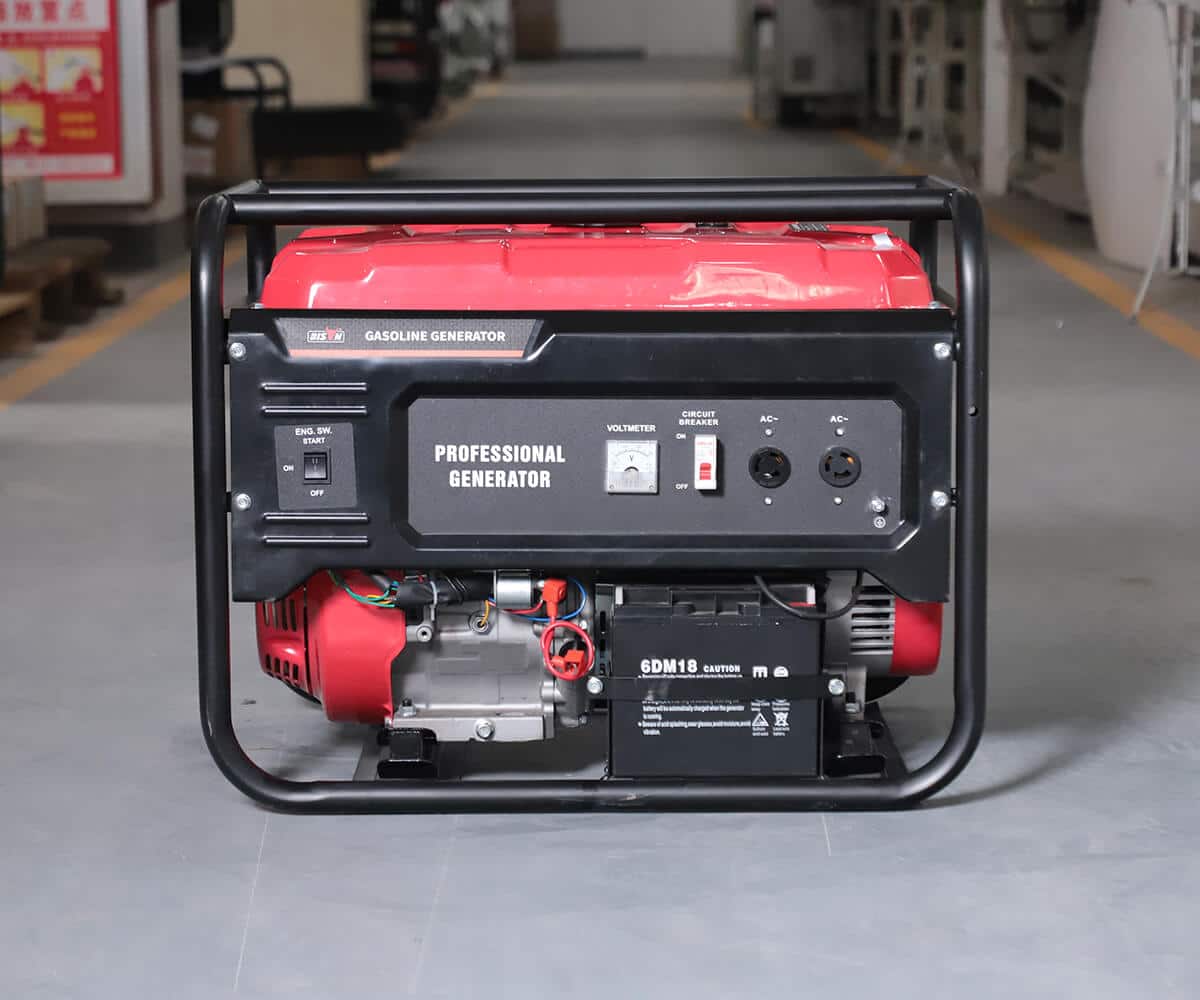

- Electric start with 12V DC battery included.
- Emergency stop standard via opening of either control panel or terminal cover
| no brand | 30 sets |
| OEM standard | 50 sets |
| OEM special | 100 sets |
BS4000 Specifications
| Model | BS4000 |
|---|---|
| Maximum Power of the Generator (KW) | 3400 W |
| Rated Power of the Generator (KW) | 3200W |
| Rated output voltage (Volt) | 1 Phase / 3 Phases (Optional) |
| Over Load Protector (OLP) | YES |
| Rated frequency (Hz) | 50 / 60 Hz |
| Rated Current (Amp) | 16 |
| Power factor | 1.0 (Single Phase) / 0.8 (Three Phases) |

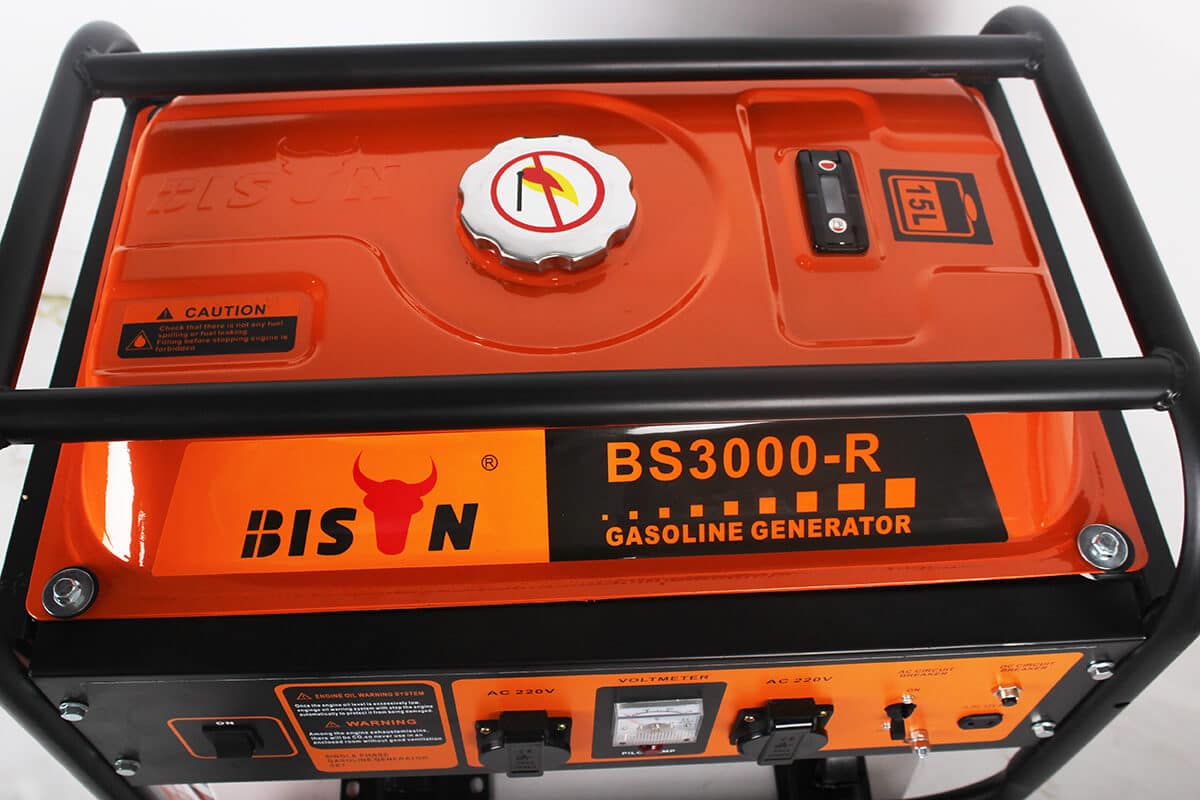

| Fuel Tank Capacity | 15L |
| Fuel option | #92, #95 Unleaded Gasoline |
| Socket rating | 16A |
| Self start motor | Recoil start/Electric start |
| Fuel consumption at 100% Load | 1.2kg/h |
| Fuel consumption at 75% Load | 1.1kg/h |
| Fuel consumption at 50% Load | 0.85kg/h |
| Continuous Duration of operation at Rated load (hour) | 7.5 |
| Ignition system | T.C.I |
| Noise Level (dB) at rated load (from 4-meter distance) | 93.2 |
| Engine & Emission Specifications | |
|---|---|

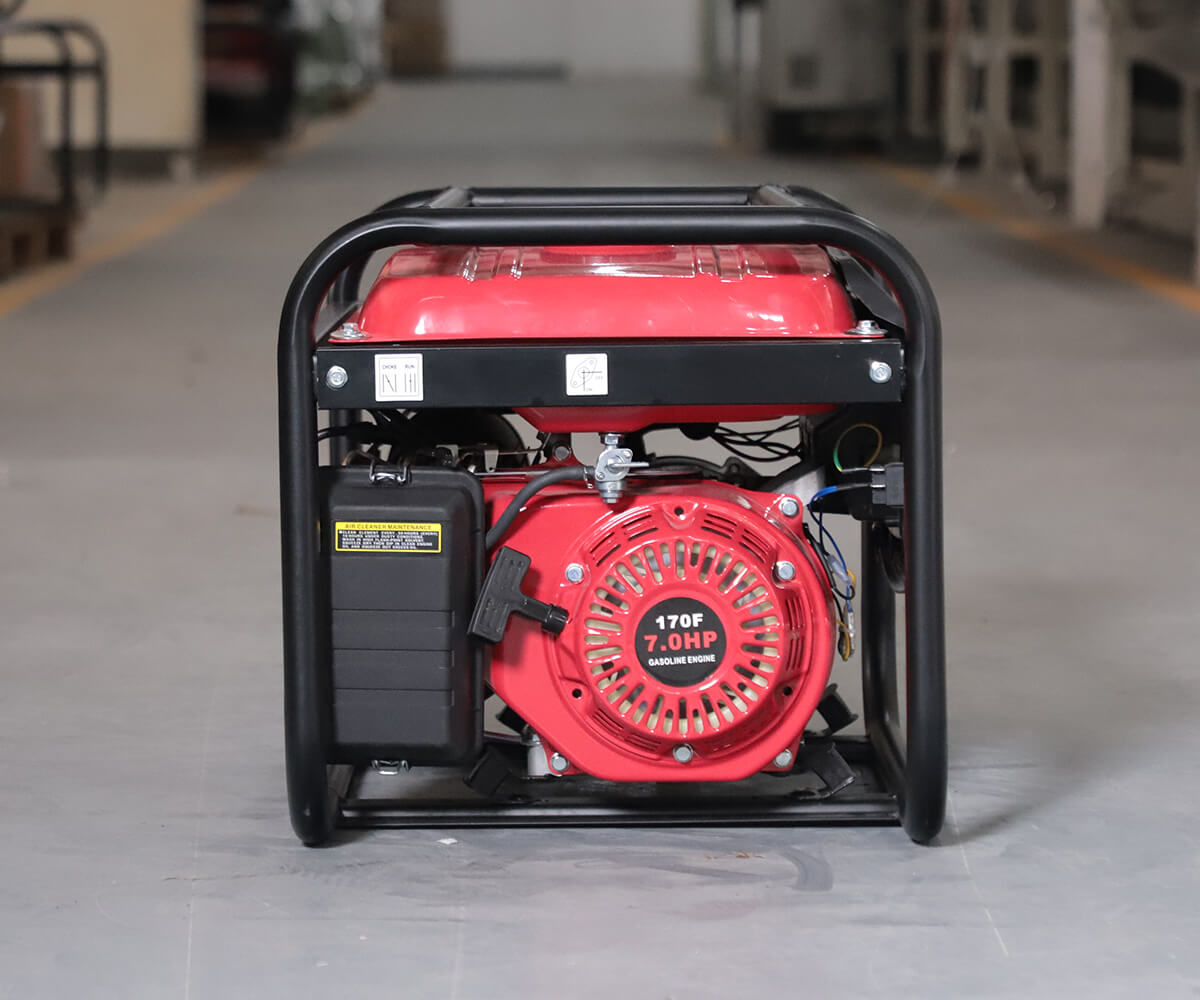

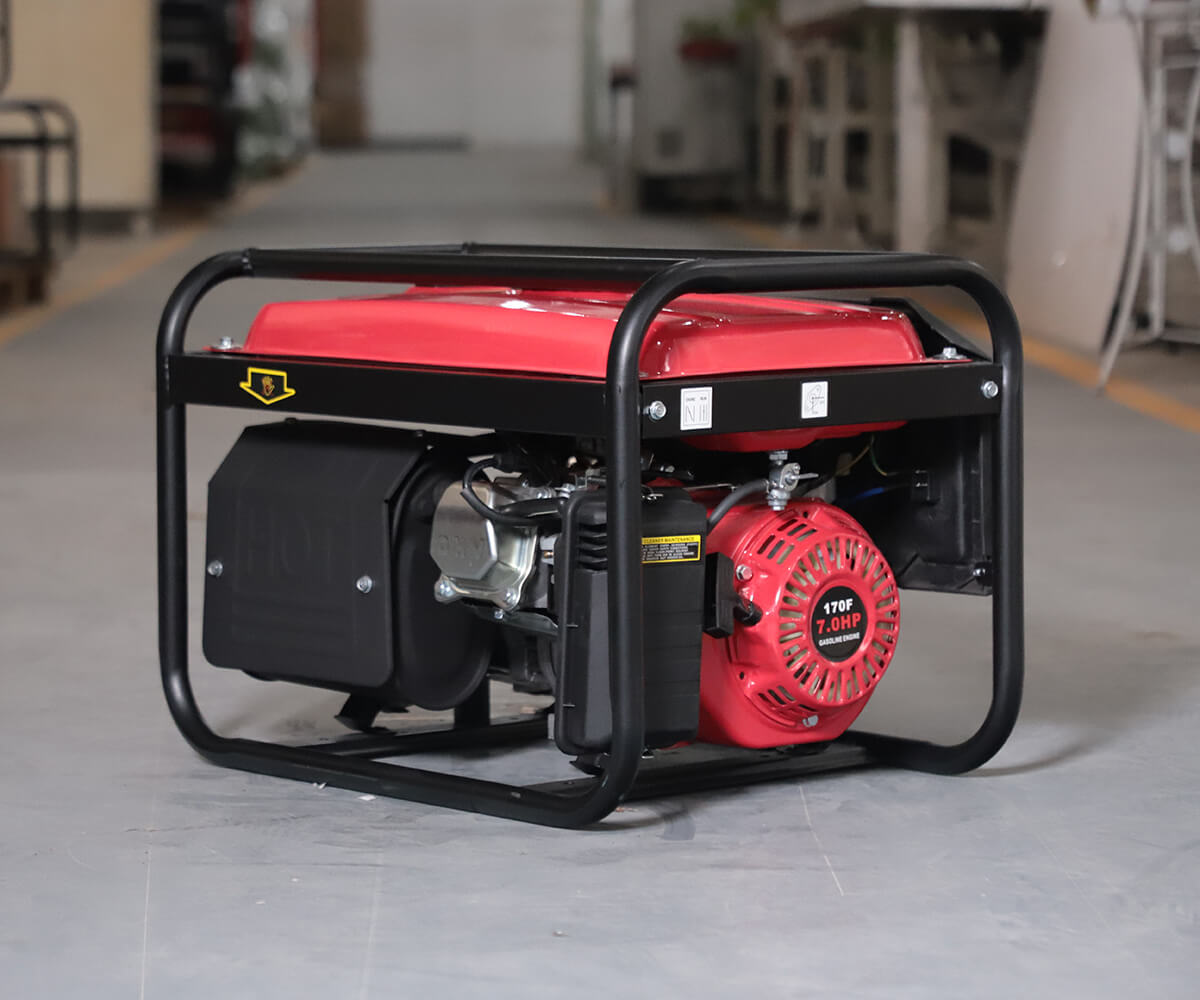

| Engine Model | BS170F-1 |
| Fuel Type | Gasoline |
| Engine Speed | 3000(50 Hz) / 3600(60 Hz) RPM |
| Bore × Stroke | 70*58mm |
| Engine Displacement | 225 cc |
| Engine/Motor Type | 1-Cylinder, Air-Cooled, 4-Stroke, Direct Injected，OHV |
| Engine Oil grade | #5W-40 |
| Fuel Capacity | 0.6L |
| Low Oil Shutdown/Alert | Yes |
| Recoil Start | Yes |
| Electric Start | Optional |
| Alternator | |
|---|---|
| Type of alternator | 100% Copper (Corrective Wave) |
| Rotor RPM | 3000 |
| Alternator Size | 160*120mm |
products description

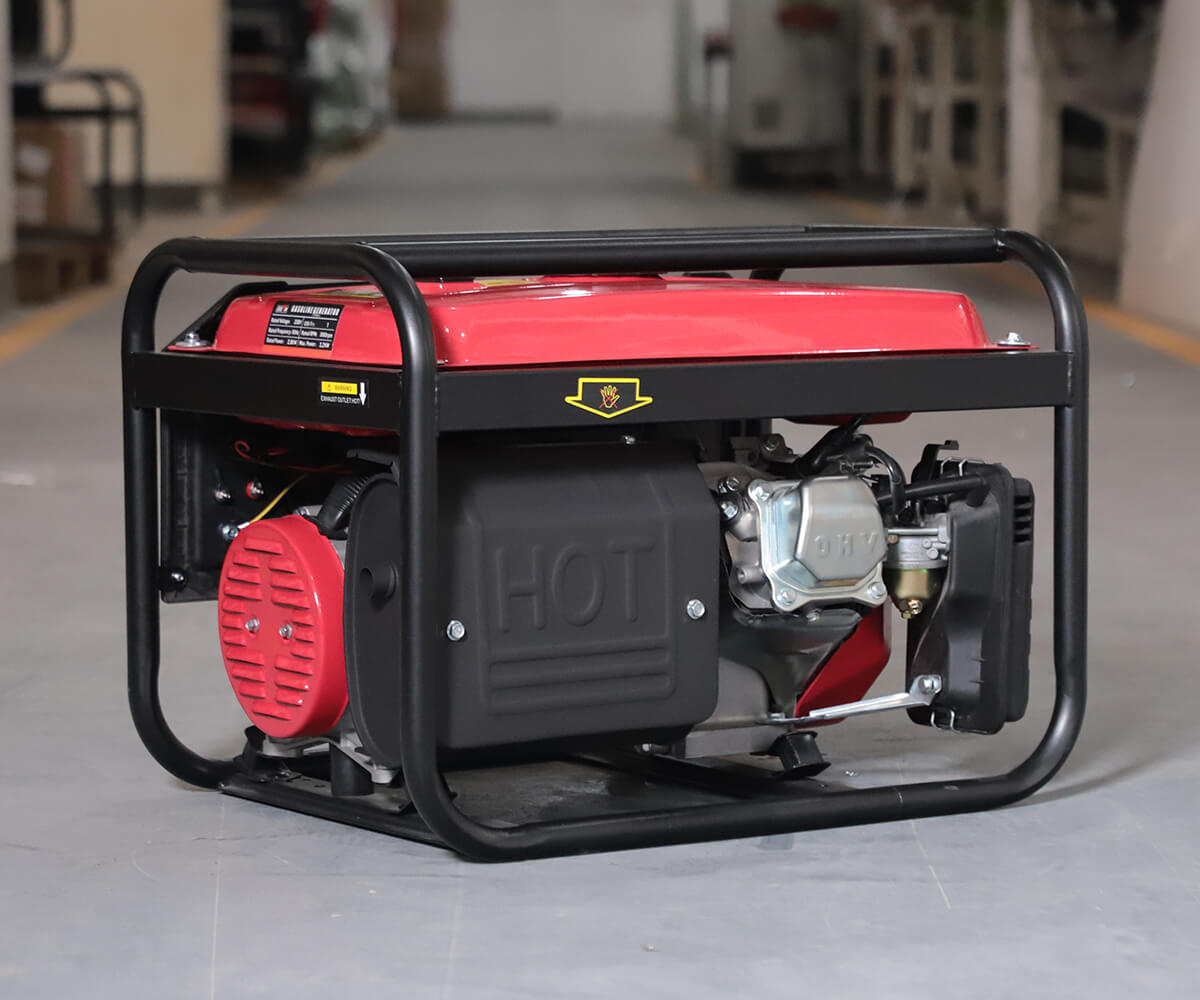

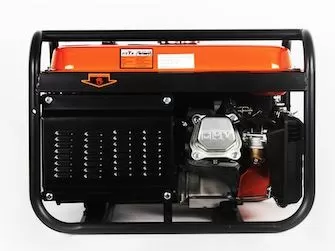

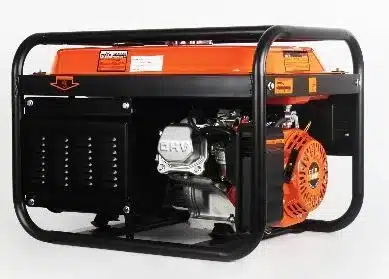

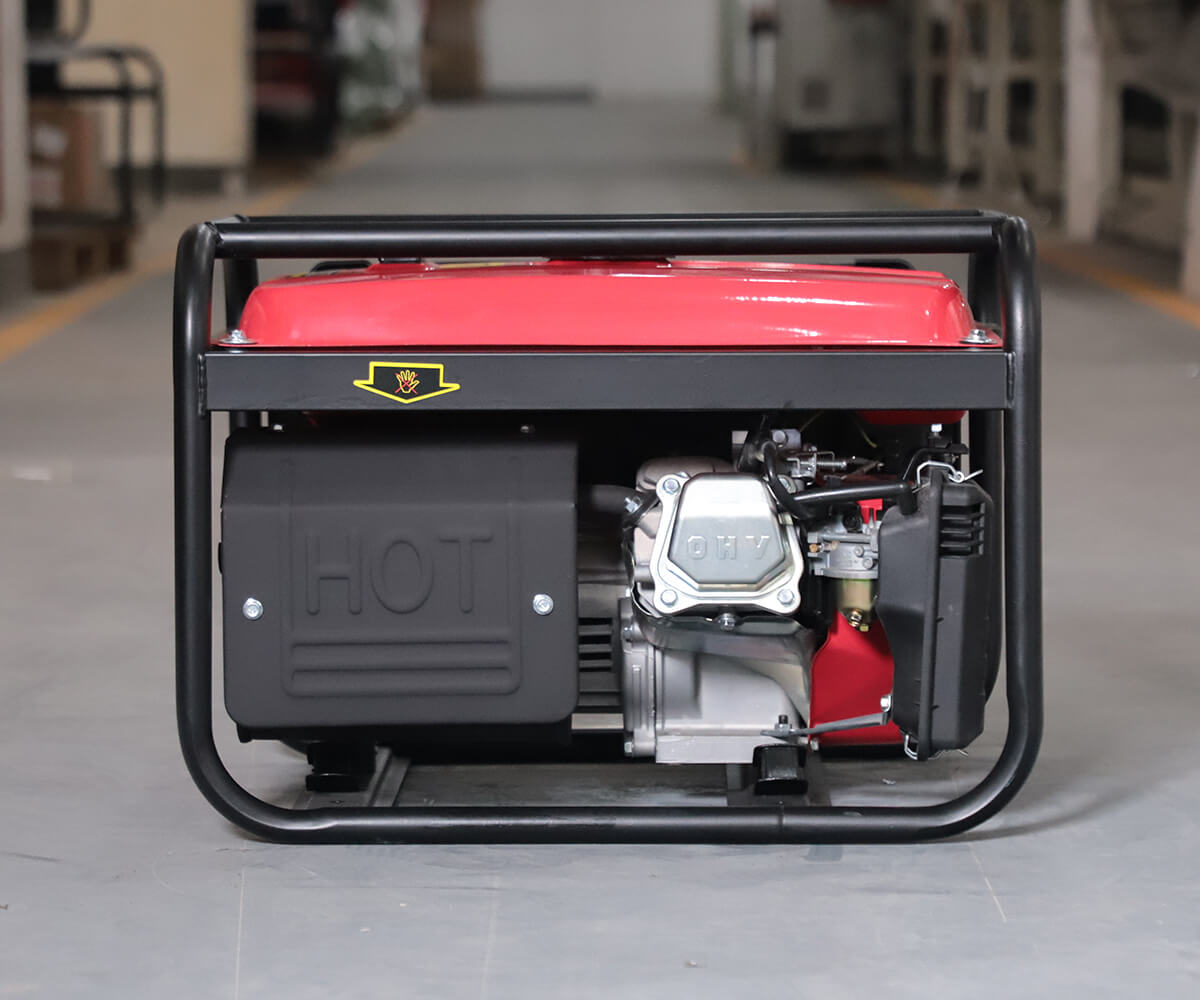

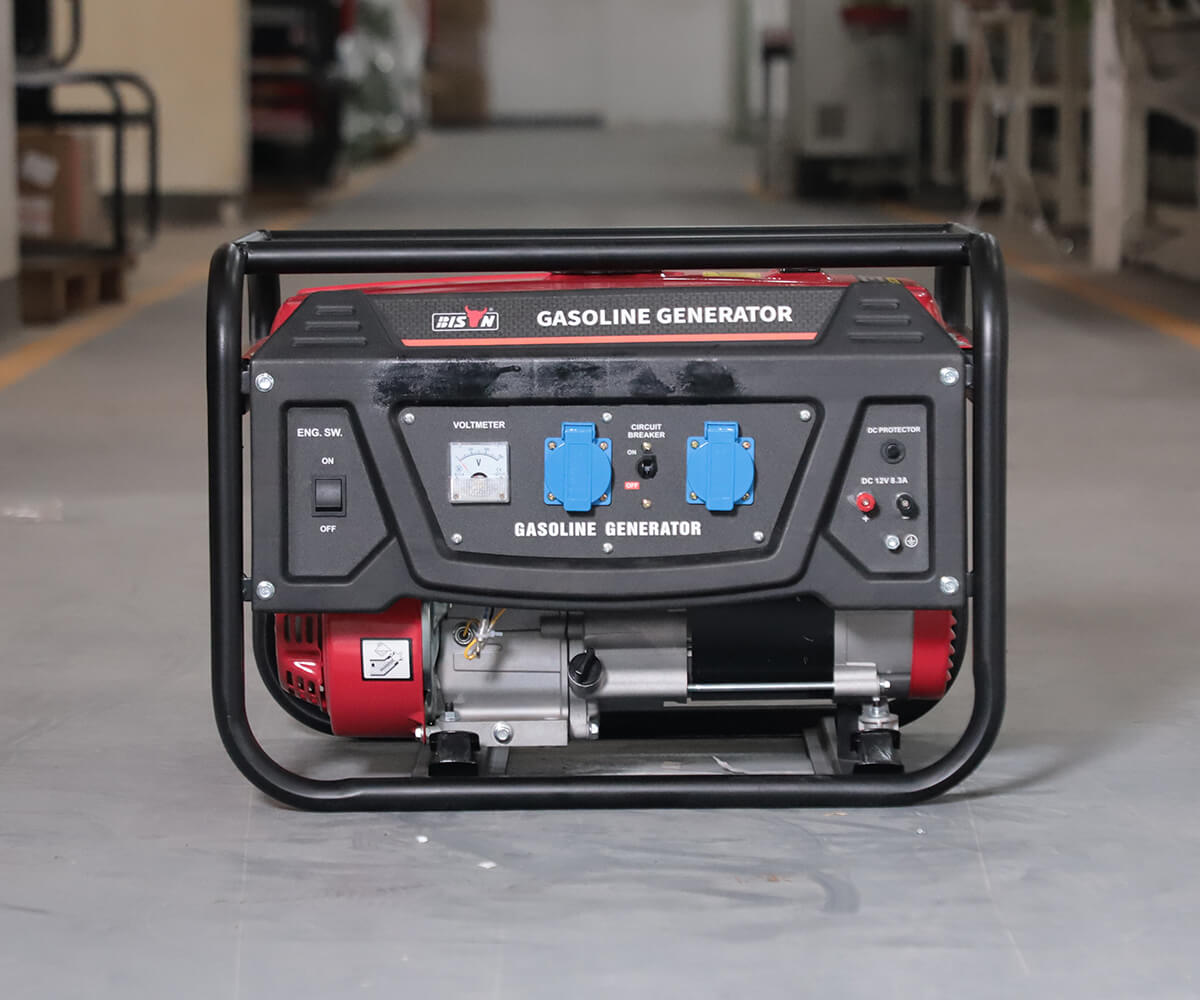

Ideal for powering various electronics and appliances in a household, this BS4000 household small mini gasoline generator will keep you running through any storm or disaster. This high-performance generator is a must-have addition to your inventory, providing reliability and power to your customers when they need it most.
Utilizing 3200 running watts, the small mini gasoline generator will produce up to 8 hours of reliable, clean power, which makes it ideal for food trucks, catering events, tailgates, construction projects, or even weather-related emergencies.
The BS4000 sports a heavy-duty metal frame and four-point fully isolated motor mounts to guarantee a long service life in practically any environment. It also comes with a wheel and handle kit for easy transport. it has a built-in, low-oil shutdown for added safety and improved maintenance. Plus, an oil funnel, a tool set, a spark plug wrench, and DC charging cables are all included to simplify setup and aid in upkeep.
The performance of BS4000 generator has been well-received by many users. One customer review wrote, “This generator has been my lifesaver. The power output is excellent and it runs very quietly. Definitely worth the investment.” Another added, “The generator is reliable and easy to use. Even after several After the power outage, I had no problems.”
A class core parts
100% all-copper motor
Offering durability and superior energy efficiency
Domestic top carburetor
high atomization level, ensuring optimal fuel efficiency and smooth engine operation.

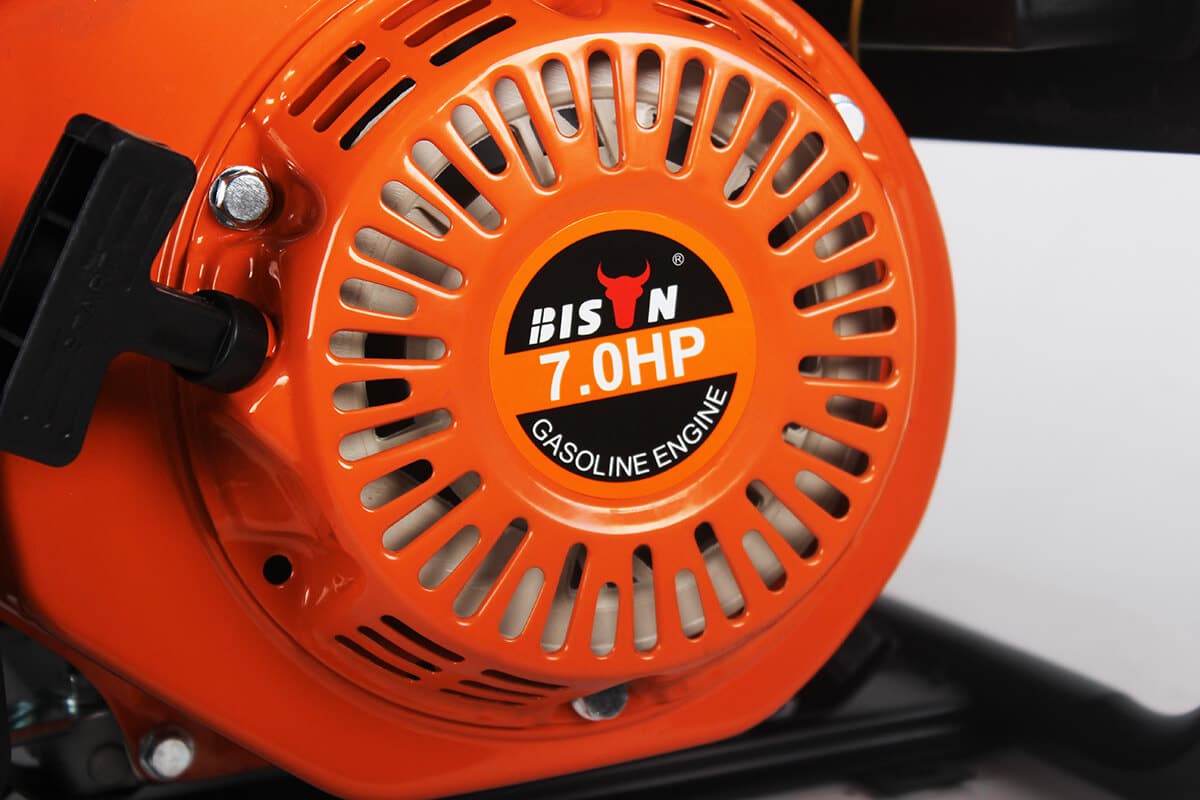

Powerful pull plate
Easy to start pull plate, guarantee more than 10,000 pulls
robust frames

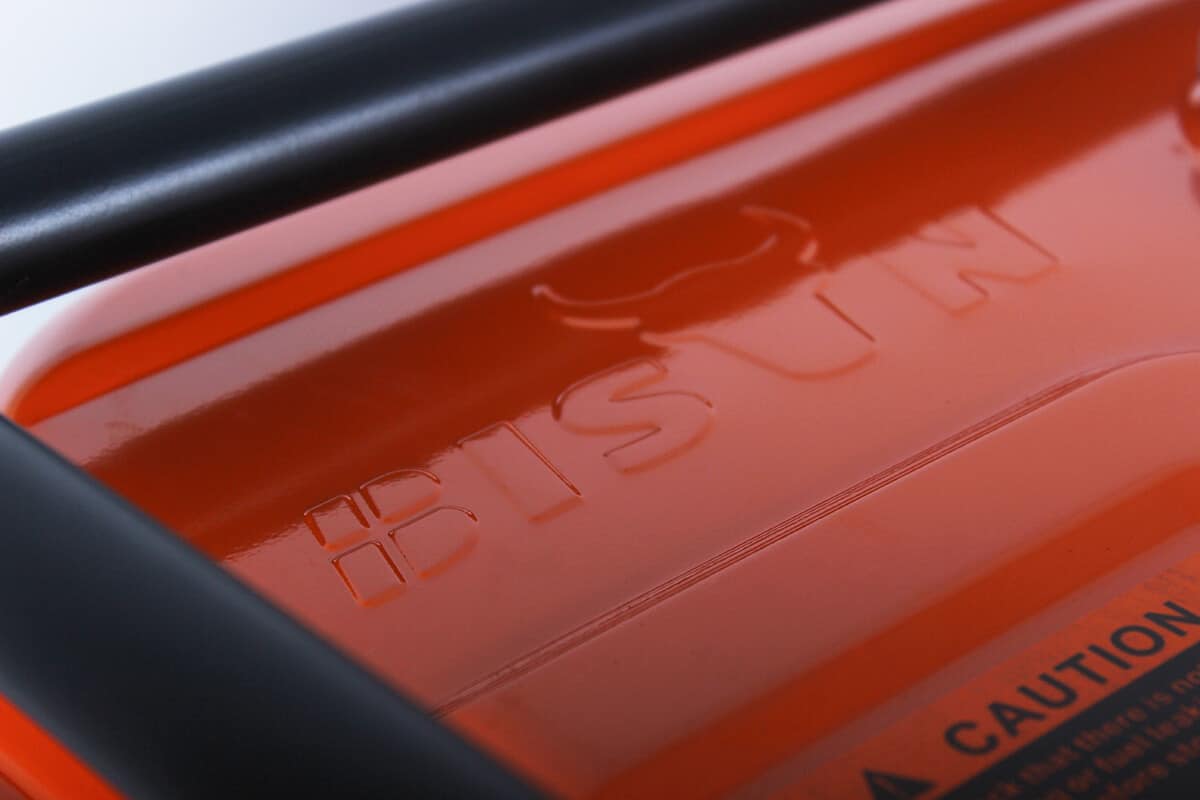

Professional welding and painting process to ensure the beauty and stability of the rack
tight quality contorl
gasoline generator household small mini assembly process
- Use special equipment to assemble, ensure the beaning, oil seal, governor gear effectively fit
- When assembling nuts for each muffler, spring pads need to be installed to ensure the fit of each component and the maximum noise reduction effect
- Use a special air gun, and use different torque standards for different parts
- Water test is required in each engine assembly to ensure the tightness of itself
- Pay attention to small details, add thread glue and spring washers to the bolts; add support feet to the motor bracket
- More than 20 debugging processes throughout the whole process to ensure that the machine 100% meets the factory requirements
gasoline generator household small mini inspection process
All the raw materials will be tested one by one by sophisticated instruments to make quality will be good. Before shipping, all the machines will be tested by a professional instrument , Let the data tell the truth.
- Water test: Ensures 100% cylinder tightness, detecting any possible leaks.
- Unit comprehensive intelligent test cabinet: Each generator undergoes a full inspection to confirm reliability and accuracy.
- Withstand voltage Tester Inspection: Every generator is fully inspected, ensuring precise electrical safety measurements.
- Strengthened laboratory standards: Our lab exceeds national sampling standards, resulting in superior product durability.
Professional technicians with 15-20 years of experience
Performance Commissioning
Machine Assembly
Artwork QA
Full Inspection
Generator Specialized Inspection
Parts assembly
Core Assembly
Power Specialized Inspection
support
Bison Group has focused on Timely after-sales service, we have English Spanish Russian language exclusive services and tracking service principles make customer know their good real production information; we have professional after-sales service, Continue to handle the product situation until the situation is resolved
Based on our excellent quality and service, our company has long-term partnerships with many famous enterprises, and the products are spreading worldwide.
Customer visiting Bison
Professional sales team
Packaging & Delivery
Packaging Details: brown strong carton, generator is protected with poly bag, wooden, 1pc / carton. Lead Time: Shipped in 25 days after payment.
