portable open-frame gasoline generator

2-stroke|2.6HP|0.6KW|110/220V
ce 1
tuv
nps
2 years warranty
epa 1
  • Open-frame design
  • Compliant 4-stroke engine
  • Automatic overload and low oil protection…
no brand30 sets
OEM standard50 sets
OEM special100 sets

BS950 Specifications

Model BS950
Maximum Power of the Generator (KW) 700 W
Rated Power of the Generator (KW) 600 W
Rated output voltage (Volt) 1 Phase
Over Load Protector (OLP) YES
Rated frequency (Hz) 50 / 60 Hz
Rated Current (Amp) 16
Power factor 1.0 (Single Phase)
Fuel Tank Capacity 3.4L
Fuel option #92, #95 Unleaded Gasoline
Socket rating 16A
Self start motor Recoil start
Fuel consumption at 100% Load 0.39kg/h
Fuel consumption at 75% Load 0.35kg/h
Fuel consumption at 50% Load 0.25kg/h
Continuous Duration of operation at Rated load (hour) 5.8
Ignition system T.C.I
Noise Level (dB) at rated load (from 4-meter distance) 58
Engine & Emission Specifications
Engine Model BSIE45
Fuel Type Gasoline
Engine Speed 3000(50 Hz) / 3600(60 Hz) RPM
Bore × Stroke /
Engine Displacement 63 cc
Engine/Motor Type 1-Cylinder, Air-Cooled, 2-Stroke, Direct Injected,OHV
Engine Oil grade #5W-40
Fuel Capacity /
Low Oil Shutdown/Alert Yes
Recoil Start Yes
Electric Start Optional
Alternator
Type of alternator 100% Copper (Corrective Wave)
Rotor RPM 3000
Alternator Size /

For the commercial, industrial and construction markets, open-frame gasoline generators are designed to provide economical and stable power, installed in a sturdy open frame, suitable for the harshest working environments.

The portable open frame generator can blow hot air directly to the outside. The open frame is usually made of a 1.5-inch square steel pipe, which can stack the generators one by one. This feature is very useful because it helps to save space.

features

  • The weight of the open-frame gasoline generator is reduced by 25%, which helps to reduce fatigue and improve portability
  • The reinforced tubular frame can effectively protect the device from any impact risk
  • The open design ensures maximum heat dissipation in a short time and prolongs the service life of open frame gasoline generator
  • There is no redundant baffle design, a simple open frame, which reduces cost and has a higher price and quality
  • The 63cc OHC four-stroke engine with 100% copper wire alternator is designed for reliability and longevity, and it should come as no surprise that it meets the mission’s standards. It boasts a powerful 650W max power output and can provide up to 4 hours of continuous operation.

Closed-Frame VS Open-Frame Generator

  • Noise level: The main difference between open-frame and closed-frame generators is noise. Closed-Frame generators will be much quieter than open generators.
  • Engine inlet: The open design allows the engine to be exposed, which makes maintenance easier. The closed frame can better protect the device from external forces such as wind and dust.
  • Price: Generally speaking, open-frame generators tend to be of lower cost.

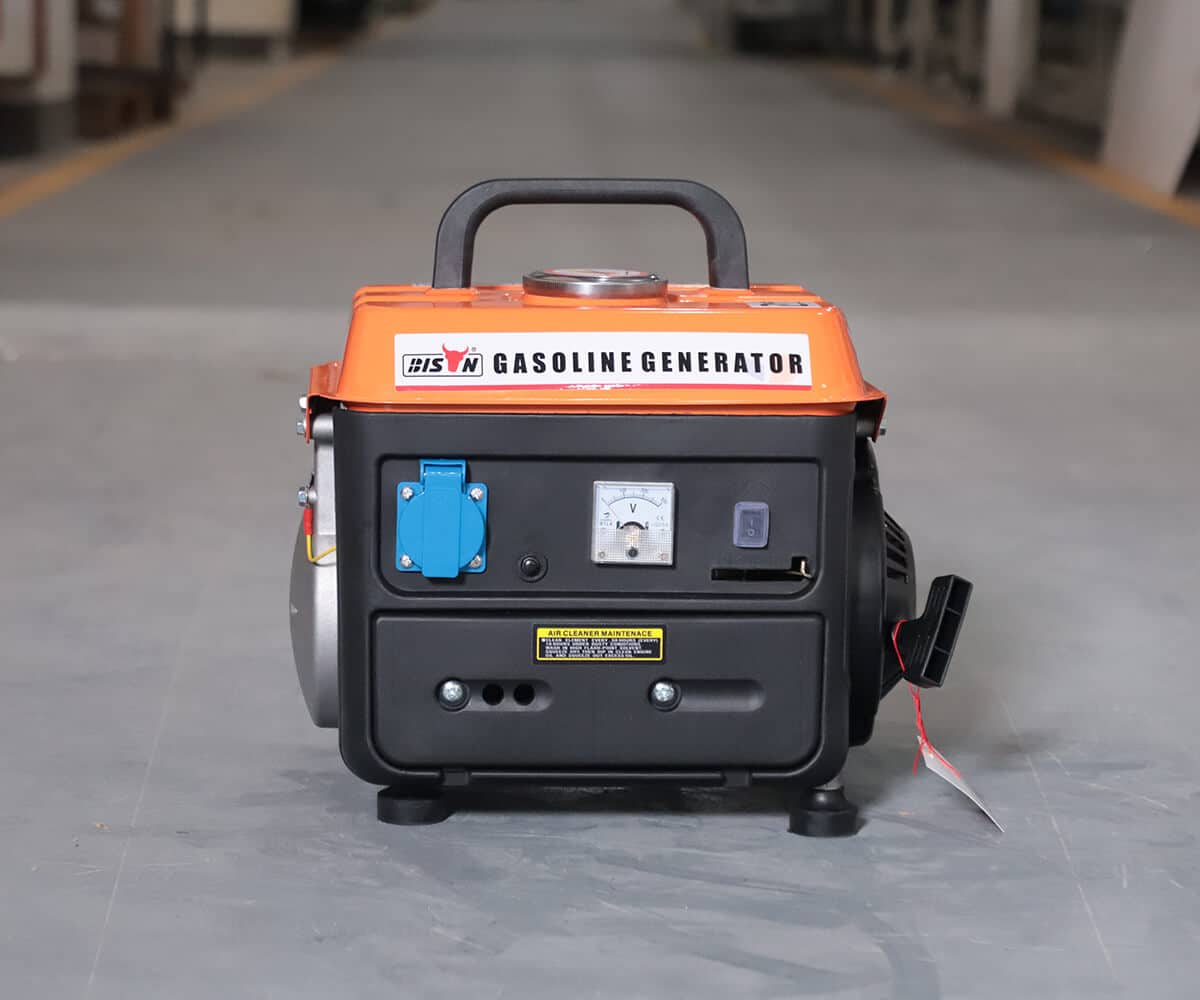

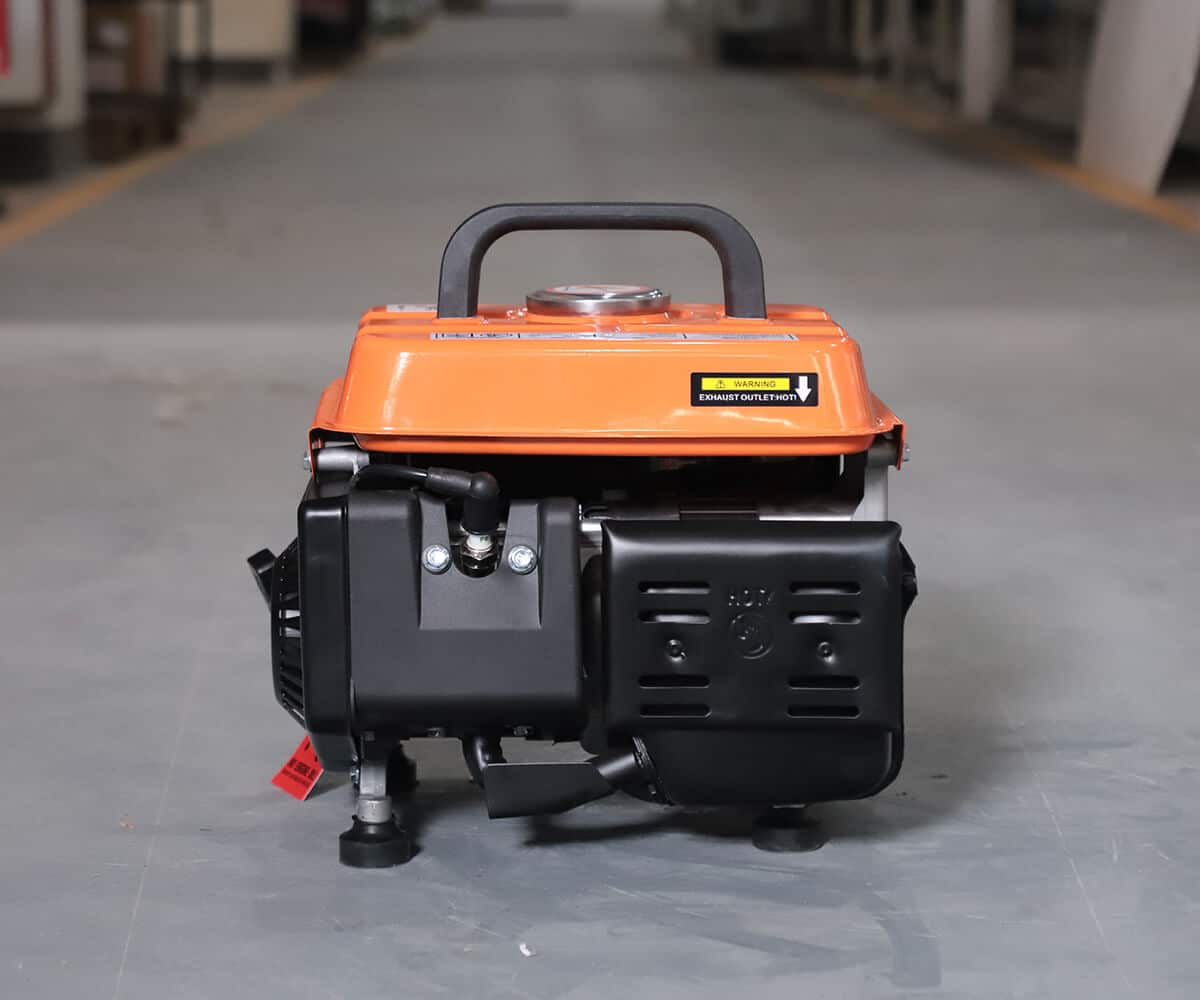

portable open frame gasoline generator details
portable open frame gasoline generator details 2
portable open frame gasoline generator details 3

A class core parts

Dive deep into the world of BISON high-quality gasoline generators, where unrivaled performance meets highest reliability.

generators all copper motor

100% all-copper motor

Offering durability and superior energy efficiency

generators carburetor

Domestic top carburetor

high atomization level, ensuring optimal fuel efficiency and smooth engine operation.

generator pull plate

Powerful pull plate

Easy to start pull plate, guarantee more than 10,000 pulls

generators frames

robust frames

Professional welding and painting process to ensure the beauty and stability of the rack

tight quality contorl

product assembly process 1

portable open-frame gasoline generator assembly process

  • Use special equipment to assemble, ensure the beaning, oil seal, governor gear effectively fit
  • When assembling nuts for each muffler, spring pads need to be installed to ensure the fit of each component and the maximum noise reduction effect
  • Use a special air gun, and use different torque standards for different parts
  • Water test is required in each engine assembly to ensure the tightness of itself
  • Pay attention to small details, add thread glue and spring washers to the bolts; add support feet to the motor bracket
  • More than 20 debugging processes throughout the whole process to ensure that the machine 100% meets the factory requirements
product inspection process

portable open-frame gasoline generator inspection process

Inspection process leaves no room for compromise, ensuring that every gasoline generator we produce is flawless.



Professional technicians with 15-20 years of experience

performance commissioning

Performance Commissioning

machine assembly

Machine Assembly

artwork qa

Artwork QA

full inspection

Full Inspection

generator specialized inspection

Generator Specialized Inspection

parts assembly

Parts assembly

core assembly

Core Assembly

power specialized inspection

Power Specialized Inspection

OEM

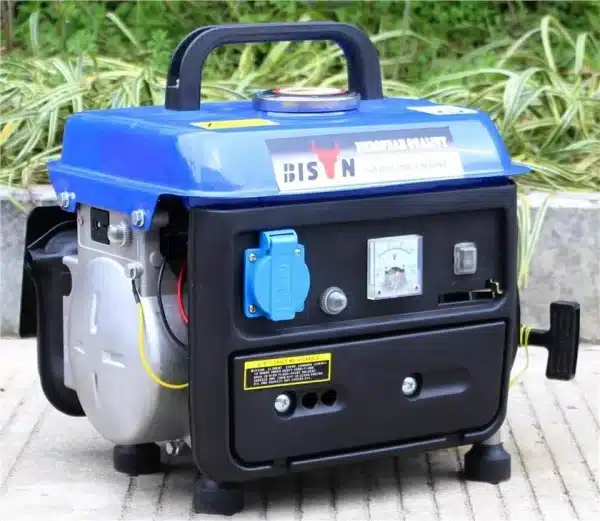

portable open frame gasoline generator33022958913

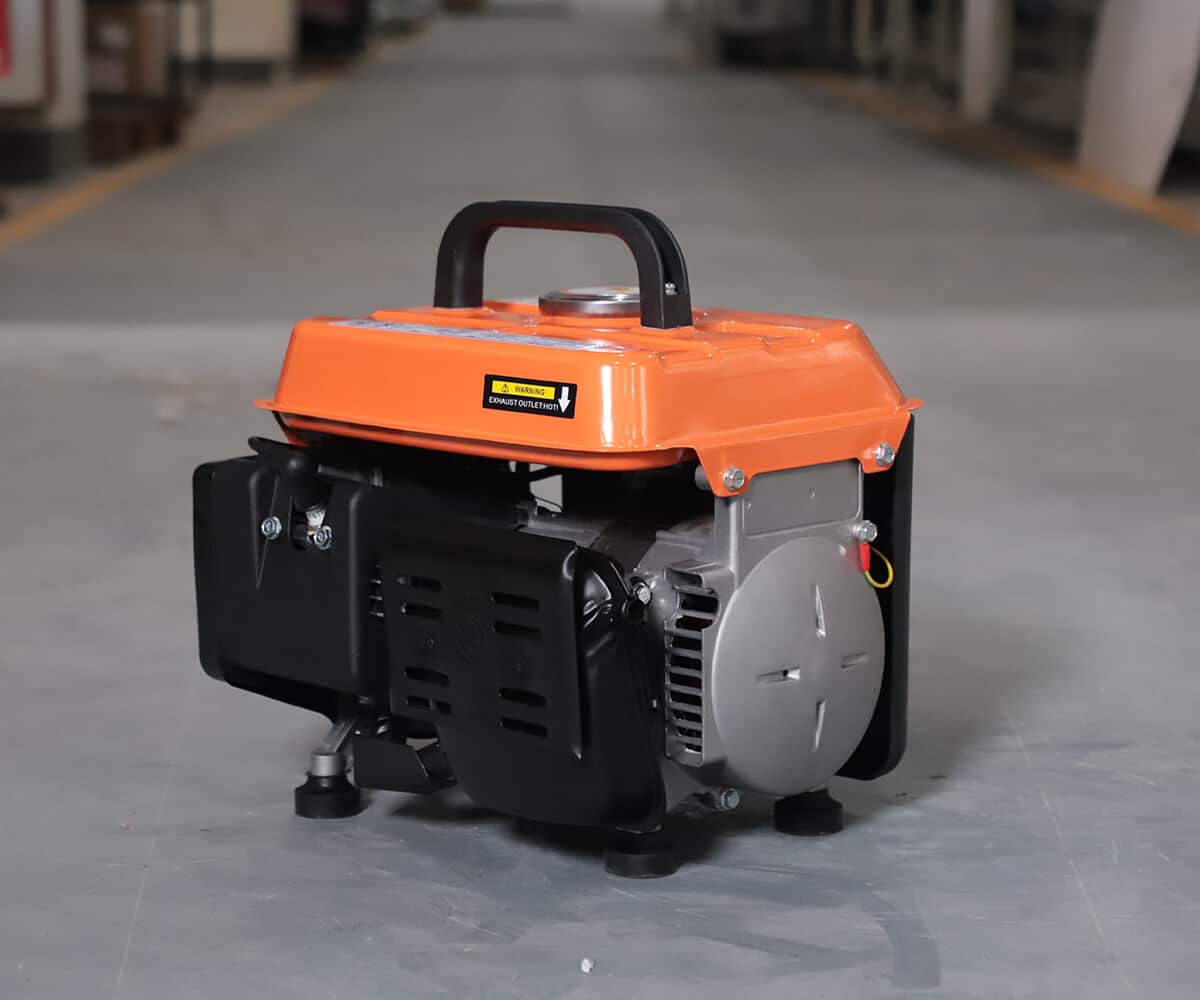

open frame gasoline generator 4

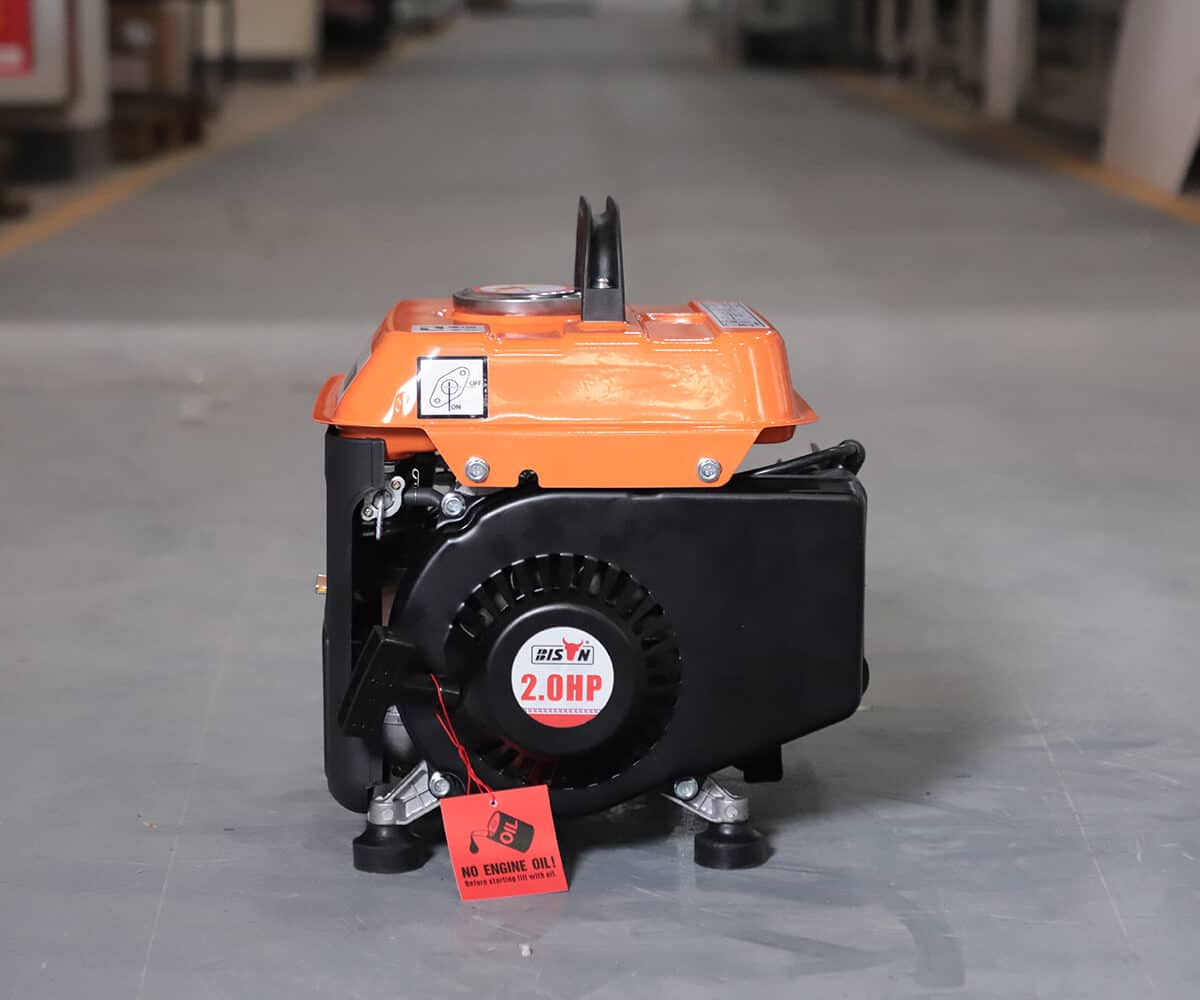

open frame gasoline generator 2
open frame gasoline generator 3

Warranty Information

discounted accessories

Discounted Accessories

24 hour online 5 minute response

24-hour online, 5-minute response

engineer on site service

Engineer on-site service

Packaging & Delivery

Packaging Details: brown strong carton, generator is protected with poly bag, wooden, 1pc / carton. Lead Time: Shipped in 25 days after payment.
