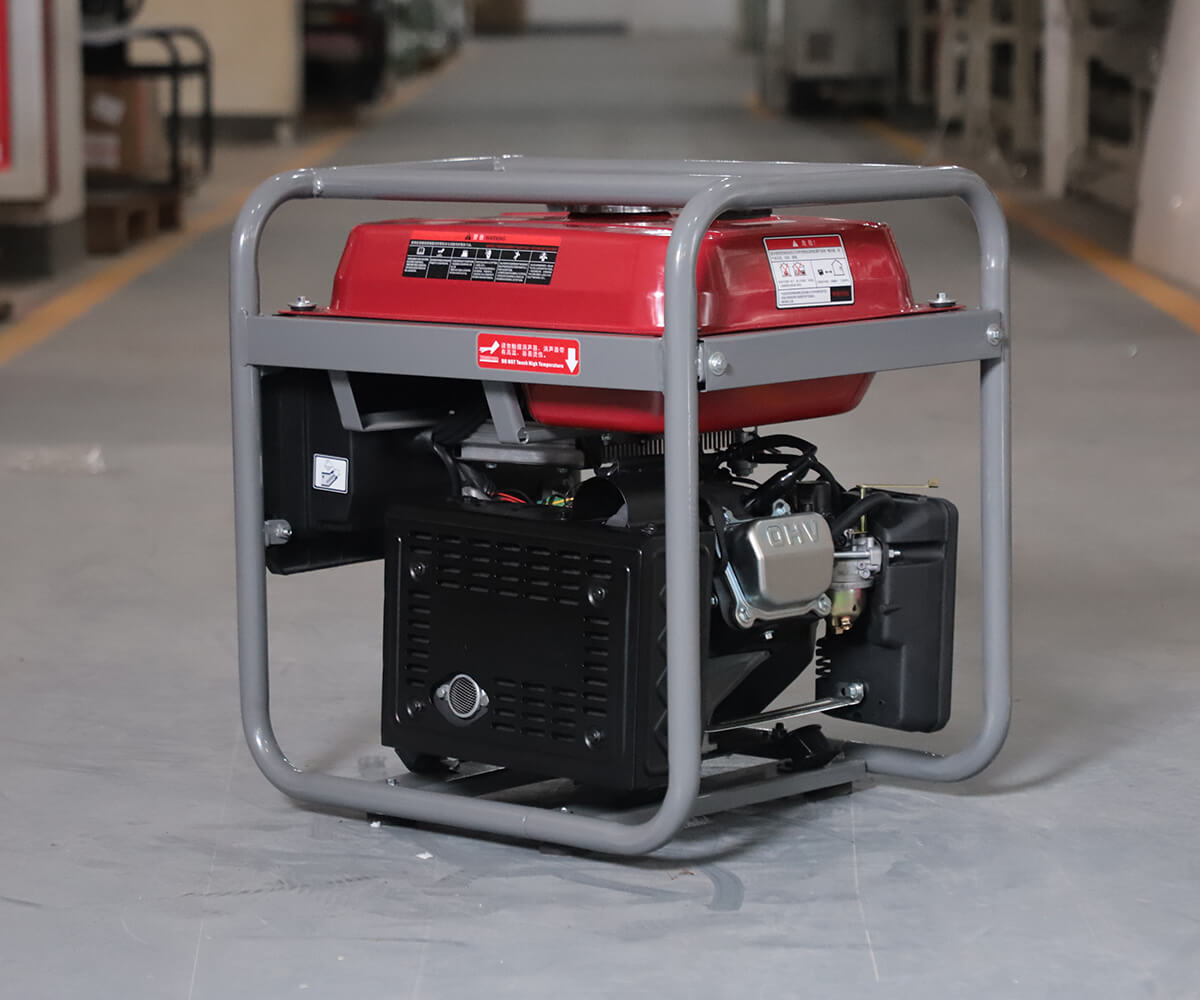

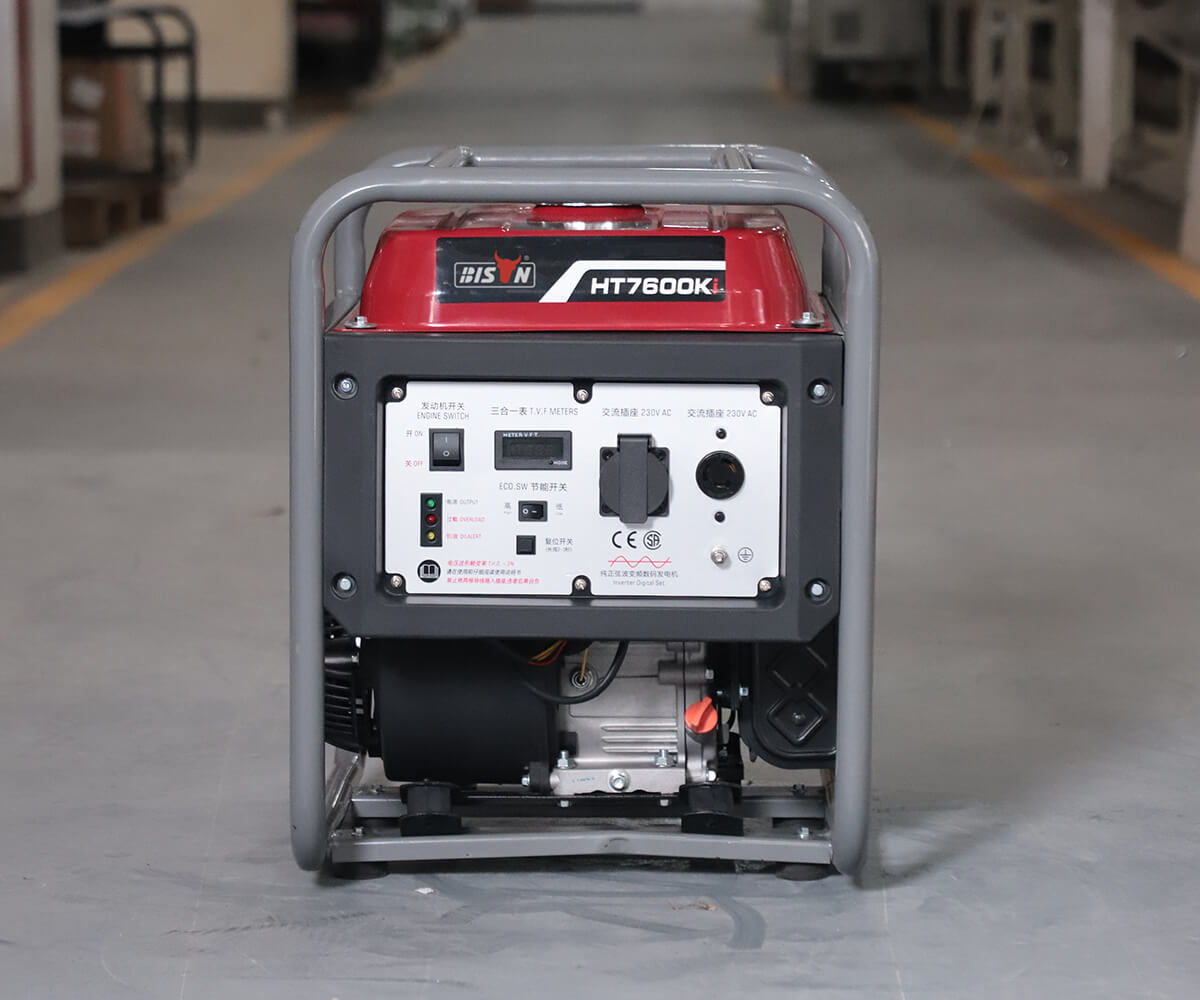

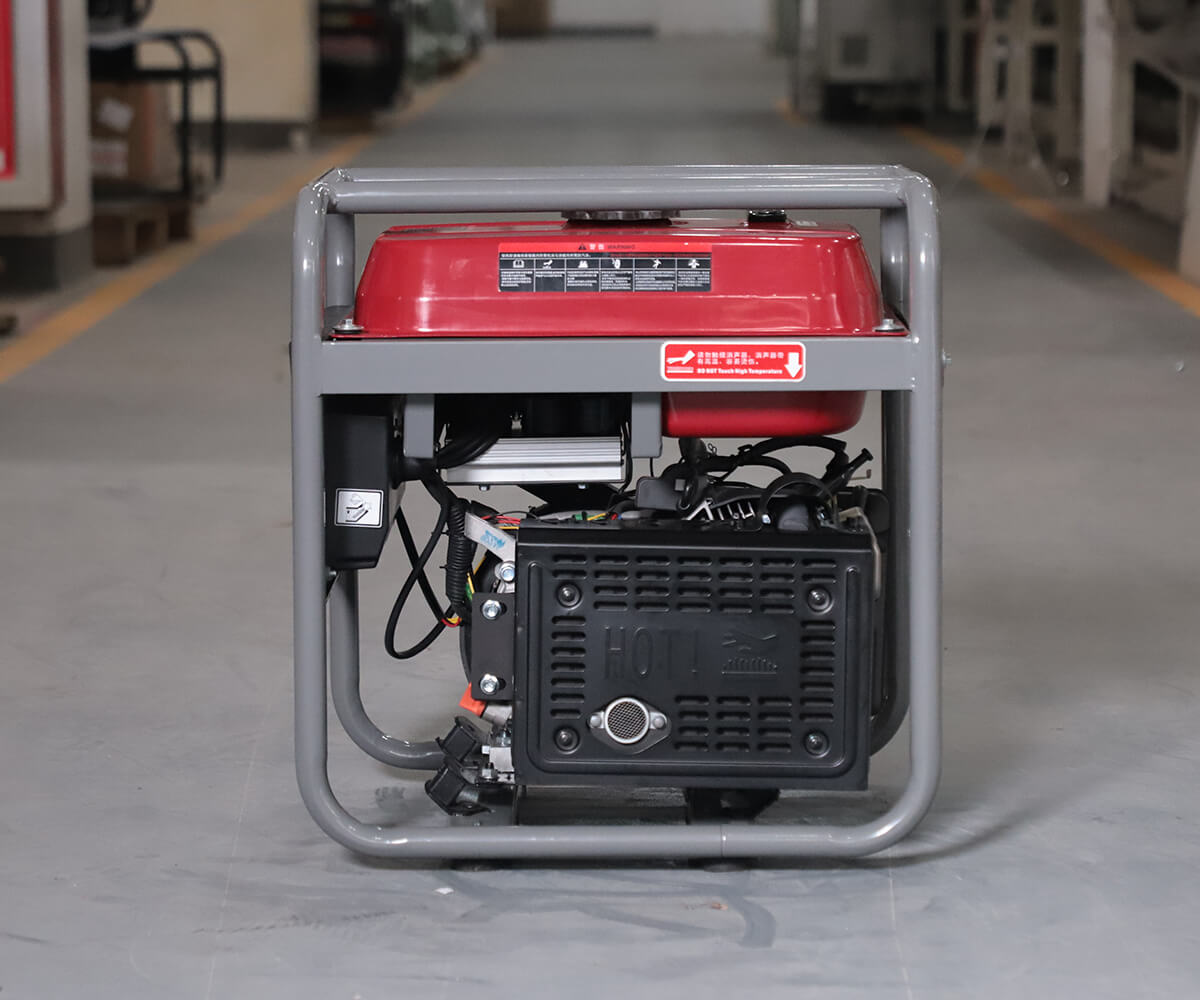

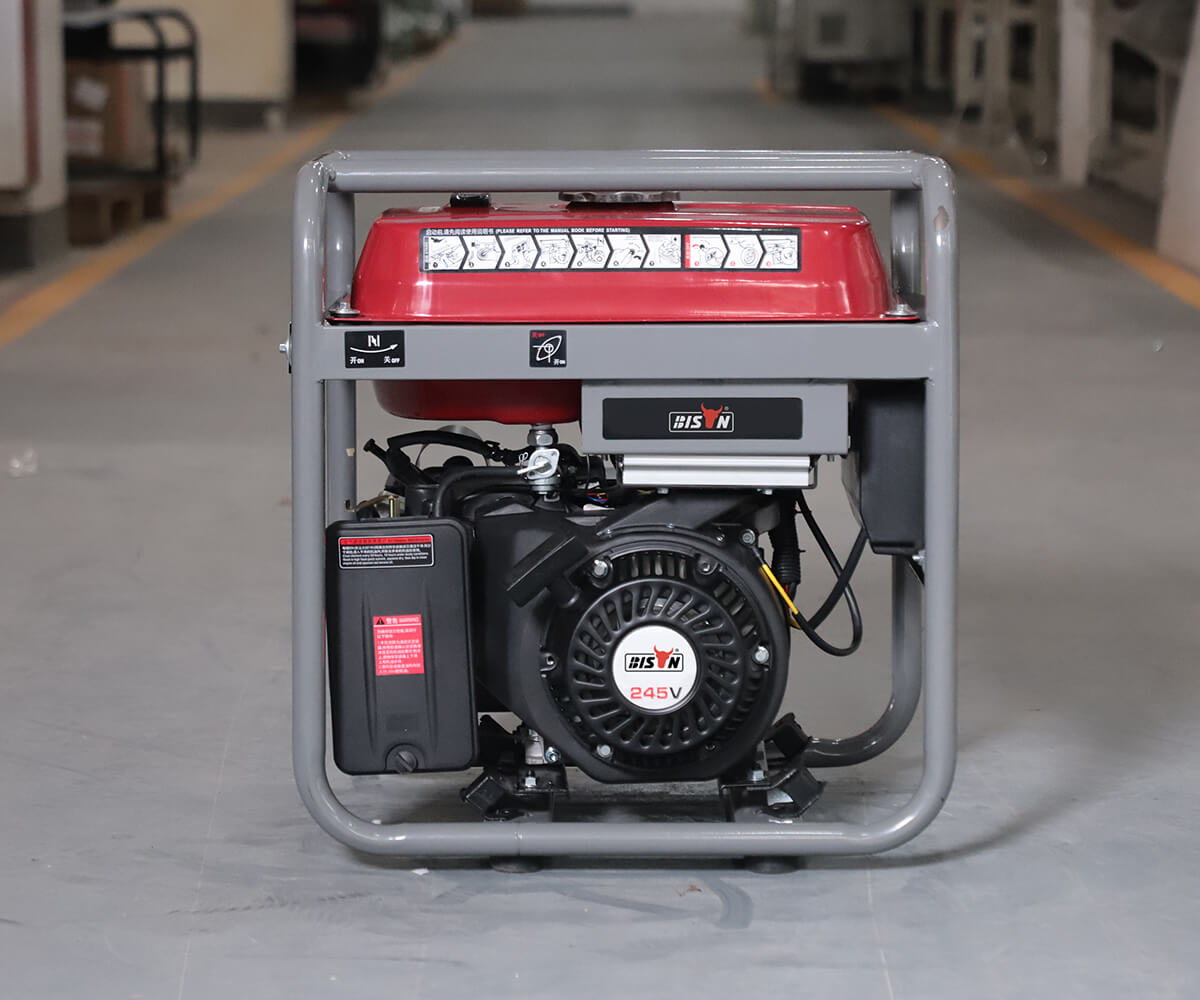

6kw emergency generator

4-stroke|420cc|6.0KW|110/220V

Electric start, press the button to start.
Using advanced noise reduction technology, noise level at rated load (distance 4 meters) 95db.
6kW is used in emergency generators with moderate power and wide application range.
Simple structure and easy maintenance.

no brand	30 sets
OEM standard	50 sets
OEM special	100 sets

BS7500 Specifications

Model	BS7500
Maximum Power of the Generator (KW)	6500 W
Rated Power of the Generator (KW)	6000W
Rated output voltage (Volt)	1 Phase / 3 Phases (Optional)
Over Load Protector (OLP)	YES
Rated frequency (Hz)	50 / 60 Hz
Rated Current (Amp)	Depends On Your Socket And Generator Power
Power factor	1.0 (Single Phase) / 0.8 (Three Phases)
Fuel Tank Capacity	25L
Fuel option	#92, #95 Unleaded Gasoline
Socket rating	16A/32A
Self start motor	Recoil start/Electric start
Fuel consumption at 100% Load	3.1kg/h
Fuel consumption at 75% Load	2.9kg/h
Fuel consumption at 50% Load	2.7kg/h
Continuous Duration of operation at Rated load (hour)	5.5
Ignition system	T.C.I
Noise Level (dB) at rated load (from 4-meter distance)	95

Engine & Emission Specifications
Engine Model	BS190F
Fuel Type	Gasoline
Engine Speed	3000(50 Hz) / 3600(60 Hz) RPM
Bore × Stroke	90*66mm
Engine Displacement	420cc
Engine/Motor Type	1-Cylinder, Air-Cooled, 4-Stroke, Direct Injected，OHV
Engine Oil grade	#5W-40
Fuel Capacity	1.1L
Low Oil Shutdown/Alert	Yes
Recoil Start	Yes
Electric Start	Optional

Alternator
Type of alternator	100% Copper (Corrective Wave)
Rotor RPM	3000
Alternator Size	190*150mm

BISON 6kw emergency generator: Power protection for home and business, your sales guaranteed!

Picture this: You’re at home or at work, and suddenly… it’s dark. out of battery! But wait! The refrigerator starts humming, the lights flicker, and the power is restored – all thanks to the foresight of the BISON generator!

Application scenarios

6000w generators can be widely used in homes, businesses, construction sites, hospitals, schools and other places as backup power sources. It can power the following devices:

Household appliances: refrigerators, lighting, computers, TVs, air conditioners, etc.
Office equipment: computers, printers, copiers, fax machines, etc.
Construction site equipment: electric drills, electric saws, electric welders, etc.
Medical equipment: ventilators, monitors, operating lights, etc.
Teaching equipment: computers, projectors, speakers, etc.

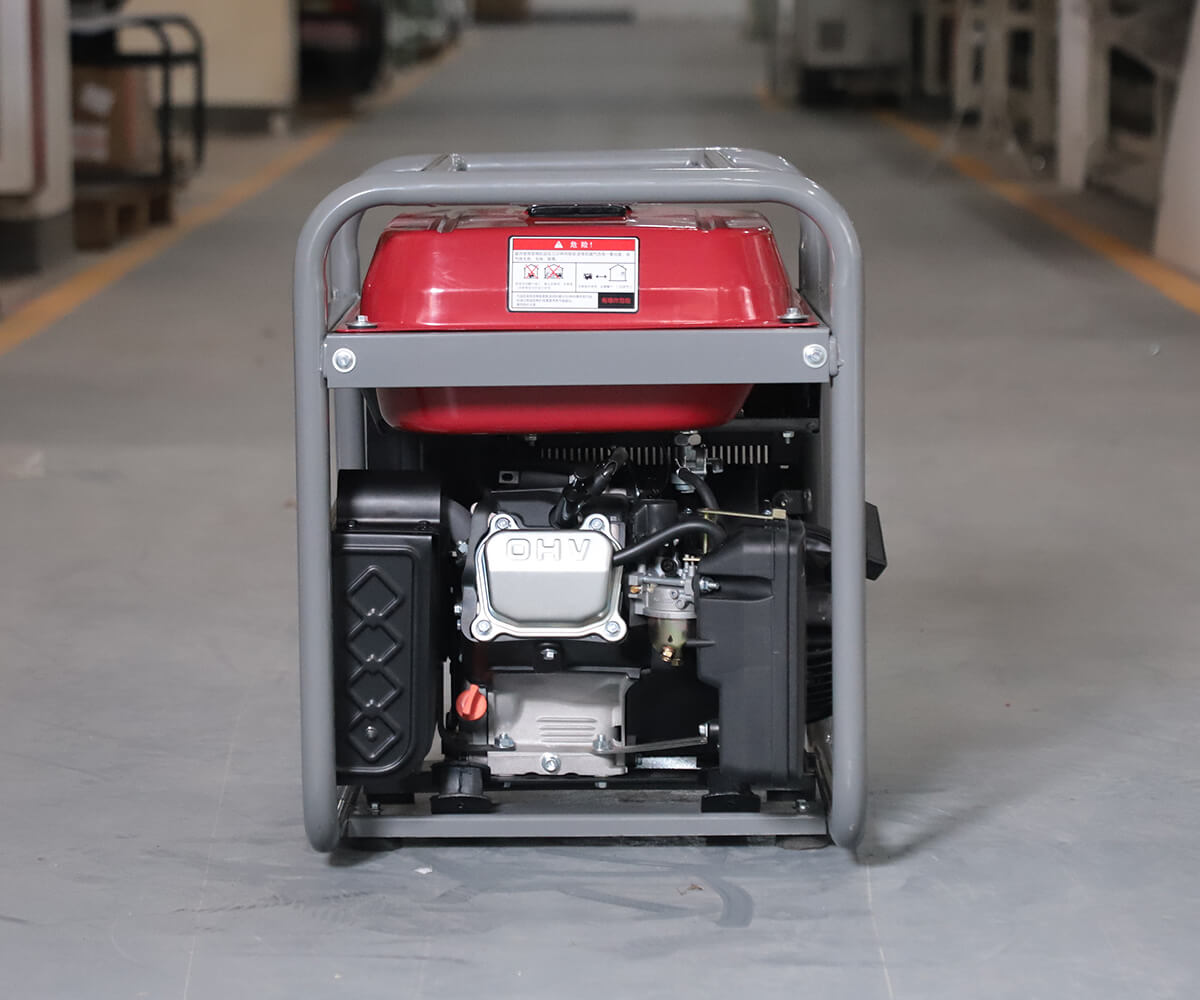

The emergency generator uses a single-cylinder air-cooled four-stroke direct-injection OHV engine, which has stable operating capabilities.

BISON BS7500 is your power protection expert and your sales trump card. Choosing BISON means choosing peace of mind!

A class core parts

100% all-copper motor

Offering durability and superior energy efficiency

Domestic top carburetor

high atomization level, ensuring optimal fuel efficiency and smooth engine operation.

Powerful pull plate

Easy to start pull plate, guarantee more than 10,000 pulls

robust frames

Professional welding and painting process to ensure the beauty and stability of the rack

tight quality contorl

6kw emergency generator assembly process

Use special equipment to assemble, ensure the beaning, oil seal, governor gear effectively fit
When assembling nuts for each muffler, spring pads need to be installed to ensure the fit of each component and the maximum noise reduction effect
Use a special air gun, and use different torque standards for different parts
Water test is required in each engine assembly to ensure the tightness of itself
Pay attention to small details, add thread glue and spring washers to the bolts; add support feet to the motor bracket
More than 20 debugging processes throughout the whole process to ensure that the machine 100% meets the factory requirements
