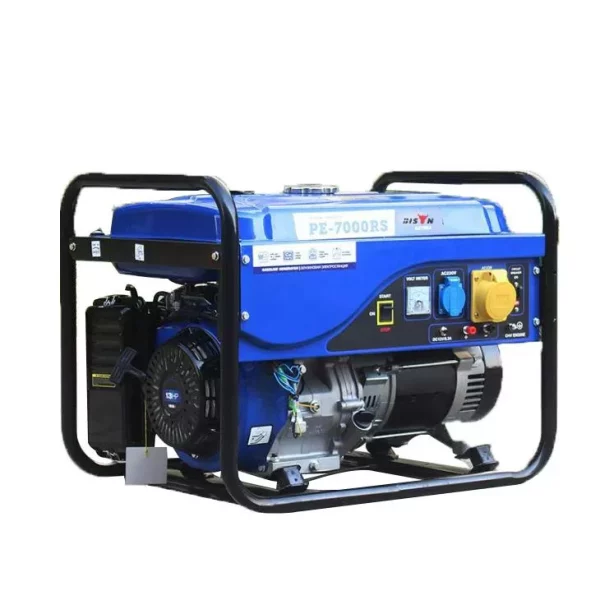

5000 watt electric start generator
- Oil alarm, automatically cut off the engine when the oil is low
- Circuit breaker, overload automatic power off
- The new air filter is designed to prevent leakage of waste oil
- Muffler with spark eliminator to reduce noise and be more environmentally friendly
- Sturdy fuel tank, original design
- AVR automatic voltage regulator, stable output voltage
Fully enclosed control panel, unique and beautiful design, waterproof and dustproof - Portable 5000 watt generator, compact and safe design, rugged and easy to operate
| no brand | 30 sets |
| OEM standard | 50 sets |
| OEM special | 100 sets |
BS6500 Specifications
| Model | BS6500 |
|---|---|
| Maximum Power of the Generator (KW) | 5500 W |
| Rated Power of the Generator (KW) | 5000W |
| Rated output voltage (Volt) | 1 Phase / 3 Phases (Optional) |
| Over Load Protector (OLP) | YES |
| Rated frequency (Hz) | 50 / 60 Hz |
| Rated Current (Amp) | Depends On Your Socket And Generator Power |
| Power factor | 1.0 (Single Phase) / 0.8 (Three Phases) |
| Fuel Tank Capacity | 25L |
| Fuel option | #92, #95 Unleaded Gasoline |
| Socket rating | 16A/32A |
| Self start motor | Recoil start/Electric start |
| Fuel consumption at 100% Load | 3.0kg/h |
| Fuel consumption at 75% Load | 2.8kg/h |
| Fuel consumption at 50% Load | 2.6kg/h |
| Continuous Duration of operation at Rated load (hour) | 6 |
| Ignition system | T.C.I |
| Noise Level (dB) at rated load (from 4-meter distance) | 95 |
| Engine & Emission Specifications | |
|---|---|
| Engine Model | BS190F |
| Fuel Type | Gasoline |
| Engine Speed | 3000(50 Hz) / 3600(60 Hz) RPM |
| Bore × Stroke | 90*66mm |
| Engine Displacement | 420cc |
| Engine/Motor Type | 1-Cylinder, Air-Cooled, 4-Stroke, Direct Injected，OHV |
| Engine Oil grade | #5W-40 |
| Fuel Capacity | 1.1L |
| Low Oil Shutdown/Alert | Yes |
| Recoil Start | Yes |
| Electric Start | Optional |
| Alternator | |
|---|---|
| Type of alternator | 100% Copper (Corrective Wave) |
| Rotor RPM | 3000 |
| Alternator Size | 190*140mm |
products description
Introducing our 5000 watt electric start generator – a blend of power, convenience, and reliability. This product is designed to meet the most demanding power needs, making it an outstanding choice for you to offer your customers.

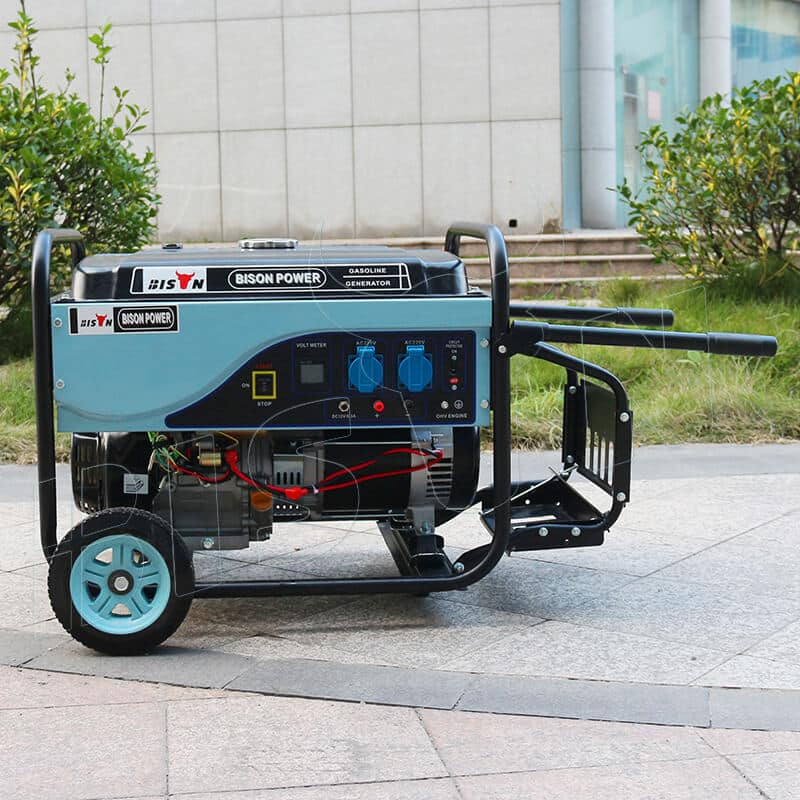

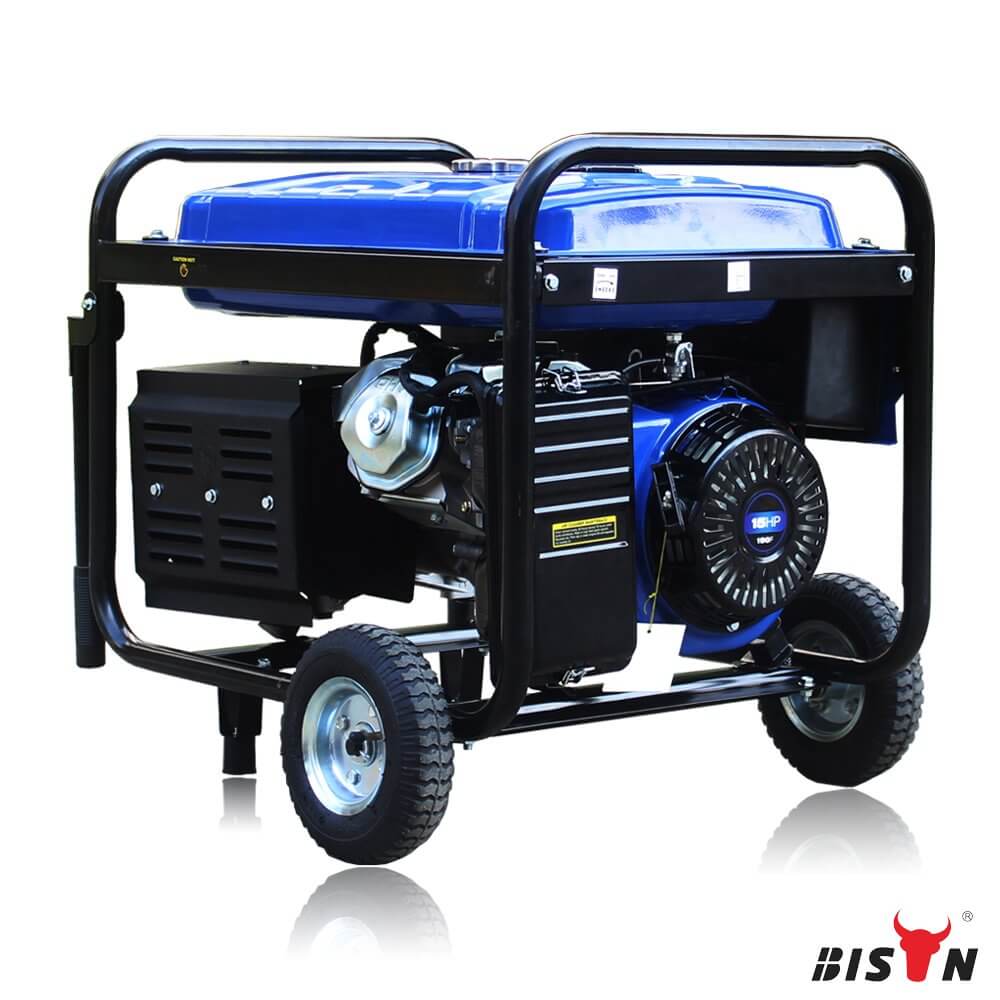

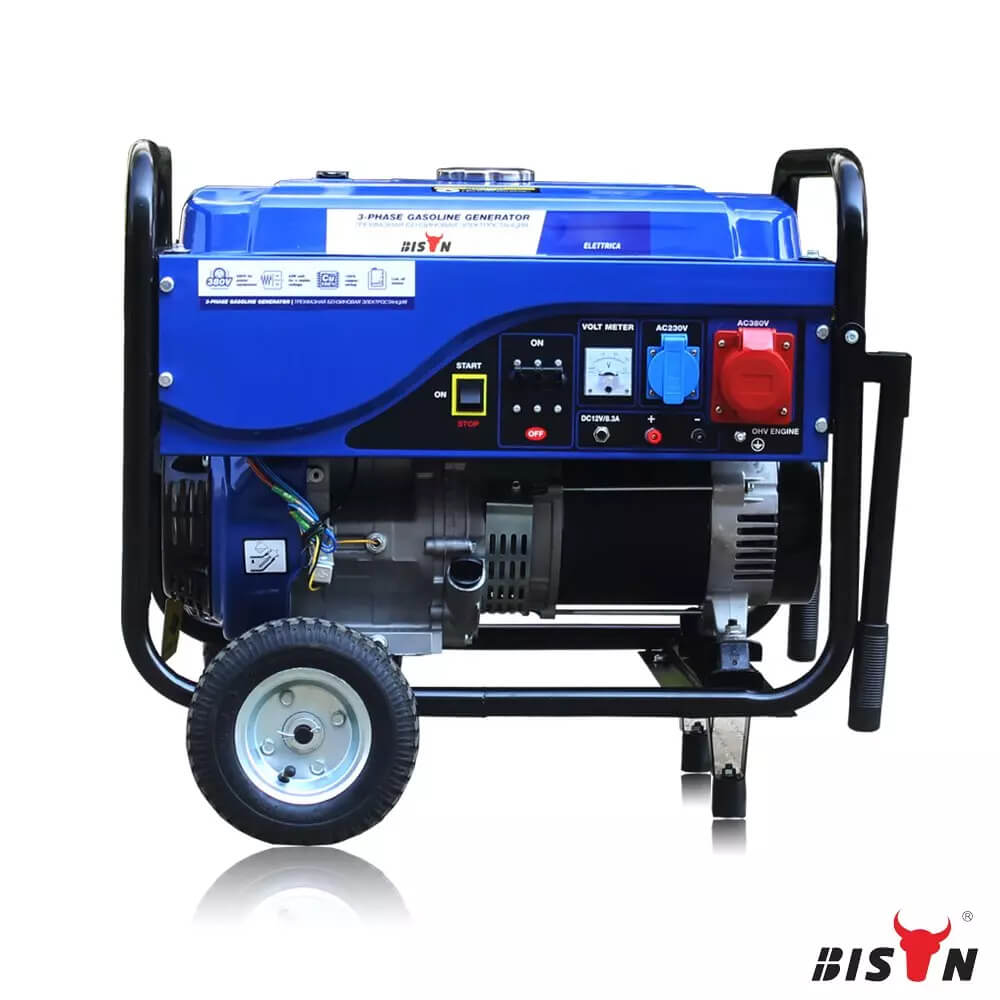

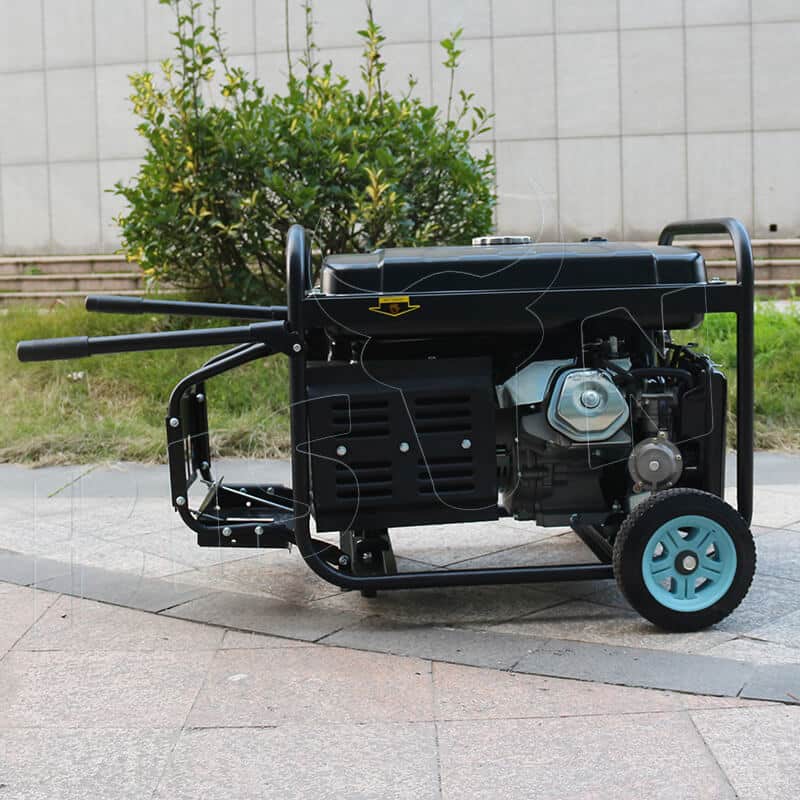

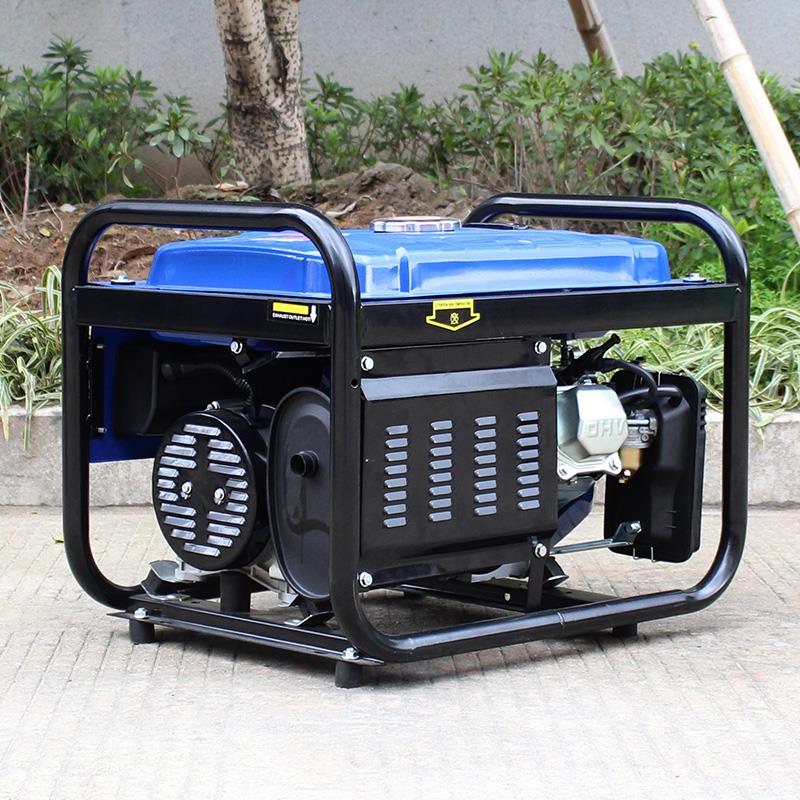

5000-watt generator is portable with two rolling wheels and a frame structure, which is support for overall protection. The control panel is well designed and very practical. With it, you can easily to operate the machine and check whether each mechanical indicator is correct.
Key features
- Forget the hassle of pull-starts: BS6500 features a user-friendly design that simplifies operation. Our electric start option ensures quick and reliable start-up at the push of a button, saving you time and effort.
- Fuel efficiency: Pure copper motor leads to low power consumption and low fuel consumption and can provide power for a long time without frequent refueling.
engine type: gasoline engine designed for stable high power operation. Unlike many of our competitors, our engine ensures a steady supply of power without overheating.
noise level: Our 5000-watt generator operates with minimal noise. The base is equipped with a cushion to reduce vibration.
durability and reliability: We utilize a rigorous manufacturing process that meets international standards. This ensures you get the highest quality and safety products. The streamlined gasoline panel is waterproof and equipped with an alloy steel frame structure, making it suitable for use in harsh conditions in the field.
Our generator delivers a robust 5000 watts of power, capable of running multiple appliances simultaneously. It can handle heavy loads from lights, refrigerators, home conditioners, and high amperage power tools. The 5000 watt electric start generator has already passed CE, ISO certification that it is of premium quality. For more information or to place an order, please contact us today. Experience the difference that a superior generator can make in your product line-up.
A class core parts
Dive deep into the world of BISON high-quality gasoline generators, where unrivaled performance meets highest reliability.
100% all-copper motor
Offering durability and superior energy efficiency
Domestic top carburetor
high atomization level, ensuring optimal fuel efficiency and smooth engine operation.
Powerful pull plate
Easy to start pull plate, guarantee more than 10,000 pulls
robust frames
Professional welding and painting process to ensure the beauty and stability of the rack
tight quality contorl
5000 watt electric start generator assembly process
- Use special equipment to assemble, ensure the beaning, oil seal, governor gear effectively fit
- When assembling nuts for each muffler, spring pads need to be installed to ensure the fit of each component and the maximum noise reduction effect
- Use a special air gun, and use different torque standards for different parts
- Water test is required in each engine assembly to ensure the tightness of itself
- Pay attention to small details, add thread glue and spring washers to the bolts; add support feet to the motor bracket
- More than 20 debugging processes throughout the whole process to ensure that the machine 100% meets the factory requirements
5000 watt electric start generator inspection process
Inspection process leaves no room for compromise, ensuring that every gasoline generator we produce is flawless.
- Water Test: Ensures 100% cylinder tightness, detecting any possible leaks.
- Unit Comprehensive Intelligent Test Cabinet: Each generator undergoes a full inspection to confirm reliability and accuracy.
- Withstand Voltage Tester Inspection: Every generator is fully inspected, ensuring precise electrical safety measurements.
- Strengthened Laboratory Standards: Our lab exceeds national sampling standards, resulting in superior product durability.
Professional technicians with 15-20 years of experience
Performance Commissioning
Machine Assembly
Artwork QA
Full Inspection
Generator Specialized Inspection
Parts assembly
Core Assembly
Power Specialized Inspection
support
24 hours after sales team
The staff of the maintenance service department must continuously learn, improve and improve their own technical level, provide services for customers, and strictly follow the relevant company system and code of conduct to ensure that they are “friendly, enthusiastic and responsive”We will offer the technical support through phone call,internet if customer require.
Guarantee of batch defectives
If customers receive the order and find there are batch of defectives,we would be corrected quickly and the customer will never incur any extra cost.
Packaging & Delivery
Packaging Details: brown strong carton, generator is protected with poly bag, wooden, 1pc / carton. Lead Time: Shipped in 25 days after payment.
OEM option
At BISON, we offer a wide range of customization options to ensure your generator meets your specific needs and preferences. From incorporating wheel kits for enhanced mobility, switching between single-phase and three-phase power depending on your usage requirements, to multiple color options for aesthetic consistency with your brand or surroundings, we’ve got you covered demand.
