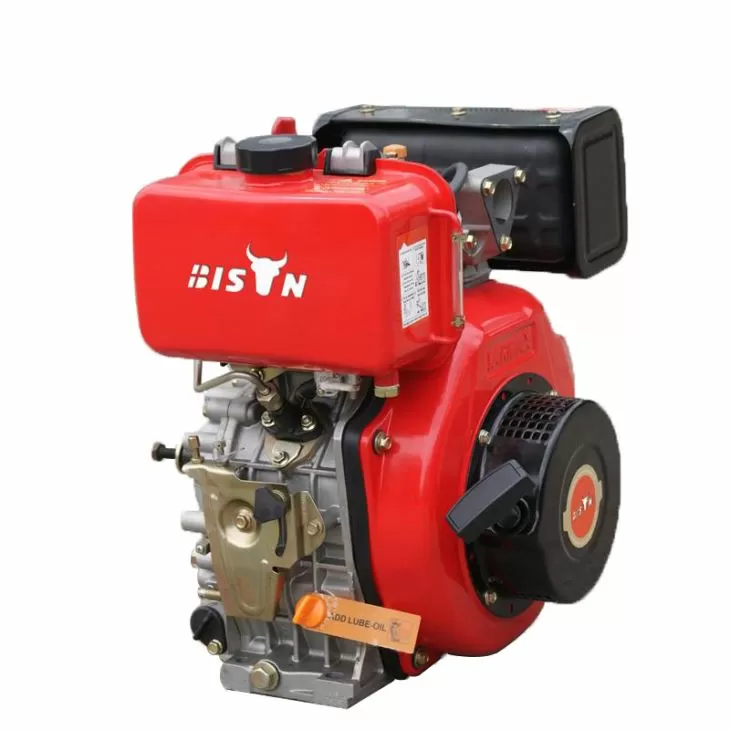

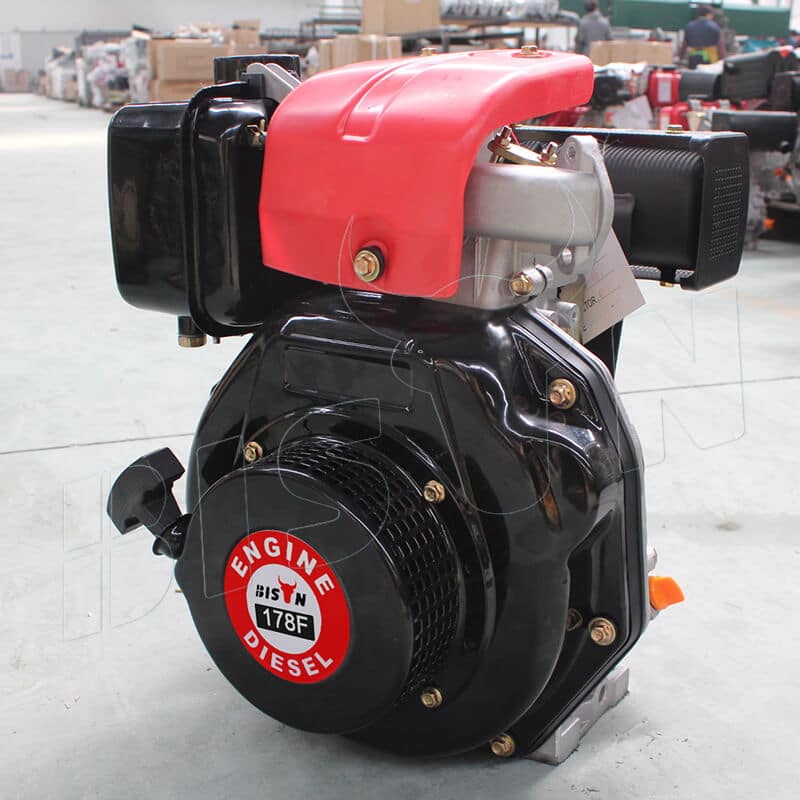

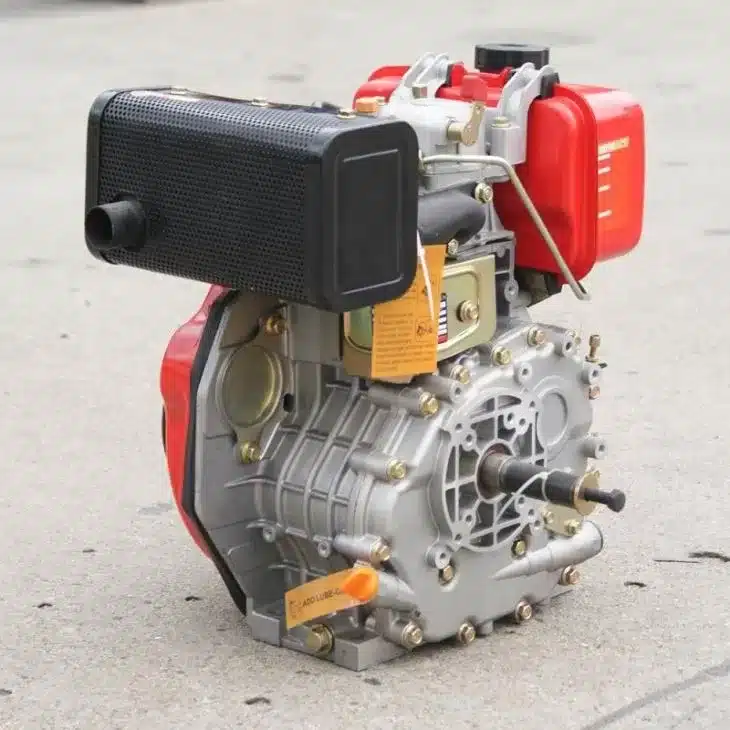

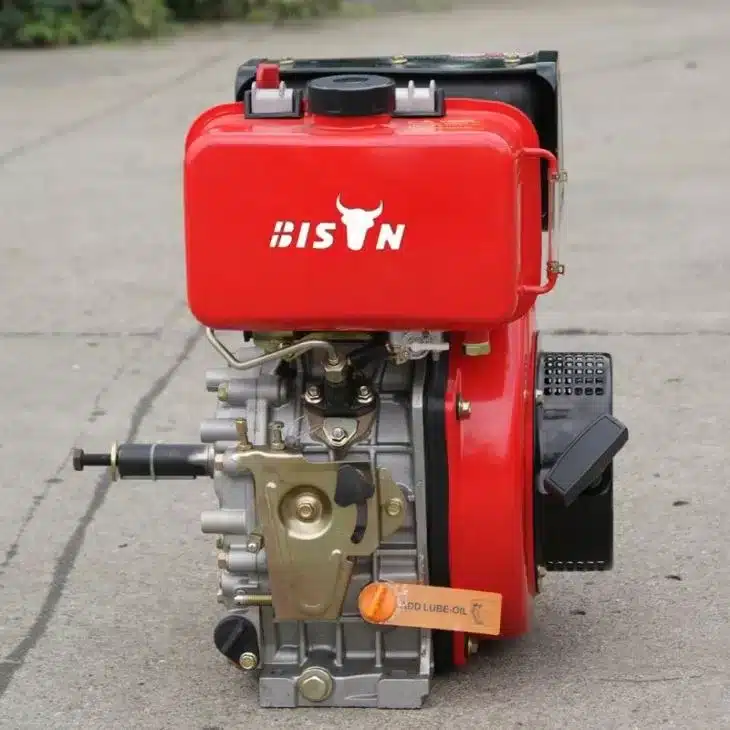

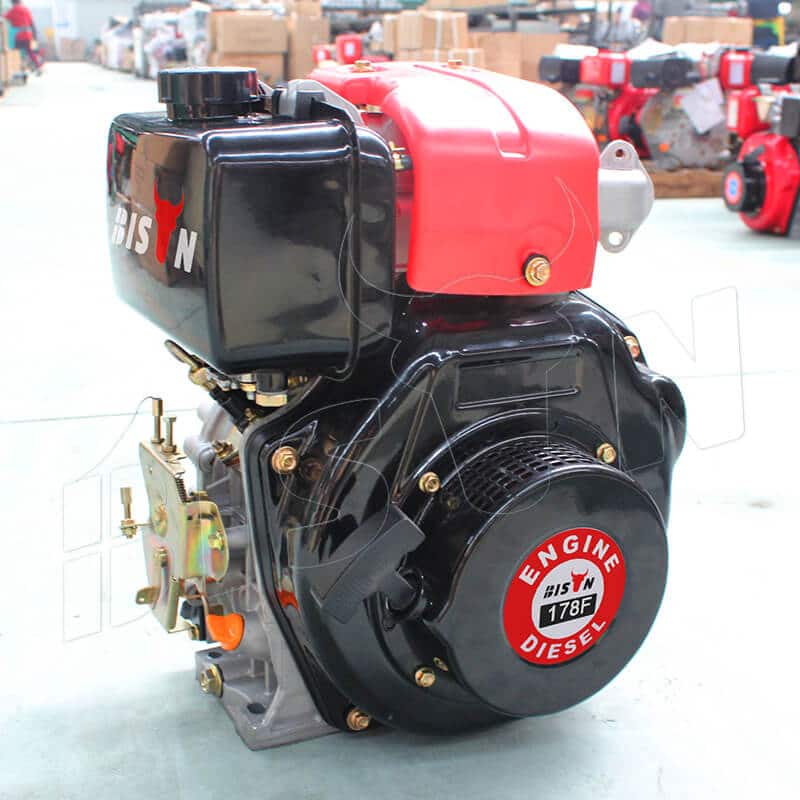

Diesel Engine Motor

1.New technology, super silent 2.Long run time 3.Economic, reliable, durable 4.CE,ISO9001 Standard….

Parameter Description

Diesel Engine Motor

Engine Model BS178F
Engine Output 6HP
Bore x stroke 78*62mm
Displacement 296cc
Compression ratio 20:01
Rated rotation speed 3000 / 3600rpm
Rated frequency 50 / 60HZ
Rated output power 4.6kw
Max output power 4.2kw
Alternator 100% Copper
Fuel tank capacity 3.5L
Net/Gross weight 33kg
Overall dimension 485*420*520mm
20GP 260set
40HQ 500set

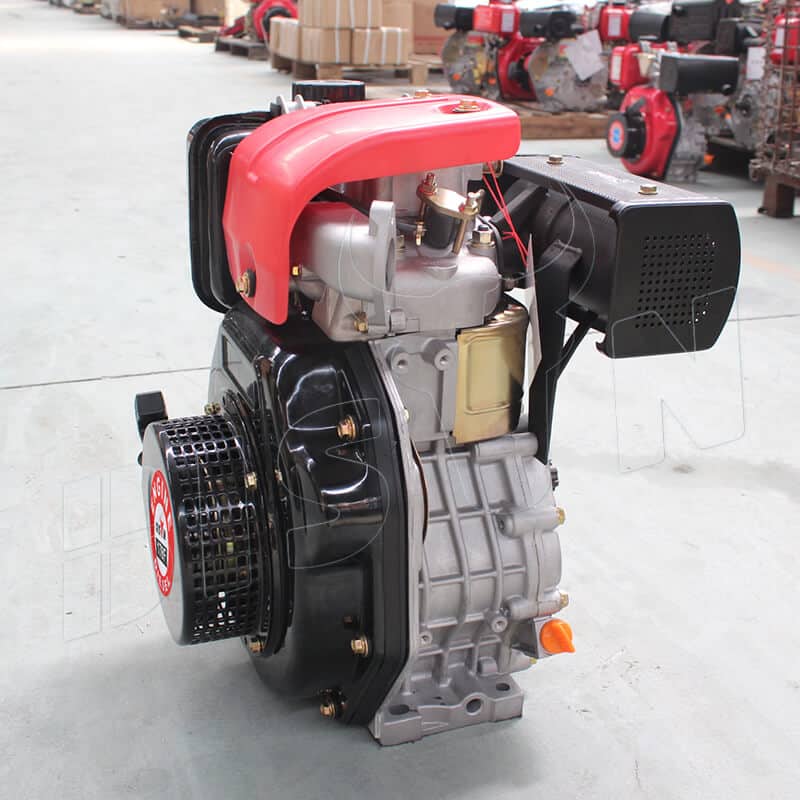

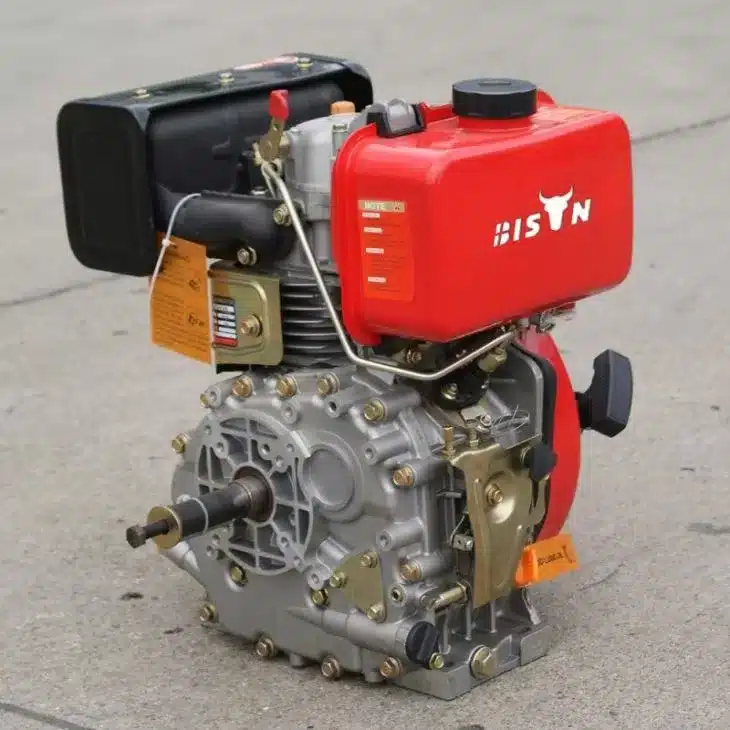

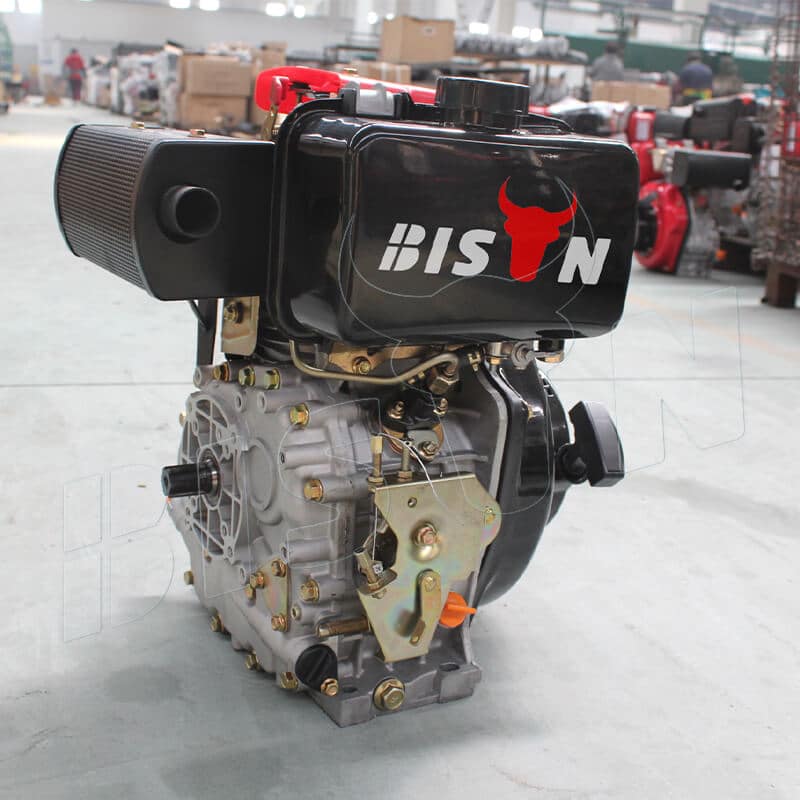

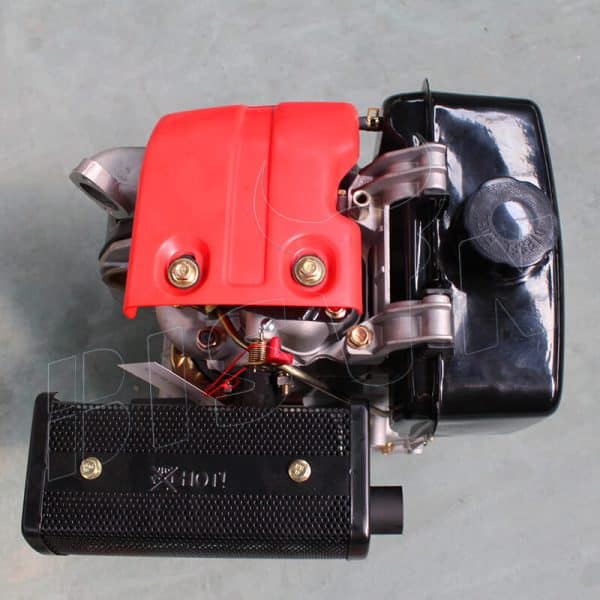

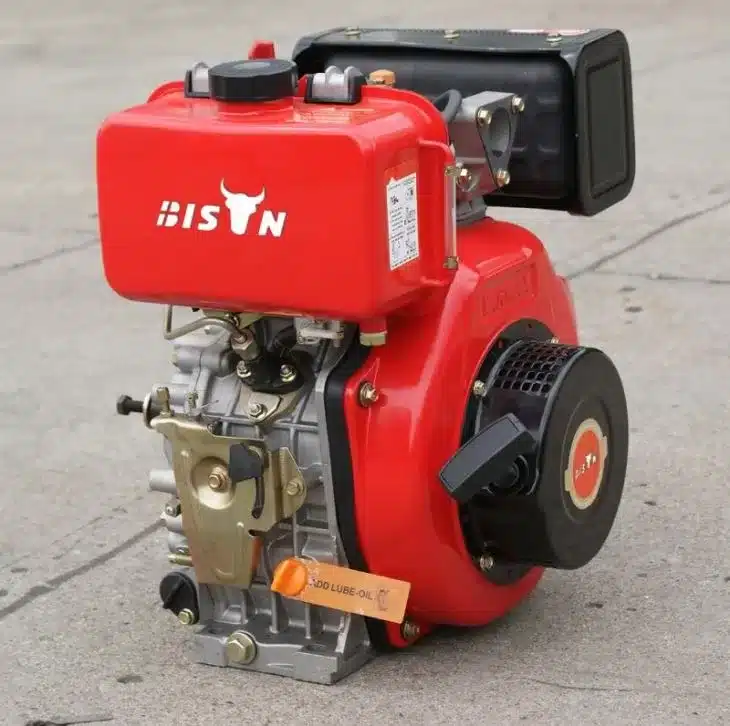

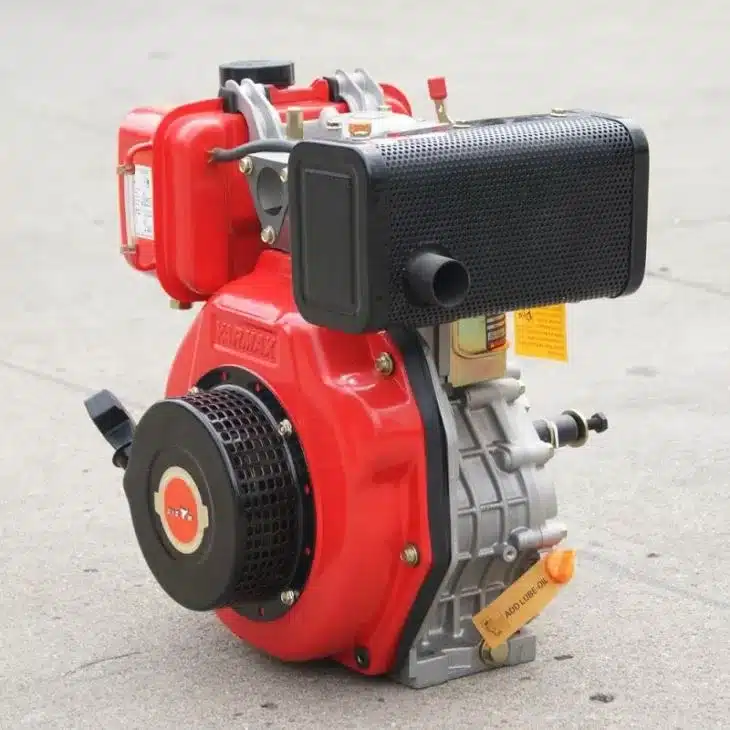

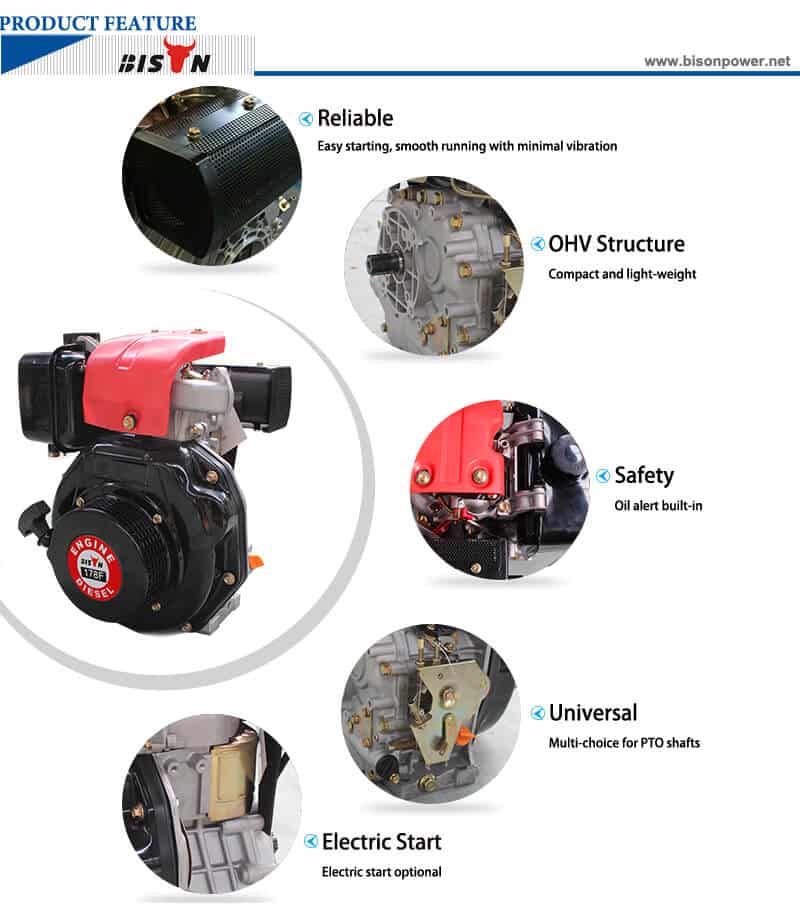

diesel engine motor details

Packaging & Delivery
Packaging Details: brown strong carton, generator is protected with ploy bag, wool, 1pc / carton, Diesel Engine For Construction
Port: Ningbo/Shanghai Port
Lead Time: 20-25 days

Our engine parts

engine connecting rod

The mechanical strength belongs to the density of ADC12 aluminum alloy cast aluminum, and the weight monitoring can ensure the consistency of structural tensile strength and processing CPK

engine piston

Adopt Z109 material to increase the wear resistance and reduce thermal deformation, to ensure the weight of the piston and the accuracy of machining

engine case

Using high-precision fixtures, machining center equipment to ensure precision, and high-density material strength, BISON's box can meet the durability test for 125 hours, and can meet emission standards

intake and exhaust valves

The valve is made of 40Cr10SiMo material. The exhaust valve can withstand high combustion temperature. When the load is heavy or the combustion condition is abnormal, the temperature limit will not be affected if the temperature limit is lower than 700-780°C.

Engine testing

Dedicated to engine testing, and equipped with quality control for sampling testing. BISON verifies and confirms the performance and reliability of each batch of engines to avoid possible product failures

Guarantee the sealing performance of the crankcase body structure and installation. Through professional instrument testing, poor sealing defects of installation and materials can be found, so as to avoid oil leakage and oil leakage of the engine and ensure the actual power efficiency.

The load output stability of the power can be confirmed online, and the configuration can be locked after stabilization to ensure high product consistency
