18hp liquid cooled engine
| no brand | 30 sets |
| OEM standard | 50 sets |
| OEM special | 100 sets |
BS1105GM Specifications
| Engine model | BS1105GM |
| Fuel type | Diesel |
| Engine speed | 2200RPM |
| Bore * stroke | 105*115mm |
| Displacement | 0.996L |
| Power of engine (hp) | 18HP |
| Engine type | Single cylinder,horizontal, water-cooled, 4-stroke, direct injected |
| Fuel capacity | 13.4L |
| Oil capacity | 2.5L |
| Starting system | Recoil start/Electric start |
| Fuel consumption radio | ≤244.8g/KW.h |
products description

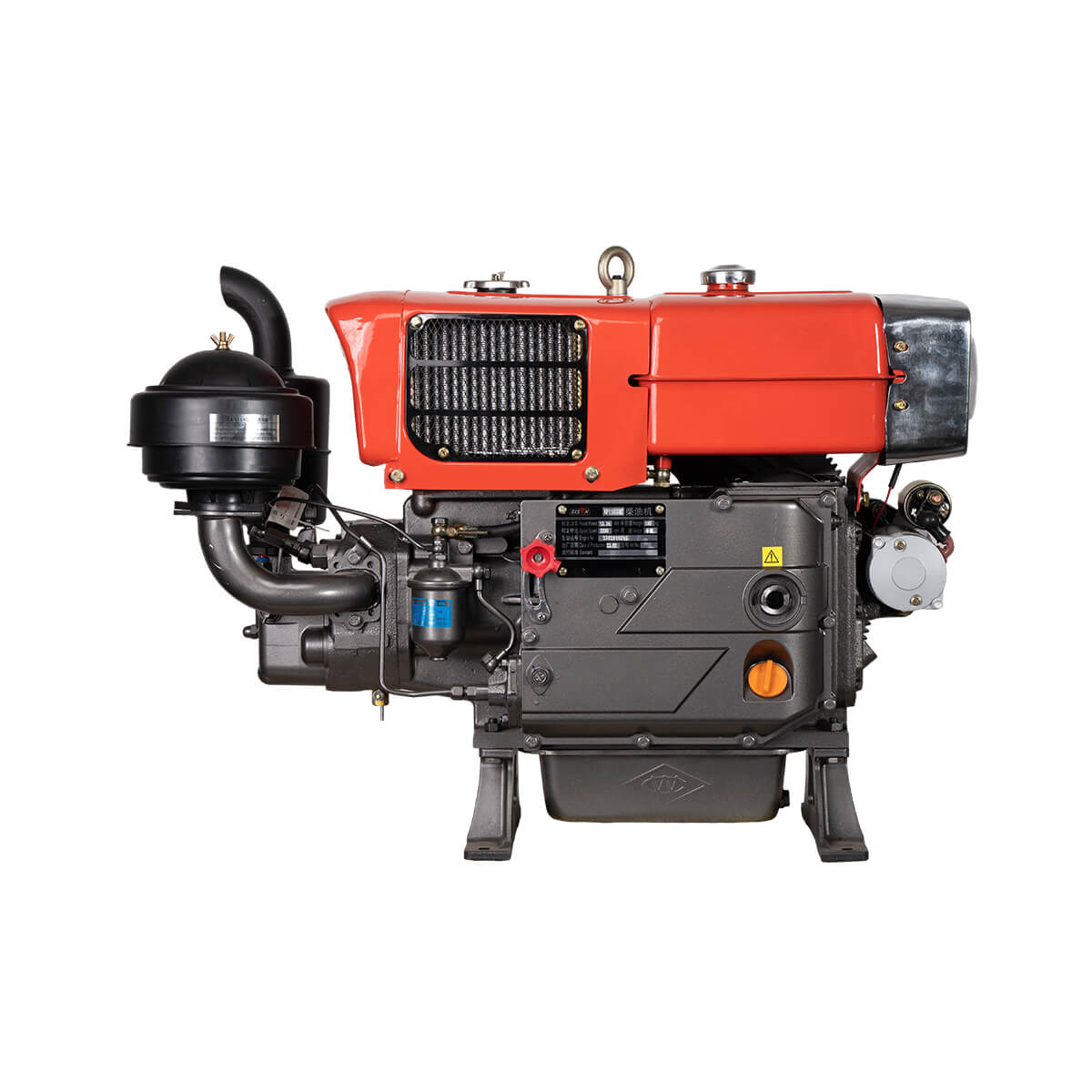

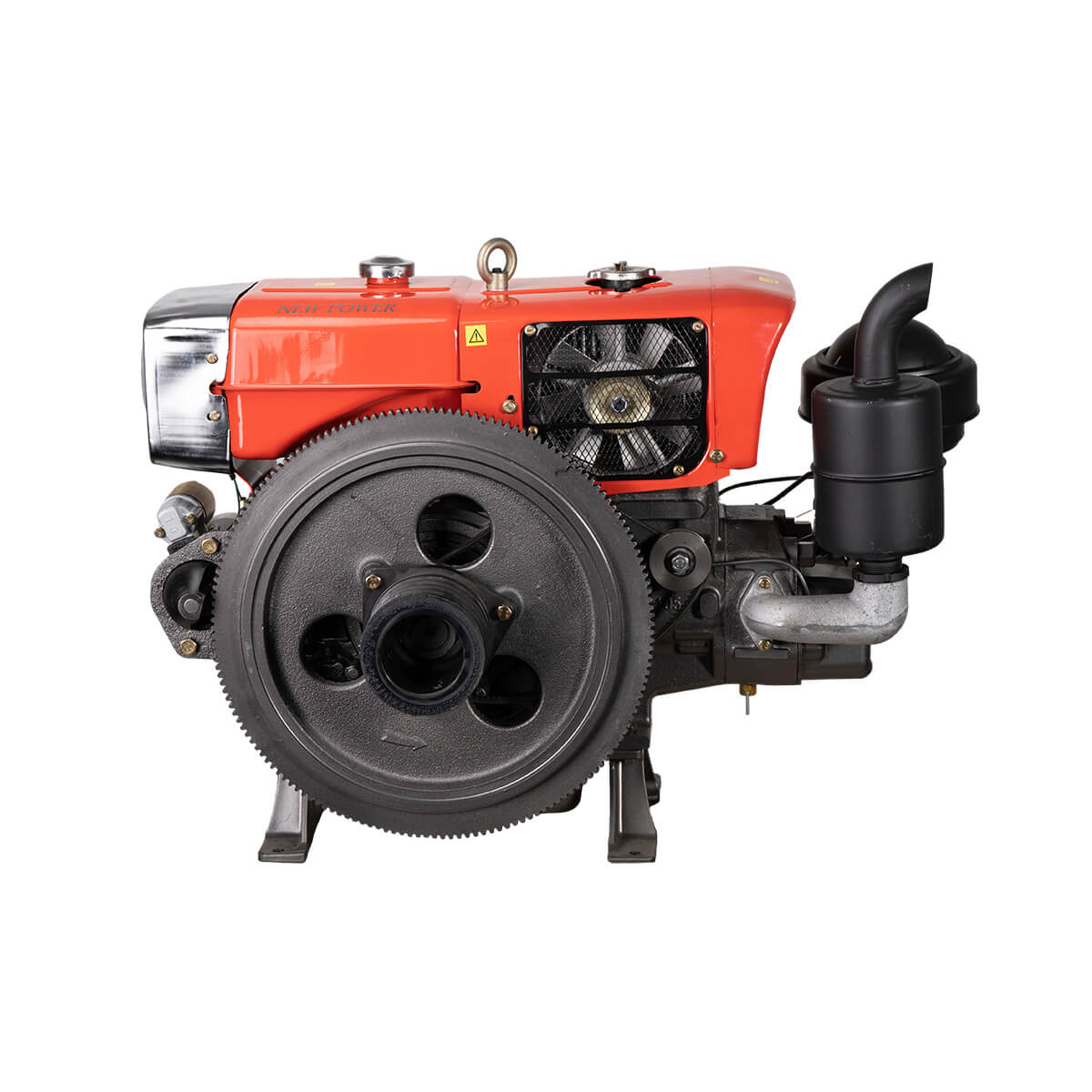

BISON 18hp liquid-cooled engine offers reliable power and high fuel efficiency, offered directly by a professional Chinese engine manufacturer.
This compact yet powerful engine delivers 18 horsepower. Its liquid cooling system maintains the engine at optimal operating temperatures, extending its lifespan and ensuring efficient operation even under harsh conditions.
The BS1105GM features a single-cylinder, horizontally mounted, water-cooled, four-stroke, direct-injection diesel engine that delivers a robust 18 horsepower at 2200 rpm. With a bore and stroke of 105 mm and a displacement of 115 mm, it maintains stable torque output and reliable performance even under heavy loads.
Fuel economy is another major advantage. This engine boasts a fuel consumption rate of ≤244.8 g/kWh and is equipped with a 13.4-liter fuel tank and a 2.5-liter oil tank, allowing for extended operation without frequent refueling or maintenance. This engine is equipped with both recoil start and electric start, making it easy to operate. Its robust structure ensures reliable performance in agricultural, construction, and industrial applications.
Our engine parts
air filter
crankshaft
cylinder head cover
piston kit
Engine testing
Dedicated to engine testing, and equipped with quality control for sampling testing. BISON verifies and confirms the performance and reliability of each batch of engines to avoid possible product failures.
Guarantee the sealing performance of the crankcase body structure and installation. Through professional instrument testing, poor sealing defects of installation and materials can be found, so as to avoid oil leakage and oil leakage of the engine and ensure the actual power efficiency.
The load output stability of the power can be confirmed online, and the configuration can be locked after stabilization to ensure high product consistency
Professional technicians with 15-20 years of experience
raw material testing
engine parts cleaning
crankshaft assembly
camshaft assembly
fuel tank tightness testing
engine power testing
engine cleaning sticker
package with wooden case
Warranty Information
BISON is a well-known professional engine manufacturer and factory in China, providing high-quality engine solutions to businesses worldwide. We focus on producing high-performance, long-lasting products that deliver real value to our customers, such as this 18 hp liquid-cooled engine. Our modern manufacturing plant employs rigorous quality control, advanced production equipment, and skilled workers to ensure that every engine meets global standards. If you want to obtain high-quality engines at highly competitive factory prices to boost your business growth, please contact us today.
Discounted Accessories
24-hour online, 5-minute response
Engineer on-site service
Packaging & Delivery
Packaging details: brown strong carton, engine is protected with poly bag, wooden, 1pc / carton. Lead Time: Shipped in 25 days after payment.
