5000w open frame diesel generators with wheels

5000W|50/60Hz|12.5L|16A
ce 1
tuv
nps
2 years warranty
epa 1
no brand30 sets
OEM standard50 sets
OEM special100 sets

BS7500DOF Specifications

model BS7500DOF
maximum power (KW) 5.5
rated power (KW) 5.0
rated output voltage (Volt) 1 phase / 3 phase (optional)
over load protector yes
rated frequency (Hz) 50 / 60 Hz
rated current (Amp) 16
power factor 1.0 (single phase) / 0.8 (three phase)
fuel tank capacity 12.5L
fuel option 0# (summer)、-10#(winter) diesel
socket rating 16A
self start motor recoil start / electric start
fuel consumption at 100% Load 1.92L/h
fuel consumption at 75% Load 1.44L/h
fuel consumption at 50% Load 0.96L/h
continuous duration of operation at rated load (hour) 6.5
engine & emission specifications
engine model BS188F
fuel type Diesel
engine speed 3000(50hz)/3600(60Hz)
bore * stroke 88*75
engine displacement 456
engine/motor type single-cylinder、vertical、4-stroke、air-cooled、diesel engine
engine oil grade 10W/30SAE
fuel capacity 5.5L
oil capacity 1.7L
recoil start Yes
electric start Optional
alternator
type of alternator 100% copper (corrective wave)
rotor RPM 3000(50Hz)/3600(60Hz)
alternator size 190*140

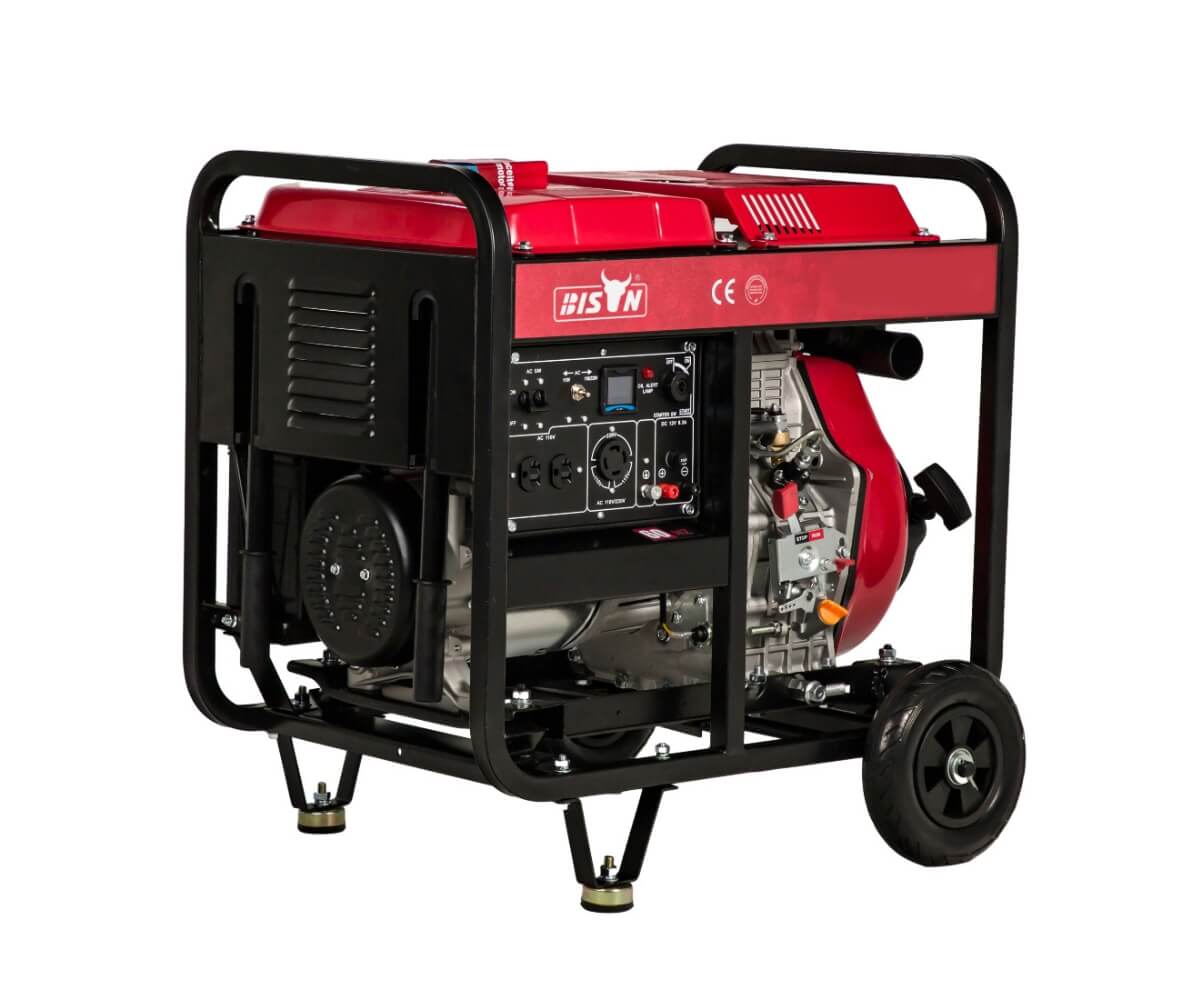

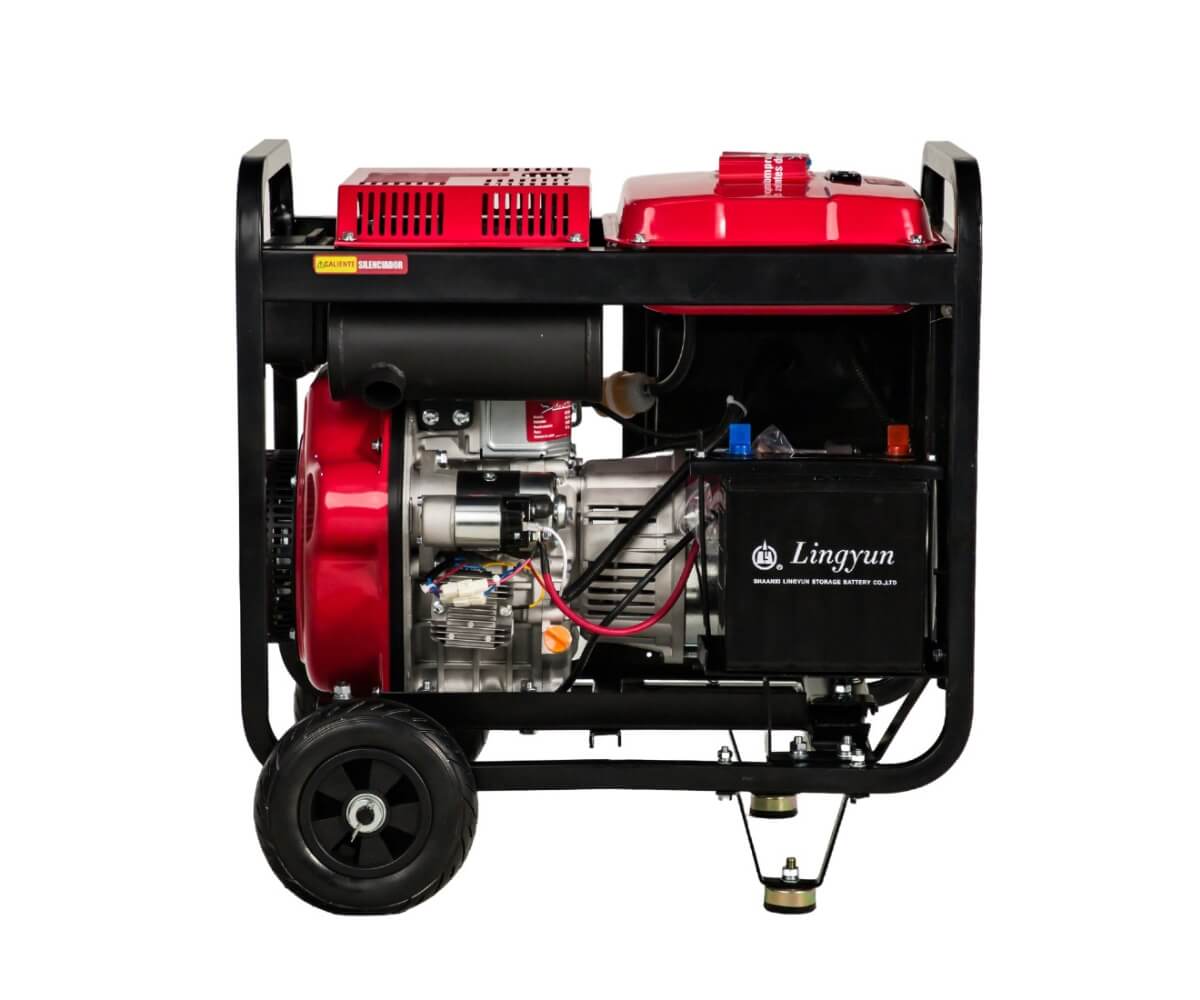

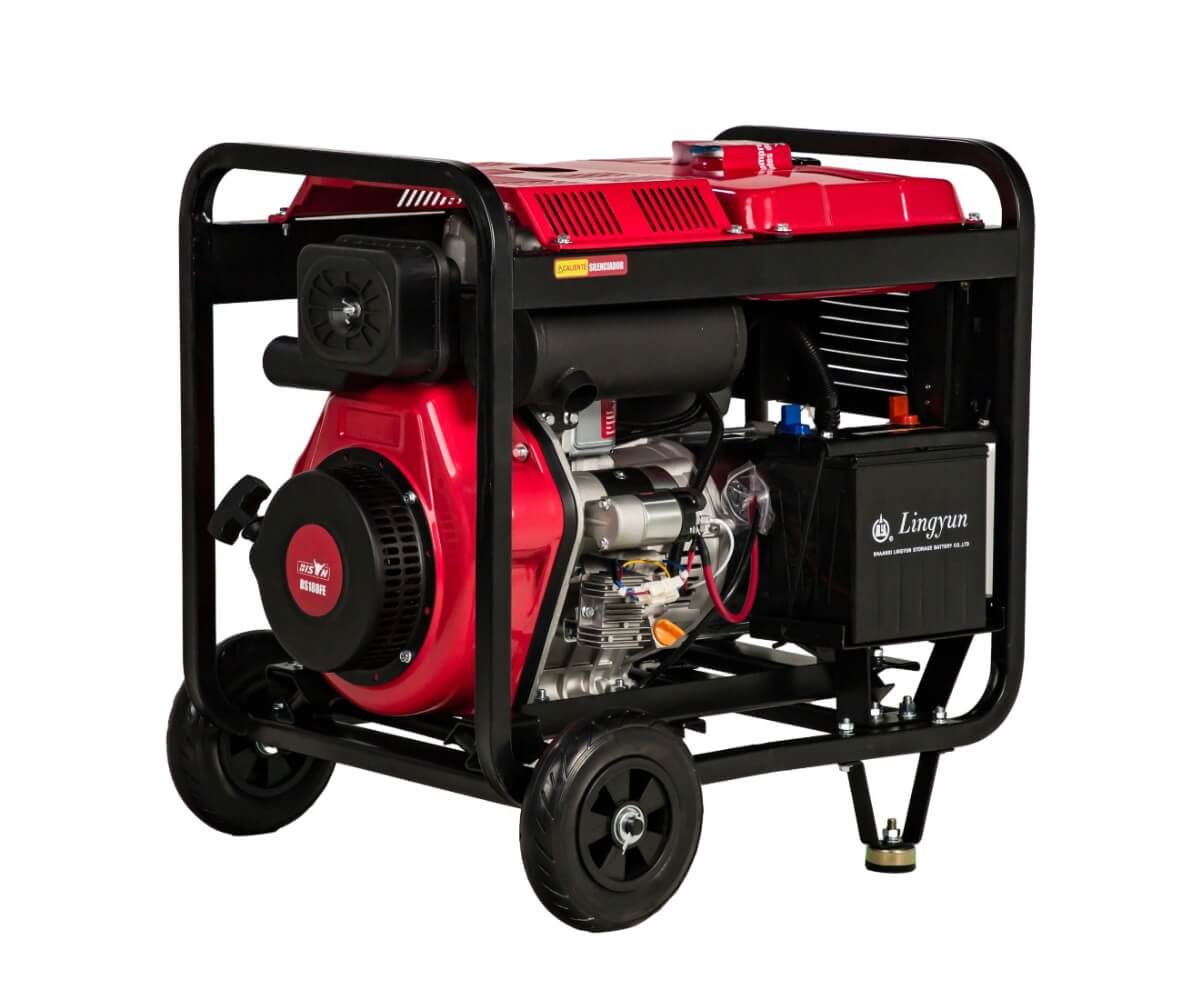

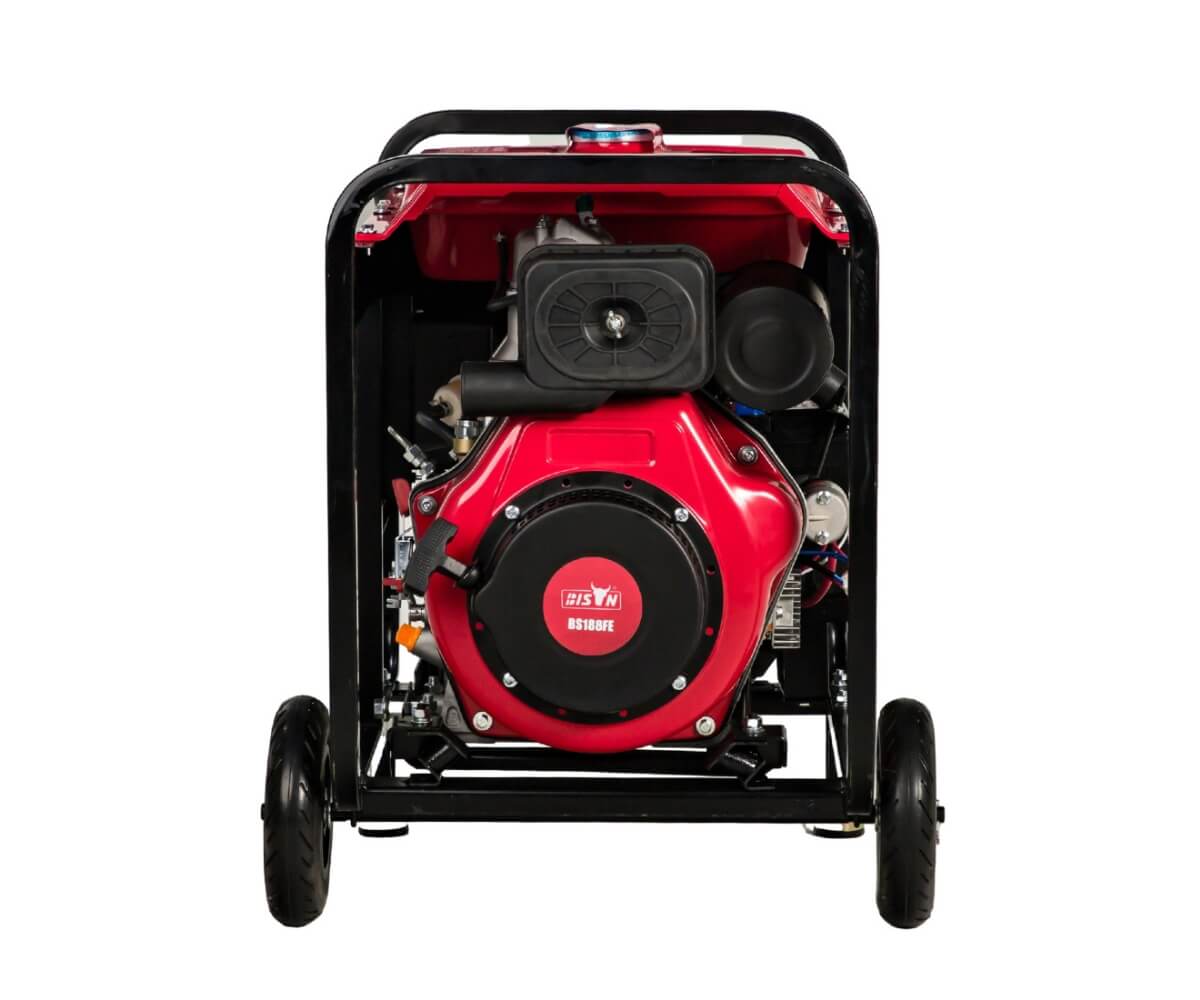

5000w open frame diesel generators with wheels are manufactured by our company – BISON, and are durable and reliable.

  • BS7500DOF is equipped with a heavy-duty air-cooled diesel engine, which ensures fuel efficiency and long-lasting performance. It continuously provides 5000 running watts and 6250 starting watts. It is suitable for a variety of applications, such as construction sites, farms, and emergency backup power.
  • The open frame design is durable and easy to maintain. This durable structure withstands construction site conditions and guarantees performance even in harsh environments.
  • The portability and maneuverability of the generator are enhanced by integrated explosion-proof wheels and a balanced frame, which can be easily transported between different locations – a crucial feature for customers who need to provide power in remote or challenging locations.
  • BS7500DOF also features a user-friendly control panel with clearly labeled controls and multiple sockets.

A class core parts

generators all copper motor

100% all-copper motor

Offering durability and superior energy efficiency

fuel injection pump

Fuel injection pump

Higher injection pressure, optimal injection rate, higher precision injection timing control and quantity control.

generator pull plate

Powerful pull plate

Easy to start pull plate, guarantee more than 10,000 pulls

generators frames

robust frames

Professional welding and painting process to ensure the beauty and stability of the rack

tight quality contorl

5000w open frame diesel generators with wheels Perfect inspection process

Inspection process leaves no room for compromise, ensuring that every diesel generator we produce is flawless.

  • Water Test: Ensures 100% cylinder tightness, detecting any possible leaks.
  • Unit Comprehensive Intelligent Test Cabinet: Each generator undergoes a full inspection to confirm reliability and accuracy.
  • Withstand Voltage Tester Inspection: Every generator is fully inspected, ensuring precise electrical safety measurements.
  • Strengthened Laboratory Standards: Our lab exceeds national sampling standards, resulting in superior product durability.
generators testing 2
generators testing
product assembly process

5000w open frame diesel generators with wheels assembly process

  • Use special equipment to assemble, ensure the beaning, oil seal, governor gear effectively fit
  • When assembling nuts for each muffler, spring pads need to be installed to ensure the fit of each component and the maximum noise reduction effect
  • Use a special air gun, and use different torque standards for different parts
    Water test is required in each engine assembly to ensure the tightness of itself
  • Pay attention to small details, add thread glue and spring washers to the bolts; add support feet to the motor bracket
  • More than 20 debugging processes throughout the whole process to ensure that the machine 100% meets the factory requirements

Professional technicians with 15-20 years of experience

BISON ensures that each diesel generator is carefully built to withstand the toughest conditions. The expertise of our factory enables us to produce high-quality generators that meet the highest industry standards.

performance commissioning

Performance Commissioning

diesel generator assembly

diesel generator assembly

artwork qa

Artwork QA

full inspection

Full Inspection

generator specialized inspection

Generator Specialized Inspection

diesel generator parts assembly

Parts assembly

core assembly

Core Assembly

power specialized inspection

Power Specialized Inspection

support

At BISON, we offer competitive dealer pricing and flexible plans designed to maximize your profit margins. With factory direct support, you have direct access to our technical team and parts department for fast assistance and efficient service.

Our inventory management and logistics ensure timely delivery, providing you with a seamless experience. Contact us today to discuss a dealer partnership. Maximize your profits with BISON’s 5000w open frame diesel generator on wheels.

diesel generator accessories

Discounted Accessories

24 hour online 5 minute response

24-hour online, 5-minute response

engineer on site service

Engineer on-site service

Packaging & Delivery

Packaging details: brown strong carton, generator is protected with poly bag, wooden, 1pc / carton. Lead Time: Shipped in 25 days after payment.
