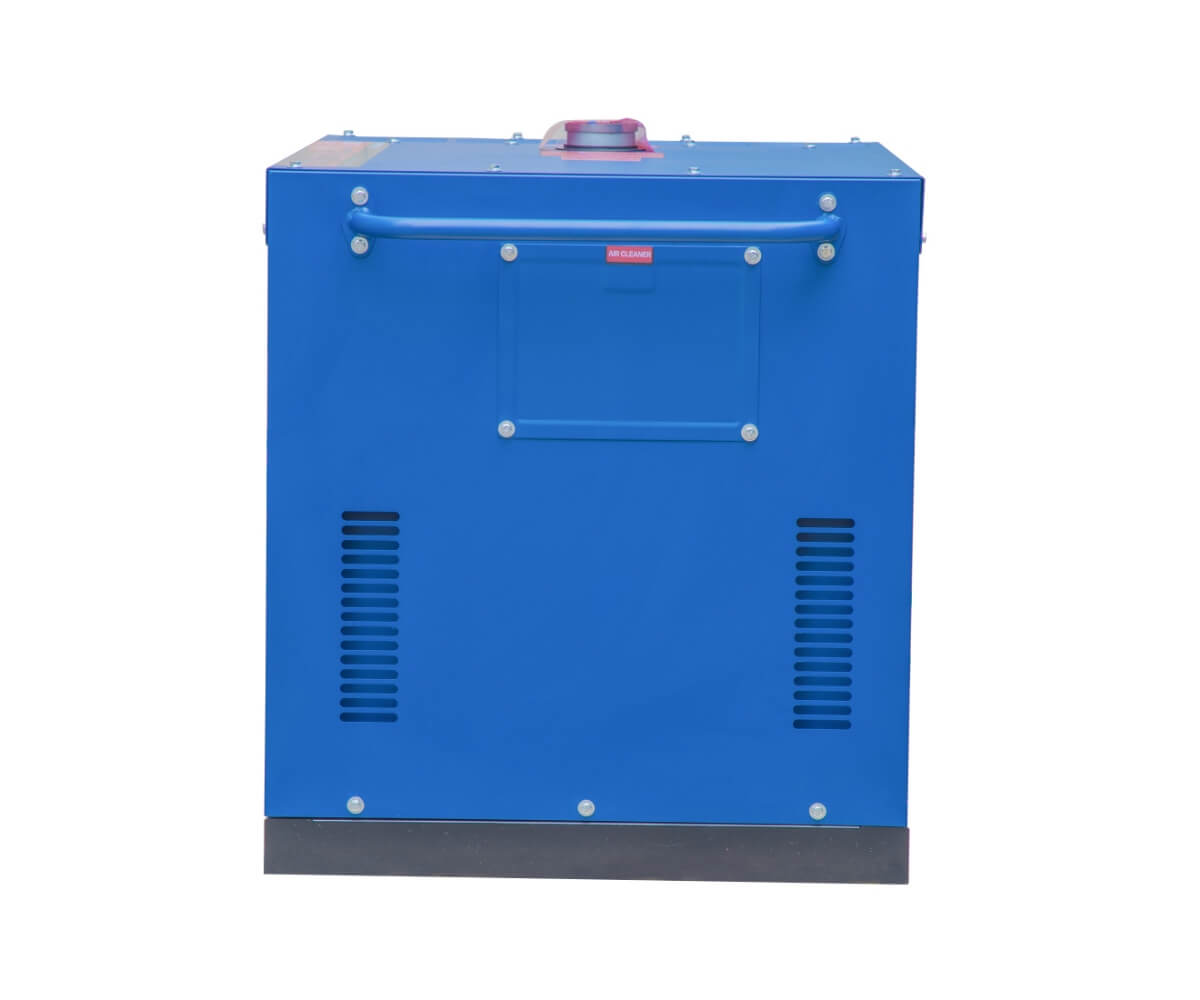

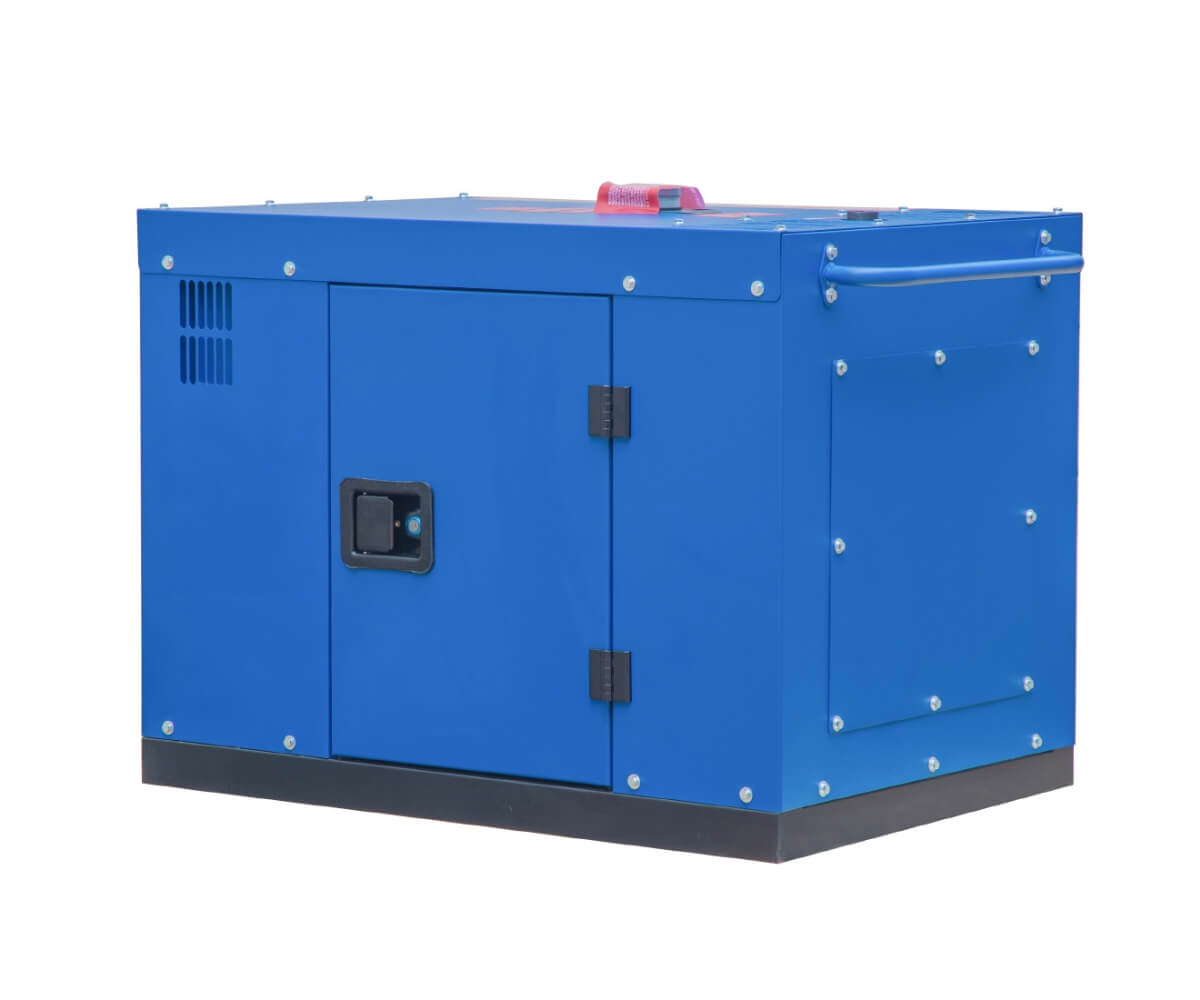

8kw diesel electric generators

4-stroke|8.0KW|24L|50/60Hz
ce 1
tuv
nps
2 years warranty
epa 1
  • The silent generator can supply the electricity for multiple small electrical machine in the meantime.
  • It has optional fuction for automatic transfer switch
  • Ideal for home emergency use or as standby power supply
  • A variety of specially-designed control panels available for different markets.
  • With time meter to show the operation time
  • It has AVR to automatically regulate voltage
  • Self-protection (Oil alert to shut down engine automatically when low oil is detected)
  • Compact structure and light weight
  • Easy maintenance with brushless alternator electric ignition
  • Large fuel tank for a long time of continuous running
no brand30 sets
OEM standard50 sets
OEM special100 sets

BS9000DSE Specifications

modelBS9000DSE
maximum power (KW)8.5
rated power (KW)8.0
rated output voltage (Volt)1 phase / 3 phase (optional)
over load protectoryes
rated frequency (Hz)50 / 60 Hz
rated current (Amp)16
power factor1.0 (single phase) / 0.8 (three phase)
fuel tank capacity24L
fuel option0# (summer)、-10#(winter) diesel
socket rating16A
self start motorelectric start
fuel consumption at 100% Load3.3L/h
fuel consumption at 75% Load2.79L/h
fuel consumption at 50% Load1.65L/h
continuous duration of operation at rated load (hour)9.0
engine & emission specifications
engine modelBS1100FE
fuel typeDiesel
engine speed3000(50hz)/3600(60Hz)
bore * stroke100*84
engine displacement660
engine/motor typesingle-cylinder、vertical、4-stroke、air-cooled、diesel engine
engine oil grade10W/30SAE
fuel capacity/
oil capacity2.5L
recoil startNo
electric startYes
alternator
type of alternator100% copper (corrective wave)
rotor RPM3000(50Hz)/3600(60Hz)
alternator size204*160

As a trusted generator manufacturer, BISON combines advanced engineering with high-quality components to deliver durable and efficient diesel electric generators to meet the rigorous demands of diverse industrial applications.

The BS9000DSE is equipped with a high-efficiency single-cylinder, vertical, 4-stroke, air-cooled diesel engine (bs1100fe), delivering a maximum power output of 8.5 kw and a rated power of 8.0 kw. Some new technologies are introduced such as electronically controlled direct injection, common rail, turbocharged, intercooled, etc., on this small diesel engines, effectively increasing the speed, reducing noise and vibration as well as providing quiet and comfortable working environment. It is equipped with wheels that make it convenient to move and carry, reducing the cost of transportation. With a scientific and compact design, it is lightweight with comfortable use experience. Inn daily life, it is widely used as power back-up in case of power failure and outdoor activities. With automatic decompression device, it can have a quick response of speed governor and is easy to start. With the low oil alert system, when oil level under the level line, the engine stops working. And the automatic voltage adjustor Keeps the voltage stable which is especially important for sensitive equipment.

For better sales, dealers have the right to choose recoil or electric start, single or three phases, and colors. And we can provide other specifications of generators. All of them have passed CE, ISO certifications. Our products have won a reputation because of their high quality. And we have 500 hours or 1 year guarantee. Our exporting area includes Europe, Middle East; Southeast Asia, South America, Oceania, Africa; countries include Germany, Poland, Turkey, Australia, Pakistan, Philippines, Indonesia. We can supply 10000 sets every month. If you are interested in them, please do not hesitate to contact us. We are sure to give the most reasonable price and the best service.

A class core parts

generators all copper motor

100% all-copper motor

Offering durability and superior energy efficiency

fuel injection pump

Fuel injection pump

Higher injection pressure, optimal injection rate, higher precision injection timing control and quantity control.

generator pull plate

Powerful pull plate

Easy to start pull plate, guarantee more than 10,000 pulls

generators frames

robust frames

Professional welding and painting process to ensure the beauty and stability of the rack

tight quality contorl

8kw diesel electric generators Perfect inspection process

Inspection process leaves no room for compromise, ensuring that every diesel generator we produce is flawless.

  • Water Test: Ensures 100% cylinder tightness, detecting any possible leaks.
  • Unit Comprehensive Intelligent Test Cabinet: Each generator undergoes a full inspection to confirm reliability and accuracy.
  • Withstand Voltage Tester Inspection: Every generator is fully inspected, ensuring precise electrical safety measurements.
  • Strengthened Laboratory Standards: Our lab exceeds national sampling standards, resulting in superior product durability.
generators testing 2
generators testing
product assembly process

8kw diesel electric generators assembly process

  • Use special equipment to assemble, ensure the beaning, oil seal, governor gear effectively fit
  • When assembling nuts for each muffler, spring pads need to be installed to ensure the fit of each component and the maximum noise reduction effect
  • Use a special air gun, and use different torque standards for different parts
    Water test is required in each engine assembly to ensure the tightness of itself
  • Pay attention to small details, add thread glue and spring washers to the bolts; add support feet to the motor bracket
  • More than 20 debugging processes throughout the whole process to ensure that the machine 100% meets the factory requirements

Professional technicians with 15-20 years of experience

performance commissioning

Performance Commissioning

diesel generator assembly

diesel generator assembly

artwork qa

Artwork QA

full inspection

Full Inspection

generator specialized inspection

Generator Specialized Inspection

diesel generator parts assembly

Parts assembly

core assembly

Core Assembly

power specialized inspection

Power Specialized Inspection

Presales service

Our sales team support our products with unrivalled expertise that includes a comprehensive level of presales support. Not only do we provide power generators, we also provide a reliable and professional consultancy service, especially for the customers who know less about our products. We provide uninterrupted supply of electricity and professional support services to customers, allowing them to enjoy the advanced technology and expertise that BISON offers. We have a highly qualified engineers and technicians team, which could support at studying load requirements of generator to support various projects and the need of any other equipment such as ATS, Battery Charger, and mode of operation; synchronizing system or stand alone, type of enclosure with certain noise level or mounted on skid, etc. Believe that we will offer the generator just the one you require.

Preventive contract

The key to a successful partnership, all the orders we receive we will sign a contract, the warranty term will be shown on the contract. Any electronic product requires timely service to function properly. BISON can meet any maintenance need, from preventative maintenance contracts to emergency breakdown response.

Warranty Information

All the products we sell within 1 year or 500H working time. During the warranty period, Bison will repair and replace the parts and components free which caused by quality reasons. If the damage is due to the human factors, we can also offer the spare parts at a big discount to support.

Under normal use, if equipment has a quality problem, customer require us to change the part, we will change the part for free. (but the transportation expense outside China shall be pay by customer).

diesel generator accessories

Discounted Accessories

24 hour online 5 minute response

24-hour online, 5-minute response

engineer on site service

Engineer on-site service

Packaging & Delivery

1.BISON’s professional technology packaging, careful and exquisite, beautifully packaged and durable, with high recognition. 2. Professional warehousing and large storage space; forklifts are sorted quickly to improve work efficiency. 3. Special container loading, safe delivery speed. 4. A variety of transportation methods, safe and secure, fast delivery.
