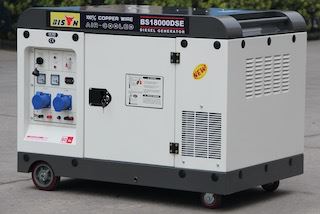

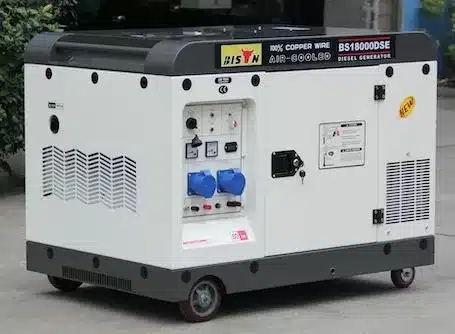

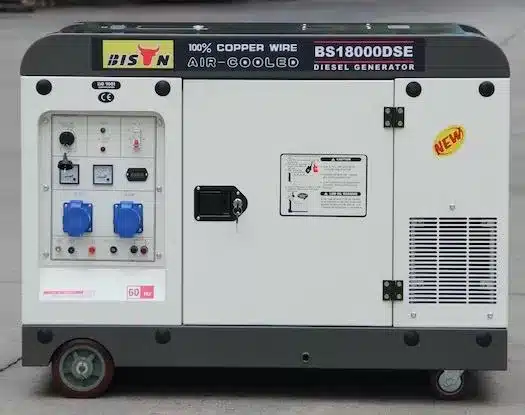

home use air cooled single phase silent type diesel generator

electric start|12 KW

12000 watts/ 10000 rated watts (diesel)
Lifting eye standard on all models
Rotating field, brushed alternator
Starter safety relay included to prevent accidental starting after the engine has already fired up
Electric start with 12VDC battery included.
Amazingly quiet at 67.0 dB(A) at 23ft (7m) away under rated operation (full load)
32l fuel tank capacity for up to 16 hours of use at 50% load (8 hours at 100% Load)
Emergency stop standard via opening of either control panel or terminal cover

no brand	30 sets
OEM standard	50 sets
OEM special	100 sets

BS13000DSE Specifications

model	BS13000DSE
maximum power (KW)	12.0
rated power (KW)	11.0
rated output voltage (Volt)	1 phase / 3 phase (optional)
over load protector	yes
rated frequency (Hz)	50 / 60 Hz
rated current (Amp)	16
power factor	1.0 (single phase) / 0.8 (three phase)
fuel tank capacity	32L
fuel option	0# (summer)、-10#（winter) diesel
socket rating	16A
self start motor	electric start
fuel consumption at 100% Load	4L/h
fuel consumption at 75% Load	3L/h
fuel consumption at 50% Load	2L/h
continuous duration of operation at rated load (hour)	8.0

engine & emission specifications
engine model	BS292FE
fuel type	Diesel
engine speed	3000(50hz)/3600(60Hz)
bore * stroke	2-92*75
engine displacement	997
engine/motor type	E-line、4-Stroke、Air-cooled、Diesel Engine
engine oil grade	10W/30SAE
fuel capacity	/
oil capacity	2.5L
recoil start	No
electric start	Yes

alternator
type of alternator	100% copper (corrective wave)
rotor RPM	3000(50Hz)/3600(60Hz)
alternator size	245*150

BISON is a leading manufacturer of diesel generators in China. The BS13000DSE sports a heavy-duty metal frame and four-point fully isolated motor mounts to guarantee a long service life in practically any environment. It also comes with a wheel and handle kit for easy transport. It has a built-in, low-oil shutdown for added safety and improved maintenance. Plus, an oil funnel, a tool set, a spark plug wrench, and DC charging cables are all included to simplify setup and aid in upkeep.

Home use: BISON diesel generators are perfect for home use because they are quiet, efficient, and easy to operate. They are also ideal for powering a variety of appliances, including refrigerators, freezers, air conditioners, and TVs.
Air cooled: Air cooled diesel generators are more efficient and require less maintenance than water cooled generators.
It is designed with handles on both sides, which is user-friendly. If necessary, you can move the generator with others to other place easily. They are also more compact and lightweight, making them also easy to store.
Single phase: BISON single phase diesel generators are ideal for powering most household appliances. They are also more affordable than three phase generators.
Silent type: BISON silent type diesel generators are equipped with soundproof enclosures that reduce noise levels to a minimum. This makes them ideal for use in residential areas.
10kw: Utilizing 10000 running watts, the generator will produce up to 8 hours of reliable, clean power.

A class core parts

100% all-copper motor

Offering durability and superior energy efficiency

Fuel injection pump

Higher injection pressure, optimal injection rate, higher precision injection timing control and quantity control.

Powerful pull plate

Easy to start pull plate, guarantee more than 10,000 pulls

robust frames

Professional welding and painting process to ensure the beauty and stability of the rack

tight quality contorl

home use air cooled single phase silent type diesel generator Perfect inspection process

Inspection process leaves no room for compromise, ensuring that every diesel generator we produce is flawless.

Water Test: Ensures 100% cylinder tightness, detecting any possible leaks.
Unit Comprehensive Intelligent Test Cabinet: Each generator undergoes a full inspection to confirm reliability and accuracy.
Withstand Voltage Tester Inspection: Every generator is fully inspected, ensuring precise electrical safety measurements.
Strengthened Laboratory Standards: Our lab exceeds national sampling standards, resulting in superior product durability.

home use air cooled single phase silent type diesel generator assembly process

Use special equipment to assemble, ensure the beaning, oil seal, governor gear effectively fit
When assembling nuts for each muffler, spring pads need to be installed to ensure the fit of each component and the maximum noise reduction effect
Use a special air gun, and use different torque standards for different parts
Water test is required in each engine assembly to ensure the tightness of itself
Pay attention to small details, add thread glue and spring washers to the bolts; add support feet to the motor bracket
More than 20 debugging processes throughout the whole process to ensure that the machine 100% meets the factory requirements

Professional technicians with 15-20 years of experience

Performance Commissioning

diesel generator assembly

Artwork QA

Full Inspection

Generator Specialized Inspection

Parts assembly

Core Assembly

Power Specialized Inspection

QC System

All the raw material Will be tested one by one by sophisticated instruments to make the quality will be good; After the power assembly is completed, the performance of each power will be tested one by one; Before shipping, all the machines will be test by the professional instrument, Let the data tell the truth

Warranty Information

BISON is a trusted manufacturer of high-quality diesel generators. BISON has focused on the Timely after-sales service, we have English Spanish Russian language exclusive service; and tracking service principle make customer know their good real production information; and we have the professional after-sales service, continue to handle the product situation until the situation is resolved.
Based on our excellent quality and service, our company has long-term partnerships with many famous enterprises, and the products spread all over the world.
