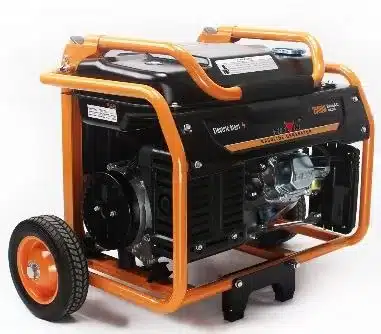

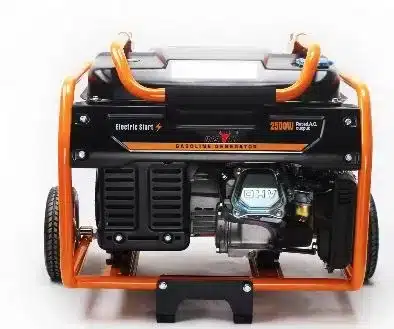

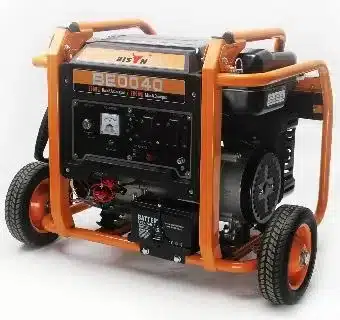

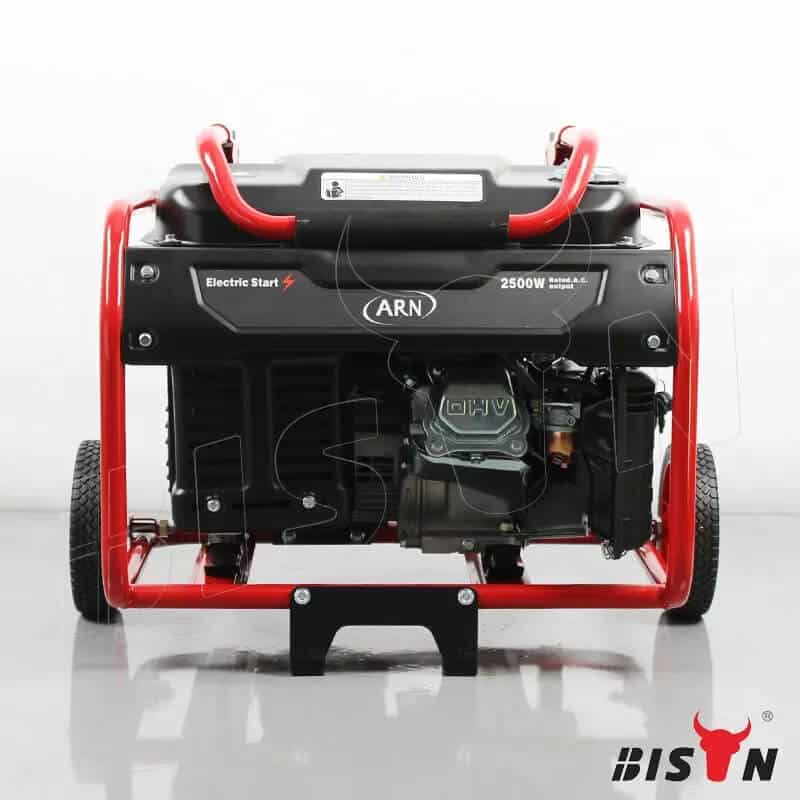

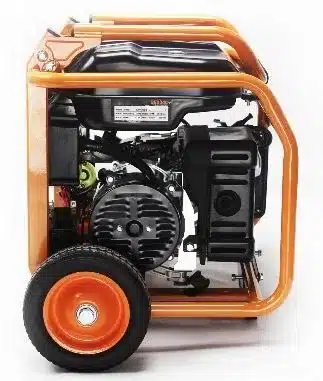

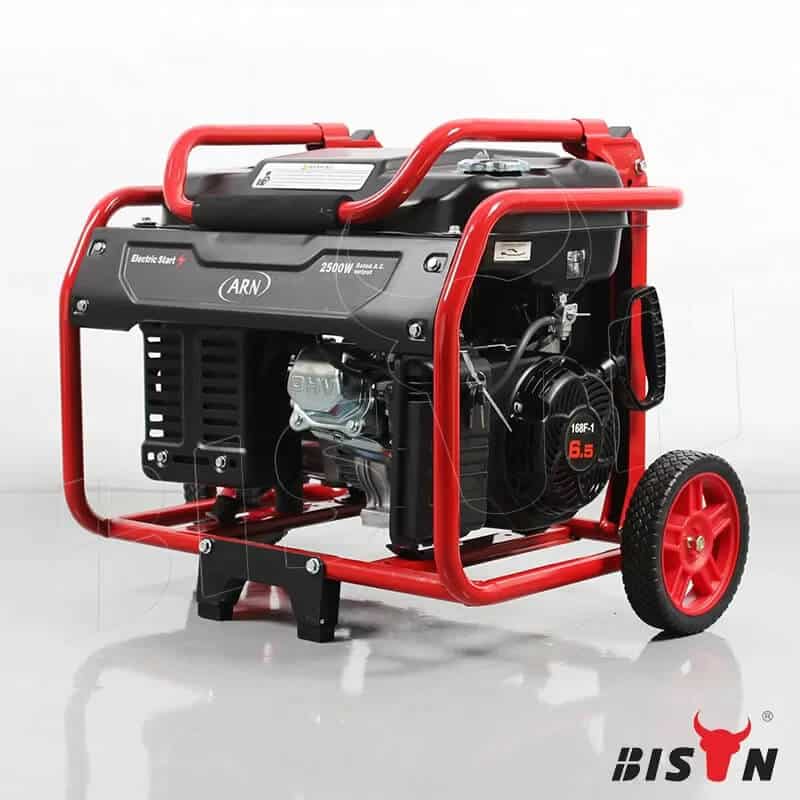

portable gasoline generator set

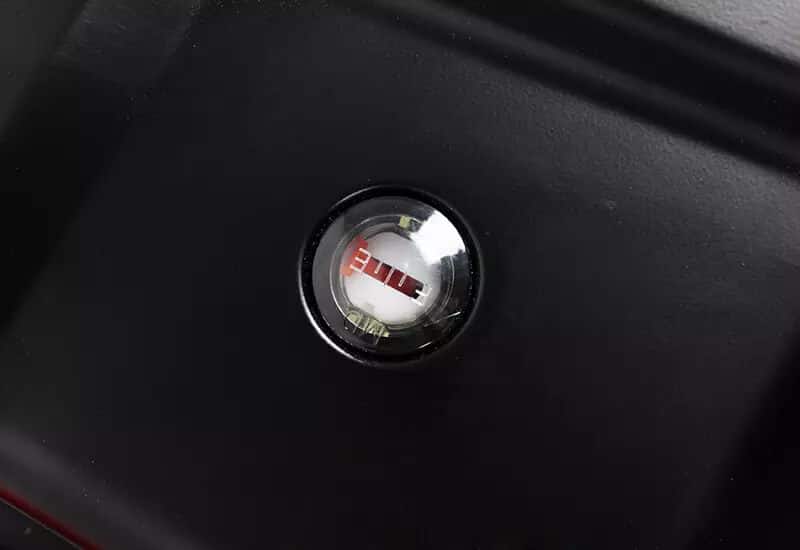

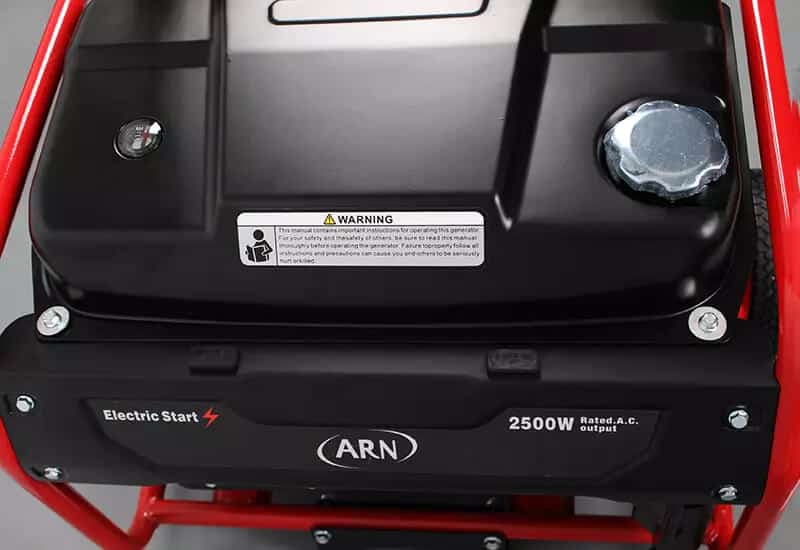

- Large Fuel Tank with Fuel Gauge to prolong the running time.
- Durable Protective Frame to strength the hardness.

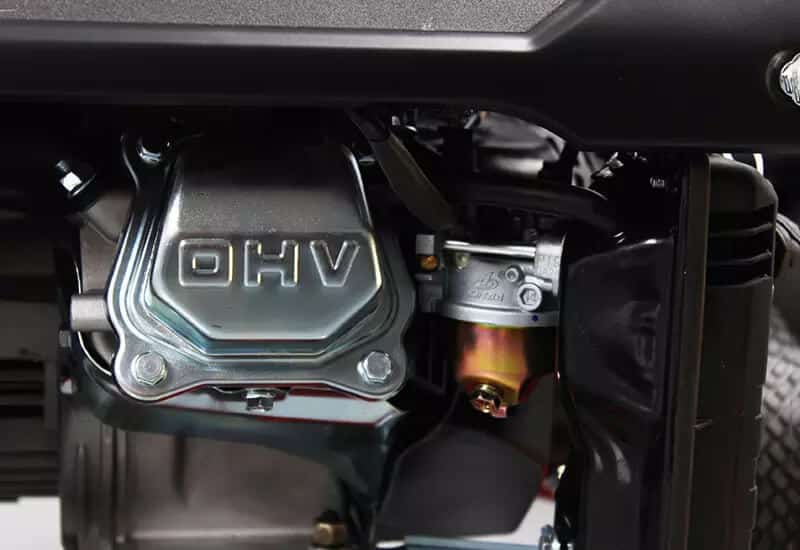

- Powered by OHV Engine to lower the noise.
- 3000 watts/ 2800 Rated watts (Gasoline/Petrol)

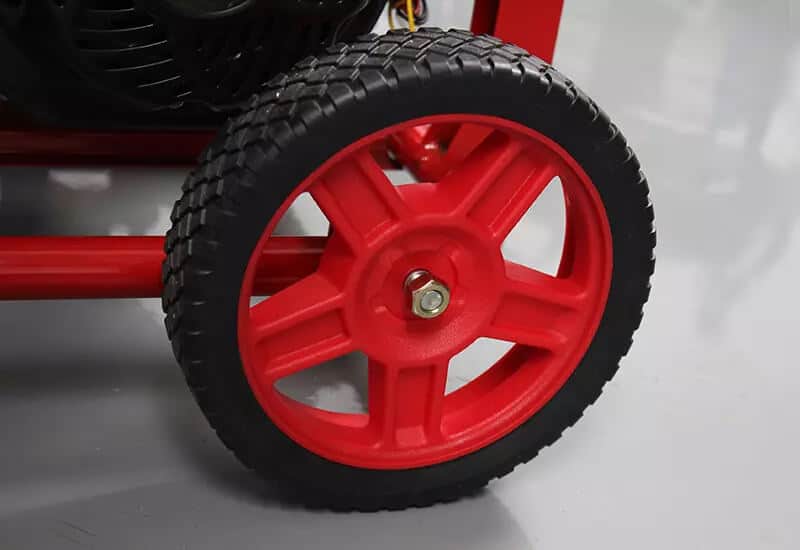

- 10″ tire wheels for all-terrain mobility is stable.
- Low oil alert for protect Portable Petrol Generator for Home Use Electric Petrol Power Generators
| no brand | 30 sets |
| OEM standard | 50 sets |
| OEM special | 100 sets |

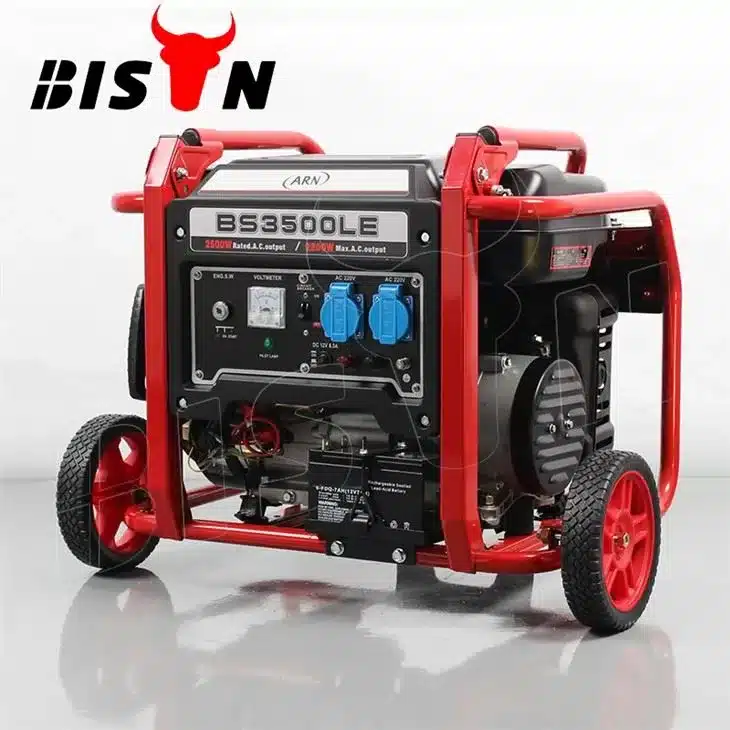

BS3500 Specifications
| Model | BS3500 |
|---|---|
| Maximum Power of the Generator (KW) | 3000 W |
| Rated Power of the Generator (KW) | 2800W |
| Rated output voltage (Volt) | 1 Phase / 3 Phases (Optional) |
| Over Load Protector (OLP) | YES |
| Rated frequency (Hz) | 50 / 60 Hz |
| Rated Current (Amp) | 16 |
| Power factor | 1.0 (Single Phase) / 0.8 (Three Phases) |
| Fuel Tank Capacity | 15L |
| Fuel option | #92, #95 Unleaded Gasoline |
| Socket rating | 16A |
| Self start motor | Recoil start/Electric start |
| Fuel consumption at 100% Load | 1.2kg/h |
| Fuel consumption at 75% Load | 1.1kg/h |
| Fuel consumption at 50% Load | 0.85kg/h |
| Continuous Duration of operation at Rated load (hour) | 8 |
| Ignition system | T.C.I |
| Noise Level (dB) at rated load (from 4-meter distance) | 93.2 |
| Engine & Emission Specifications | |
|---|---|
| Engine Model | BS170F |
| Fuel Type | Gasoline |
| Engine Speed | 3000(50 Hz) / 3600(60 Hz) RPM |
| Bore × Stroke | 70*54mm |
| Engine Displacement | 210 cc |
| Engine/Motor Type | 1-Cylinder, Air-Cooled, 4-Stroke, Direct Injected，OHV |
| Engine Oil grade | #5W-40 |
| Fuel Capacity | 0.6L |
| Low Oil Shutdown/Alert | Yes |
| Recoil Start | Yes |
| Electric Start | Optional |
| Alternator | |
|---|---|
| Type of alternator | 100% Copper (Corrective Wave) |
| Rotor RPM | 3000 |
| Alternator Size | 160*120mm |
products description
BISON portable gasoline generator sets are reliable, easy to use, and come with a variety of quality, innovative features for an unbeatable value.BISON generators are great for projects at home, camping, picnics, as an emergency backup power source, and more! In addition to their simple plug-and-play functionality, Bison generators are stable and durable.
The BISON 3000 watt portable gasoline generator set is a versatile, efficient, and reliable power solution that will appeal to a wide range of customers. By stocking this product, you will provide your customers with a generator that perfectly balances power and portability, backed by our commitment to quality and customer satisfaction.
Key Features
- power output: Our 3000-watt generator provides a steady supply of power to a wide range of appliances and tools, making it the ideal solution for a variety of power needs.
- Gasoline engine: The gasoline engine ensures high fuel efficiency and superior performance, providing your customers with more power per gallon.
- portable design: This generator set has a compact and lightweight design. On the other hand, our portable genset is designed for mobility and meets the needs of customers who require a mobile power solution. Its compact size and built-in handle make it easy for customers to bring power wherever they need it.
- Automatic voltage regulator: This feature protects appliances from voltage fluctuations, giving customers peace of mind when powering sensitive electronics. Two household power outlets provide high-quality power to all your favourite electronic devices.
- low oil shutoff: The generator automatically shuts down when the oil level gets too low, preventing engine damage and ensuring a longer service life.

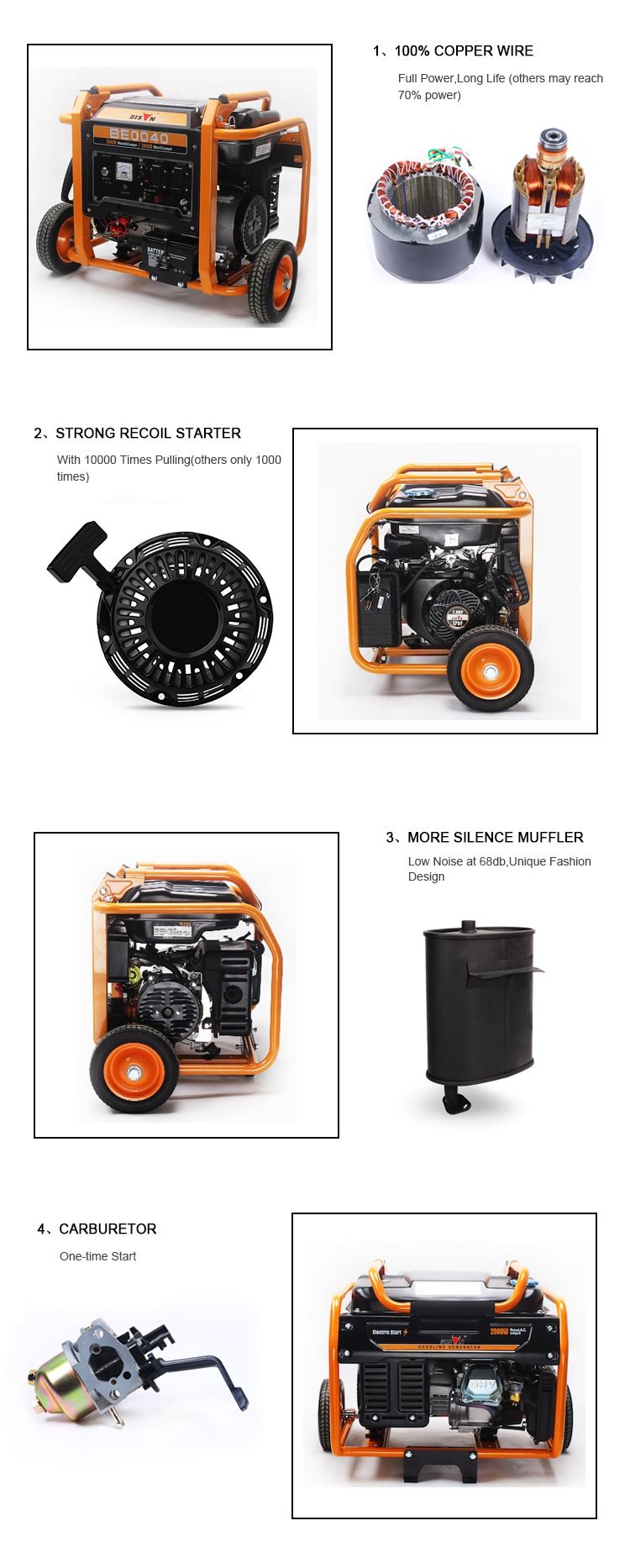

A class core parts
Dive deep into the world of BISON high-quality gasoline generators, where unrivaled performance meets highest reliability.
100% all-copper motor
Offering durability and superior energy efficiency
Domestic top carburetor
high atomization level, ensuring optimal fuel efficiency and smooth engine operation.

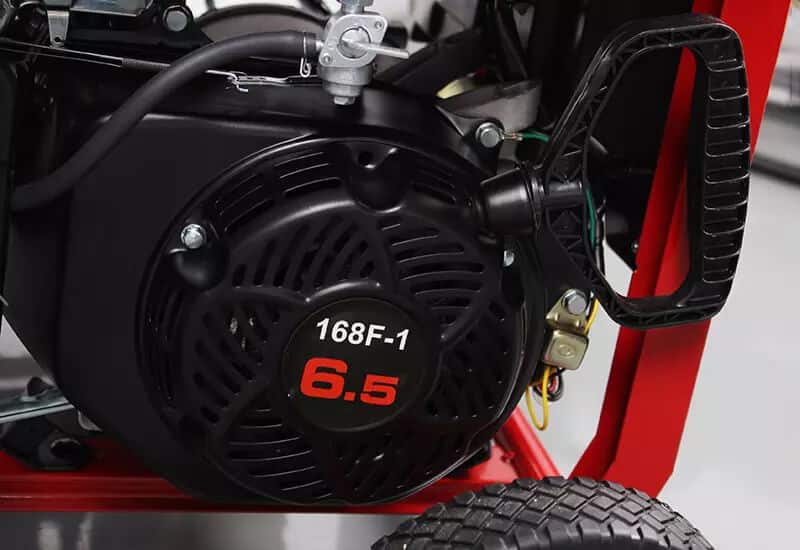

Powerful pull plate
Easy to start pull plate, guarantee more than 10,000 pulls
robust frames
Professional welding and painting process to ensure the beauty and stability of the rack
tight quality contorl
portable gasoline generator set assembly process
- Use special equipment to assemble, ensure the beaning, oil seal, governor gear effectively fit

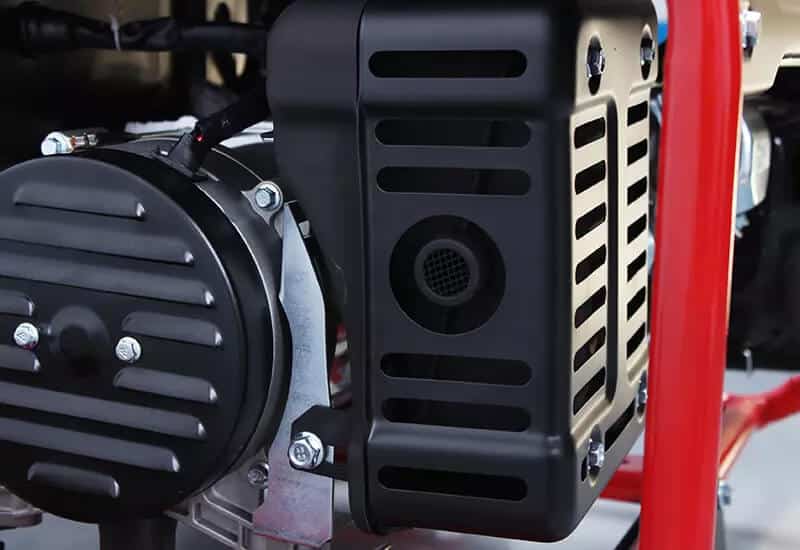

- When assembling nuts for each muffler, spring pads need to be installed to ensure the fit of each component and the maximum noise reduction effect
- Use a special air gun, and use different torque standards for different parts
- Water test is required in each engine assembly to ensure the tightness of itself
- Pay attention to small details, add thread glue and spring washers to the bolts; add support feet to the motor bracket
- More than 20 debugging processes throughout the whole process to ensure that the machine 100% meets the factory requirements
portable gasoline generator set inspection process
Inspection process leaves no room for compromise, ensuring that every gasoline generator we produce is flawless.
- Water Test: Ensures 100% cylinder tightness, detecting any possible leaks.
- Unit Comprehensive Intelligent Test Cabinet: Each generator undergoes a full inspection to confirm reliability and accuracy.
- Withstand Voltage Tester Inspection: Every generator is fully inspected, ensuring precise electrical safety measurements.
- Strengthened Laboratory Standards: Our lab exceeds national sampling standards, resulting in superior product durability.
Professional technicians with 15-20 years of experience
Performance Commissioning
Machine Assembly
Artwork QA
Full Inspection
Generator Specialized Inspection
Parts assembly
Core Assembly
Power Specialized Inspection
QC System
During the production, BISON care about the quality for each portable gasoline generator set, that’s why we strictly follow the step of our QC system. Every product will be well test during the production line, we separate the faulty one to special area-faulty zone, where the place will collect faulty product and send to repair.
ERP system
With full using of ERP system, once we receive your order, all steps proceed methodically, it improves our work efficiency and reduces our error rate。And it give our loyal customers more confidence.
Production system
From the beginning of the product production, BISON skilled operate equipment to manufacture high level qualityportable gasoline generator set. All steps by our own workers.
Warranty Information
Discounted Accessories
24-hour online, 5-minute response
Engineer on-site service
Packaging & Delivery
Packaging Details: brown strong carton, generator is protected with poly bag, wooden, 1pc / carton. Lead Time: Shipped in 25 days after payment.
