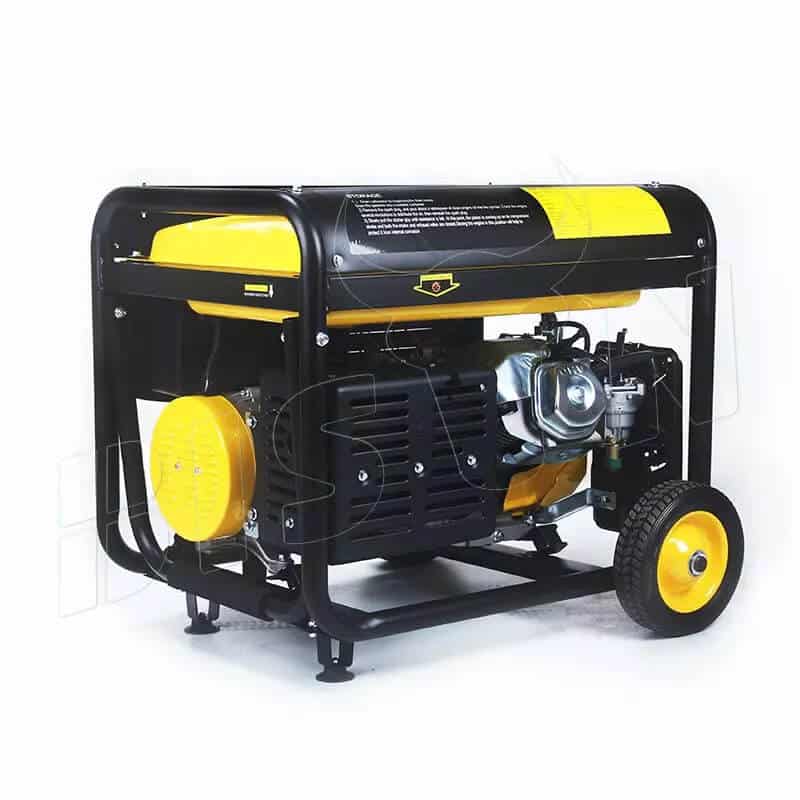

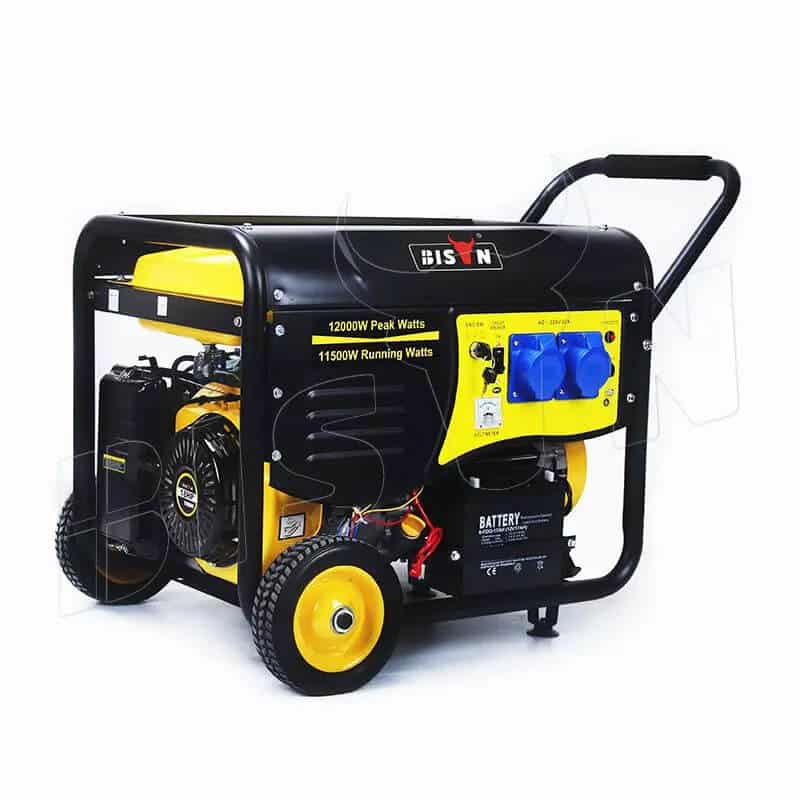

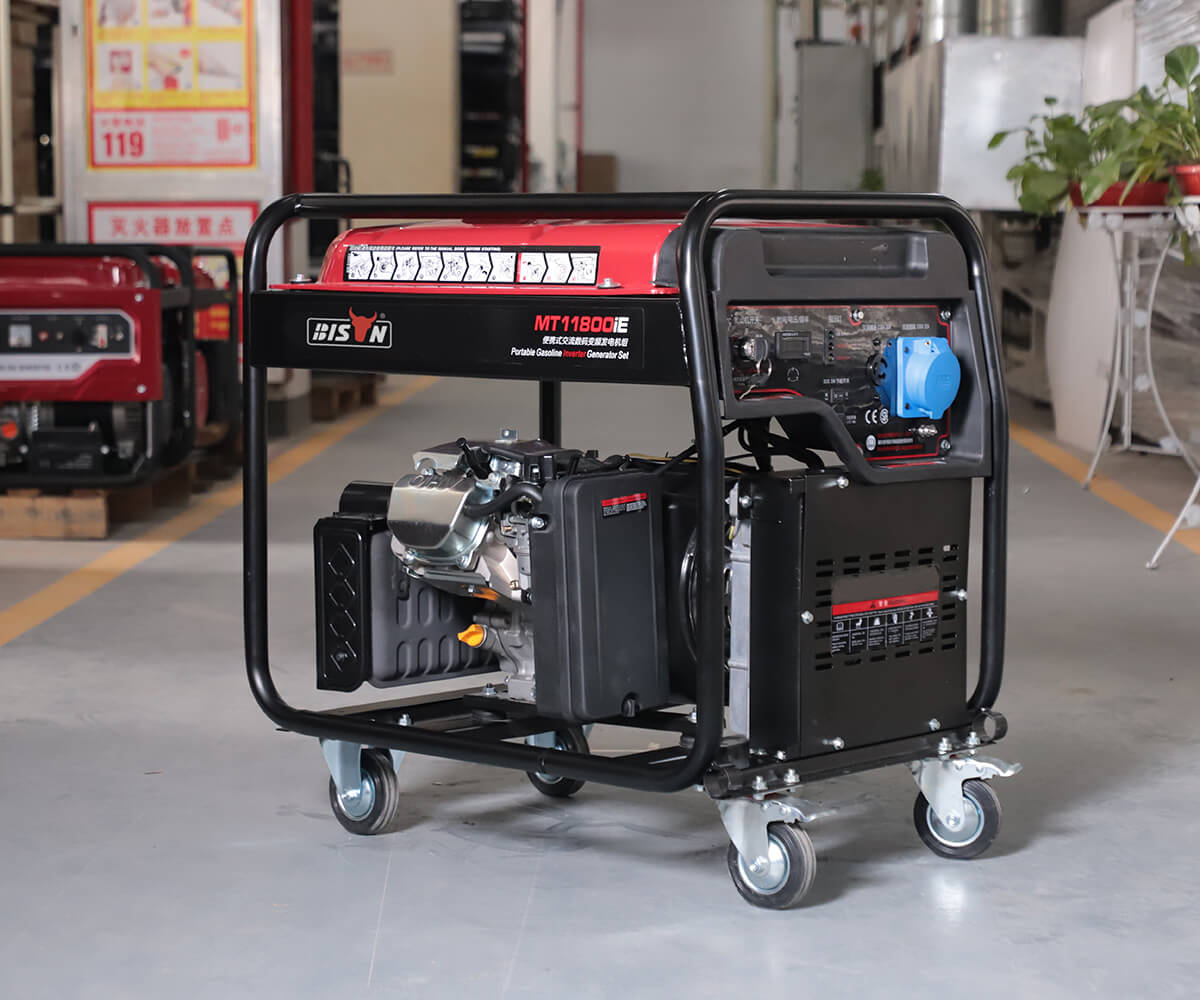

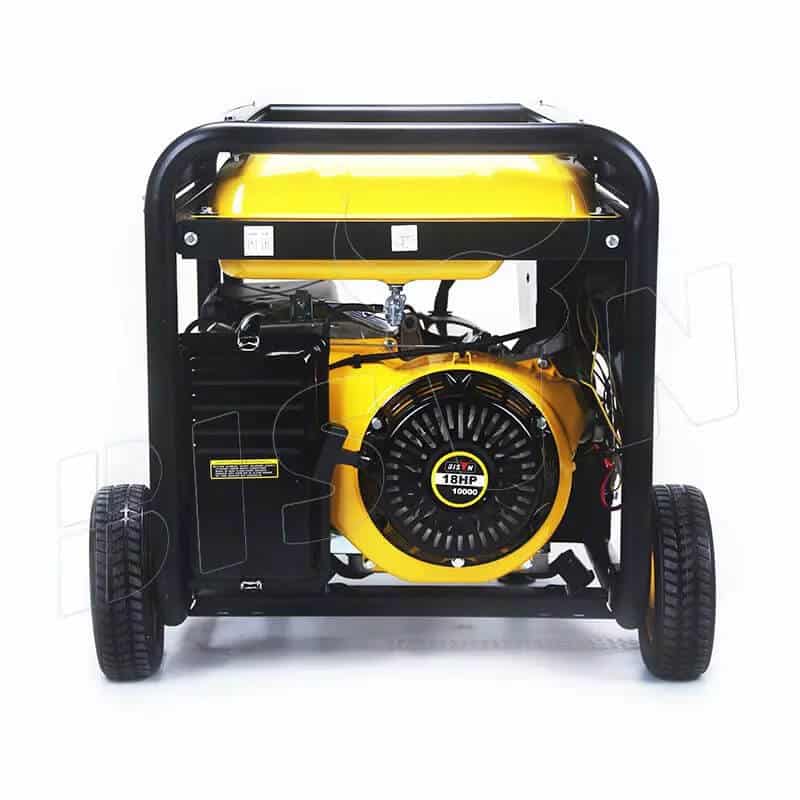

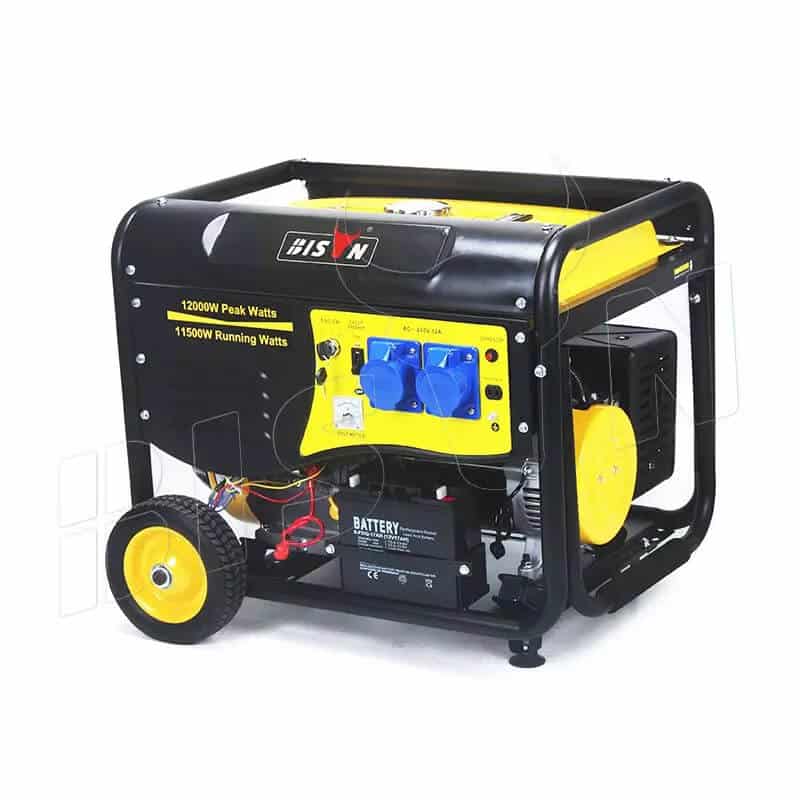

portable generator gas-powered with wheels
- Runs 7 hrs @ 1/2 load
- Low oil level shut down,

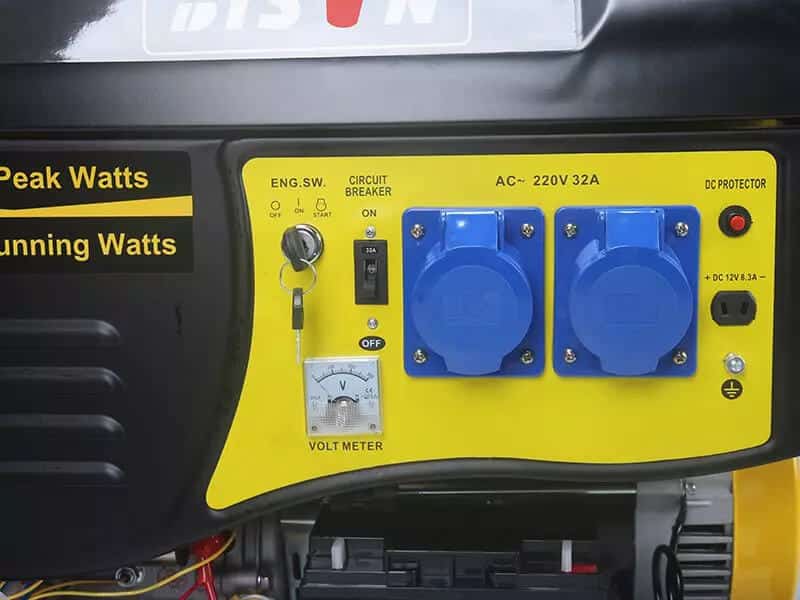

- Voltage switch equipped for full power operation

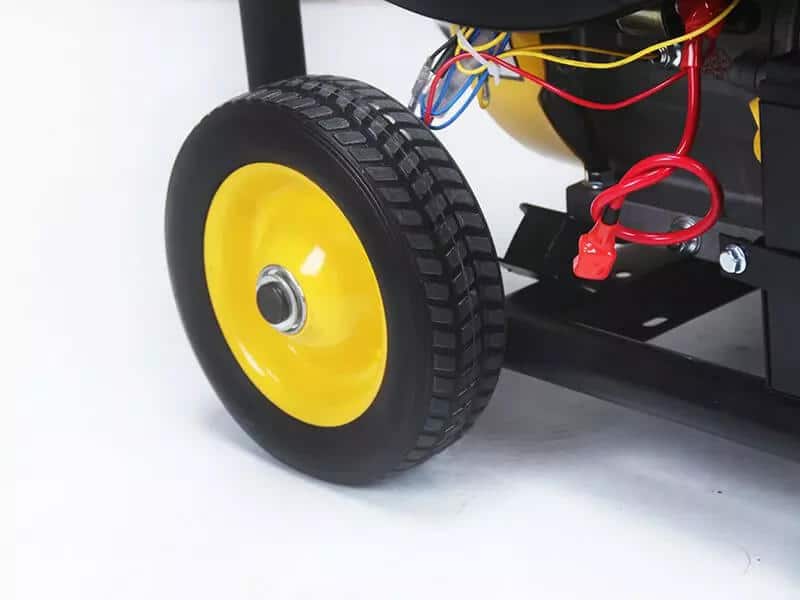

- 3″ tire wheels for all-terrain mobility are stable.
| no brand | 30 sets |
| OEM standard | 50 sets |
| OEM special | 100 sets |
BS9500 Specifications
| Model | BS9500 |
|---|---|
| Maximum Power of the Generator (KW) | 8500 W |
| Rated Power of the Generator (KW) | 7500W |
| Rated output voltage (Volt) | 1 Phase / 3 Phases (Optional) |
| Over Load Protector (OLP) | YES |
| Rated frequency (Hz) | 50 / 60 Hz |
| Rated Current (Amp) | Depends On Your Socket And Generator Power |
| Power factor | 1.0 (Single Phase) / 0.8 (Three Phases) |
| Fuel Tank Capacity | 25L |
| Fuel option | #92, #95 Unleaded Gasoline |
| Socket rating | 16A/32A |
| Self start motor | Recoil start/Electric start |
| Fuel consumption at 100% Load | 3.48kg/h |
| Fuel consumption at 75% Load | 2.8kg/h |
| Fuel consumption at 50% Load | 2.1kg/h |
| Continuous Duration of operation at Rated load (hour) | 5.1 |
| Ignition system | T.C.I |
| Noise Level (dB) at rated load (from 4-meter distance) | 95 |
| Engine & Emission Specifications | |
|---|---|
| Engine Model | BS192F |
| Fuel Type | Gasoline |
| Engine Speed | 3000(50 Hz) / 3600(60 Hz) RPM |
| Bore × Stroke | 92*66mm |
| Engine Displacement | 440cc |
| Engine/Motor Type | 1-Cylinder, Air-Cooled, 4-Stroke, Direct Injected，OHV |
| Engine Oil grade | #5W-40 |
| Fuel Capacity | 1.1L |
| Low Oil Shutdown/Alert | Yes |
| Recoil Start | Yes |
| Electric Start | Optional |
| Alternator | |
|---|---|
| Type of alternator | 100% Copper (Corrective Wave) |
| Rotor RPM | 3000 |
| Alternator Size | 190*165mm |
products description
BISON is pleased to introduce you to our newly designed portable gas powered generators. This content is geared toward potential dealers who appreciate superior design, advanced technology and customer satisfaction.
Key Features
- 2023 design: Our 2023 model stands out with its modern, sleek aesthetic, in line with the latest design trends in power generation technology. It also demonstrates our commitment to continually innovate and provide quality products to meet the changing needs of the marketplace.
- portable: This generator’s compact design and lightweight construction make it easy to carry around, making it perfect for a variety of outdoor activities or as a reliable backup power source at home.
- gas powered efficiency: Powered by gas, this generator delivers a reliable and efficient power source, ensuring that your customers can power their appliances and equipment whenever and wherever they need it.
- Ergonomic design: This generator is designed with practicality in mind. The intuitive interface and ergonomic structure make it easy to operate.
- Our portable gas generators exemplify our innovative design capabilities and commitment to providing reliable, efficient and user-friendly power solutions. As a distributor, you will offer market-leading products that meet a wide range of customer needs.
A class core parts
100% all-copper motor
Offering durability and superior energy efficiency
Domestic top carburetor
high atomization level, ensuring optimal fuel efficiency and smooth engine operation.

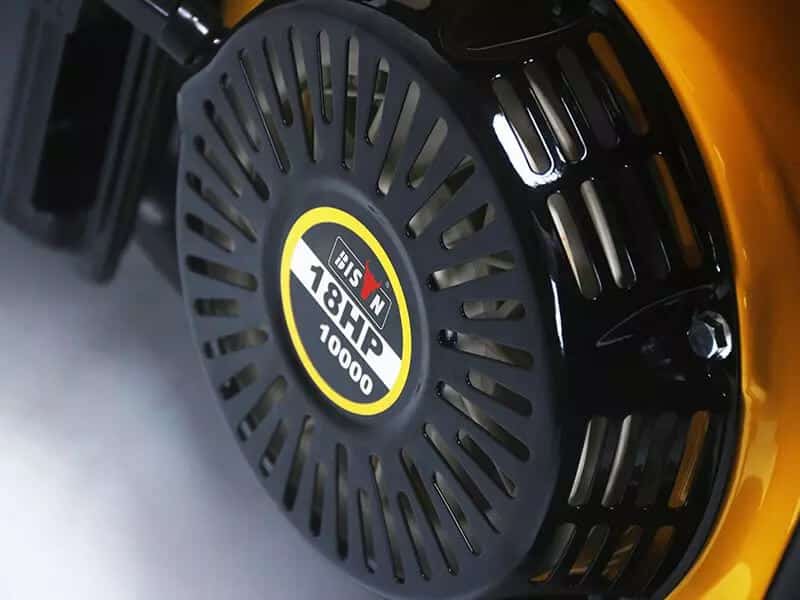

Powerful pull plate
Easy to start pull plate, guarantee more than 10,000 pulls
robust frames
Professional welding and painting process to ensure the beauty and stability of the rack
tight quality contorl
portable generator gas-powered with wheels assembly process
- Use special equipment to assemble, ensure the beaning, oil seal, governor gear effectively fit
- When assembling nuts for each muffler, spring pads need to be installed to ensure the fit of each component and the maximum noise reduction effect
- Use a special air gun, and use different torque standards for different parts
- Water test is required in each engine assembly to ensure the tightness of itself
- Pay attention to small details, add thread glue and spring washers to the bolts; add support feet to the motor bracket
- More than 20 debugging processes throughout the whole process to ensure that the machine 100% meets the factory requirements
portable generator gas-powered with wheels inspection process
Inspection process leaves no room for compromise, ensuring that every gasoline generator we produce is flawless.
- Water Test: Ensures 100% cylinder tightness, detecting any possible leaks.
- Unit Comprehensive Intelligent Test Cabinet: Each generator undergoes a full inspection to confirm reliability and accuracy.
- Withstand Voltage Tester Inspection: Every generator is fully inspected, ensuring precise electrical safety measurements.
- Strengthened Laboratory Standards: Our lab exceeds national sampling standards, resulting in superior product durability.
Professional technicians with 15-20 years of experience
Performance Commissioning
Machine Assembly
Artwork QA
Full Inspection
Generator Specialized Inspection
Parts assembly
Core Assembly
Power Specialized Inspection
QC System
During the production of our product, we do care about the quality for each sets, that’s why we strictly follow the step of our QC system. Every product will be well test during the production line, we separate the faulty one to special area-faulty zone, where the place will collect faulty product and send to repair.
Production system
From the beginning of the production,our workers skilled operate equipment for production to manufacture high level quality products. All steps by our own workers.
support
At our manufacturing facility, we take great pride in our advanced design capabilities and services.BISON has a team of experienced engineers and designers who work tirelessly to develop innovative solutions that continue to push the limits of generator technology. Our capabilities extend from initial concept development to final product design, ensuring a seamless transition from idea to reality.
BISON’s design process is characterized by attention to detail, rigorous testing and adaptation to market trends. We utilize state-of-the-art CAD tools and simulation software for accurate and efficient design. Additionally, we are committed to customizing our designs to meet the specific requirements of our dealers and provide a truly personalized experience.
Discounted Accessories
24-hour online, 5-minute response
Engineer on-site service
Packaging & Delivery
Packaging Details: brown strong carton, generator is protected with poly bag, wooden, 1pc / carton. Lead Time: Shipped in 25 days after payment.
