HOME / GENERATOR / GASOLINE GENERATOR /

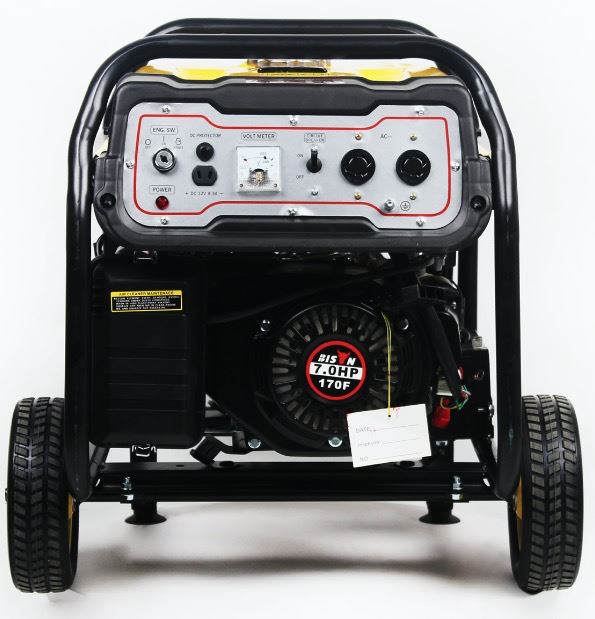

powered gasoline generator with recoil & e-start
- 3500 Watt Max Power, 2800 Watt Rated Power
- Bison Power 70*55 4-Stroke,recoil & E-Start
- Electric Starting or Recoil pull start option could choose
- Single Chip Digital AVR – Automatic Voltage Regulation option
- Runs 8 hrs @ 80% load
- 4 Gallon Fuel Capacity, Low Oil Level Shut Down,
- Voltage Switch Equipped For Full Power Operation
| no brand | 30 sets |
| OEM standard | 50 sets |
| OEM special | 100 sets |
BS3500 Specifications
| Model | BS3500 |
|---|---|
| Maximum Power of the Generator (KW) | 3000 W |
| Rated Power of the Generator (KW) | 2800W |
| Rated output voltage (Volt) | 1 Phase / 3 Phases (Optional) |
| Over Load Protector (OLP) | YES |
| Rated frequency (Hz) | 50 / 60 Hz |
| Rated Current (Amp) | 16 |
| Power factor | 1.0 (Single Phase) / 0.8 (Three Phases) |
| Fuel Tank Capacity | 15L |
| Fuel option | #92, #95 Unleaded Gasoline |
| Socket rating | 16A |
| Self start motor | Recoil start/Electric start |
| Fuel consumption at 100% Load | 1.2kg/h |
| Fuel consumption at 75% Load | 1.1kg/h |
| Fuel consumption at 50% Load | 0.85kg/h |
| Continuous Duration of operation at Rated load (hour) | 8 |
| Ignition system | T.C.I |
| Noise Level (dB) at rated load (from 4-meter distance) | 93.2 |
| Engine & Emission Specifications | |
|---|---|
| Engine Model | BS170F |
| Fuel Type | Gasoline |
| Engine Speed | 3000(50 Hz) / 3600(60 Hz) RPM |
| Bore × Stroke | 70*54mm |
| Engine Displacement | 210 cc |
| Engine/Motor Type | 1-Cylinder, Air-Cooled, 4-Stroke, Direct Injected，OHV |
| Engine Oil grade | #5W-40 |
| Fuel Capacity | 0.6L |
| Low Oil Shutdown/Alert | Yes |
| Recoil Start | Yes |
| Electric Start | Optional |
| Alternator | |
|---|---|
| Type of alternator | 100% Copper (Corrective Wave) |
| Rotor RPM | 3000 |
| Alternator Size | 160*120mm |
products description
As extreme weather events become more frequent, powered gasoline generator have become more popular. Anyone who lives in the suburbs often loses power after storms and is familiar with the hum of dozens of generators in the whole community. But normal power is not their use. powered gasoline generator means a long-term stable power output and could keep around 2 years, not like other only 6 or 7 months.
The powered gasoline generator consists of two main components: the more powerful and stable engine and the alternator. The engine use the special set for could suit powerful request,and all motor uses 100% copper wire. so which makes us possible for powered gasoline generator.
Key features that make powered gasoline generator with recoil & e-start a market leader
- Dual start option: Your customers can choose electric start or recoil start according to the environment and usage habits, and the dual start option guarantees the powered gasoline generator from quick start to continuous operation.
- Extended running time: BISON gasoline generator outputs 3500 watt max power, 2800 watt rated power at rated load. Meanwhile, the ample tank capacity of 15L and excellent fuel consumption rate (only 1.2kg/h when fully loaded) ensure that the BS3500 can run continuously for up to 8 hours. This significantly reduces the frequency of refueling, saving time and operating costs.
- Single chip digital AVR: Automatic voltage regulation option, which provides stable voltage and protects electrical equipment from surges and fluctuations.
- Voltage flexibility: Voltage switch equipped or full power operation, with single-phase and three-phase voltage options and the ability to switch between rated frequencies of 50Hz and 60Hz, can meet the electrical requirements of different countries, making it globally compatible.
- Comprehensive protection: Equipped with an overload protector (OLP) and low oil level shutdown function, the BS3500’s service life is extended while preventing damage to connected equipment.
- Excellent manufacturing quality: The generator uses 100% copper alternator and a rectified wave rotor for durability.
BISON’s commitment to quality is reflected in every aspect of the BS3500. The air-cooled 4-stroke OHV engine is durable, while the direct injection system optimizes fuel efficiency. The generator can use both 92 and 95 unleaded gasoline, providing flexibility in fuel purchasing.
A class core parts
Dive deep into the world of BISON high-quality gasoline generators, where unrivaled performance meets highest reliability.
100% all-copper motor
Offering durability and superior energy efficiency
Domestic top carburetor
high atomization level, ensuring optimal fuel efficiency and smooth engine operation.
Powerful pull plate
Easy to start pull plate, guarantee more than 10,000 pulls
robust frames
Professional welding and painting process to ensure the beauty and stability of the rack
tight quality contorl
powered gasoline generator with recoil & e-start assembly process
- Use special equipment to assemble, ensure the beaning, oil seal, governor gear effectively fit
- When assembling nuts for each muffler, spring pads need to be installed to ensure the fit of each component and the maximum noise reduction effect
- Use a special air gun, and use different torque standards for different parts
- Water test is required in each engine assembly to ensure the tightness of itself
- Pay attention to small details, add thread glue and spring washers to the bolts; add support feet to the motor bracket
- More than 20 debugging processes throughout the whole process to ensure that the machine 100% meets the factory requirements
powered gasoline generator with recoil & e-start inspection process
Inspection process leaves no room for compromise, ensuring that every gasoline generator we produce is flawless.
- Water Test: Ensures 100% cylinder tightness, detecting any possible leaks.
- Unit Comprehensive Intelligent Test Cabinet: Each generator undergoes a full inspection to confirm reliability and accuracy.
- Withstand Voltage Tester Inspection: Every generator is fully inspected, ensuring precise electrical safety measurements.
- Strengthened Laboratory Standards: Our lab exceeds national sampling standards, resulting in superior product durability.
Professional technicians with 15-20 years of experience
Performance Commissioning
Machine Assembly
Artwork QA
Full Inspection
Generator Specialized Inspection
Parts assembly
Core Assembly
Power Specialized Inspection
Warranty Information
BISON Group has focused on the Timely after-sales service,we have English Spanish Russian language exclusive service；and tracking service principle make customer know the their good real production information;and we have the professional after-sales service，Continue to handle the product situation until the situation is resolved
Based on our excellent quality and service, our company has long-term partnerships with many famous enterprises, and the products spreading all over the world.
For global dealers, choosing a competitive product is important. Contact BISON today to become a part of our global dealer’s network and learn more about powered gasoline generator with recoil & e-start.
Discounted Accessories
24-hour online, 5-minute response
Engineer on-site service
Packaging & Delivery
Packaging Details: brown strong carton, generator is protected with poly bag, wooden, 1pc / carton. Lead Time: Shipped in 25 days after payment.
