China High Pressure Water Pumps

Our diesel water pumps are standard packaged by strong carton box with plywood up and down. Make the machine more safe during the transportation time.so don’t worry about that.
Diesel water pumps are more silent than gasoline one.
Diesel water pumps are more reiable and safe.
The diesel powered water pumps are easy to install and run.
The diesel powered water pumps are with small size and can easy to move….

Parameter Description

China Pump Manufacturer–Bison

High Pressure Water Pump

– Product Parameter

Brand Name: BISON

Model Number: BSDWP30

Theory: Centrifugal Pump

Structure: Piston Pump

Power: Hydraulic

Standard or Nonstandard: Standard

Fuel: Diesel

Pressure: High Pressure

Application: Sewage

Warranty: 500hours or 1 year

Dimension: 560*440*550mm

Mass(kg): 54kgs

20GP/ 40HQ: 200/420sets

Optional 1: Electric/Recoil start

– Product Description

The high-pressure water pump is often used for cleaning, spraying, pressurizing, pumping, etc. due to its high pressure, small size and convenient carrying. With a stable self-priming function, the self-priming speed is extremely fast. It has over-voltage, over-temperature double automatic protection switch, which can provide automatic shutdown protection when the output pressure exceeds the maximum pressure; and can provide automatic protection when the temperature is too high. It is made of corrosion-resistant imported materials and has the properties of acid resistance, alkali resistance and corrosion resistance. The pump body is separated from the motor and the working medium is not in contact with the motor. It runs smoothly and has a very long service life. The sturdy frame structure gives it a good shock absorption effect so that it can be used normally under harsh conditions. The excellent and advanced impeller can supply the water in wide range.

We are professional manufacturer of water pumps. And we got CE and ISO certifications. Before delivering, each pump has been tested several times. Electric or recoil start are optional. Meanwhile, this high-pressure water pump is driven by diesel. If you want gasoline water pumps, we can also provide for you. Please contact us.

– Product Show

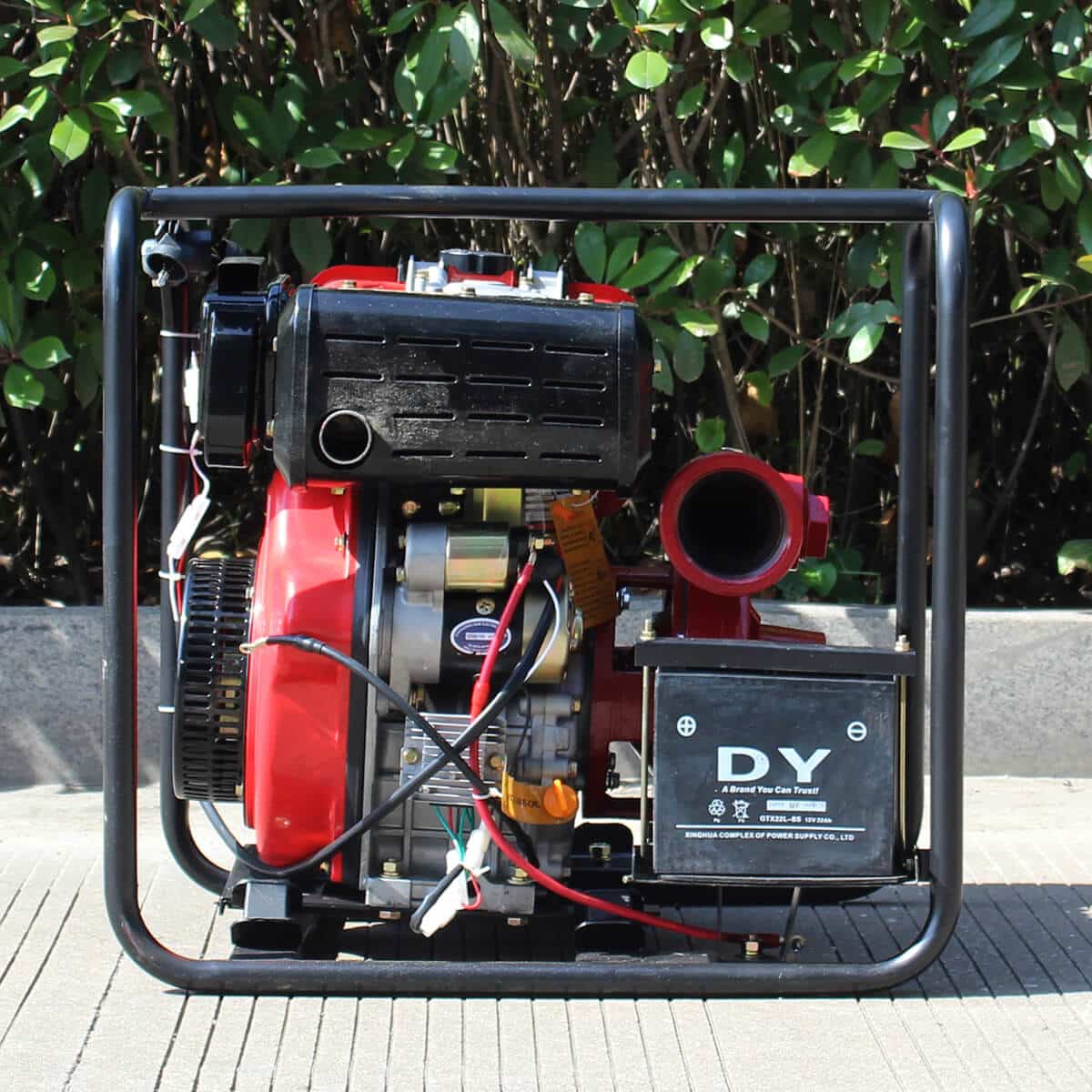

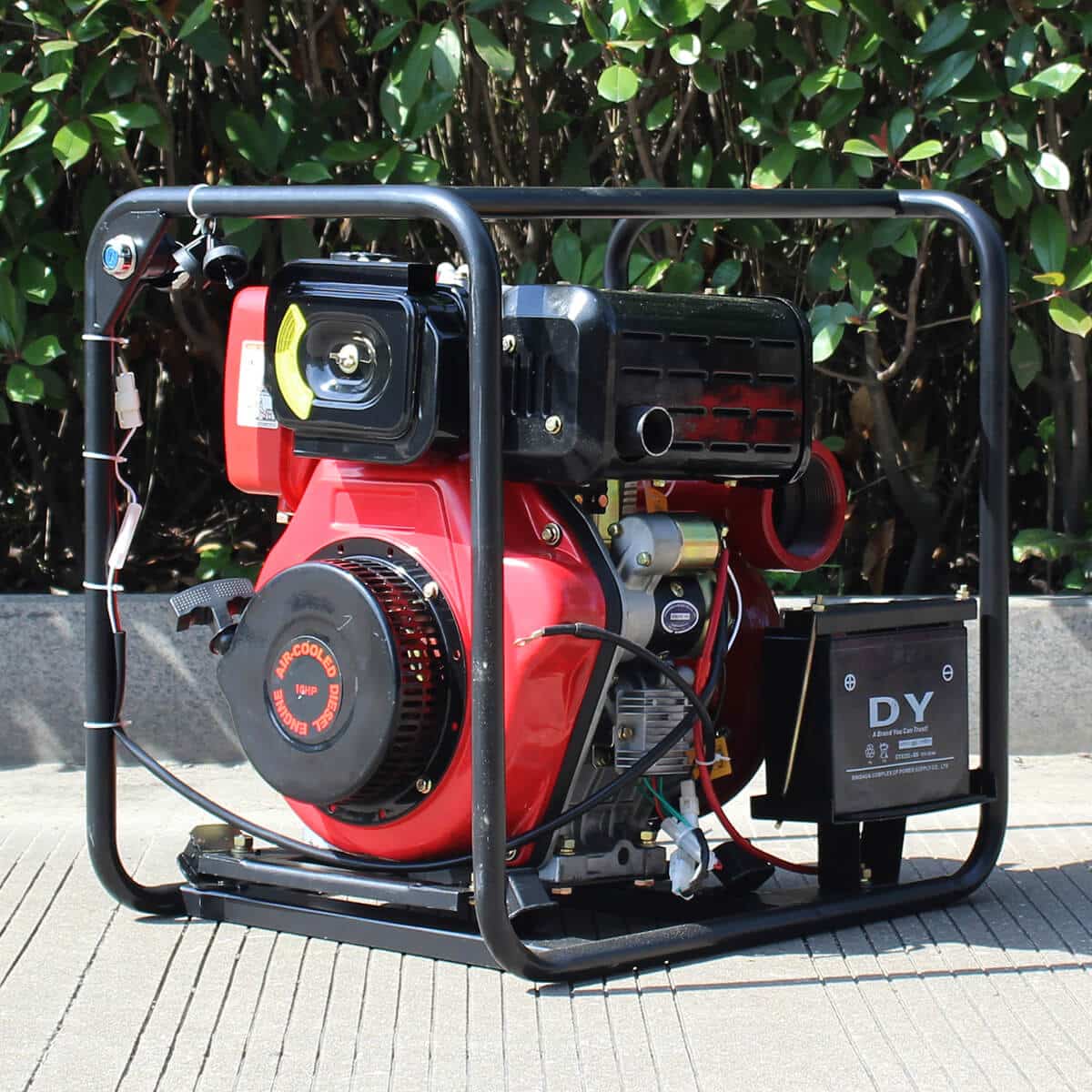

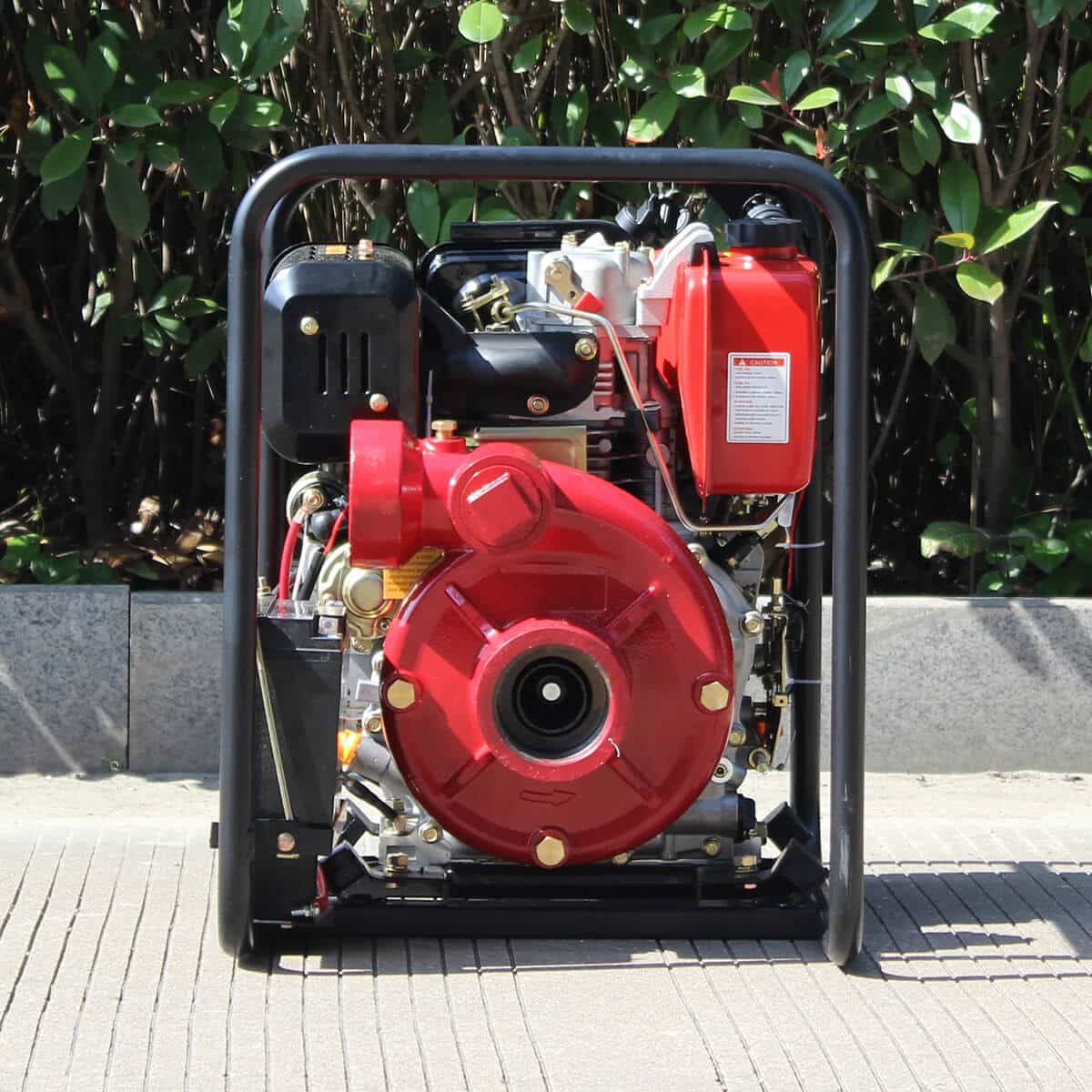

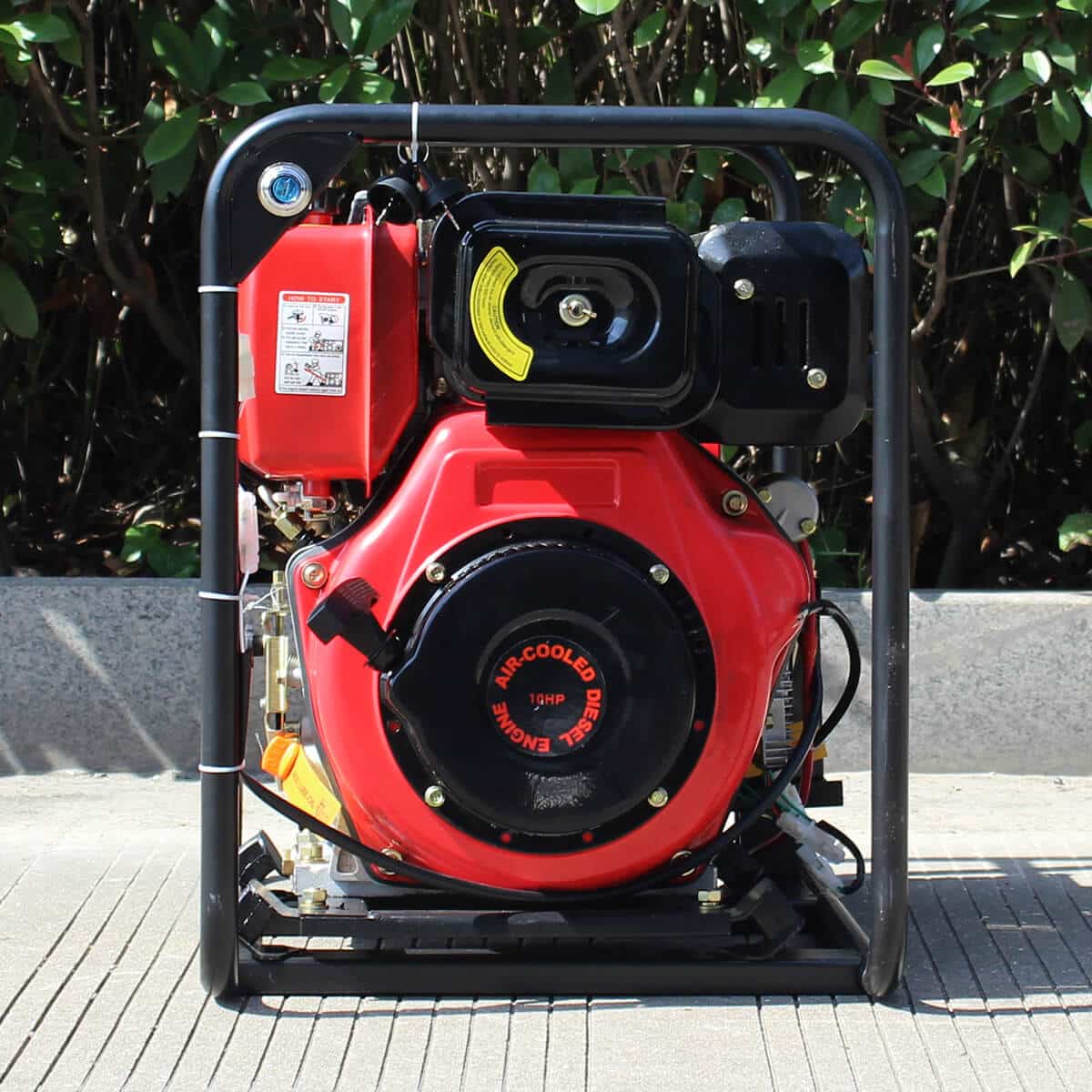

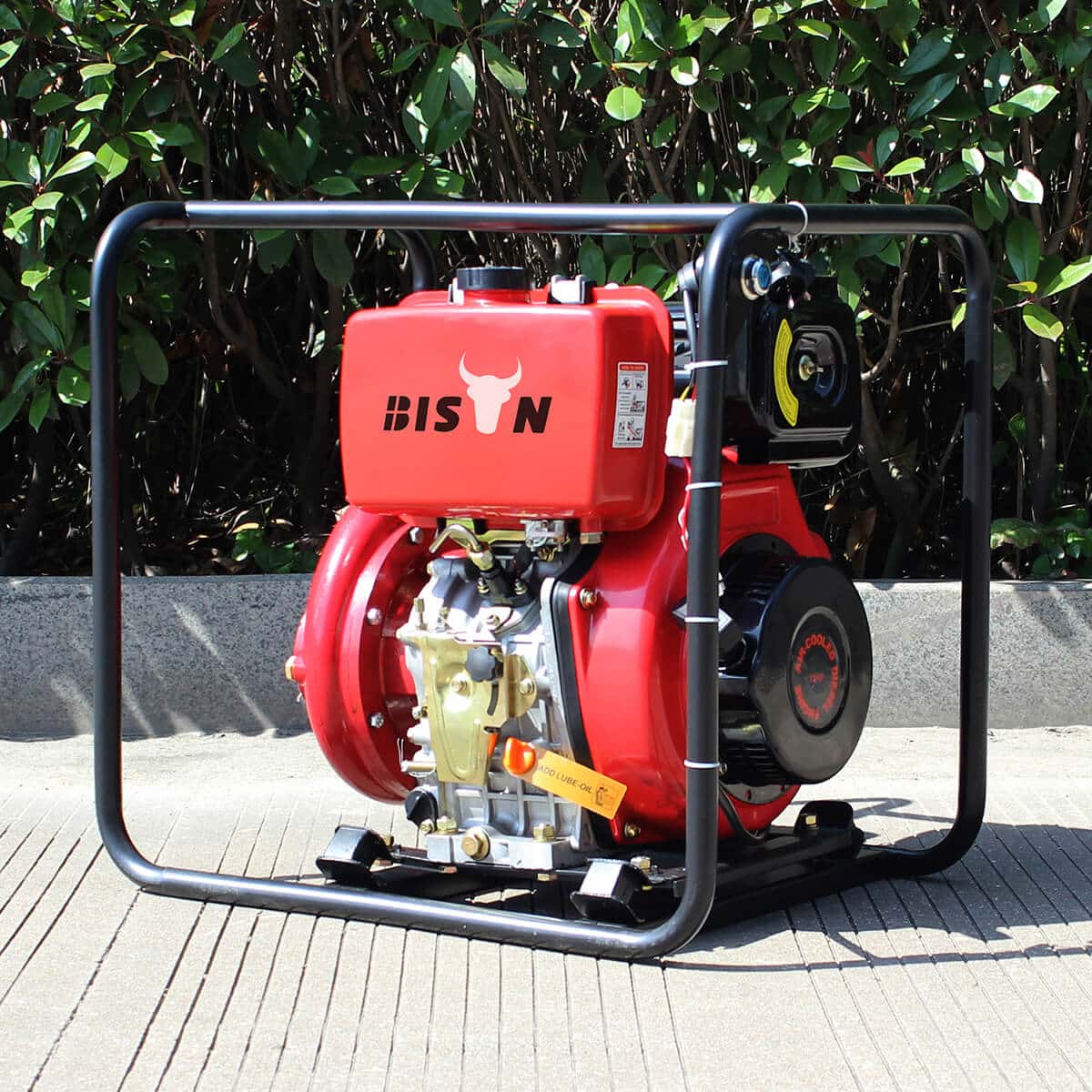

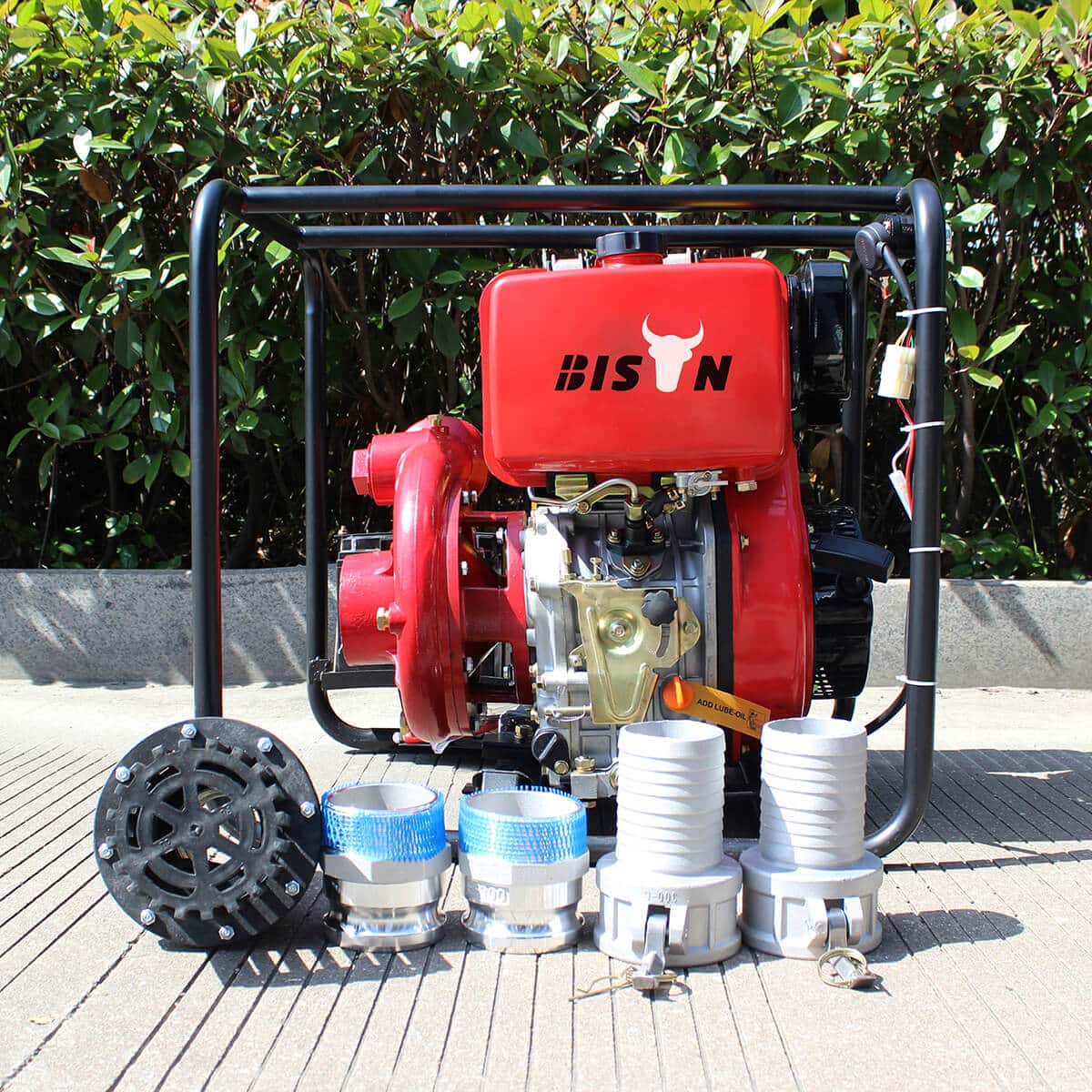

high pressure water pump details high pressure water pump details 2 high pressure water pump details 3
high pressure water pump details 4 high pressure water pump details 5 high pressure water pump details 6
high pressure water pump details 7 high pressure water pump details 8 high pressure water pump details 9

– Product Packaging & Delivery

Packaging Details: brown strong carton, water pump is protected with ploy bag, wool, 1pc / carton
Port: Ningbo/Shanghai Port
Lead Time: 20-25 days

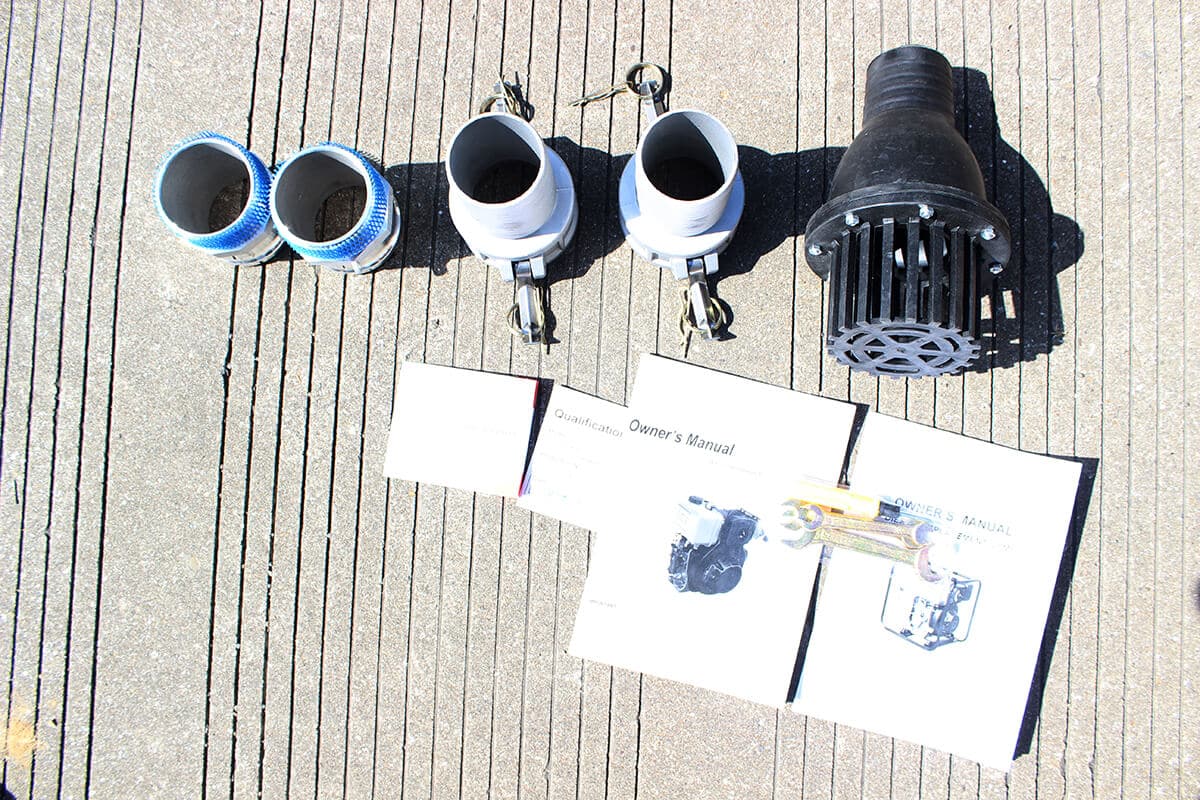

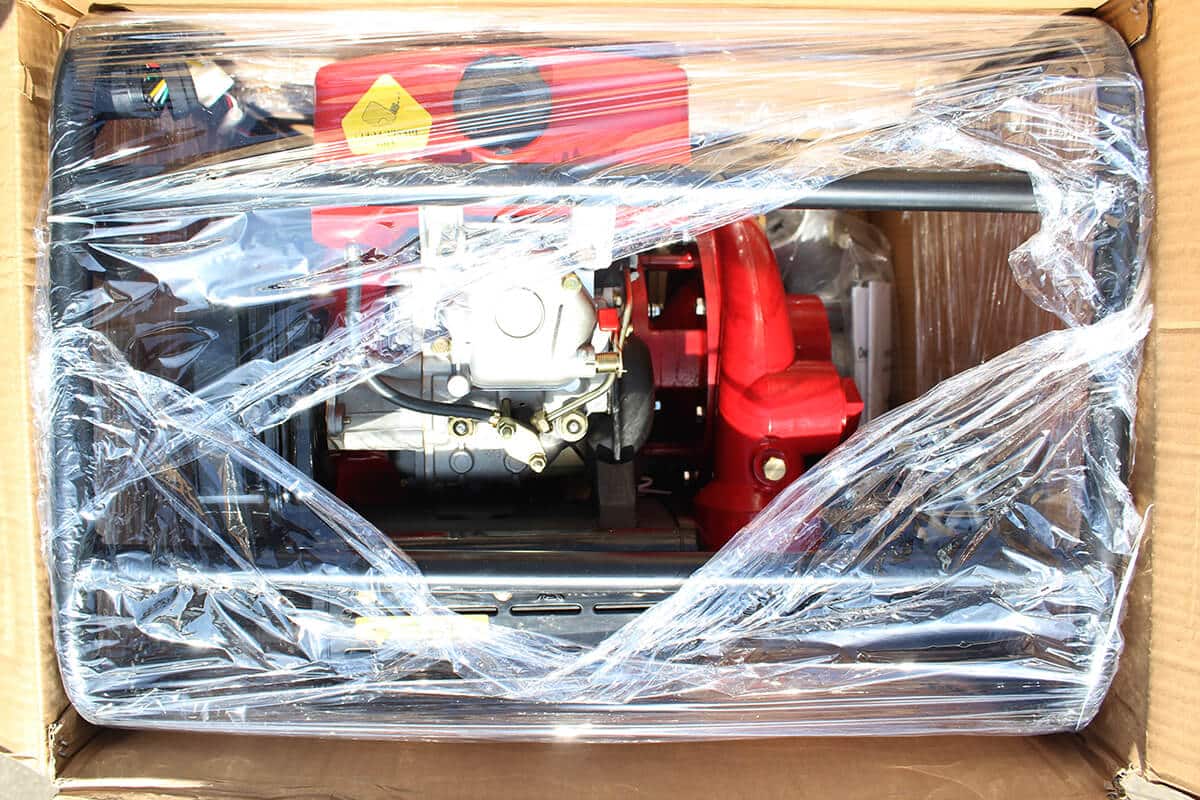

high pressure water pump package 2 high pressure water pump package

Our water pump parts

engine connecting rod

The mechanical strength belongs to the density of ADC12 aluminum alloy cast aluminum, and the weight monitoring can ensure the consistency of structural tensile strength and processing CPK

pump engine piston

Adopt Z109 material to increase the wear resistance and reduce thermal deformation, to ensure the weight of the piston and the accuracy of machining

pump engine case

Using high-precision fixtures, machining center equipment to ensure precision, and high-density material strength, BISON's box can meet the durability test for 125 hours, and can meet emission standards

intake and exhaust valves

BISON only adopts high-quality pump heads with sufficient materials (reasonable and thick alloy ratio) and excellent processing technology (oxidation resistance, corrosion resistance, mold, flatness, and sealing)

water pump testing

BISON water pump comprehensive test bench is equipped with a comprehensive test tank, which is higher than the national standard sampling inspection type and durable, ensuring the quality of the product in all aspects.

Test the pump suction online and simulate negative pressure detection. 100% full inspection to determine the extremely low failure of the product

Regular outdoor field testing of water pumps to ensure the pumping efficiency of the product in practice
