6.5hp gasoline engine semi-trash water pump

3 inch|6.5 HP|30M|60 m³/h
ce 1
tuv
nps
2 years warranty
epa 1
no brand30 sets
OEM standard50 sets
OEM special100 sets

WP30 Specifications

Model WP30
Outlet Size(mm) 80
Inlet Size(mm) 80
Displacement Q. max(m3/h) 60
Lift H. max(m) 30
Suction (m) 8
Fuel Tank Capacity 3.6L
Fuel option #92, #95 Unleaded Gasoline
Self start motor Recoil start
Fuel consumption radio ≤395g/kW/hh
Ignition system T.C.I
Engine & Emission Specifications
Engine Model BS168F-1
Fuel Type Gasoline
Engine Speed(RPM) 3600
Bore × Stroke(mm) 68*54
Engine Displacement(cc) 196
Engine/Motor Type 1-Cylinder, Air-Cooled, 4-Stroke, Direct Injected,OHV
Engine Oil grade #5W-40
Fuel Capacity /
Low Oil Shutdown/Alert Yes
Recoil Start Yes
Electric Start Optional

Whether your customers are dealing with clean water, slightly turbid water, or water containing small debris, the 6.5hp gasoline engine semi-trash water pump can meet water transfer or dehydration needs.

Main features and advantages:

  • High power output: The 6.5hp BS168F-1 gasoline engine provides power, ensuring the water pump operates efficiently and quickly delivers large amounts of water.
  • Reliable and durable: Features cast iron sleeve and OHV design for extended service life and lower emissions.
  • Unrestricted: Gasoline engines offer portability and require no external power source. It is ideal for use in remote areas or areas without electricity.
  • Fuel efficiency: Fuel consumption radio≤395g/kW/hh, which can extend the running time, thereby reducing the use cost of your customers.
  • Easy starting: Equipped with a recoil starting system, the engine starts easily, reducing downtime and increasing productivity.

Semi-trash water pump features heavy-duty aluminum casing and cast iron impeller and volute to handle water containing sand, leaves and debris. Applies to:

  • Drainage flooded basements, trenches and excavations
  • Diverting water from ponds, streams and ditches
  • Water supply for irrigation or dust control

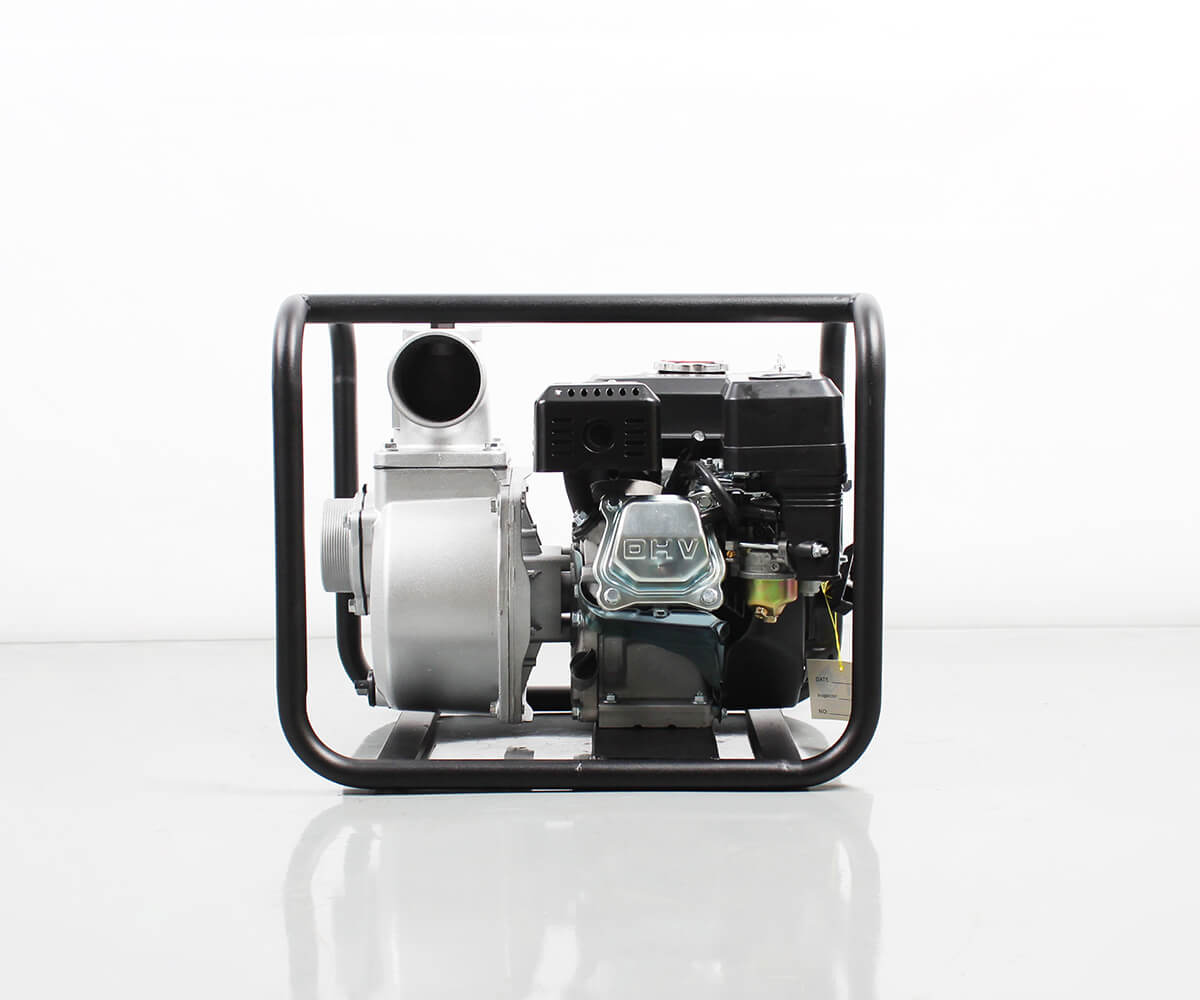

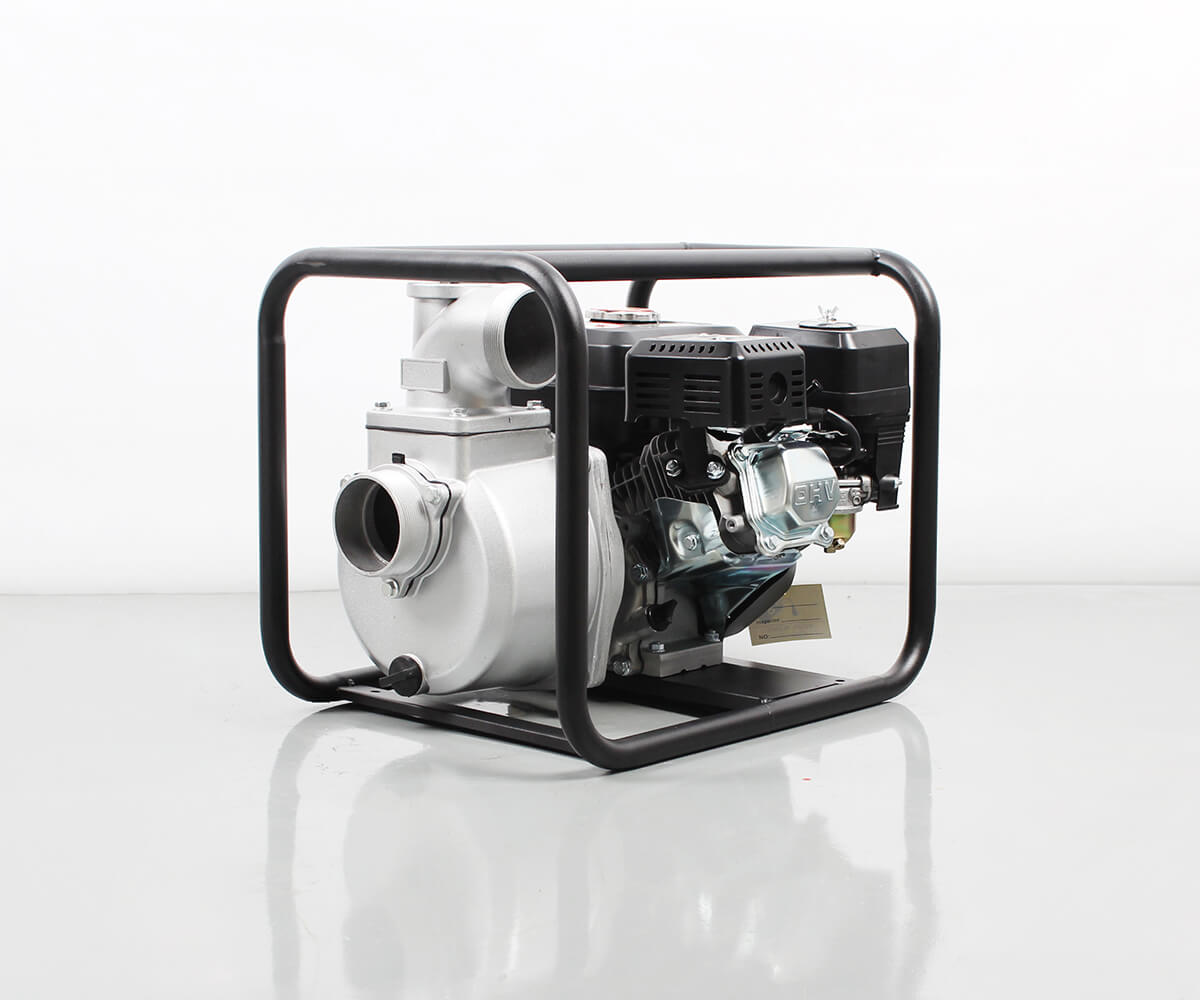

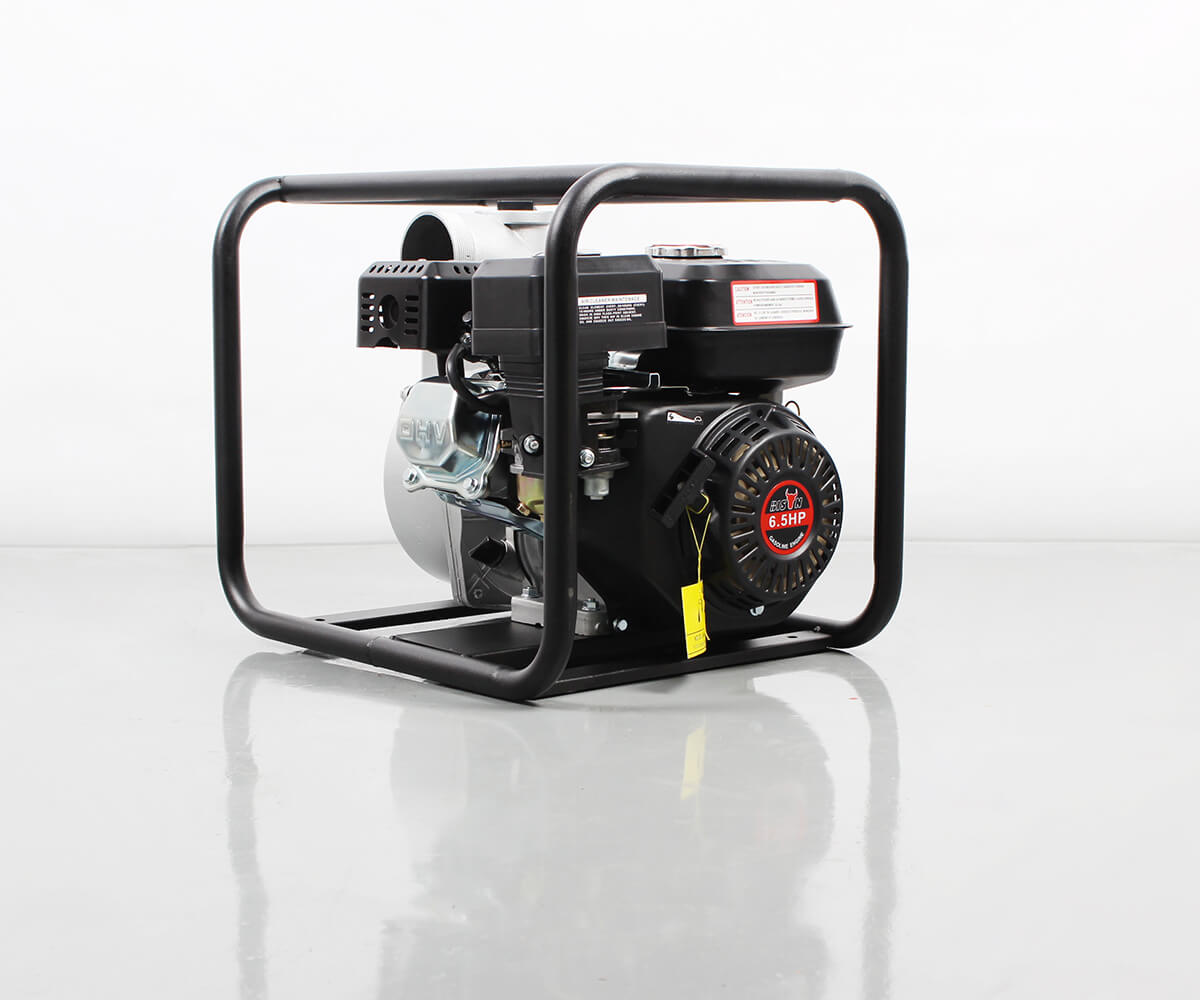

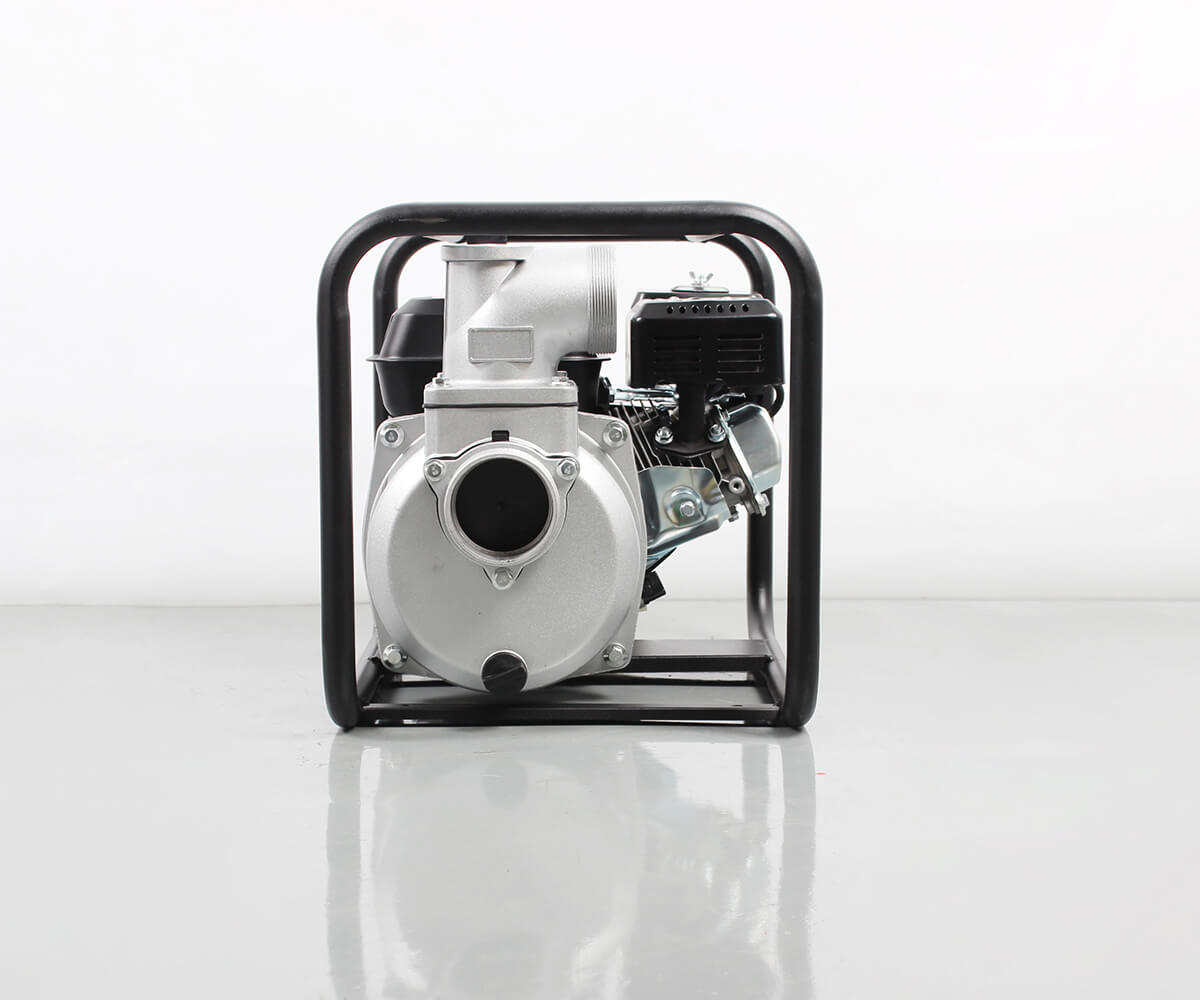

6 5hp gasoline engine semi trash water pump details
6 5hp gasoline engine semi trash water pump details 2
6 5hp gasoline engine semi trash water pump details 3
6 5hp gasoline engine semi trash water pump details 4

A class core parts

engine connecting rod

engine connecting rod

The mechanical strength belongs to the density of ADC12 aluminum alloy cast aluminum, and the weight monitoring can ensure the consistency of structural tensile strength and processing CPK

engine piston

pump engine piston

Adopt Z109 material to increase the wear resistance and reduce thermal deformation, to ensure the weight of the piston and the accuracy of machining

engine case

pump engine case

Using high-precision fixtures, machining center equipment to ensure precision, and high-density material strength, BISON's box can meet the durability test for 125 hours, and can meet emission standards

pump head

intake and exhaust valves

BISON only adopts high-quality pump heads with sufficient materials (reasonable and thick alloy ratio) and excellent processing technology (oxidation resistance, corrosion resistance, mold, flatness, and sealing)

tight quality contorl

pump suction simulation test

6.5hp gasoline engine semi-trash water pump testing

BISON water pump comprehensive test bench is equipped with a comprehensive test tank, which is higher than the national standard sampling inspection type and durable, ensuring the quality of the product in all aspects.

Test the pump suction online and simulate negative pressure detection. 100% full inspection to determine the extremely low failure of the product.

Regular outdoor field testing of water pumps to ensure the pumping efficiency of the product in practice.

Professional technicians with 15-20 years of experience

performance commissioning

Performance Commissioning

machine assembly

Machine Assembly

artwork qa

Artwork QA

full inspection

Full Inspection

power specialized inspection

water pump specialized inspection

parts assembly

Parts assembly

core assembly

Core Assembly

water pump specialized inspection

Power Specialized Inspection

support

Advantages of choosing BISON 6.5hp gasoline engine semi-trash water pump:

  • Quality and reliability: BISON builds high-quality water pumps through rigorous manufacturing processes, ensuring customer satisfaction and reducing warranty claims.
  • Complete product supply chain: BISON offers a full range of water pumps, allowing dealers to meet different customer needs. This can include freshwater pumps, submersible pumps, high-pressure pumps and semi-sewage pumps.
  • Manufacturer advantages: BISON leverages its experience and expertise to provide dealers with competitive prices, efficient shipping times and reliable products. In addition, BISON can also provide 24-hour technical support and after-sales service to ensure successful product launches and customer support.

BISON’s products are trusted by dealers and users around the world. Cooperate with BISON to experience the hot sales of the 6.5hp gasoline engine semi-trash water pump.

gasoline water pump parts

Discounted Accessories

24 hour online 5 minute response

24-hour online, 5-minute response

engineer on site service

Engineer on-site service

Packaging & Delivery

Packaging details: brown strong carton, water pump is protected with poly bag, wooden, 1pc / carton.
Lead Time: Shipped in 25 days after payment.
