LPG gasoline dual fuel water pump

80mm|4-Stroke|196cc
ce 1
tuv
nps
2 years warranty
epa 1
no brand30 sets
OEM standard50 sets
OEM special100 sets

WP30 Specifications

model WP30
Outlet Size(mm) 80
Inlet Size(mm) 80
Displacement Q. max(m3/h) 60
Lift H. max(m) 30
Suction (m) 8
Fuel Tank Capacity 3.6L
Fuel option #92, #95 Unleaded Gasoline
Self start motor Recoil start
Fuel consumption radio ≤395g/kW/hh
Ignition system T.C.I
engine & emission specifications
Engine Model BS168F-1
Fuel Type Gasoline
Engine Speed(RPM) 3600
Bore × Stroke(mm) 68*54
Engine Displacement(cc) 196
Engine/Motor Type 1-Cylinder, Air-Cooled, 4-Stroke, Direct Injected,OHV
Engine Oil grade #5W-40
Fuel Capacity /
Low Oil Shutdown/Alert Yes
Recoil Start Yes
Electric Start Optional

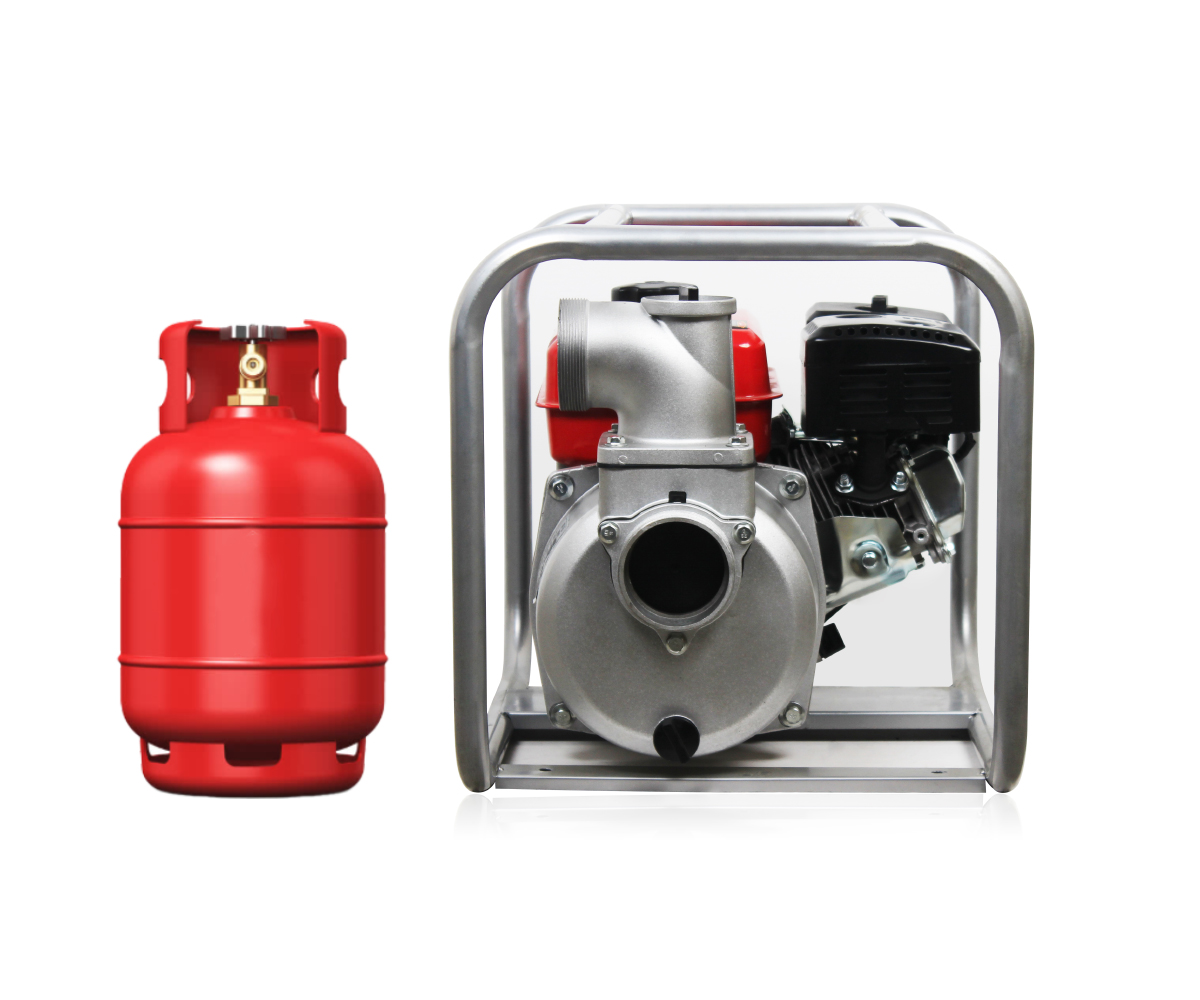

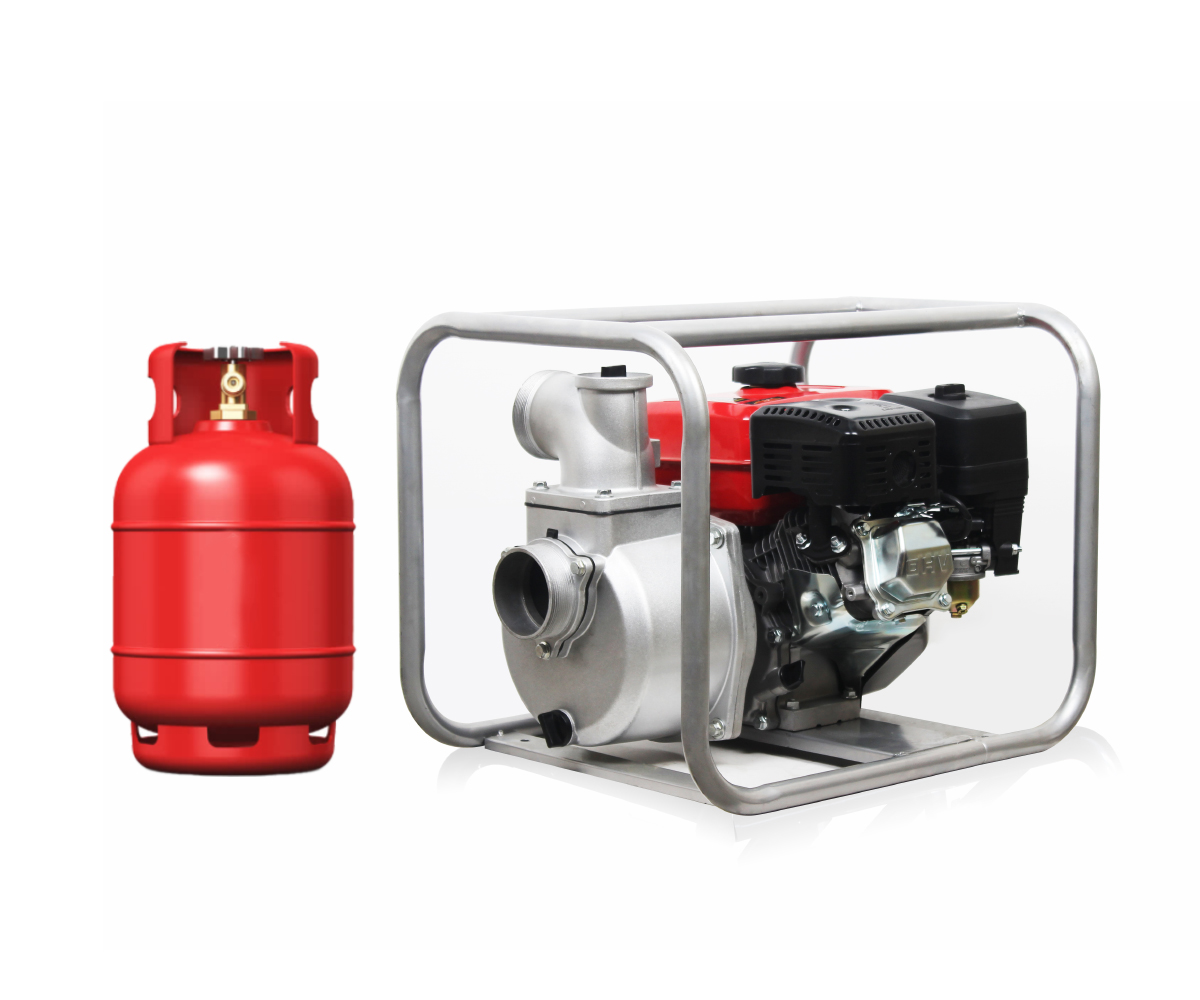

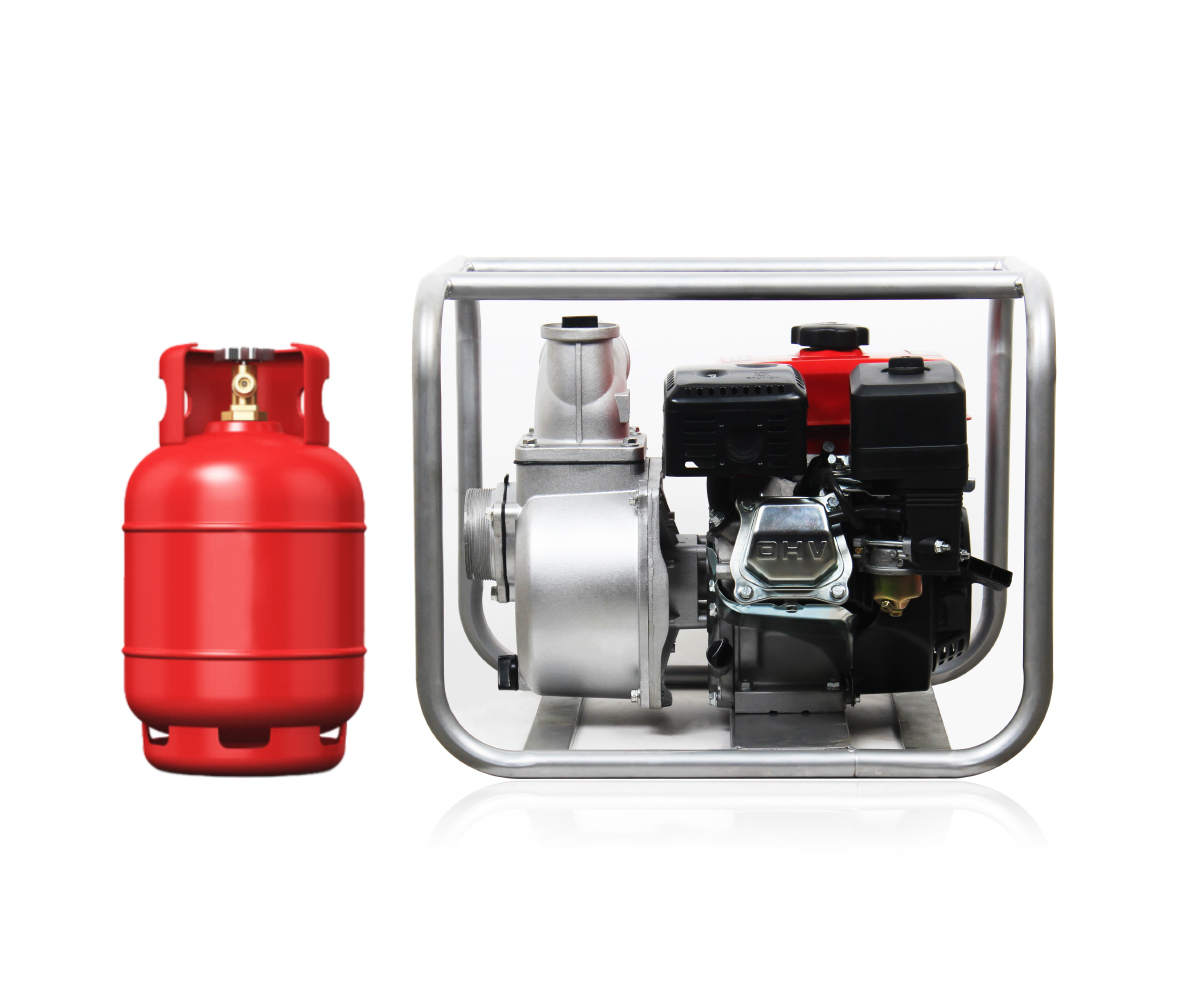

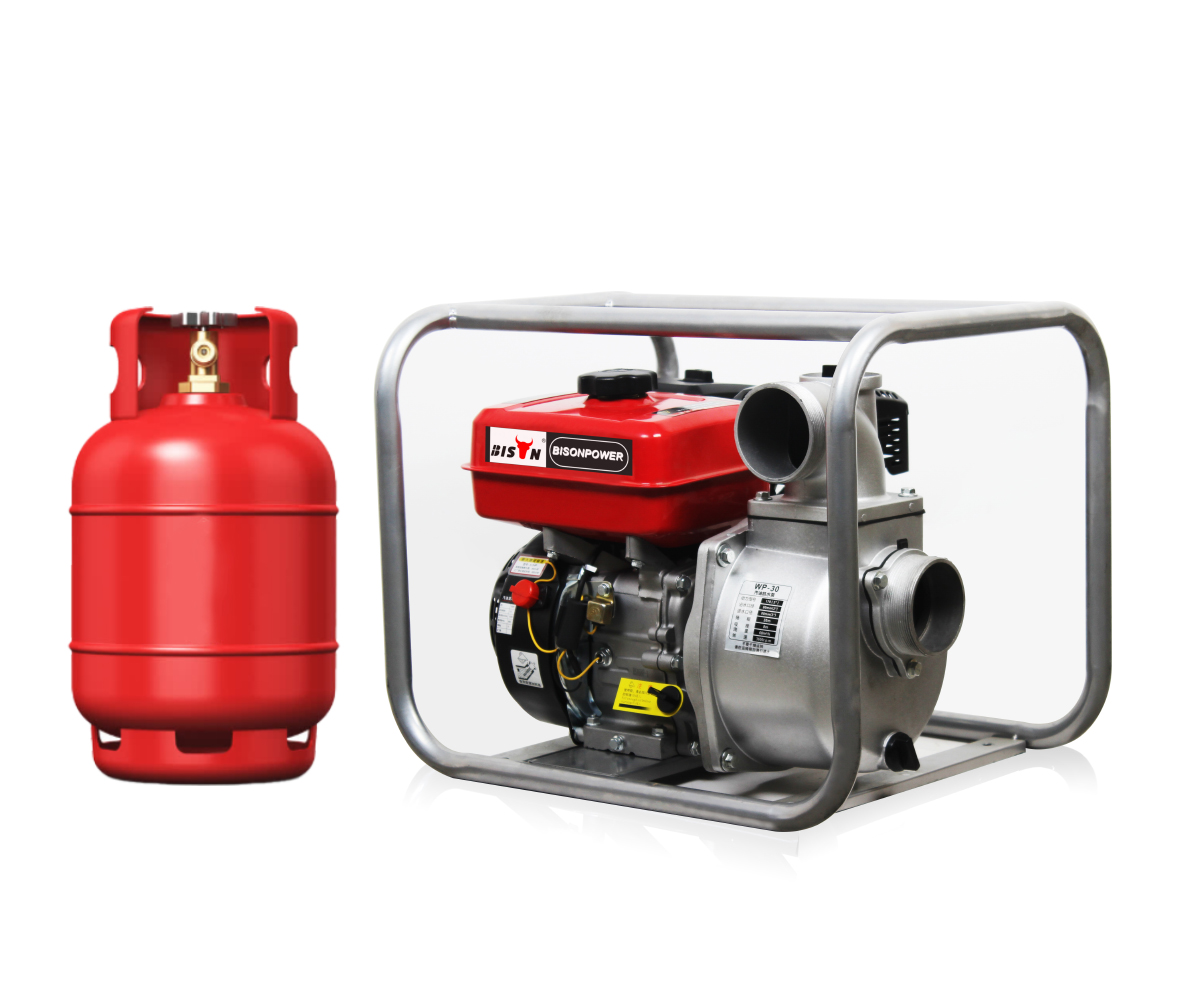

BISON LPG gasoline dual fuel water pump is a versatile water pump designed to run on two fuels: liquefied petroleum gas (LPG) and gasoline (#92, #95). This flexibility allows the user to choose the most cost-effective or available fuel source for their needs. It is commonly used in irrigation, construction and other water transfer applications, providing reliable performance, reduced fuel consumption and lower emissions when running on LPG. The dual fuel system ensures continuous operation, making it ideal for both small and large projects.

  • At the heart of the WP30 is the powerful BS168F-1 engine, a 196cc, 1-cylinder, air-cooled, 4-stroke engine that delivers outstanding performance.
  • With 80mm inlet and outlet sizes, the WP30 ensures high water transfers and can achieve suction heights of up to 8 meters. A recoil start system is standard, with electric start optional for added convenience.
  • The wp30 is constructed with high-quality components and a direct injection system to ensure minimal maintenance and long-term durability.
  • In addition, it includes built-in safety features such as low oil shutdown/alarm to protect the engine from potential damage.

A class core parts

Partnering with BISON gives you access to top manufacturing standards and strong technical support. Our commitment to quality and innovation ensures that each unit meets stringent performance and safety standards, bringing peace of mind and satisfaction to the end user.

engine connecting rod

engine connecting rod

The mechanical strength belongs to the density of ADC12 aluminum alloy cast aluminum, and the weight monitoring can ensure the consistency of structural tensile strength and processing CPK

engine piston

pump engine piston

Adopt Z109 material to increase the wear resistance and reduce thermal deformation, to ensure the weight of the piston and the accuracy of machining

engine case

pump engine case

Using high-precision fixtures, machining center equipment to ensure precision, and high-density material strength, BISON's box can meet the durability test for 125 hours, and can meet emission standards

pump head

intake and exhaust valves

BISON only adopts high-quality pump heads with sufficient materials (reasonable and thick alloy ratio) and excellent processing technology (oxidation resistance, corrosion resistance, mold, flatness, and sealing)

tight quality contorl

pump suction simulation test

LPG gasoline dual fuel water pump testing

BISON water pump comprehensive test bench is equipped with a comprehensive test tank, which is higher than the national standard sampling inspection type and durable, ensuring the quality of the product in all aspects.

Test the pump suction online and simulate negative pressure detection. 100% full inspection to determine the extremely low failure of the product.

Regular outdoor field testing of water pumps to ensure the pumping efficiency of the product in practice.

Professional technicians with 15-20 years of experience

performance commissioning

Performance Commissioning

machine assembly

Machine Assembly

artwork qa

Artwork QA

full inspection

Full Inspection

power specialized inspection

water pump specialized inspection

parts assembly

Parts assembly

core assembly

Core Assembly

water pump specialized inspection

Power Specialized Inspection

Warranty Information

By choosing BISON as your supplier and manufacturer, you can benefit from our comprehensive support, including fast order fulfillment, technical support and customized solutions. Our factory advantage allows us to produce cost-effective products without compromising quality, ensuring your customers enjoy long-lasting, high-performance equipment. Partner with BISON and enjoy our commitment to quality manufacturing and excellent customer support.

gasoline water pump parts

Discounted Accessories

24 hour online 5 minute response

24-hour online, 5-minute response

engineer on site service

Engineer on-site service

Packaging & Delivery

Packaging details: brown strong carton, water pump is protected with poly bag, wooden, 1pc / carton.
Lead Time: Shipped in 25 days after payment.
