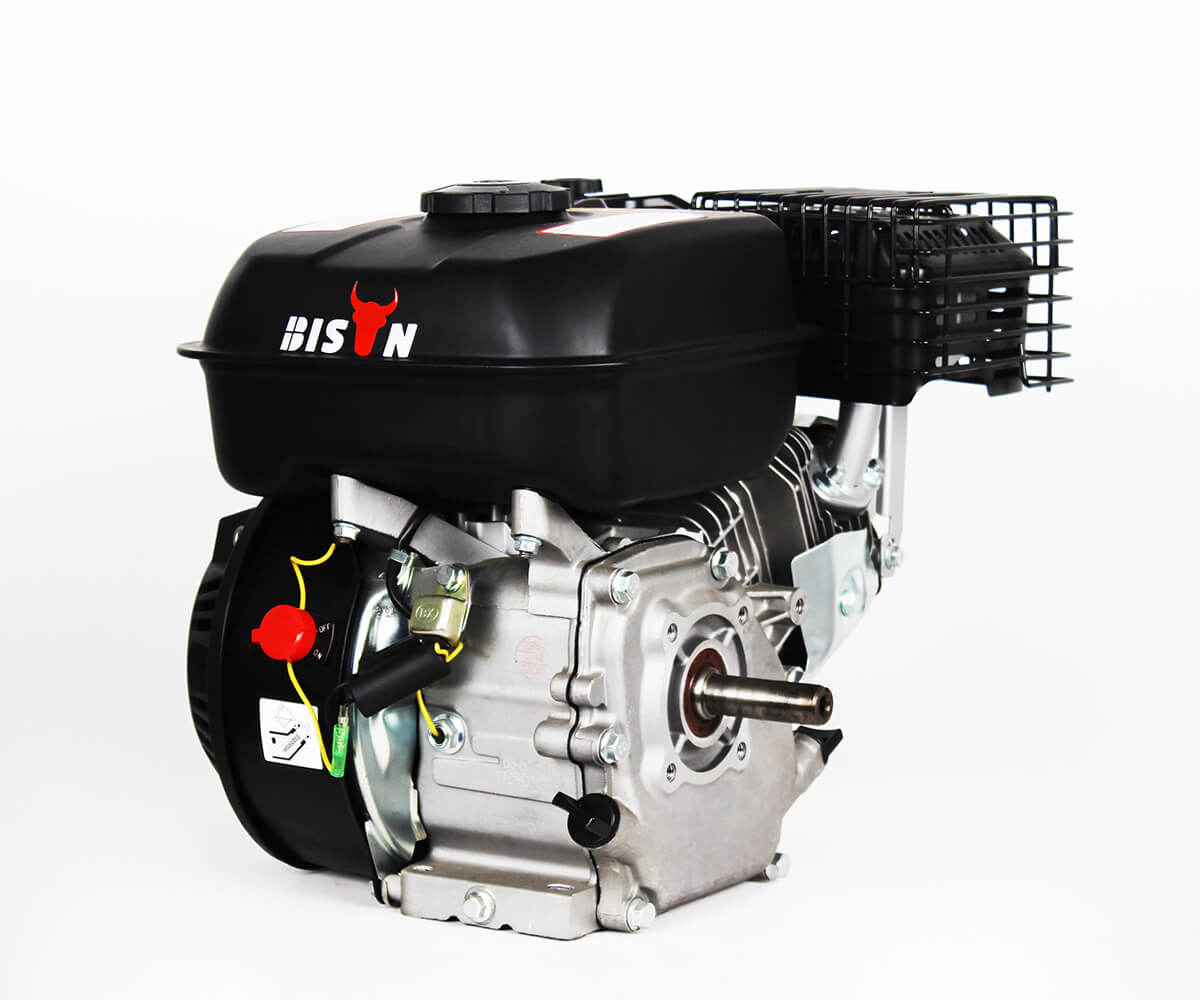

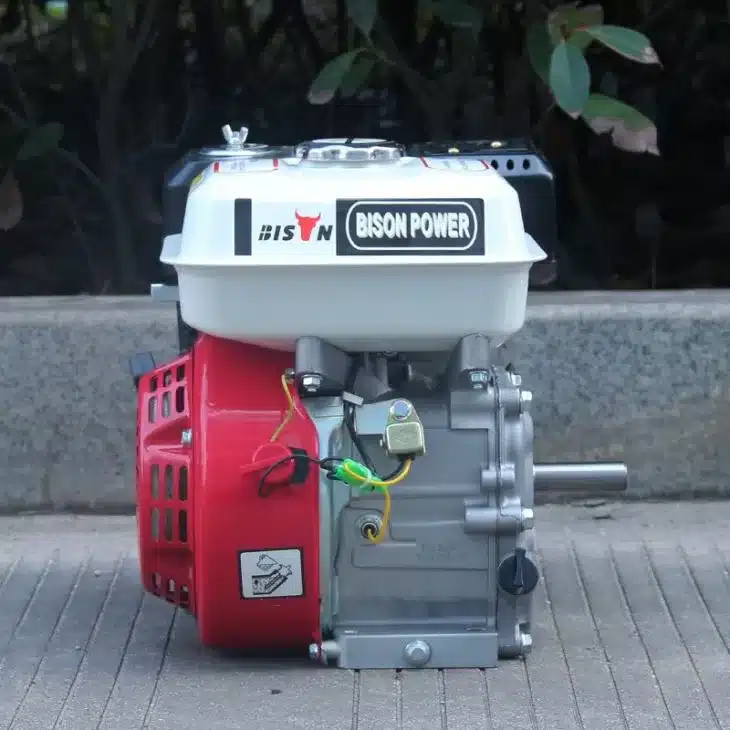

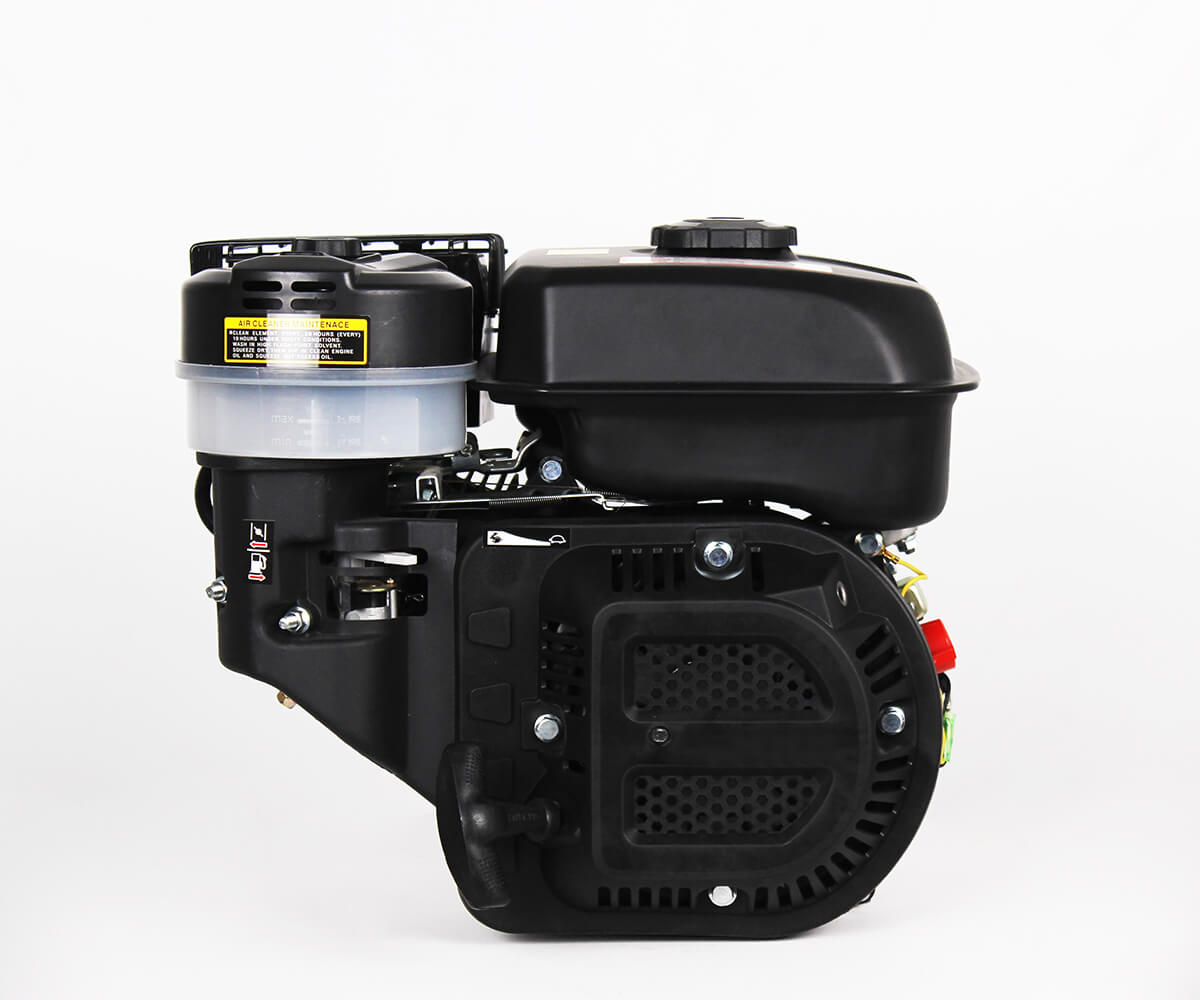

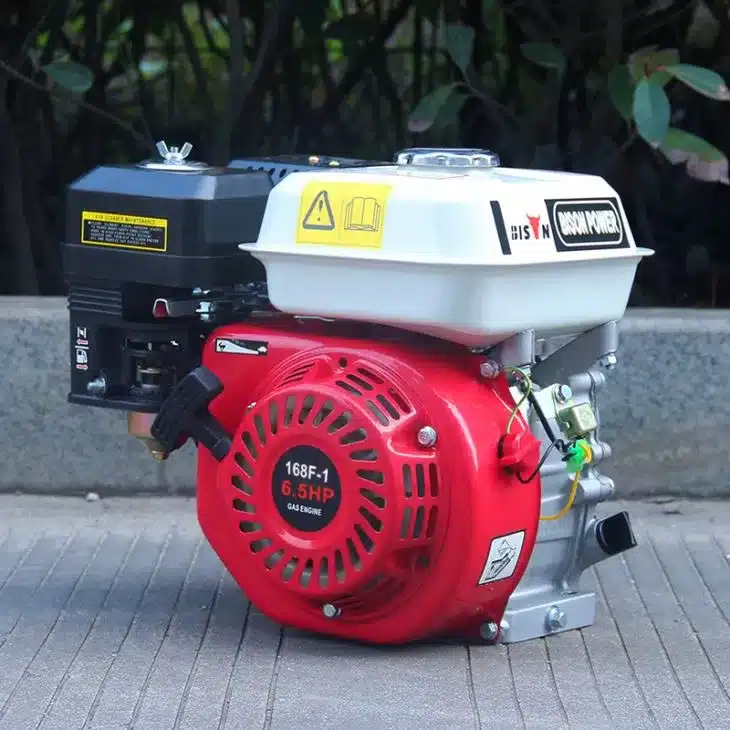

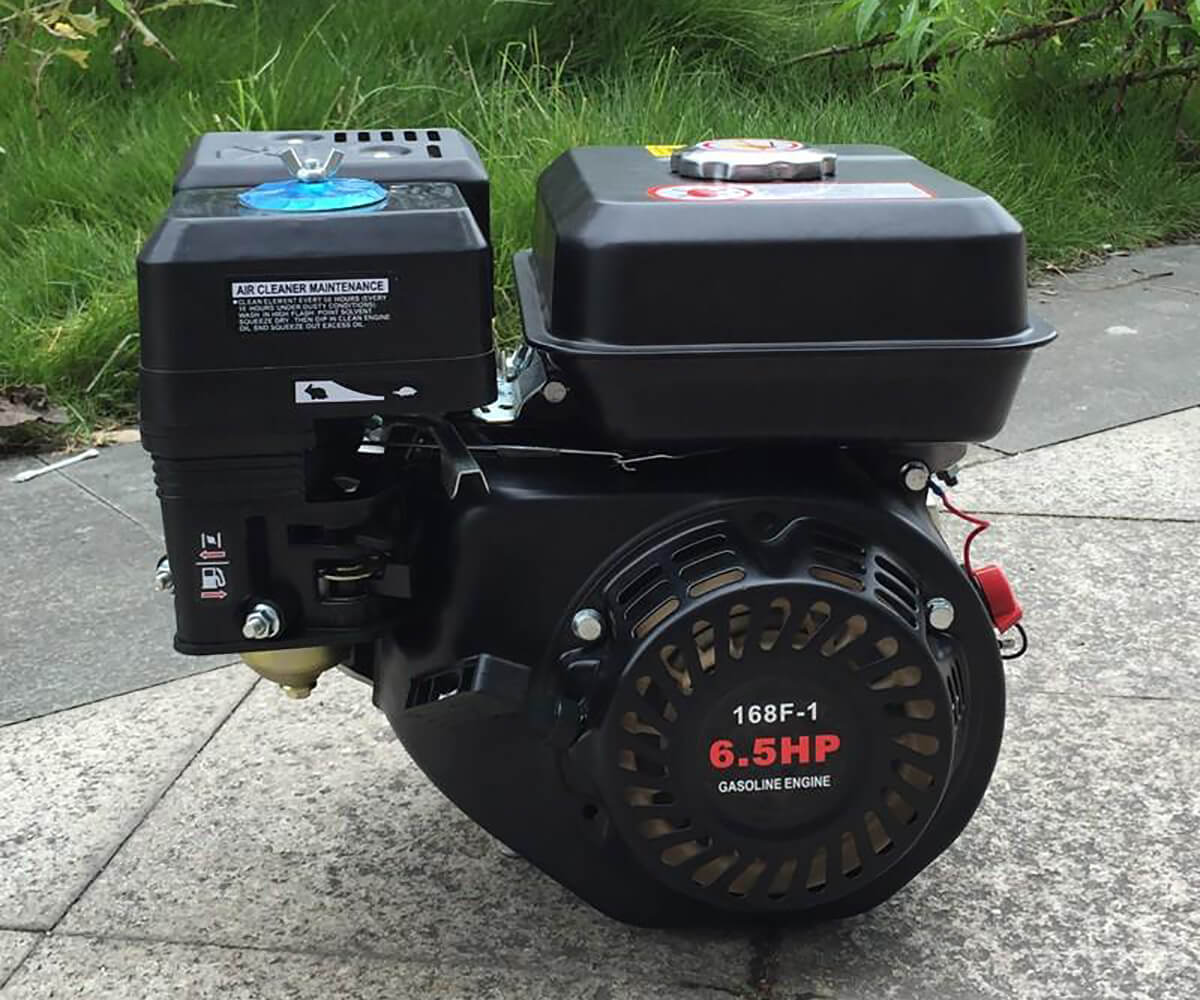

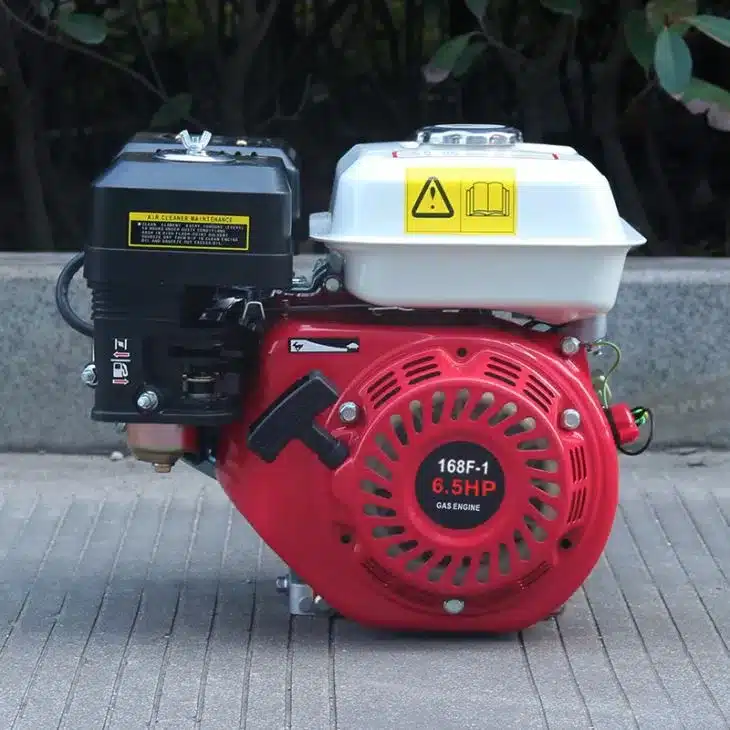

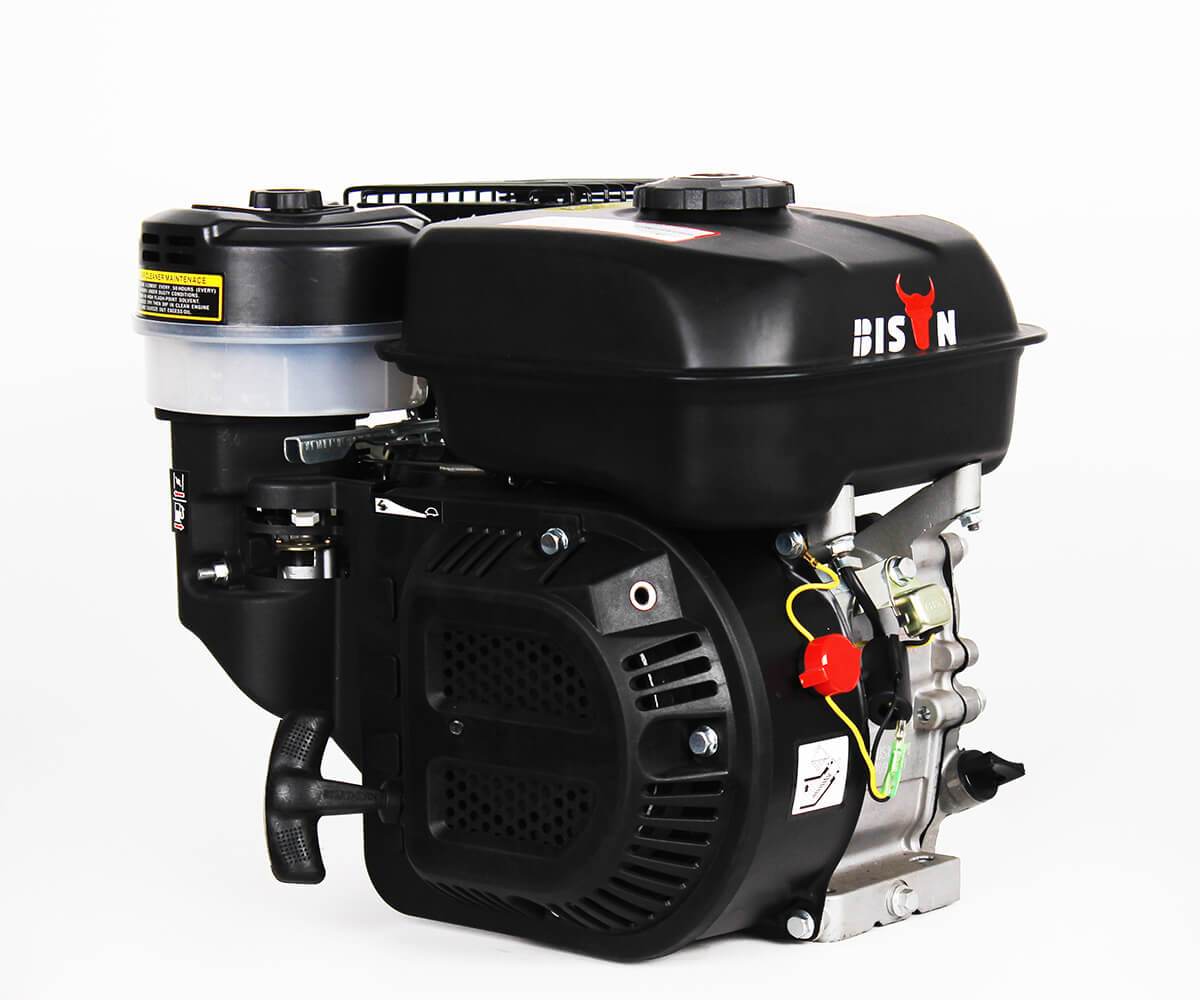

168F-1 4 stroke petrol engine

168F-1|6.5 HP|196cc|1-cylinder|OHV
ce 1
tuv
nps
2 years warranty
epa 1
no brand30 sets
OEM standard50 sets
OEM special100 sets

168F-1 Specifications

Engine & Emission Specifications
engine modelBS168F-1
fuel typeGasoline
engine speed3000/3600RPM
Bore * Stroke68*54 mm
engine displacement196cc
power of engine (hp)6.5HP
compression ratio8.5:1
engine type1-Cylinder, Air-Cooled, 4-Stroke, Direct Injected, OHV
engine oil grade#5W-40
fuel capacity3.6L
oil capacity0.6L
low oil shutdown/alertYes
recoil startYes
electric startOptional
fuel consumption radio≤395g/kW/h
ignition systemT.C.I

BS168F-1 from professional engine manufacturer BISON following quality standards. Each engine undergoes 30 rigorous tests before leaving the factory to ensure: 4-stroke durability, gasoline reliability and 5-hour working performance at least. It has been exported to Germany, Poland, Turkey, Australia, Pakistan, Phillippines, Indonesia, etc. It is the perfect choice for engine dealers around the world.

4-stroke engine design is the main highlight, which is more fuel efficient and runs smoother than conventional two-stroke engines. Combined with direct injection and an 8.5:1 compression ratio, the powerful 196cc engine displaces to produce 6.5hp power.

Advantages of 168F-1 4 stroke petrol engine:

  • Ideal combustion chamber shape, excellent suction and exhaust effect.
  • Japan Structure Small OHV Gasoline Engine, greatly improves combustion efficiency.
  • Professional speed stabilizer to reduce uneven operation caused by load changes.
  • Hand-drawn recoil starter makes it easy for women to start due to the pressure relief mechanism.
  • Standard equipment for transistor magnet ignition device, which has stable ignition performance, low fuel consumption, low fuel consumption and good economy.
  • Improve the cooling air passage to improve the cooling performance, thus further reducing fuel consumption.
  • Low center of gravity design; low vibration.
  • sing a thin hand-drawn recoil starter to achieve light weight and compactness, and to achieve excellent assembly.
  • OHV overhead valve reduces carbon accumulation, cylinder head check is simple, external transistorized ignition system does not need to check contact points, simple equipment, high dust resistance, etc. make maintenance easier.

168F-1 4 stroke petrol engine is the ideal engine to have in your inventory. With its reliable four-stroke performance, user-friendly gasoline operation, and BISON’s trusted quality, it’s an engine your customers will love.

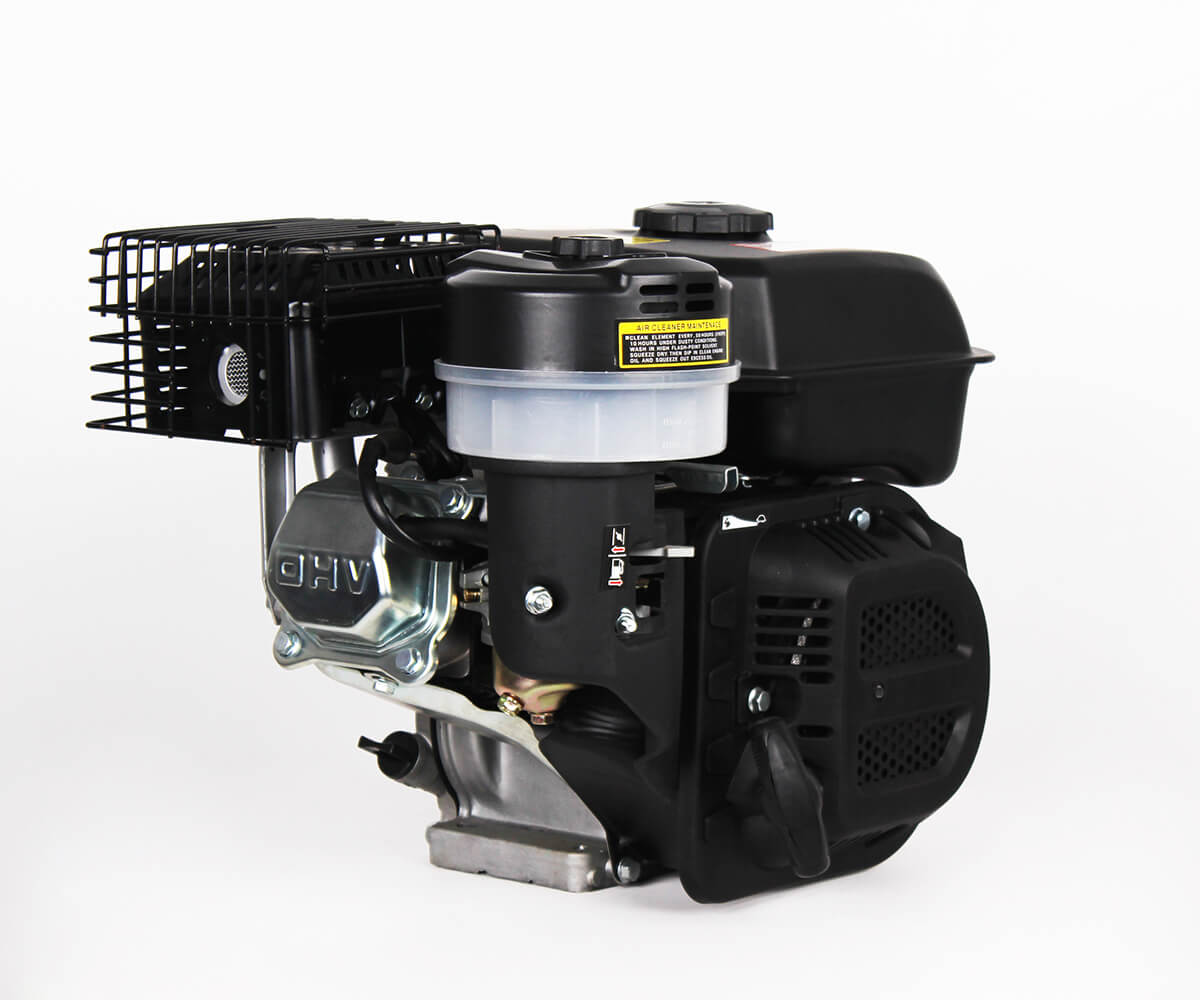

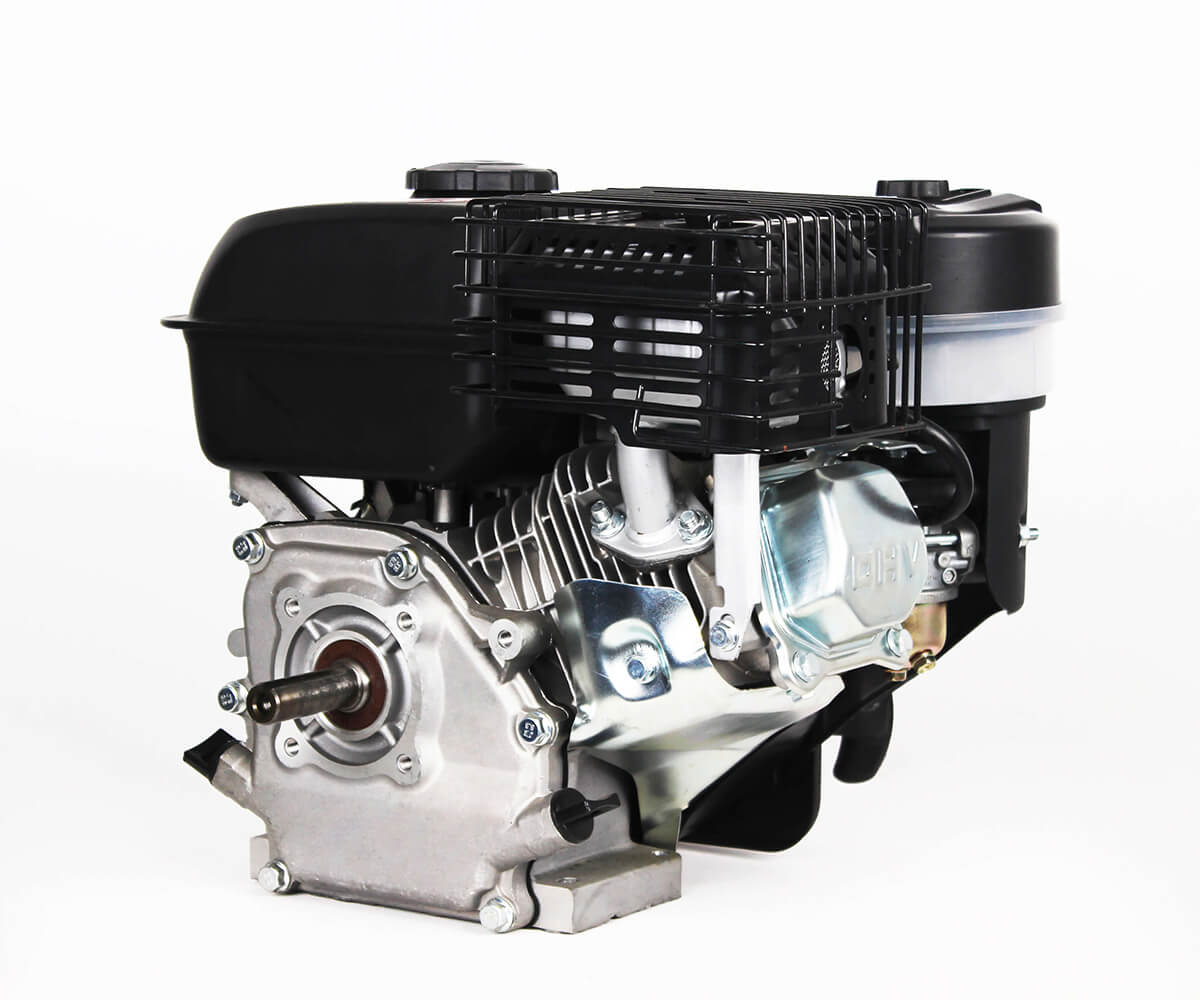

168f 1 4 stroke petrol engine details
168f 1 4 stroke petrol engine details 2
168f 1 4 stroke petrol engine details 3

Our engine parts

engine connecting rod

Engine connecting rod

The mechanical strength belongs to the density of ADC12 aluminum alloy cast aluminum, and the weight monitoring can ensure the consistency of structural tensile strength and processing CPK

engine piston

Engine piston

Adopt Z109 material to increase the wear resistance and reduce thermal deformation, to ensure the weight of the piston and the accuracy of machining

engine case

Engine case

Using high-precision fixtures, machining center equipment to ensure precision, and high-density material strength, BISON's box can meet the durability test for 125 hours, and can meet emission standards

engine intake and exhaust valves

Intake and exhaust valves

The valve is made of 40Cr10SiMo material. The exhaust valve can withstand high combustion temperature. When the load is heavy or the combustion condition is abnormal, the temperature limit will not be affected if the temperature limit is lower than 700-780°C.

Engine testing

bison engine testing

Dedicated to engine testing, and equipped with quality control for sampling testing. BISON verifies and confirms the performance and reliability of each batch of engines to avoid possible product failures.

Guarantee the sealing performance of the crankcase body structure and installation. Through professional instrument testing, poor sealing defects of installation and materials can be found, so as to avoid oil leakage and oil leakage of the engine and ensure the actual power efficiency.

The load output stability of the power can be confirmed online, and the configuration can be locked after stabilization to ensure high product consistency

Professional technicians with 15-20 years of experience

performance commissioning

performance commissioning

engine assembly

engine assembly

artwork qa

artwork QA

full inspection

full inspection

engine specialized inspection

engine specialized inspection

parts assembly

parts assembly

core assembly

core assembly

power specialized inspection

power specialized inspection

SupplyAbility

10000 sets per month

Support

TAIZHOU BISON MACHINERY CO.,LTD started to manufacture generators, water pumps, engines and high pressure washers back in 2014 and is currently an important company in the machinery field. BISON products are designed and developed according to our top-quality principles with double 100% testing. We agree that quality is the company’s life.

BISON is a new manufacturing factory with applying high technology and ongoing innovation to our product manufacturing. We pay more attention to our customers’ feedback of after-sale and satisfy our clients with some OEM brand because we define success in terms of our clients’ success.

gasoline engine parts

Discounted Accessories

24 hour online 5 minute response

24-hour online, 5-minute response

engineer on site service

Engineer on-site service

Packaging & Delivery

Packaging details: brown strong carton, engine is protected with ploy bag, wool, 1pc / carton; Port: Ningbo/ Shanghai Port; Lead Time: Shipped in 25 days after payment

Speak with a BISON sales manager

Contact us today for expert advice.

service

products

gear reduction gasoline powered engine

gear reduction gasoline powered engine

13hp low fuel consumption engine 4

13HP low fuel consumption engine

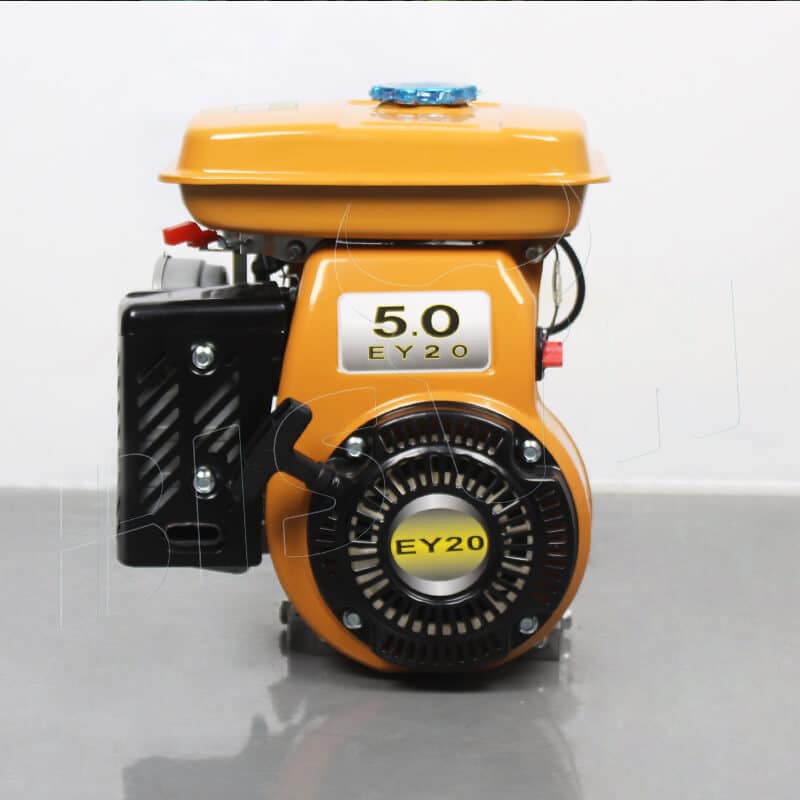

petrol motor 2
