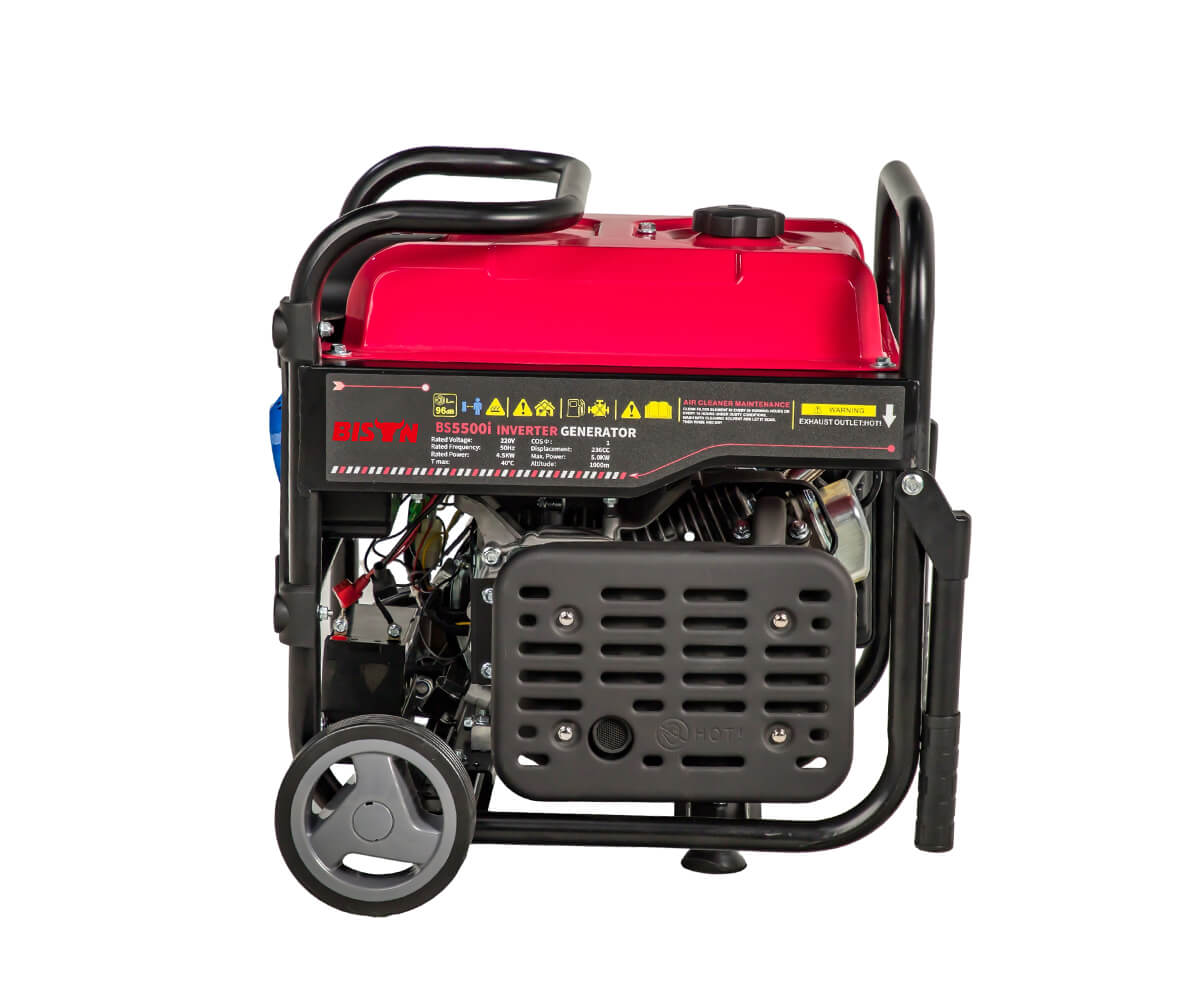

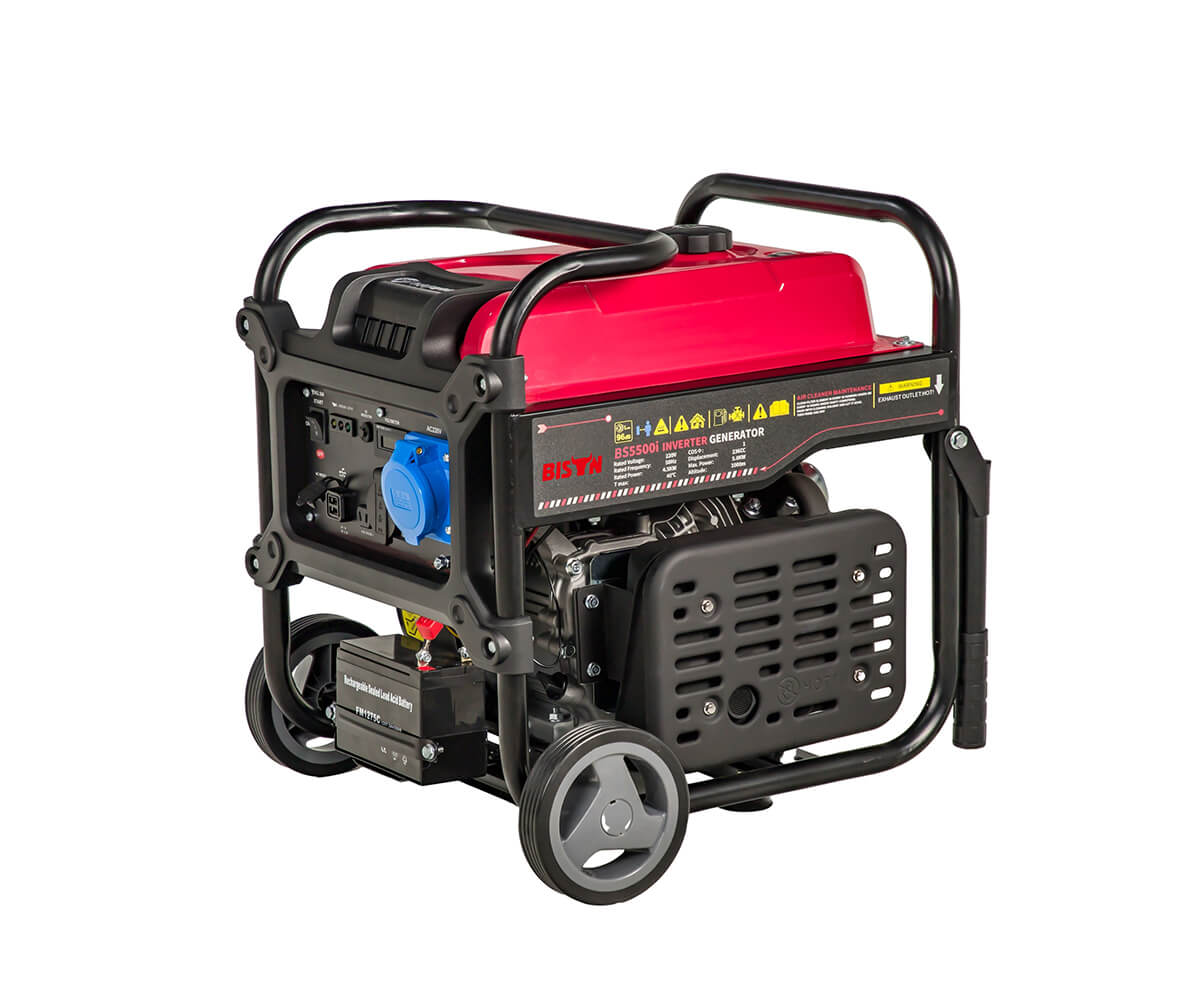

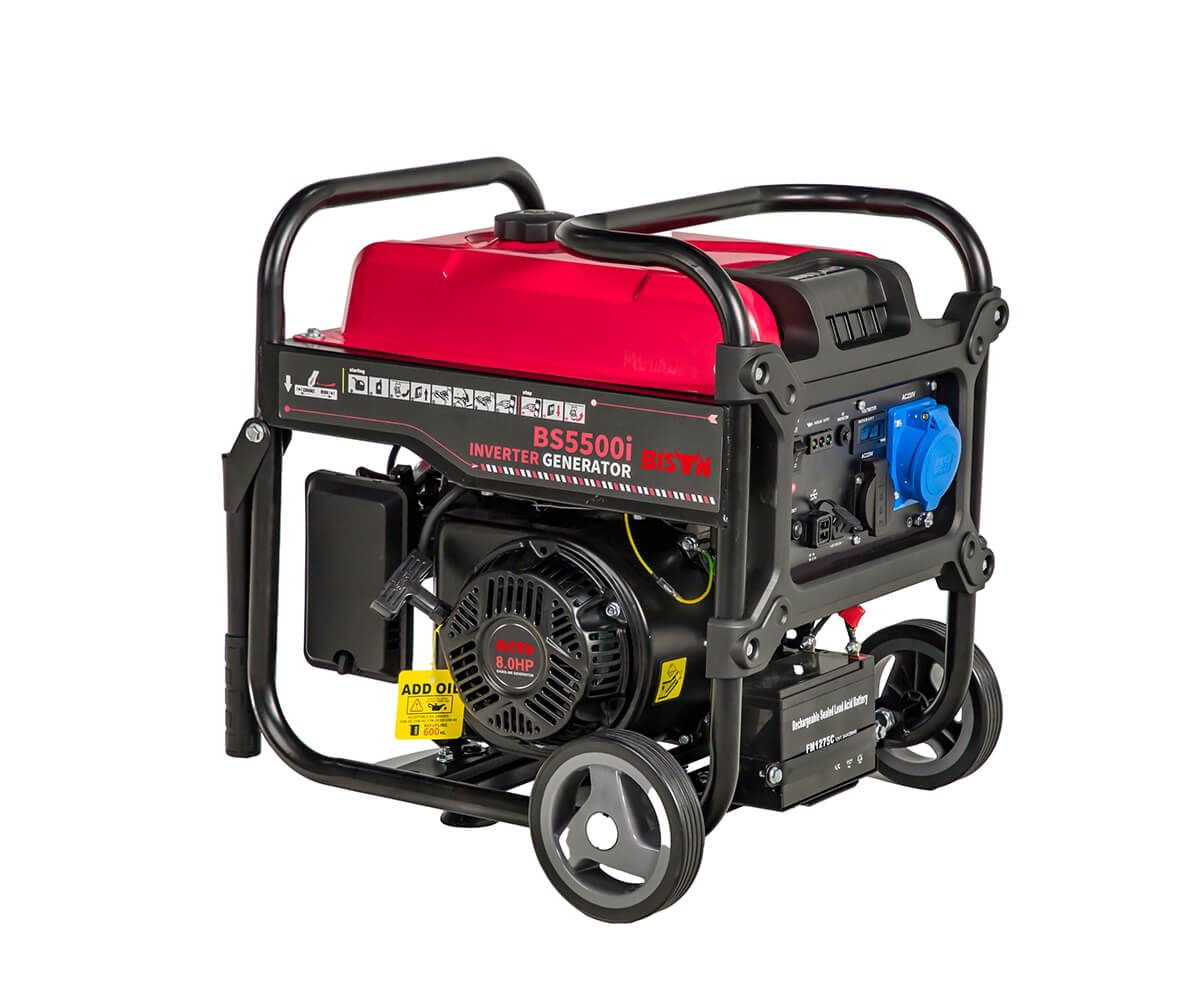

parallel kit ready 5000w inverter generator

4.5KW |50 / 60 Hz|12L
ce 1
tuv
nps
2 years warranty
epa 1
no brand30 sets
OEM standard50 sets
OEM special100 sets

BS5000i-NX Specifications

Model
BS5000i-NX
Maximum Power of the Generator (KW) 4.5KW
Rated Power of the Generator (KW) 5KW
Rated output voltage (Volt) 110/220/230/240V
Over Load Protector (OLP) YES
Rated frequency (Hz) 50 / 60 Hz
Rated Current (Amp) Depends On Your Socket And Generator Power
Power factor 1.0 (Single Phase)
Fuel Tank Capacity 12L
Fuel option #92, #95 Unleaded Gasoline
Socket rating 16A
Self start motor Recoil start/Electric start
Fuel consumption at 100% Load 2.3L/h
Fuel consumption at 75% Load 1.53L/h
Fuel consumption at 50% Load 0.87L/h
Continuous Duration of operation at Rated load (hour) 5.5h
Ignition system T.C.I
Noise Level (dB) at rated load (from 7-meter distance) 77dB
Engine & Emission Specifications
Engine Model BS172F
Fuel Type Gasoline
Engine Speed 3000(50 Hz) / 3600(60 Hz) RPM
Bore × Stroke 72*58mm
Engine Displacement 236cc
Engine/Motor Type 1-Cylinder, Air-Cooled, 2-Stroke, Direct Injected,OHV
Engine Oil grade #5W-40/15W-40
Fuel Capacity 0.6L
Low Oil Shutdown/Alert Yes
Recoil Start Yes
Electric Start Optional
Alternator
Type of alternator 100% Copper (Corrective Wave)
Rotor RPM 3600RPM
Alternator Size 156*40mm

products description

BISON 5000W parallel kit inverter generator provides your customers with flexible and scalable power. They can connect two generators in parallel to obtain nearly 10,000W of clean, stable power, perfectly meeting future needs for potentially higher power output. This feature not only helps your customers easily expand their power options but also generates more sales opportunities, leading to stronger long-term partnerships.

This generator uses pure sine wave inverter technology to provide safe and stable power to sophisticated electronic devices such as laptops, smartphones, medical equipment, and modern home appliances. Your customers can confidently use it for construction sites, mobile offices, outdoor activities, or as backup power at home without worrying about damaging equipment. Furthermore, it operates at a noise level of only 77 decibels, providing an exceptional user experience even in noise-sensitive environments, setting it apart from other generators in its class.

Fuel efficiency further enhances the appeal of this generator. This generator offers up to 5.5 hours of runtime with its 12-liter fuel tank at rated load, and fuel consumption of only 0.87 liters per hour at half load, helping customers save on operating costs and reduce refueling frequency.

Your customers can enjoy flexible power options, easy trials, and sustained performance. Beyond manufacturing, BISON provides comprehensive support, including technical solutions, spare parts, and after-sales service. Our strong factory advantages and expert guidance will help your customers fully utilize the generator’s performance, making you a trusted brand that stands out in the market.

A class core parts

generators all copper motor

100% all-copper motor

Offering durability and superior energy efficiency

generators carburetor

Domestic top carburetor

high atomization level, ensuring optimal fuel efficiency and smooth engine operation.

generator pull plate

Powerful pull plate

Easy to start pull plate, guarantee more than 10,000 pulls

generators frames

robust frames

Professional welding and painting process to ensure the beauty and stability of the rack

tight quality contorl

parallel kit ready 5000w inverter generator Perfect inspection process

Inspection process leaves no room for compromise, ensuring that every inverter generator we produce is flawless.

  • Water test: Ensures 100% cylinder tightness, detecting any possible leaks.
  • Unit comprehensive intelligent test cabinet: Each generator undergoes a full inspection to confirm reliability and accuracy.
  • Withstand voltage tester inspection: Every generator is fully inspected, ensuring precise electrical safety measurements.
  • Strengthened laboratory standards: Our lab exceeds national sampling standards, resulting in superior product durability.
generators testing 2
generators testing
product assembly process

parallel kit ready 5000w inverter generator assembly process

  • Use special equipment to assemble, ensure the beaning, oil seal, governor gear effectively fit
  • When assembling nuts for each muffler, spring pads need to be installed to ensure the fit of each component and the maximum noise reduction effect
  • Use a special air gun, and use different torque standards for different parts
  • Water test is required in each engine assembly to ensure the tightness of itself
  • Pay attention to small details, add thread glue and spring washers to the bolts; add support feet to the motor bracket
  • More than 20 debugging processes throughout the whole process to ensure that the machine 100% meets the factory requirements

Professional technicians with 15-20 years of experience

engine alternator assembly

engine & alternator assembly

invertor assembly

invertor assembly

silent case assembly

silent case assembly

power testing

power testing

coverplate assembly

coverplate assembly

artwork qa 3

artwork QA

packing

packing

weight storage

weight storage

Warranty Information

inverter generator accessories

Discounted Accessories

24 hour online 5 minute response

24-hour online, 5-minute response

engineer on site service

Engineer on-site service

Packaging & Delivery

Packaging details: brown strong carton, generator is protected with poly bag, wooden, 1pc / carton. Lead Time: Shipped in 25 days after payment.
