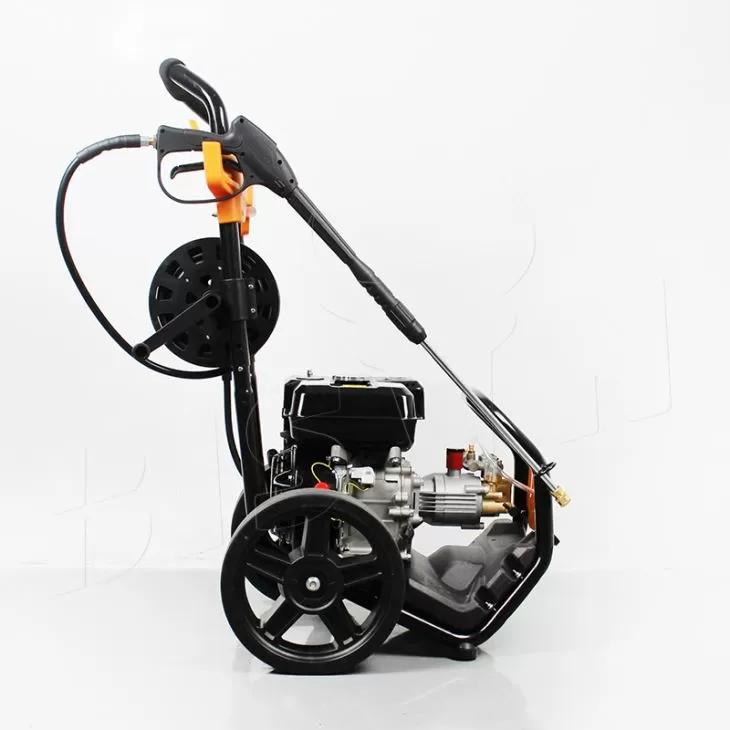

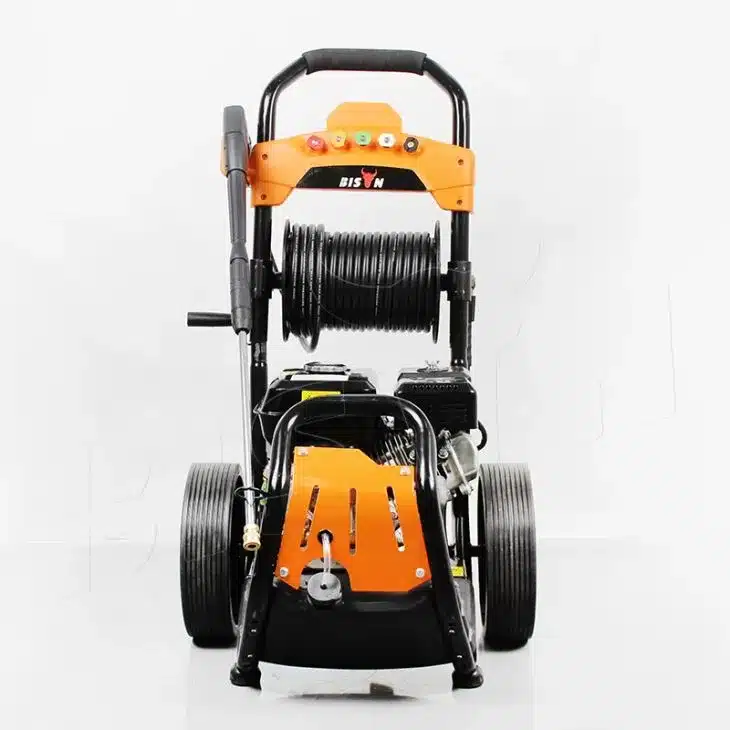

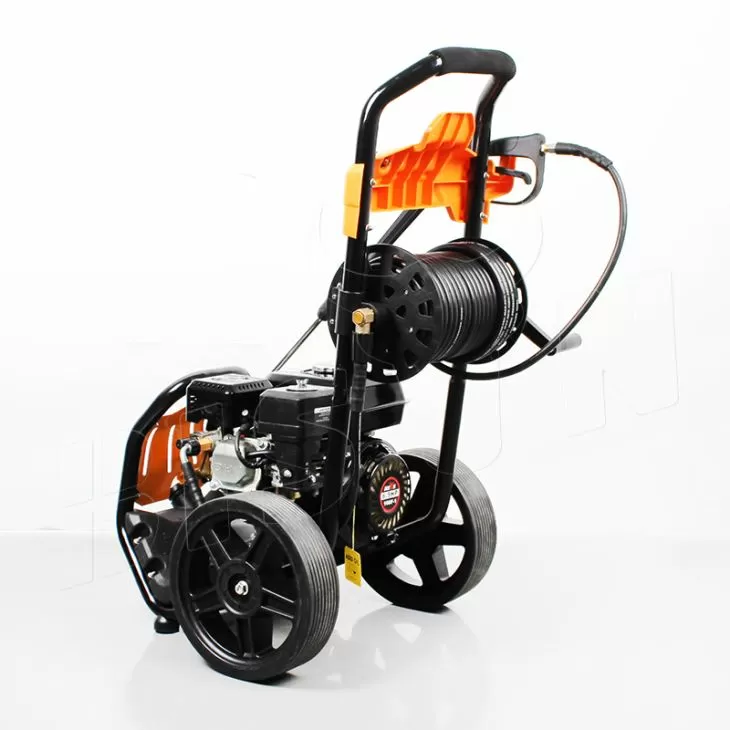

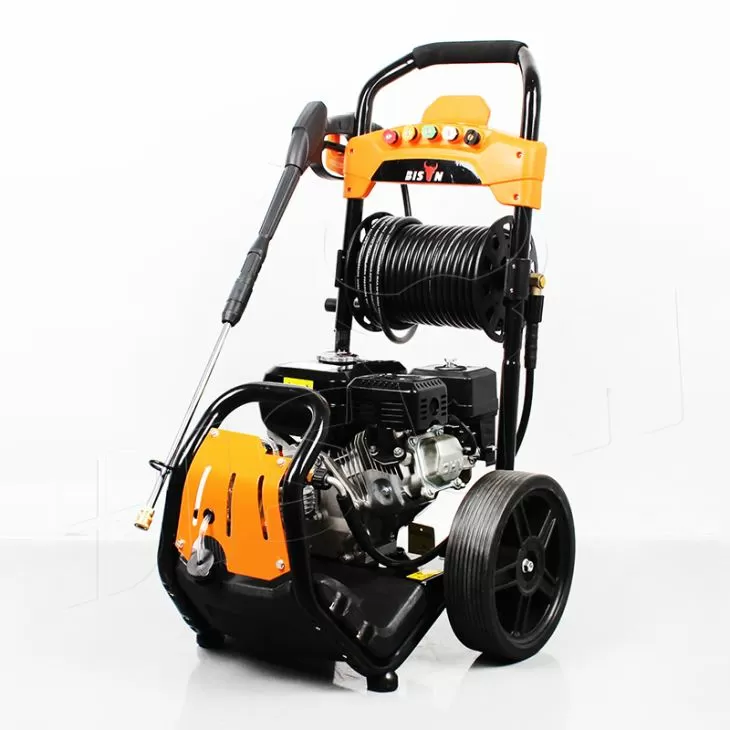

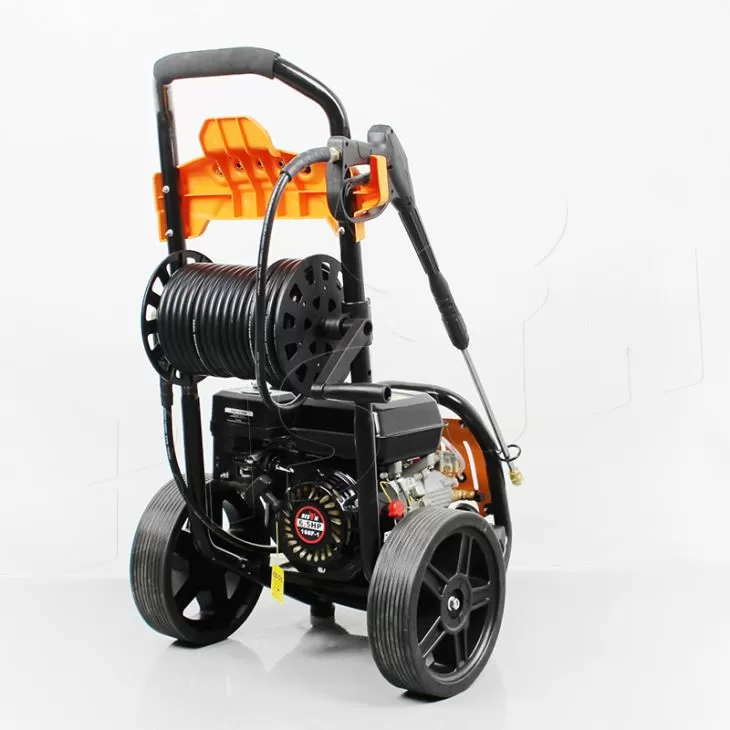

2200psi petrol power washer with copper axial pump
| no brand | 30 sets |
| OEM standard | 50 sets |
| OEM special | 100 sets |
BS170 Specifications
| Model | BS170 |
|---|---|
| Cleaning process | Cold Water Cleaning |
| Power | gasoline |
| Max. Pressure | 190BAR / 2755PSI |
| Rated pressure | 170BAR / 2200PSI |
| Flow (LPM) | 9.2LPM |
| Max. Water temperature | 60℃ |
| Engine attributes | |
|---|---|
| Specifications | 170F, horizontal shaft |
| Power (HP) | 7.0HP |
| Speed (RPM) | 3400-3600RPM |
| Starting system | Recoil Start |
| Fuel tank capacity (L) | 3L |
| Oil capacity (L) | 0.6L |
| Operating hours (1 tank of gasoline) | Less Than 2 hours |
| Bore * stroke (mm） | 70*54 |
| Engine displacement | 210cc |
| Engine/motor type | 1-Cylinder, Air-Cooled, 4-Stroke, Direct Injected，OHV |
| Engine oil grade | #5W-40 |
| Low oil shutdown/alert | Yes |
| Recoil start | Yes |
| Electric start | Optional |
| High pressure pump attributes | |
|---|---|
| Specifications | P170, STD |
| Pump type | Horizontal, Axial Pump Aluminum, Maintenance Free |
| Inlet connection | 4-point garden quick-connect |
| Outlet connection | M22*1.5 external thread bore 14 |
| Foaming function | Yes |
| Self-priming function | Yes |
| Nozzle specifications | 029 |
| High pressure hose attributes | |
|---|---|
| Specifications | H02 Cotton thread tube, OD 11mm, ID 6.3mm, burst pressure 760bar |
| Length | 8m |
| Standard of connection | Pump: M22 live end 14mm, Gun: M22 live end 14mm |
products description
The BISON’s premium petrol power washer is driven by BS168F/GX160 gasoline engine, equipped with copper axial pump. It has outstanding stability and excellent performance, ensuring cleaning efficiency and effectiveness.
With a high pressure of 150 bar (2200psi) and a water flow rate of 9.2 liters per minute, it is very effective in removing stubborn dirt under harsh operating conditions. No power is required in the use environment.
At the heart of this power washer lies the advanced copper axial pump, renowned for its exceptional durability and long-lasting performance. The superior craftsmanship and high-quality materials ensure that this pump can withstand the rigors of frequent use, maintaining optimal performance over time.
The power-driven pump converts ordinary water into high-pressure and low-flow water by performing a suction and discharge process on the water, and then delivers it to the high-pressure pipeline to reach the high-pressure nozzle with a certain energy. The aperture of the high pressure nozzle is much smaller than the diameter of the high pressure line, so the water reaching the high pressure nozzle must be accelerated through the nozzle. In this way, the nozzle can convert high-pressure, low-flow water into a low-pressure, high-flow jet.
Application:
- Pipe dredging
- Cleaning of public buildings and urban sculptures.
- Oilfield pipeline cleaning, wellhead degreasing cleaning
- Cleaning of chemical plant heat exchangers, reactors, pressure vessels, and rotors.
- Cleaning of the outer wall of the sewage treatment plant pool and external cleaning of various facilities.
- Cleaning of the hotel and hotel exhaust ducts.
- Cleaning of the exterior wall of the building.
Paint removal, rust removal and renovation of billboards and billboards. - Cleaning of the outer walls of various bridges.
Internal and external cleaning of large buildings, such as TV towers and chimneys. - Internal cleaning and dredging of municipal water supply and drainage pipelines, oil and gas pipelines.
- Main application industries: cleaning and dredging in industrial industries such as electric power, shipbuilding, pharmaceutical, brewing, and cement
Unleash BISON’s Power Advantage
With BISON’s commitment to excellence, you can be assured that the 2200PSI petrol power washer is built to last. Its robust construction, top-notch components, and exceptional performance make it an ideal choice for demanding cleaning applications.
Contact us today to explore the range of benefits BISON power washers can bring to your business. Partner with BISON and provide your customers with the cleaning power they demand.
TAKE ONE TO IMPROVE YOUR MARKET SHARE
A class core parts
BISON has a patented booster valve, which automatically senses when the temperature in the pressure washer pump is too high, and the cold water enters to cool down in time. It can extend the service life of the machine twice.
The outer surface of the pump is oxidized to ensure that the machine can be used even in harsh environments.
ergonomic design
The special shock-absorbing feet effectively reduce the overall noise and vibration of the pressure washer (the reduction of the vibration amplitude can effectively increase the mechanical life of the frame, engine muffler, and fuel tank)
The direction of the water outlet avoids the muffler, which greatly reduces the risk of scalding the high-pressure pipe when the user uses the machine
100% tested & packaging
Strictly control the machining accuracy to achieve excellent mechanical properties and greatly increase the service life of the gasoline pressure washer. 100% full inspection of core components and important spare parts to ensure product performance
The whole series of pressure washers have passed the box drop test, 7-layer carton + environmentally friendly packaging. Meet online and offline long-term transportation requirements
BISON team, 20 years of experience in online development and production of pressure washing machines, products and after-sales service within 30 minutes
Professional technicians with 15-20 years of experience
Performance Commissioning
Machine Assembly
Artwork QA
Full Inspection
Specialized Inspection
Parts assembly
Core Assembly
Power Specialized Inspection
Warranty Information
Discounted Accessories
24-hour online, 5-minute response
Engineer on-site service
Packaging & Delivery
Packaging details: brown strong carton, pressure washer is protected with poly bag, wooden, 1pc / carton. Lead Time: Shipped in 25 days after payment.
