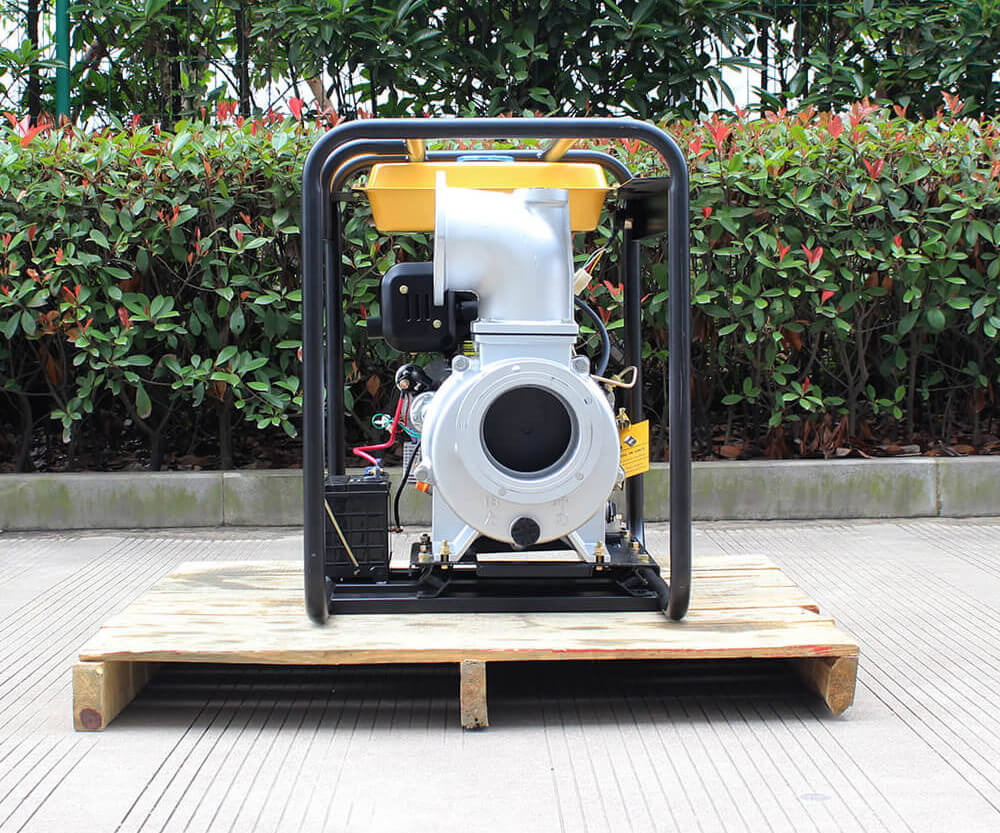

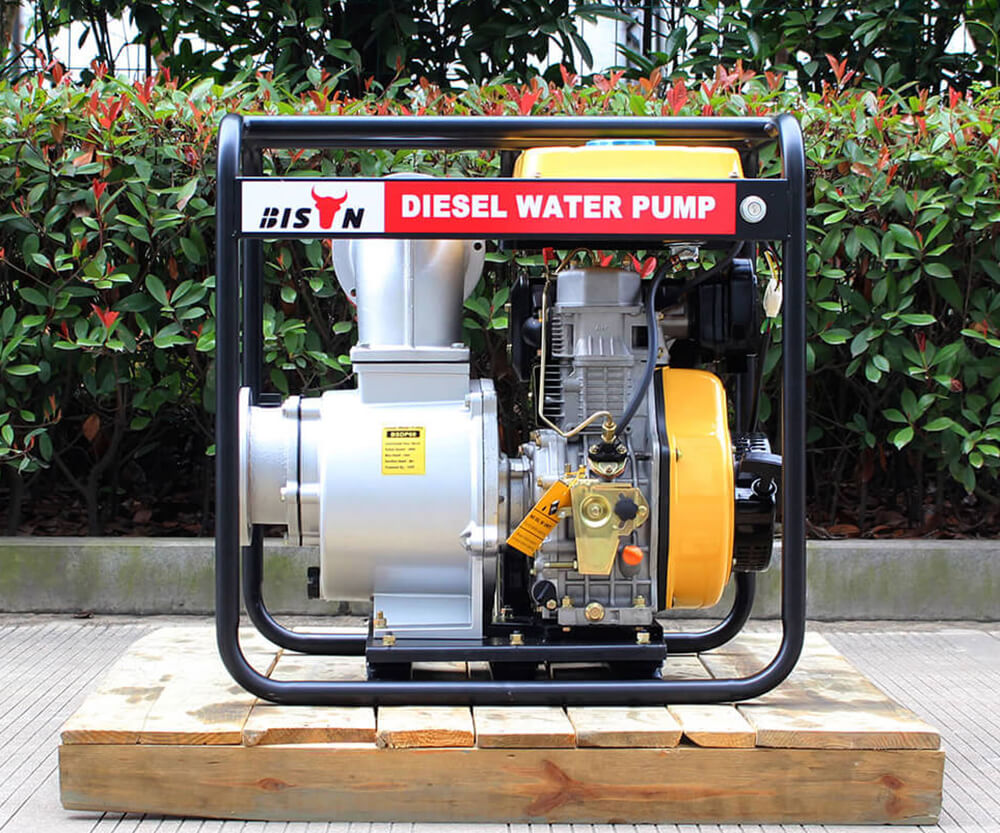

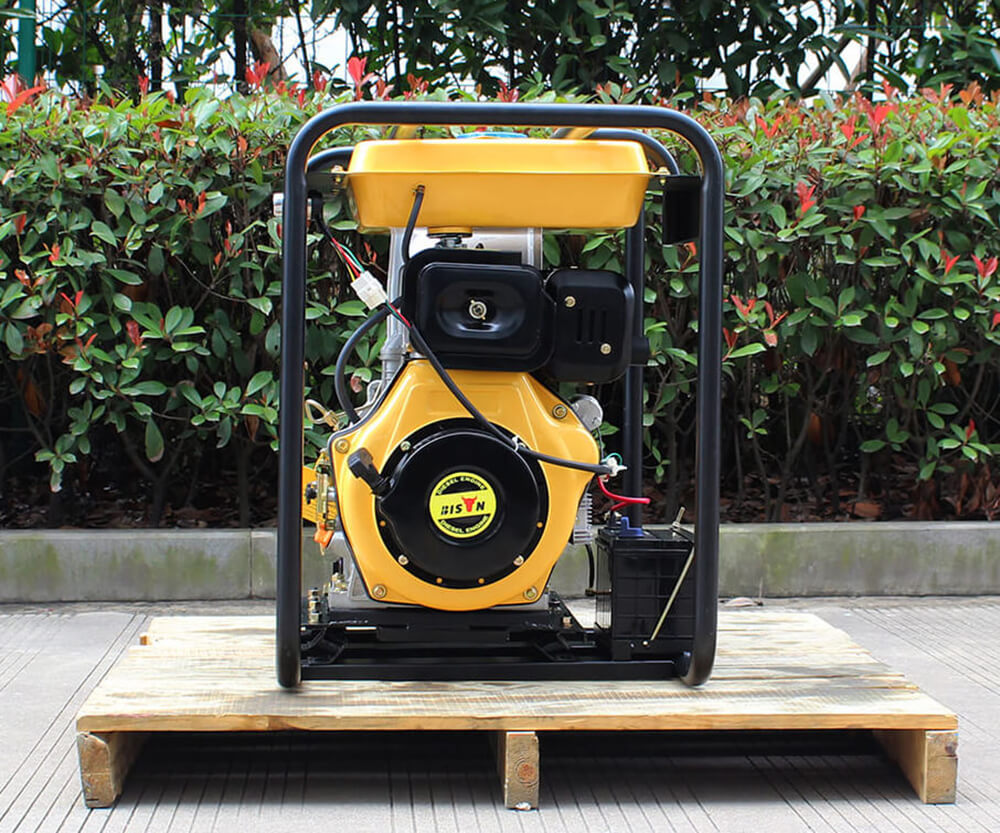

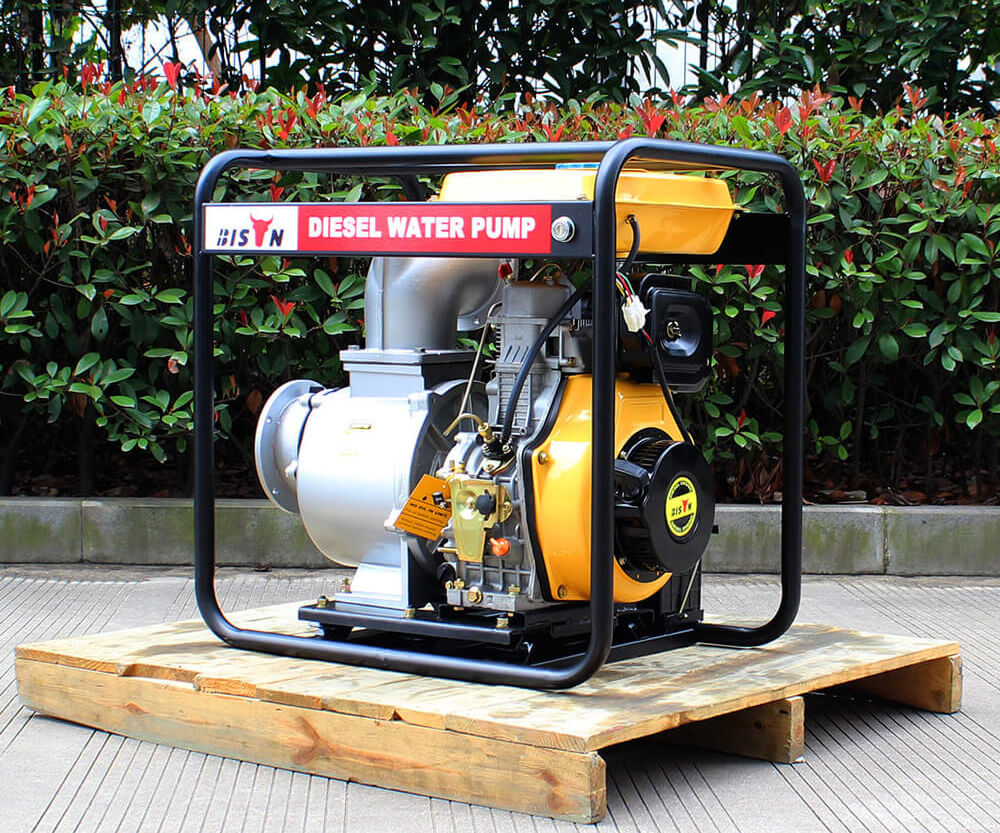

150mm diesel engine water pump machine

6 inch|25M|150 m³/h

no brand	30 sets
OEM standard	50 sets
OEM special	100 sets

BS-DP60 Specifications

Model	DP60

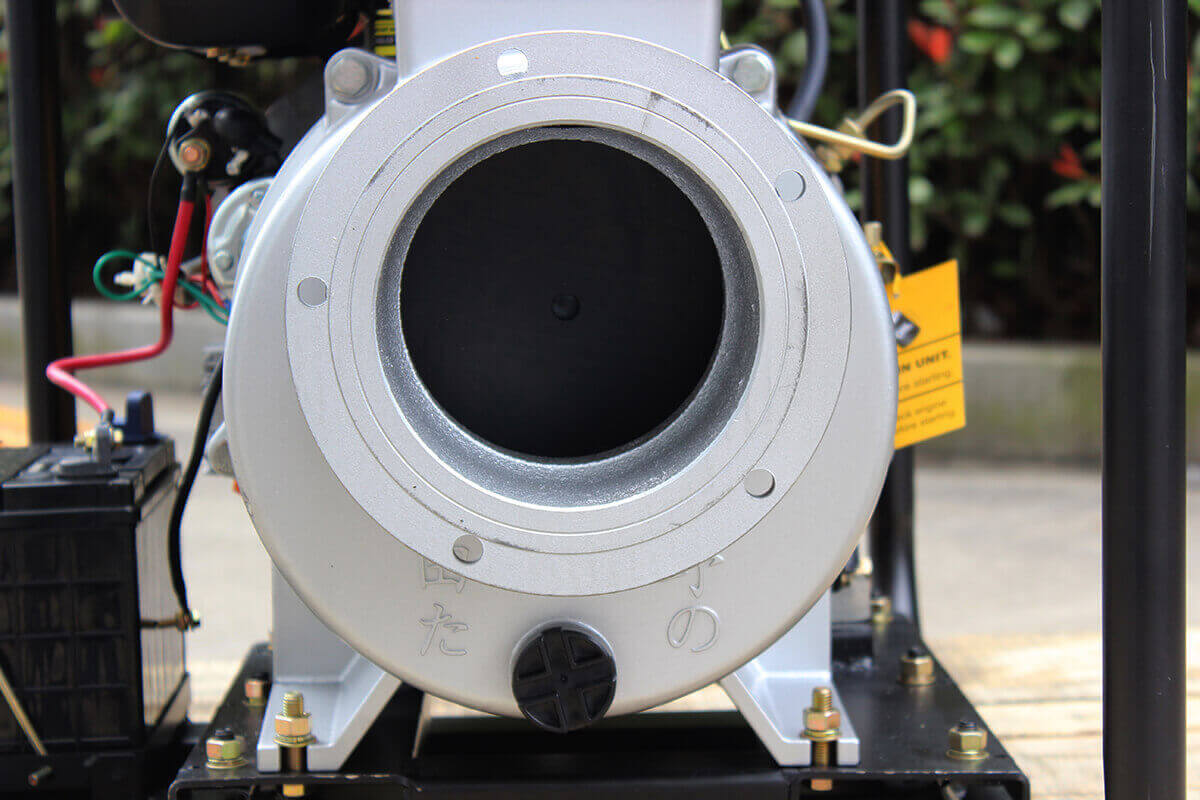

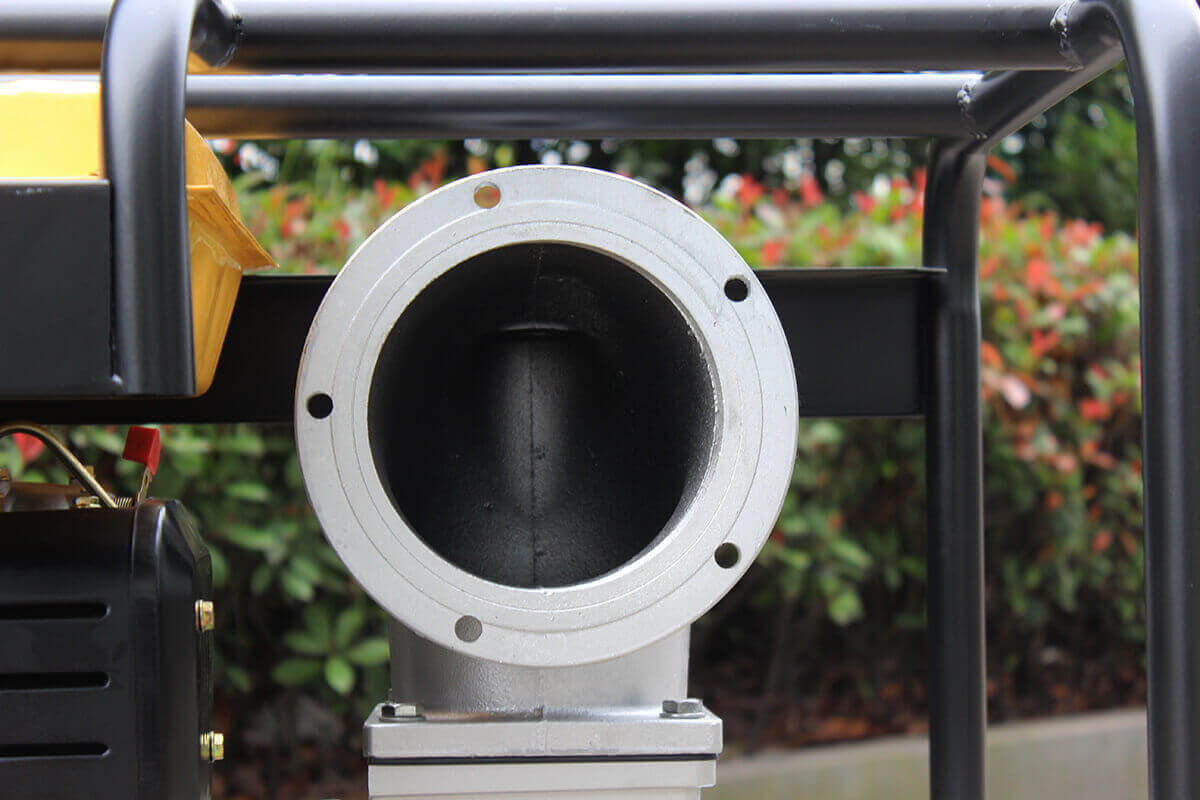

water outlet&inlet diameter [mm]	150(6”)
flux [m³/h]	150
head [M]	25
self-priming time [s/4m]	180
max.suction head [M]	7.0
fuel tank capacity [L]	12.5
engine type	BS192FA/FAE

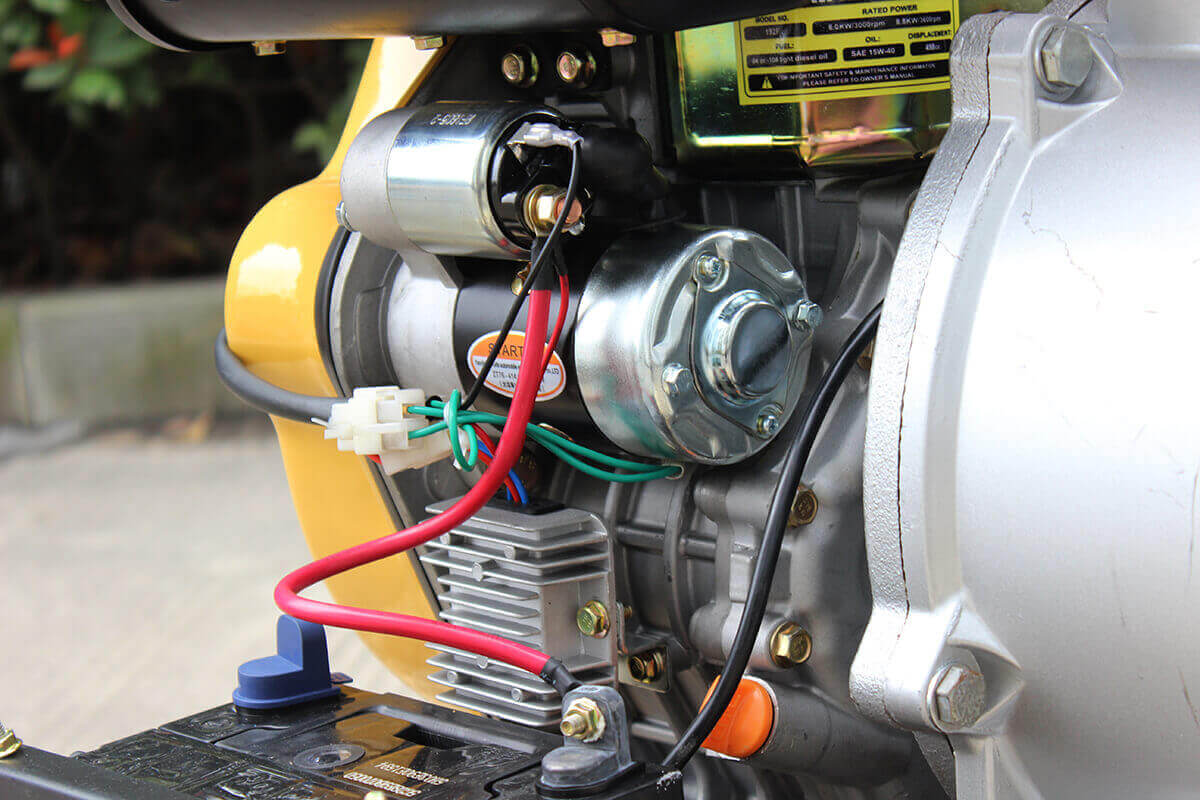

starting system	F(A): Recoil start F(A)E: electric start
engine type	1-Cylinder ,4-Stroke ,Air-cooled, Veritical
broke * stroke [mm]	92 * 75
displacement [L]	0.499
compression Ratio	19.5
rated rotation speed [rpm]	3600
rated power [Kw]	8.6
lube [L]	1.65
fuel type	0#(summer), -10#(winter) diesel oil
lube	SAE10W30 ( above CD grade )
packing diemension [mm] ( LWH)	785580800

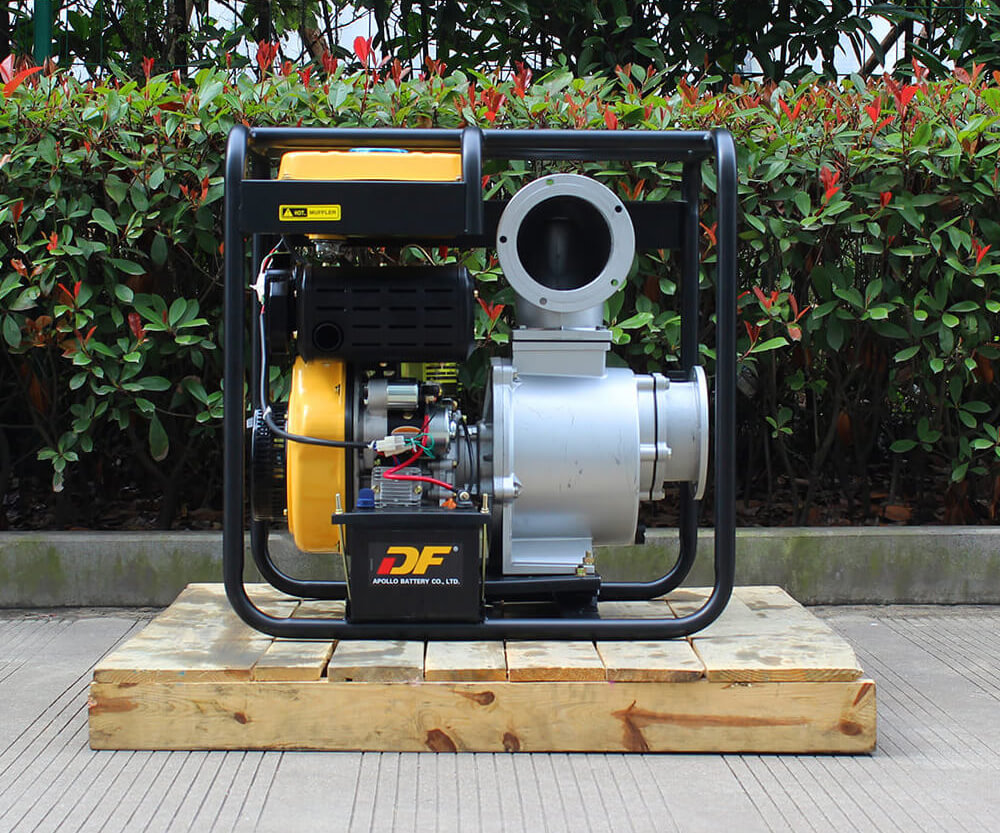

The 150mm diesel engine water pump is a portable water pump that is powered by a diesel engine and has an inlet and outlet diameter of 150mm (approximately 6 inches).

Designed to effectively manage the delivery of large volumes of water, the DP60 can deliver up to 150 cubic meters of water per hour. This impressive flow rate makes the pump ideal for critical tasks that require rapid water delivery. For example, in flood control, the pump can quickly drain excess water to mitigate damage. In irrigation, it effectively delivers water to farmland, ensuring that crops get the moisture they need. Additionally, during construction site drainage, it helps remove standing water from excavation areas and other areas, allowing work to proceed smoothly.

It also offers impressive fuel efficiency, with a 12.5-liter fuel tank for extended run time. It can run on 0# fuel in the summer and -10# fuel in the winter.

DP60 is designed with you in mind, with high-quality cast iron and a sturdy steel frame. It is easy for customers to use, with a simple recoil system for quick startup. The DP60 strikes a balance between performance, lifespan, and price to enhance your customers’ experience and help you improve your profit margins.

A class core parts

engine connecting rod

The mechanical strength belongs to the density of ADC12 aluminum alloy cast aluminum, and the weight monitoring can ensure the consistency of structural tensile strength and processing CPK

pump engine piston

Adopt Z109 material to increase the wear resistance and reduce thermal deformation, to ensure the weight of the piston and the accuracy of machining

pump engine case

Using high-precision fixtures, machining center equipment to ensure precision, and high-density material strength, BISON's box can meet the durability test for 125 hours, and can meet emission standards

intake and exhaust valves

BISON only adopts high-quality pump heads with sufficient materials (reasonable and thick alloy ratio) and excellent processing technology (oxidation resistance, corrosion resistance, mold, flatness, and sealing)

tight quality contorl

150mm diesel engine water pump machine testing

BISON water pump comprehensive test bench is equipped with a comprehensive test tank, which is higher than the national standard sampling inspection type and durable, ensuring the quality of the product in all aspects.

Test the pump suction online and simulate negative pressure detection. 100% full inspection to determine the extremely low failure of the product.

Regular outdoor field testing of water pumps to ensure the pumping efficiency of the product in practice.

Professional technicians with 15-20 years of experience

Performance Commissioning

Machine Assembly

Artwork QA

Full Inspection

water pump specialized inspection

Parts assembly

Core Assembly

Power Specialized Inspection

Warranty Information

BISON is not only about products; it is about quality and reliability. Our factories feature cutting-edge technology and are staffed by experts who are dedicated to providing you with the best machinery possible. By choosing BISON, you are not just buying a product; you are gaining a reliable partner committed to your success.
