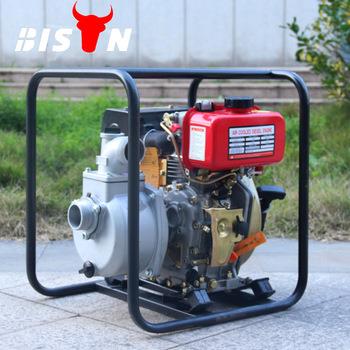

2-inch diesel powered water pump

2 inch|30M|32 m³/h

This 2 inch diesel powered water pump have a max suction head of 8m, is ideal for high volume farm and construction applications…

Maintenance cost is lower than gasoline type.
work more efficiently.
Advanced and reasonable structure.

no brand	30 sets
OEM standard	50 sets
OEM special	100 sets

DP20 Specifications

Model	DP20
water outlet&inlet diameter [mm]	50 ( 2″ )
flux [m³/h]	32
head [M]	30
self-priming time [s/4m]	70
max.suction head [M]	8
fuel tank capacity [L]	5.5L (large fuel tank 12.5L is optional)
engine type	BS173F/FE
starting system	F(A): Recoil start F(A)E: electric start
engine type	1-Cylinder ,4-Stroke ,Air-cooled, Veritical
broke * stroke [mm]	73*59
displacement [L]	0.247
compression Ratio	0.834027778
rated rotation speed [rpm]	3600
rated power [Kw]	3.6
lube [L]	0.75
fuel type	0#(summer), -10#(winter) diesel oil
lube	SAE10W30 ( above CD grade )
packing diemension [mm] ( LWH)	490 * 410 * 520
N.W [Kg]	41

The diesel powered water pump is a high-pressure pump that has a stable self-priming function. It is simple in structure and reliable in performance. Its mass weight is 54kg. Though light in weight, it has strong power with an air-cooled 4-stroke diesel engine. The fuel tank is large, which is able to keep a continuous operation for a long time. Suitable for various applications such as dehydration, agriculture, swimming pool drainage, irrigation, etc.

It is portable and easy to maintain due to its frame structure. Equipped with a low oil alert device, it can stop the engine in an emergency while there is low oil, which well protects internal machinery not being damaged. There is also an overvoltage and overheating double automatic protection switch, keeping it safe and extending service life.

The high-quality aluminium pump casing and cast iron impeller can extend the service life of the pump. Carbon ceramic mechanical seals are designed for long-term and excellent wear resistance. Self-priming design (requires initial startup to run).

Its automatic control panel can be used to withstand mechanical, electrical, vibration, thermal stress and the possible moisture effects under normal operating conditions. Therefore, it is widely used in agriculture and Industry. Meanwhile, it saves fuel, has small displacement, and has little environmental pollution. It is favoured by most people. We have got CE, ISO certification, and the quality can be guaranteed. If you are interested in our products, please contact us.

A class core parts

engine connecting rod

The mechanical strength belongs to the density of ADC12 aluminum alloy cast aluminum, and the weight monitoring can ensure the consistency of structural tensile strength and processing CPK

pump engine piston

Adopt Z109 material to increase the wear resistance and reduce thermal deformation, to ensure the weight of the piston and the accuracy of machining

pump engine case

Using high-precision fixtures, machining center equipment to ensure precision, and high-density material strength, BISON's box can meet the durability test for 125 hours, and can meet emission standards

intake and exhaust valves

BISON only adopts high-quality pump heads with sufficient materials (reasonable and thick alloy ratio) and excellent processing technology (oxidation resistance, corrosion resistance, mold, flatness, and sealing)

tight quality contorl

2-inch diesel powered water pump testing

BISON water pump comprehensive test bench is equipped with a comprehensive test tank, which is higher than the national standard sampling inspection type and durable, ensuring the quality of the product in all aspects.

Test the pump suction online and simulate negative pressure detection. 100% full inspection to determine the extremely low failure of the product.

Regular outdoor field testing of water pumps to ensure the pumping efficiency of the product in practice.
