High-pressure cast iron pump

2 inch|7 HP|75M|30 m³/h
ce 1
tuv
nps
2 years warranty
epa 1
no brand30 sets
OEM standard50 sets
OEM special100 sets

WP20HI Specifications

Model WP20HI(175mm)
Outlet Size(mm) 50
Inlet Size(mm) 50
Displacement Q. max(m3/h) 30
Lift H. max(m) 75
Suction (m) 7
Fuel Tank Capacity 3.6L
Fuel option #92, #95 Unleaded Gasoline
Self start motor Recoil start
Fuel consumption radio ≤395g/kW/hh
Ignition system T.C.I
Engine & Emission Specifications
Engine Model BS170F
Fuel Type Gasoline
Engine Speed(RPM) 3600
Bore × Stroke(mm) 70*54
Engine Displacement(cc) 210
Engine/Motor Type 1-Cylinder, Air-Cooled, 4-Stroke, Direct Injected,OHV
Engine Oil grade #5W-40
Fuel Capacity /
Low Oil Shutdown/Alert Yes
Recoil Start Yes
Electric Start Optional

Do you want to increase your water pump sales? BISON is a global manufacturer of water pumps, and its new high pressure cast iron pump combines high pressure performance with cast iron construction. The 2-inch inlet and outlet sizes are compatible with various hoses and pipes.

WP20HI high pressure cast iron pump uses BS170F gasoline engine. The 210cc one-cylinder, air-cooled, 4-stroke gasoline fuel engine is designed for efficiency and performance. Direct injection and OHV specifications enable low fuel consumption while maintaining stable output, and meet the stringent requirements of different customer demands, such as irrigated farms, construction sites or firefighting emergencies where water needs to be delivered quickly.

Advantages of WP20HI pump:

  • Easily water uphill: With a maximum lift of 75 meters, tasks such as irrigating fields on slopes or transporting water to a storage tank at a higher location can be easily accomplished.
  • Long-distance transportation: The 36 cubic meters/hour displacement ensures a strong flow rate, ensuring that your customers can effectively transport large amounts of water over long distances.
  • Durable: Unlike plastic alternatives, cast iron is known for its high strength and corrosion resistance. Cast iron pumps are built to withstand harsh environments and frequent use, minimizing downtime and replacement costs.
  • Enhanced heat dissipation: Cast iron’s superior thermal conductivity effectively transfers heat away from the pump’s core, preventing overheating and ensuring smooth operation.

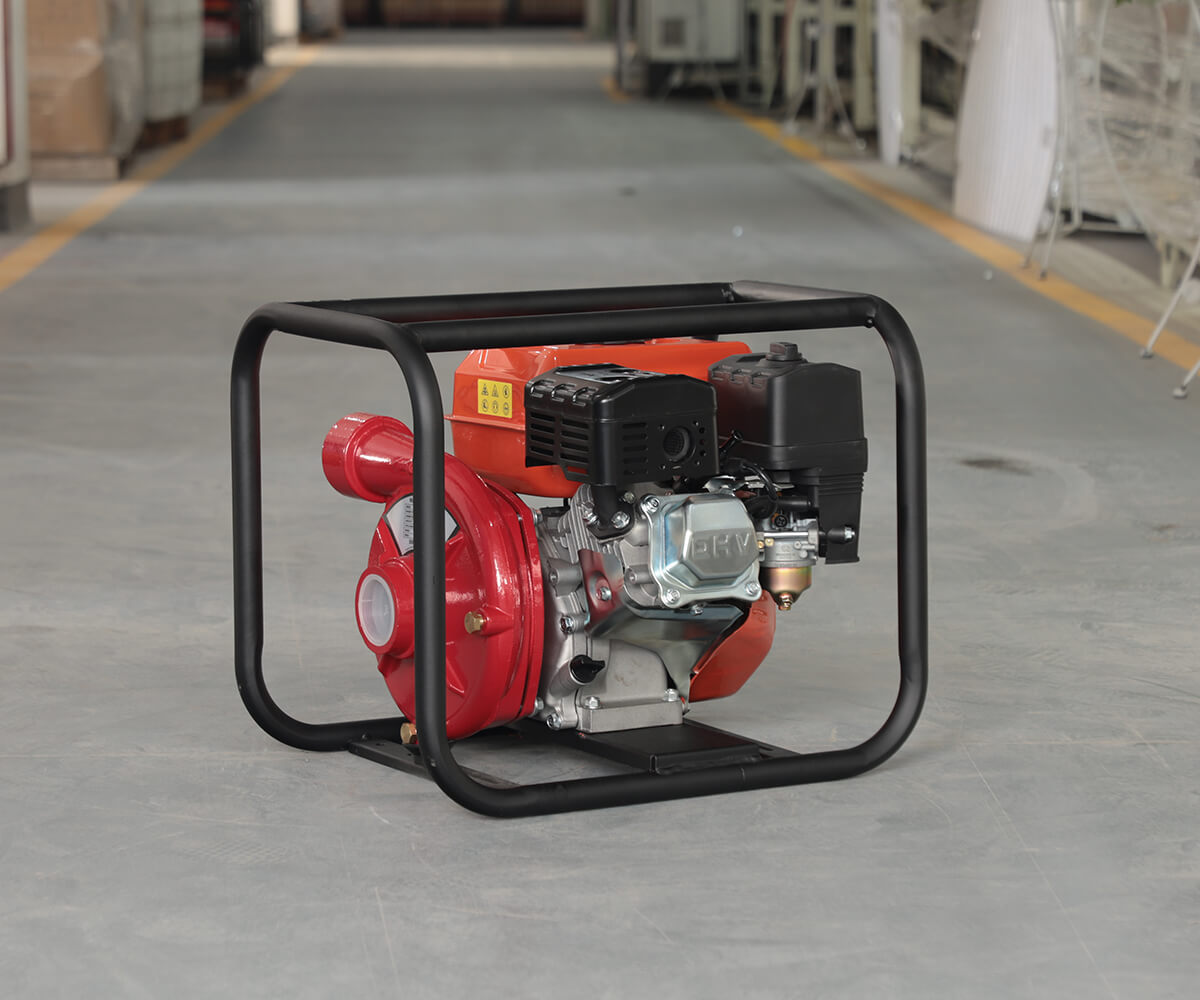

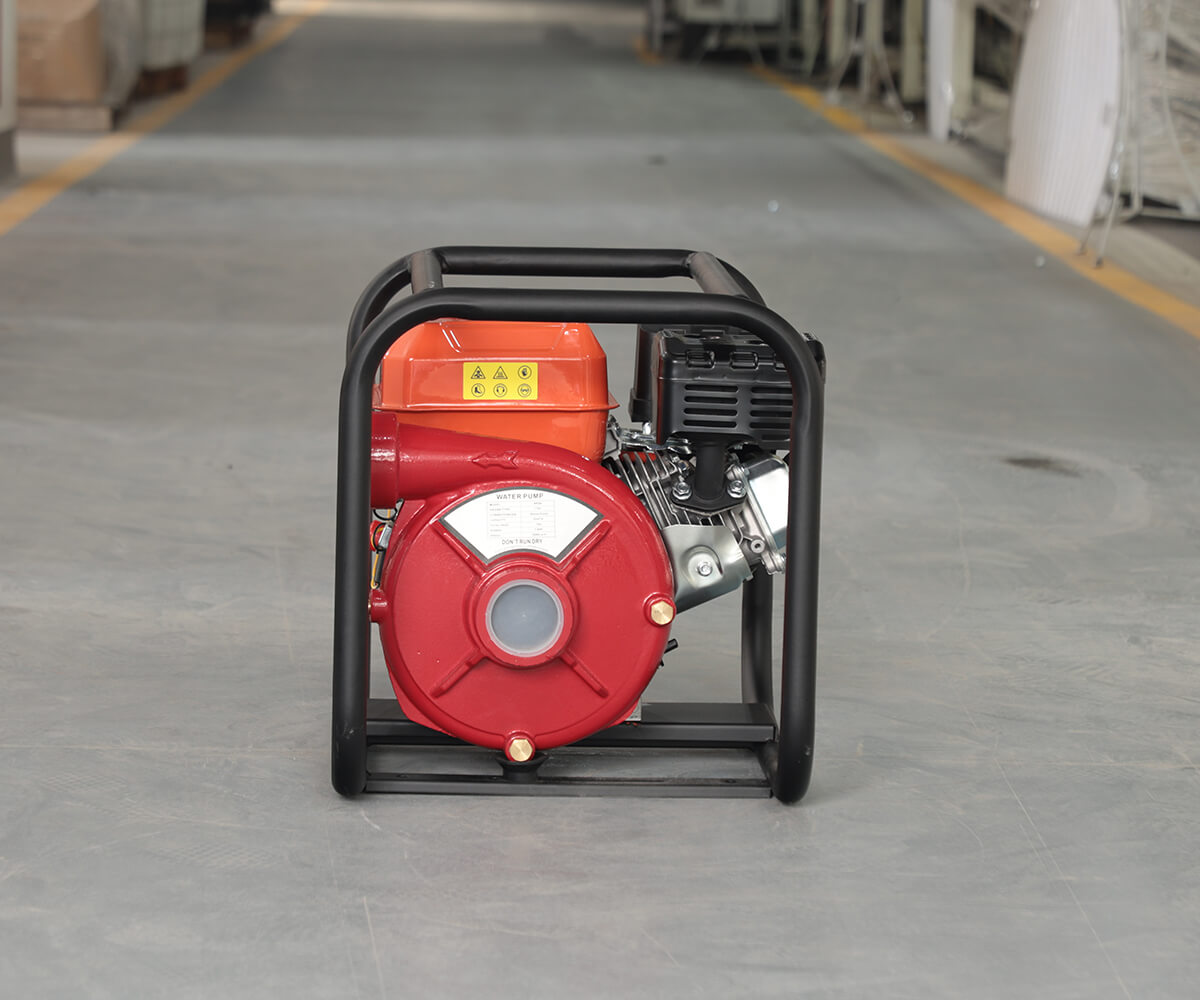

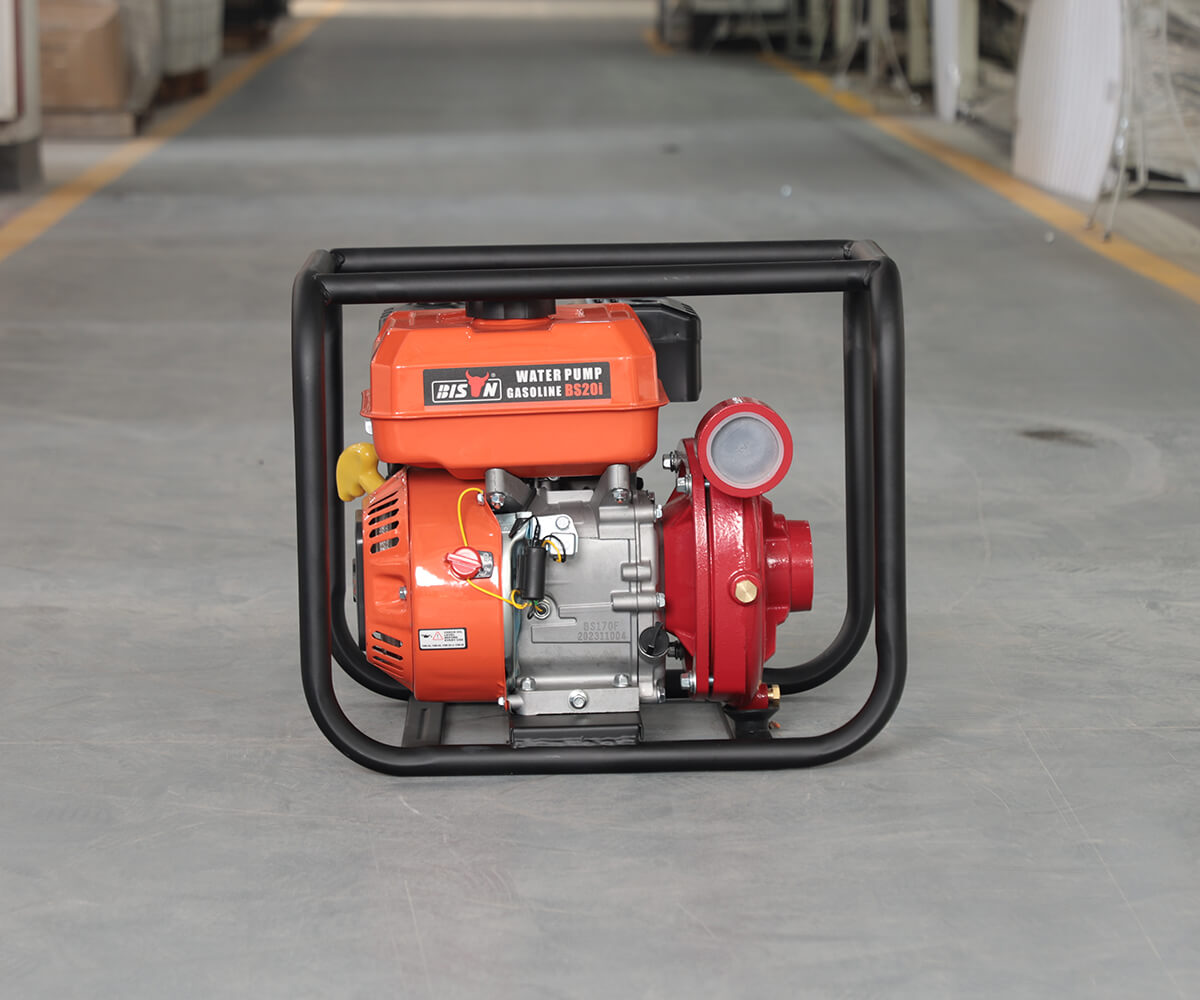

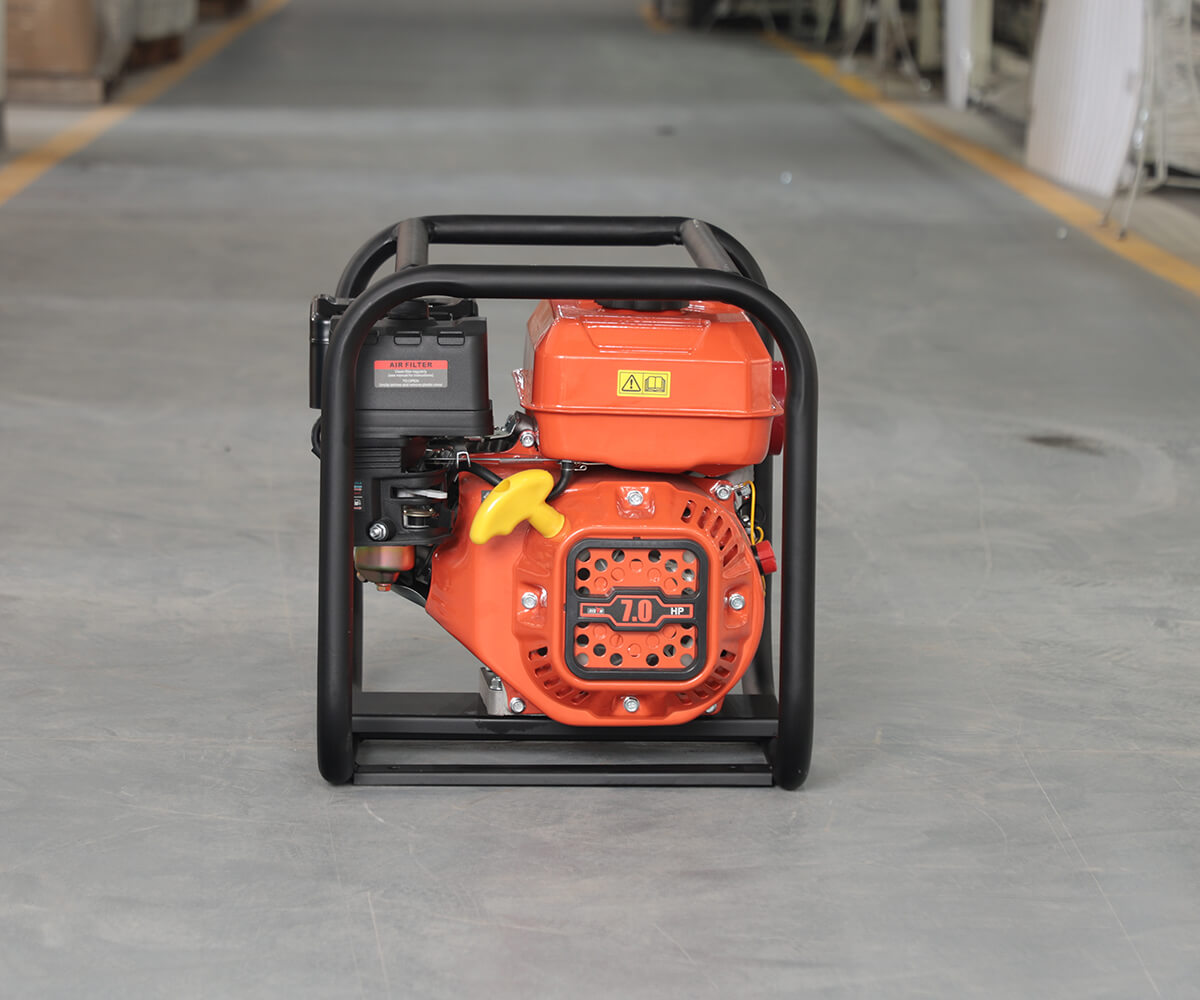

high pressure cast iron pump details
high pressure cast iron pump details 2
high pressure cast iron pump details 3
high pressure cast iron pump details 4

A class core parts

engine connecting rod

engine connecting rod

The mechanical strength belongs to the density of ADC12 aluminum alloy cast aluminum, and the weight monitoring can ensure the consistency of structural tensile strength and processing CPK

engine piston

pump engine piston

Adopt Z109 material to increase the wear resistance and reduce thermal deformation, to ensure the weight of the piston and the accuracy of machining

engine case

pump engine case

Using high-precision fixtures, machining center equipment to ensure precision, and high-density material strength, BISON's box can meet the durability test for 125 hours, and can meet emission standards

pump head

intake and exhaust valves

BISON only adopts high-quality pump heads with sufficient materials (reasonable and thick alloy ratio) and excellent processing technology (oxidation resistance, corrosion resistance, mold, flatness, and sealing)

tight quality contorl

pump suction simulation test

High-pressure cast iron pump testing

BISON water pump comprehensive test bench is equipped with a comprehensive test tank, which is higher than the national standard sampling inspection type and durable, ensuring the quality of the product in all aspects.

Test the pump suction online and simulate negative pressure detection. 100% full inspection to determine the extremely low failure of the product.

Regular outdoor field testing of water pumps to ensure the pumping efficiency of the product in practice.

Professional technicians with 15-20 years of experience

performance commissioning

Performance Commissioning

machine assembly

Machine Assembly

artwork qa

Artwork QA

full inspection

Full Inspection

power specialized inspection

water pump specialized inspection

parts assembly

Parts assembly

core assembly

Core Assembly

water pump specialized inspection

Power Specialized Inspection

support

What makes BISON a leader in the water pump industry – high-performance products and lasting quality assurance. You can get popular high-pressure cast iron pumps and a trustworthy partner by choosing BISON. We provide:

  • Certified quality: BISON’s strict production process ensures that each water pump meets export standards, and high pressure cast iron pump has CE, EPA and other certificates.
  • Rich product lines: We provide different types of water pumps to match market needs, allowing you to expand your water pump business and gain new business opportunities.
  • Dedicated support: Our team provides excellent after-sales service and technical support whenever you need it. BISON also offers competitive dealer support programs and flexible payment terms.
gasoline water pump parts

Discounted Accessories

24 hour online 5 minute response

24-hour online, 5-minute response

engineer on site service

Engineer on-site service

Packaging & Delivery

Packaging details: brown strong carton, water pump is protected with poly bag, wooden, 1pc / carton.
Lead Time: Shipped in 25 days after payment.

Speak with a BISON sales manager

Contact us today for expert advice.

service

products

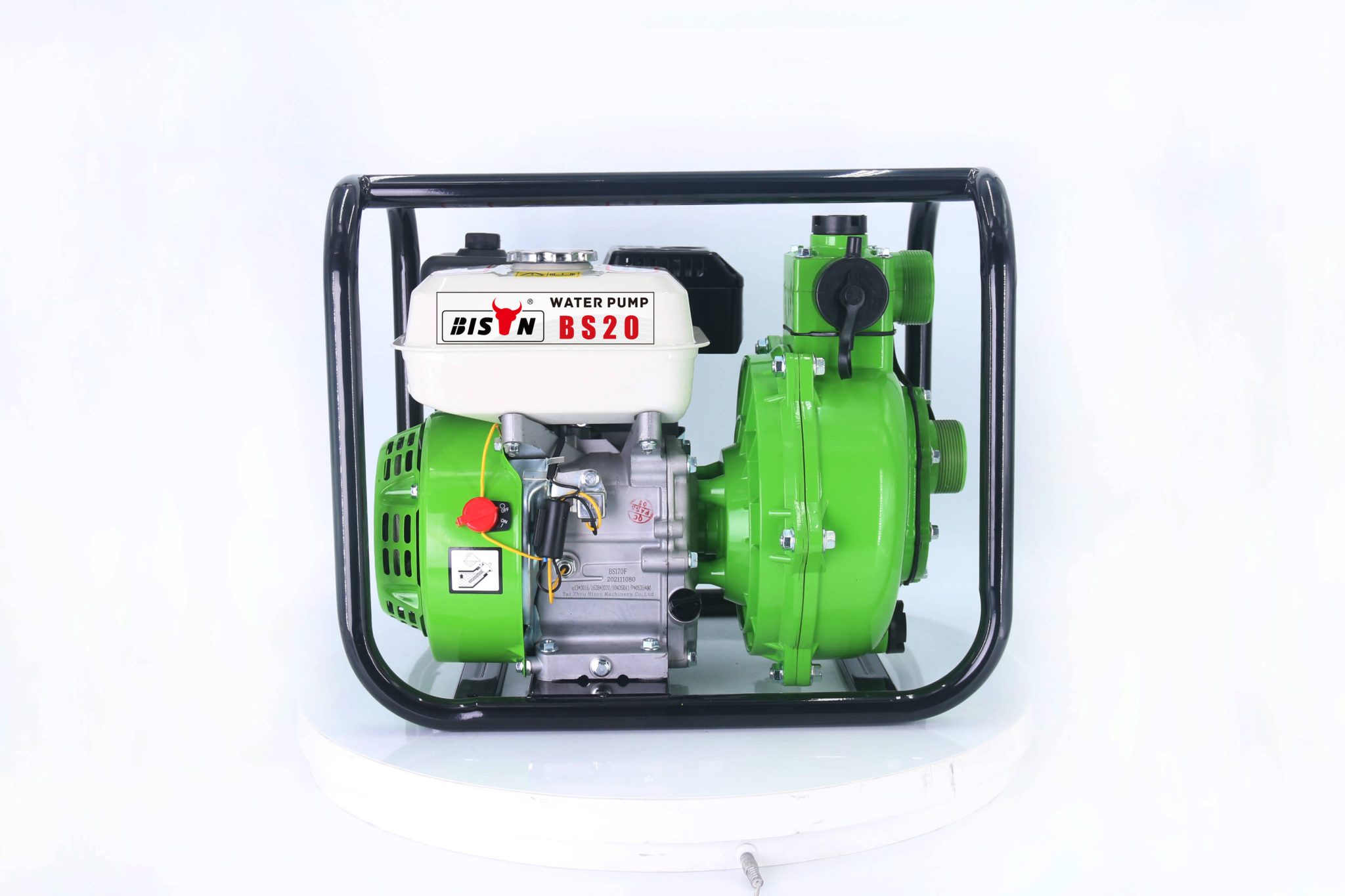

cast aluminum high pressure pump 3 scaled

cast aluminum high pressure pump

two stage fire water pump 4

two stage fire water pump

2hp petrol water pumps

2hp petrol water pumps

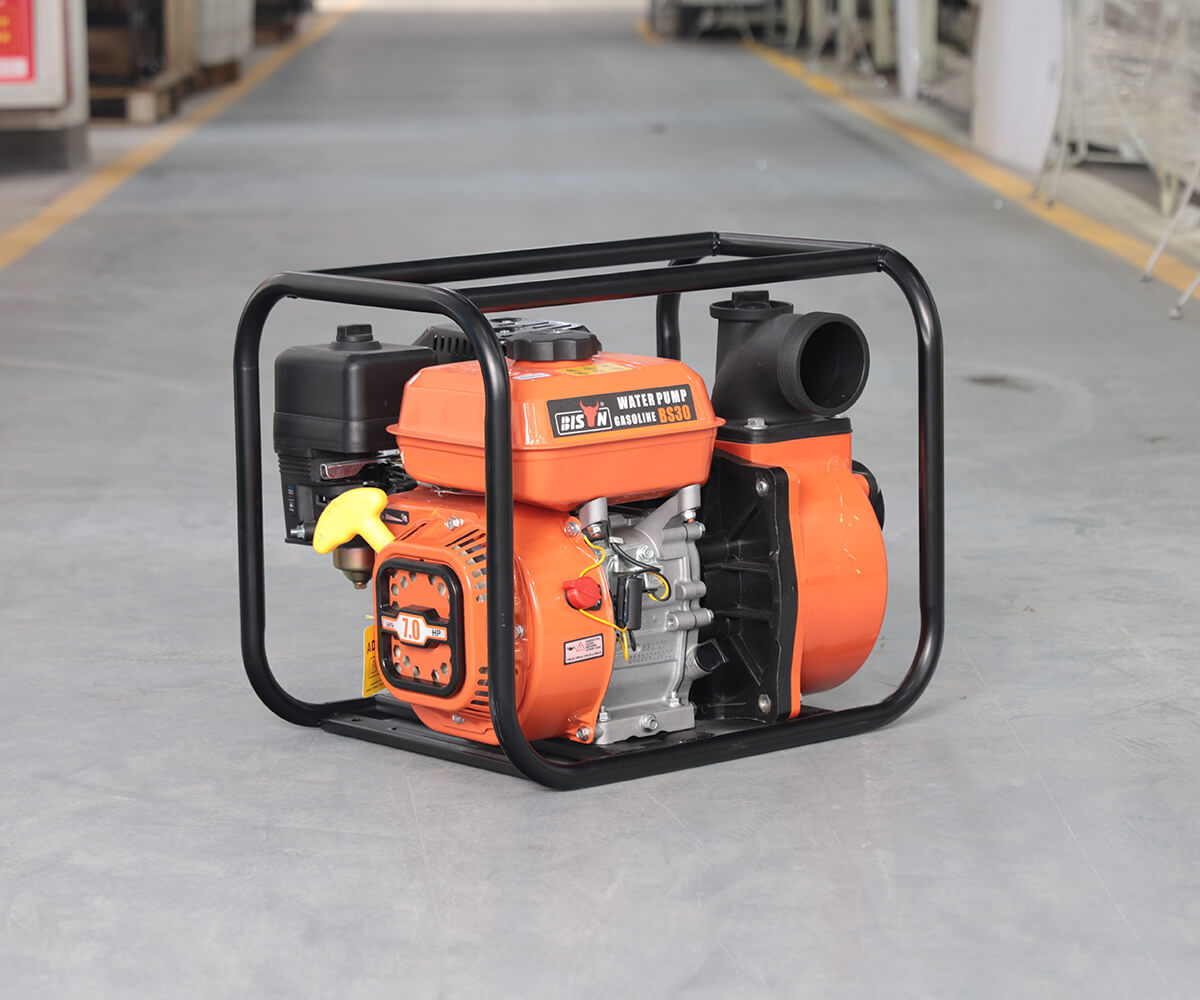

80mm dual fuel clean water pump
