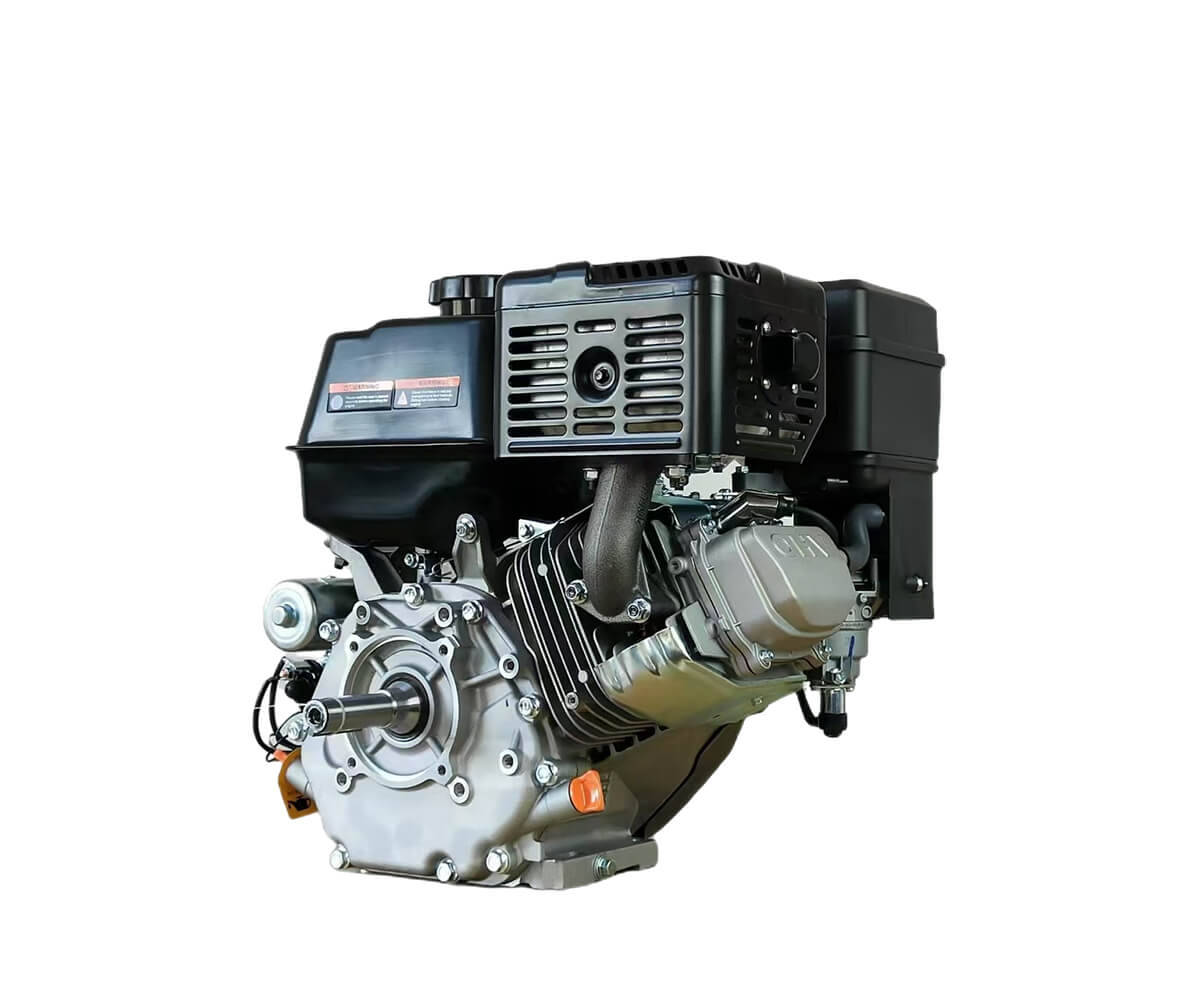

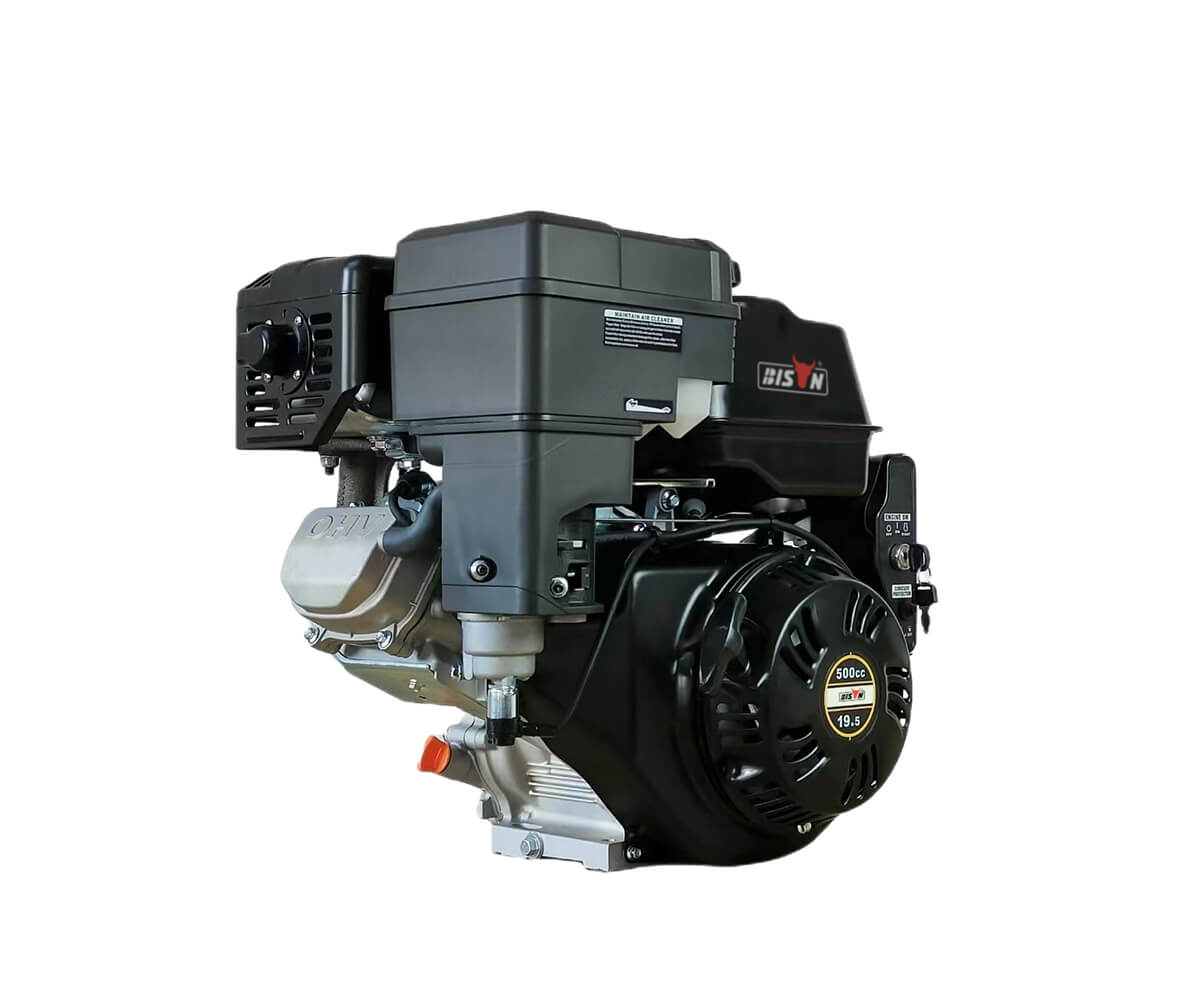

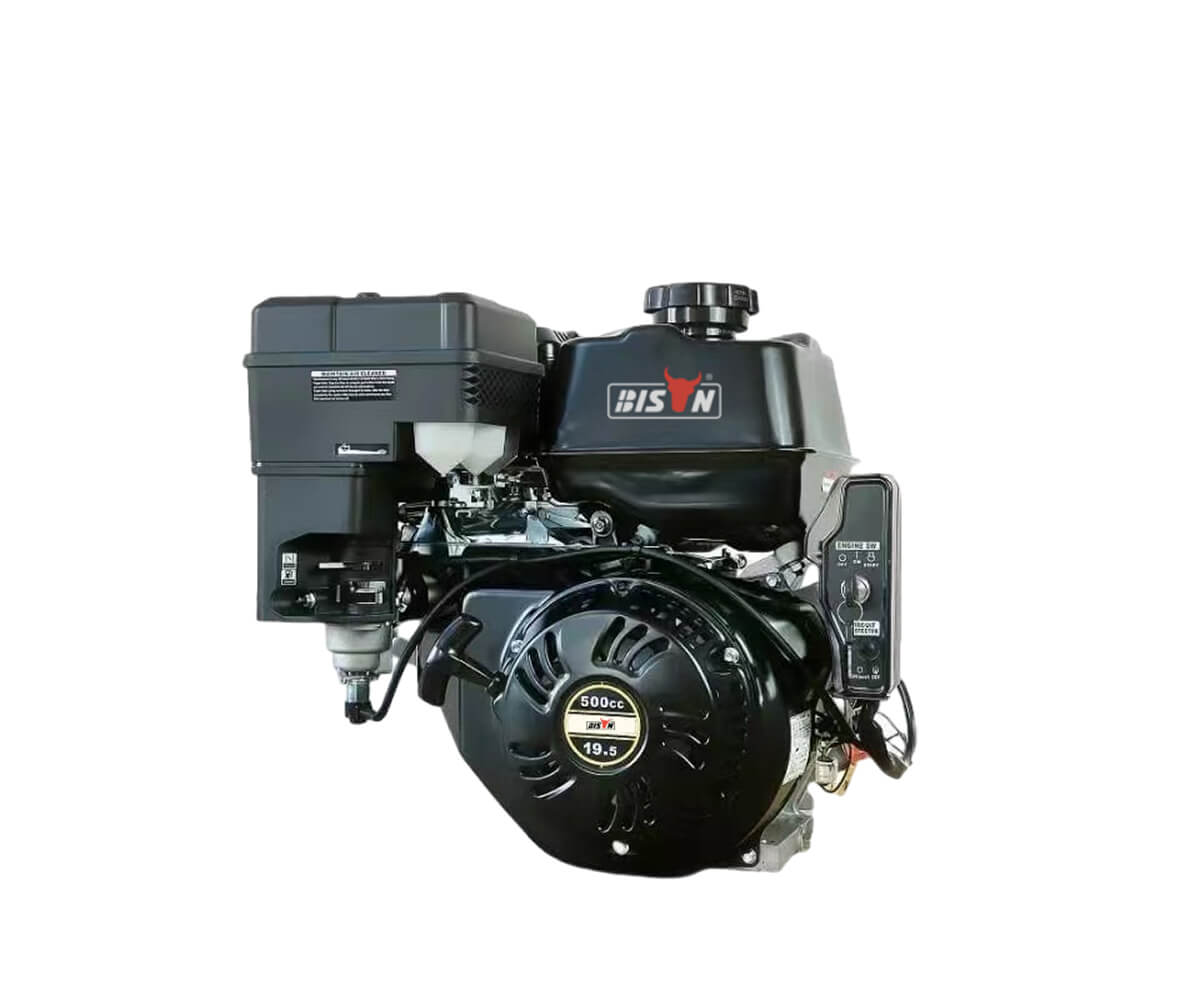

194F high power gasoline engine

94 * 72mm|500cc|6.9L

no brand	30 sets
OEM standard	50 sets
OEM special	100 sets

BS194F Specifications

Engine model	BS194F
Fuel type	Gasoline
Engine speed	11kw/3600rpm
Bore * stroke	94 * 72mm
Engine Displacement	500cc
Power of Engine (hp)	20HP
Compression ratio	8.5:1
Engine/Motor Type	Single cylinder,4-Stroke(OHV)
Engine Oil grade	#5W-40
Fuel Capacity	6.9L
Oil Capacity	1.2L
Low Oil Shutdown/Alert	Yes
Recoil Start	Yes
Electric Start	Optional
Fuel consumption radio	≤374g/kw·h
Ignition system	T.C.I

As a professional gasoline engine manufacturer and factory, BISON ensures that the BS194F offers best-in-class performance and a long-lasting design. It is a reliable solution designed to provide 20HP of steady performance for industrial, agricultural and construction applications. It is manufactured with a powerful air-cooling system and high-quality materials to ensure efficient operation and is ideal for driving equipment such as water pumps, tillers, and generators.

The BS194F offers impressive horsepower to ensure optimal performance in a wide range of applications. Whether driving heavy machinery, agricultural equipment or industrial tools, this engine provides the strength and durability your customers need.

The BS194F is designed with advanced combustion technology to maximize fuel efficiency without compromising power. This means lower operating costs and longer uptime, providing a significant competitive advantage in cost-sensitive markets.

The BS194F meets industry standards for emissions and safety and complies with global regulatory requirements. This compliance facilitates seamless integration into a variety of markets and applications, lowering the barrier to entry for your business.

Boost your business with BISON

BISON provides unparalleled support to its dealer network, including technical training, marketing assistance, and responsive customer service. Whether you are a small dealer or a large dealer, BISON offers a flexible partnership model and scalable production capacity to meet your business needs and growth aspirations.

Boost your business with the BISON 194F high-powered gasoline engine built for industrial, agricultural and construction applications!

Our engine parts

Engine connecting rod

The mechanical strength belongs to the density of ADC12 aluminum alloy cast aluminum, and the weight monitoring can ensure the consistency of structural tensile strength and processing CPK

Engine piston

Adopt Z109 material to increase the wear resistance and reduce thermal deformation, to ensure the weight of the piston and the accuracy of machining

Engine case

Using high-precision fixtures, machining center equipment to ensure precision, and high-density material strength, BISON's box can meet the durability test for 125 hours, and can meet emission standards

Intake and exhaust valves

The valve is made of 40Cr10SiMo material. The exhaust valve can withstand high combustion temperature. When the load is heavy or the combustion condition is abnormal, the temperature limit will not be affected if the temperature limit is lower than 700-780°C.

Engine testing

Dedicated to engine testing, and equipped with quality control for sampling testing. BISON verifies and confirms the performance and reliability of each batch of engines to avoid possible product failures.

Guarantee the sealing performance of the crankcase body structure and installation. Through professional instrument testing, poor sealing defects of installation and materials can be found, so as to avoid oil leakage and oil leakage of the engine and ensure the actual power efficiency.

The load output stability of the power can be confirmed online, and the configuration can be locked after stabilization to ensure high product consistency
