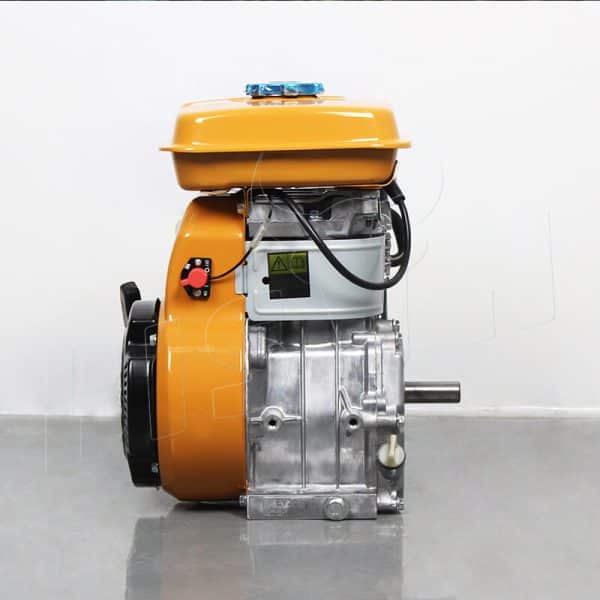

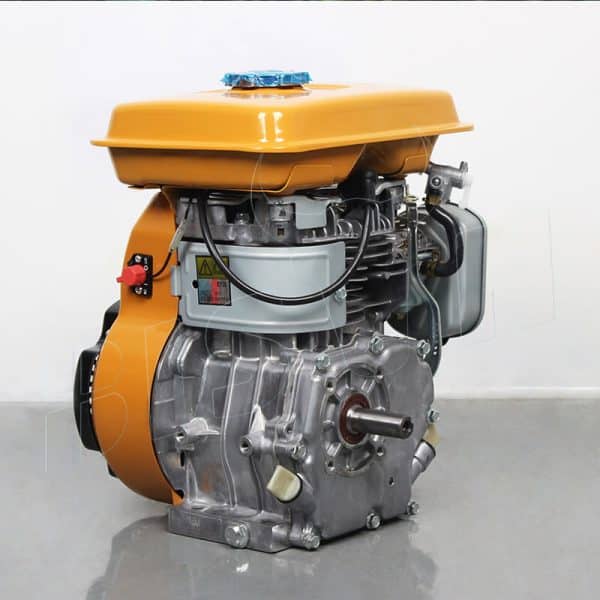

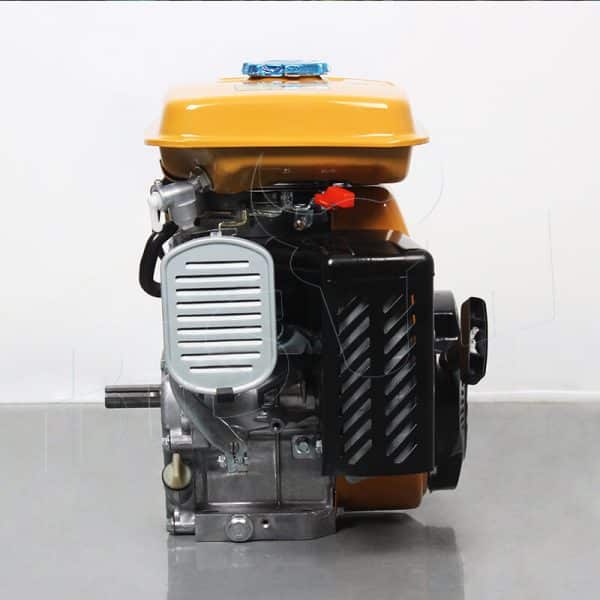

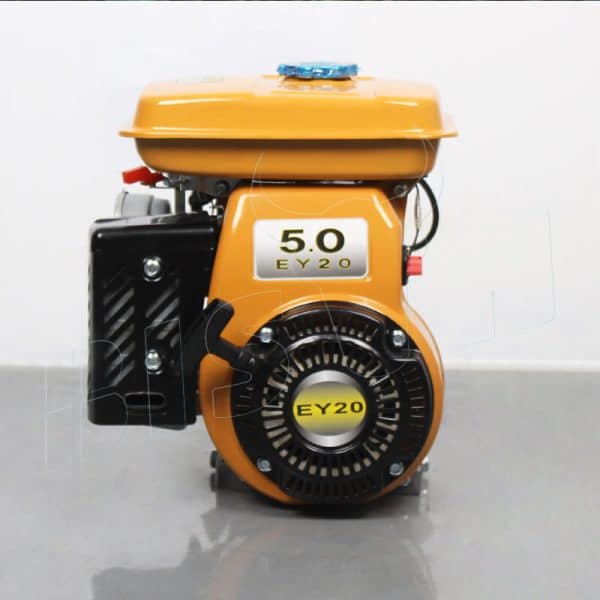

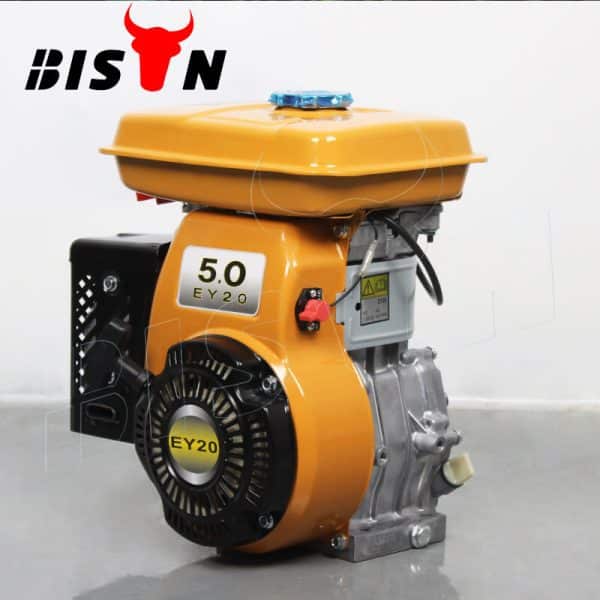

EY20 5hp Petrol Motor

Parameter Description

Petrol Motor Overview

Condition: New Usage: Automobile, Agriculture, GardenPump, Boat, etc
Fuel: Petrol Stroke: 4 Stroke
Cylinder: Single Cylinder Cold Style: Air-cooled
Start: Recoil start / Key start Place of Origin: Zhejiang, China (Mainland)
Brand Name: BISON Model Number: EY20
Dimension(L*W*H): 400*325*340mm Weight: 16 kg
Certification: CE, ISO Warranty: 1Year
After-sales Service Provided: Engineers available to service machinery overseas
Exporting Area: Europe, Middle East; Southeast Asia, South America, Oceania, Africa
Exporting countries: Brazil, Argentina, Russia, France, Uzbekistan, Egypt, Nigeria
Engine Spare Parts: Carburetor, Camshaft, Spark Plug, Piston, Crankshaft, Crankcase
Output Power: 5hp, 5.5hp, 6.5hp, 7.5hp, 9hp, 13hp, 15hp All Have
Displacement:183cc HP: 5hp
Ignition system: T.C.I Rated rotation speed: 3000 / 3600rpm
Fuel tank volume: 3.6L Net/Gross Weight:  11 / 13kg
Bore x stroke: 56 x 38mm Compression ratio: 8.5:1

SupplyAbility: 10000 Set/Sets per Month 4 stroke engine

Packaging & Delivery
Packaging Details: brown strong carton, engine is protected with ploy bag, wool, 1pc / carton
Port: Ningbo/Shanghai Port
Lead Time: Shipped in 25 days after payment

Product Description

Our engine parts

engine connecting rod

The mechanical strength belongs to the density of ADC12 aluminum alloy cast aluminum, and the weight monitoring can ensure the consistency of structural tensile strength and processing CPK

engine piston

Adopt Z109 material to increase the wear resistance and reduce thermal deformation, to ensure the weight of the piston and the accuracy of machining

engine case

Using high-precision fixtures, machining center equipment to ensure precision, and high-density material strength, BISON's box can meet the durability test for 125 hours, and can meet emission standards

intake and exhaust valves

The valve is made of 40Cr10SiMo material. The exhaust valve can withstand high combustion temperature. When the load is heavy or the combustion condition is abnormal, the temperature limit will not be affected if the temperature limit is lower than 700-780°C.

Engine testing

Dedicated to engine testing, and equipped with quality control for sampling testing. BISON verifies and confirms the performance and reliability of each batch of engines to avoid possible product failures

Guarantee the sealing performance of the crankcase body structure and installation. Through professional instrument testing, poor sealing defects of installation and materials can be found, so as to avoid oil leakage and oil leakage of the engine and ensure the actual power efficiency.

The load output stability of the power can be confirmed online, and the configuration can be locked after stabilization to ensure high product consistency
