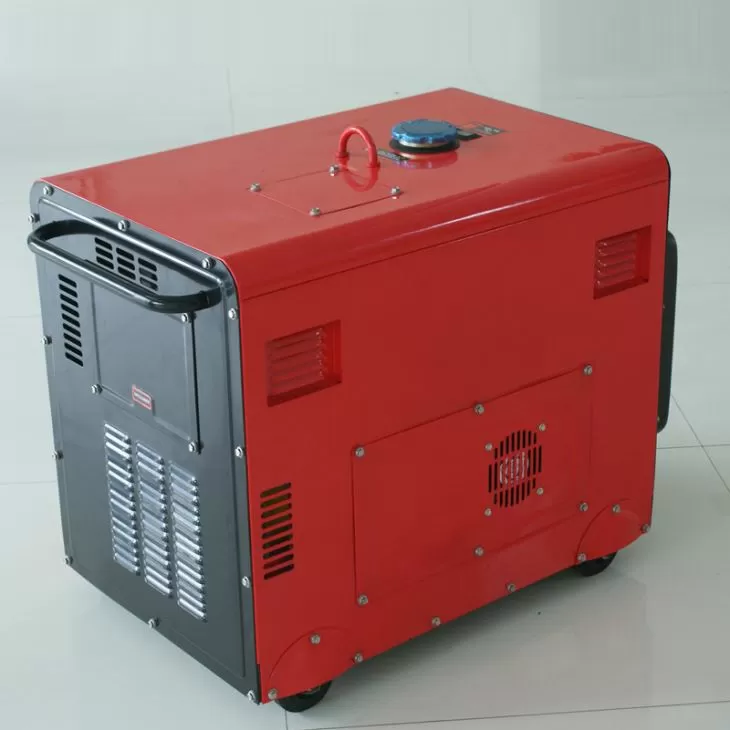

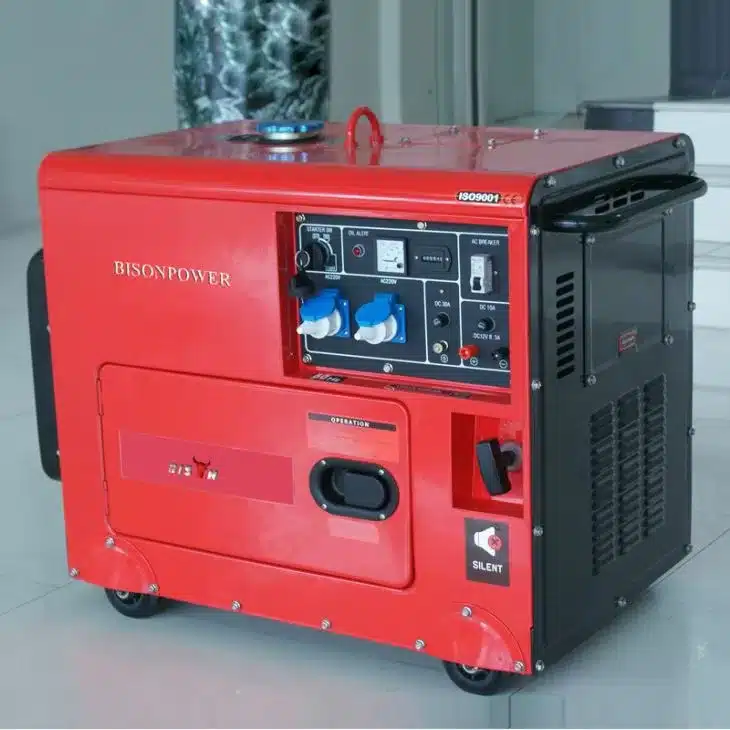

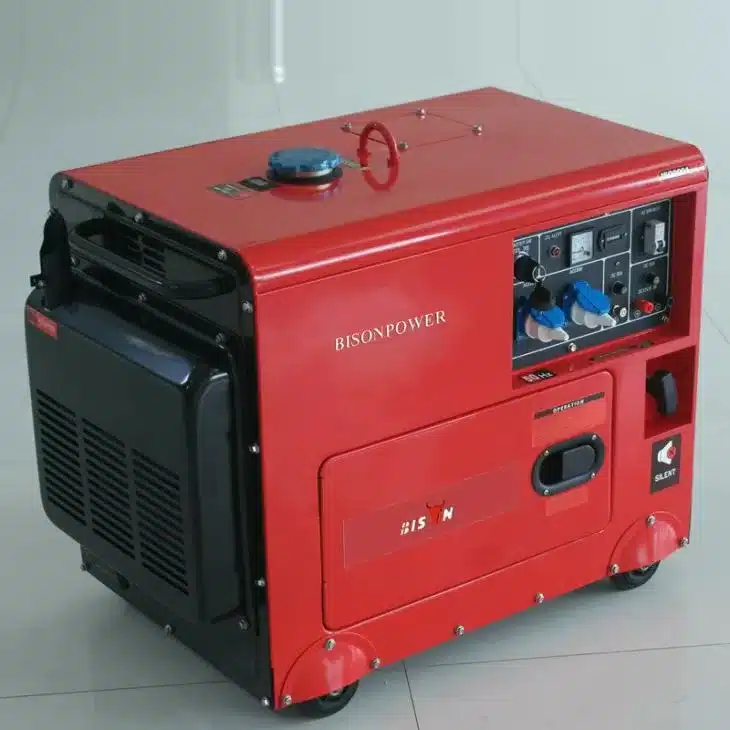

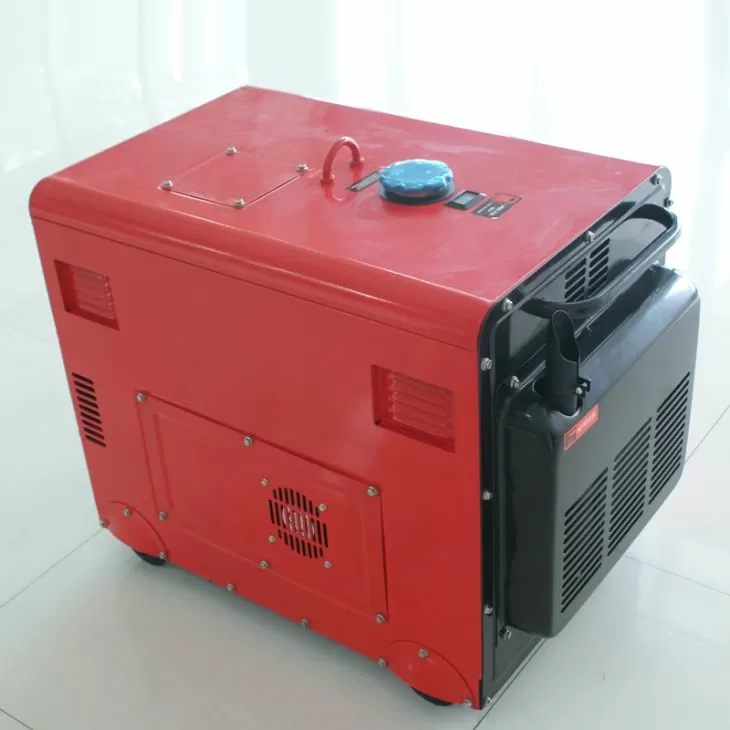

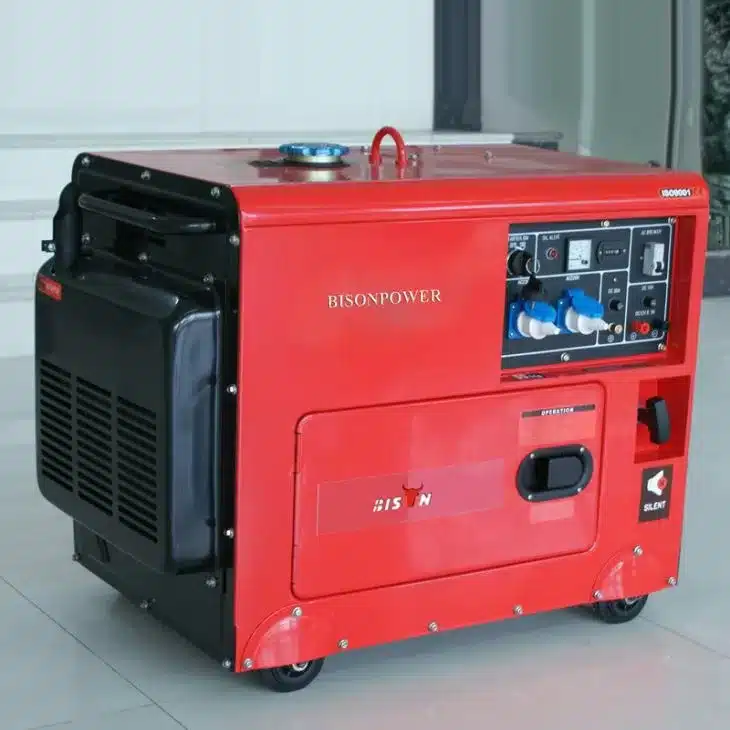

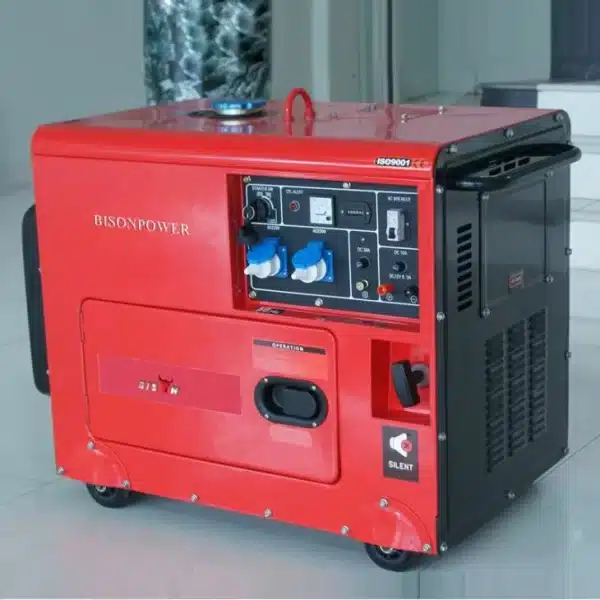

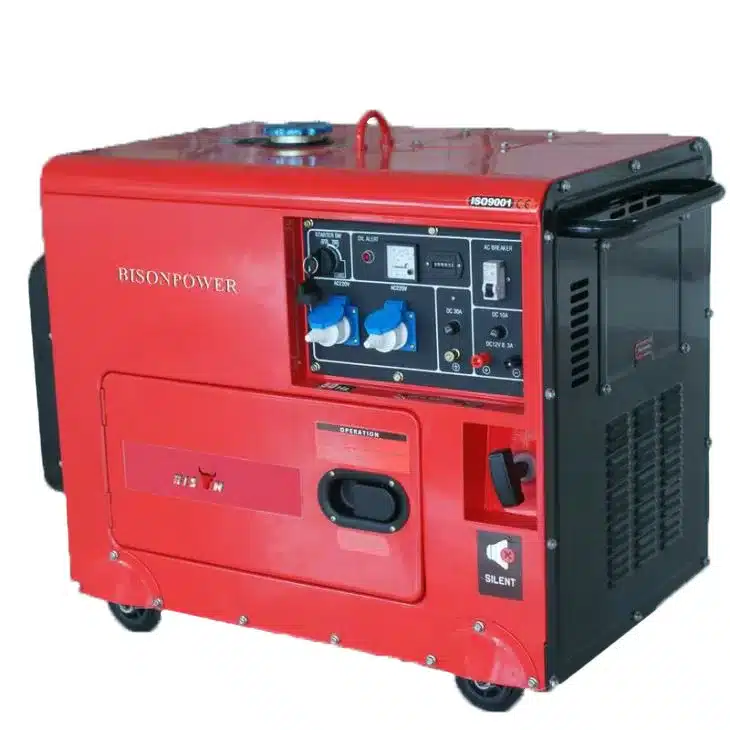

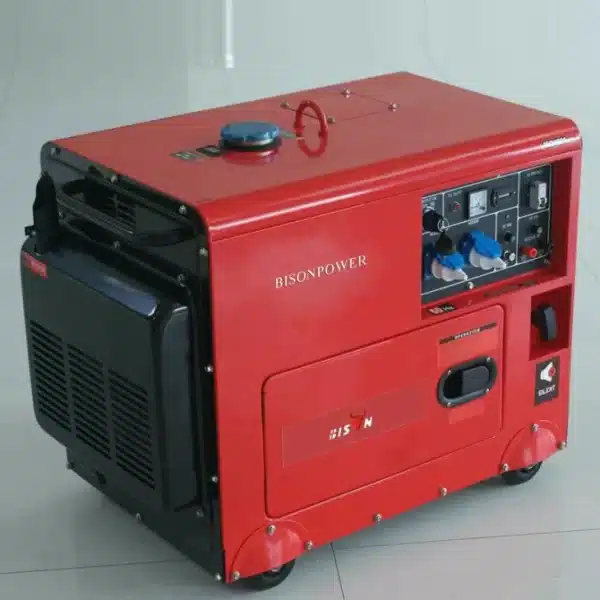

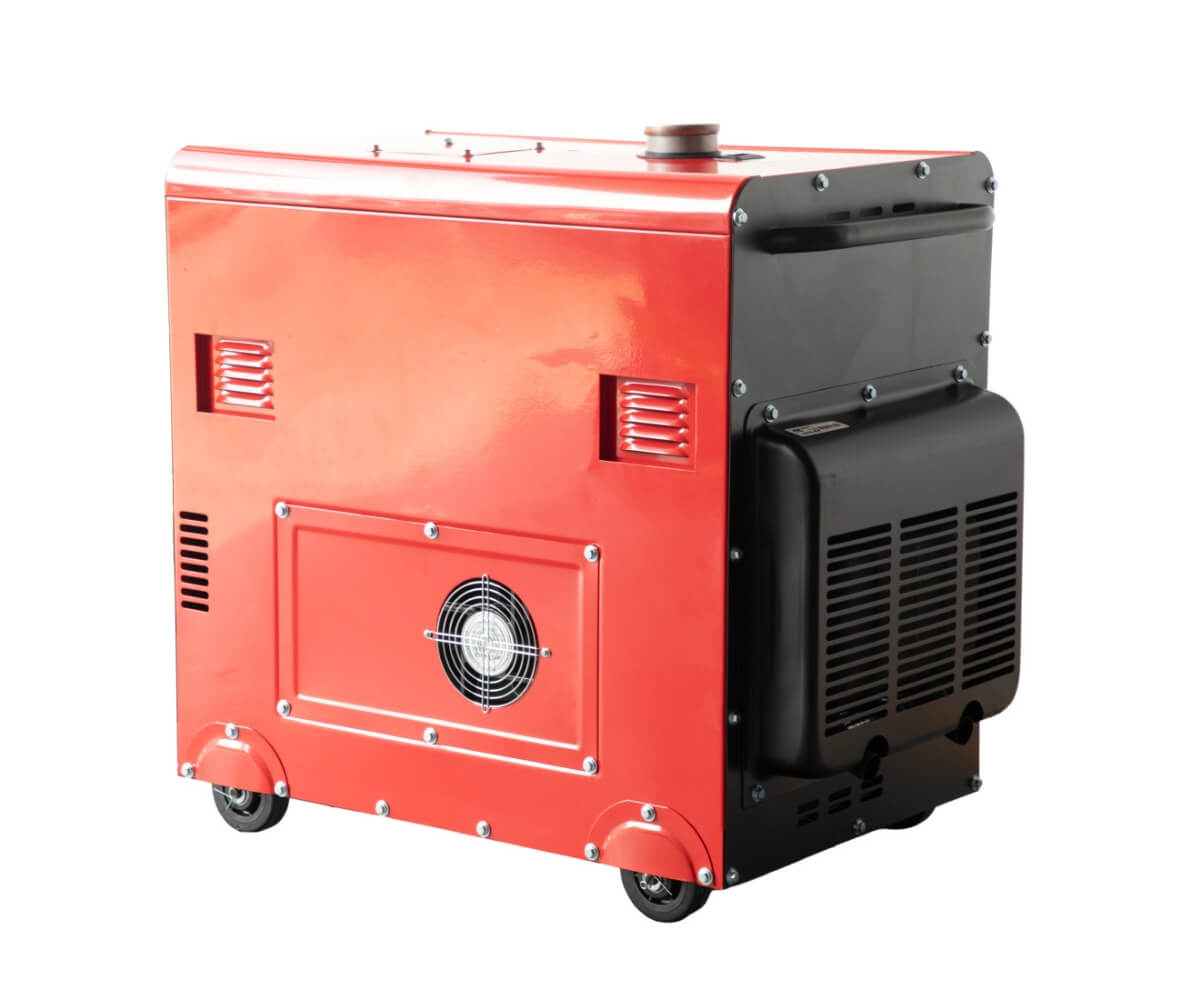

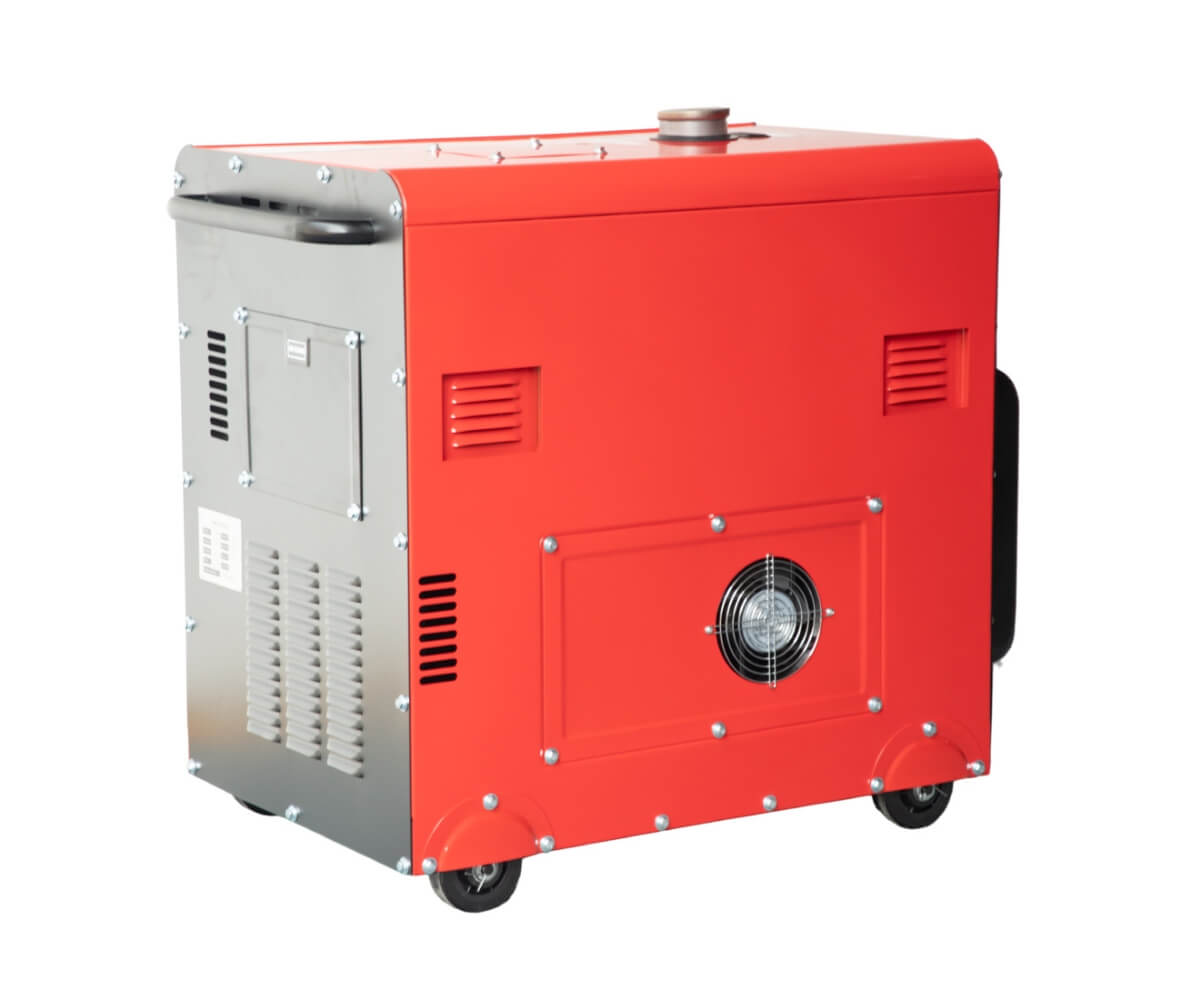

standby diesel generator

4-stroke|24L|6.5KW|16A

Neat and economical for classical design.

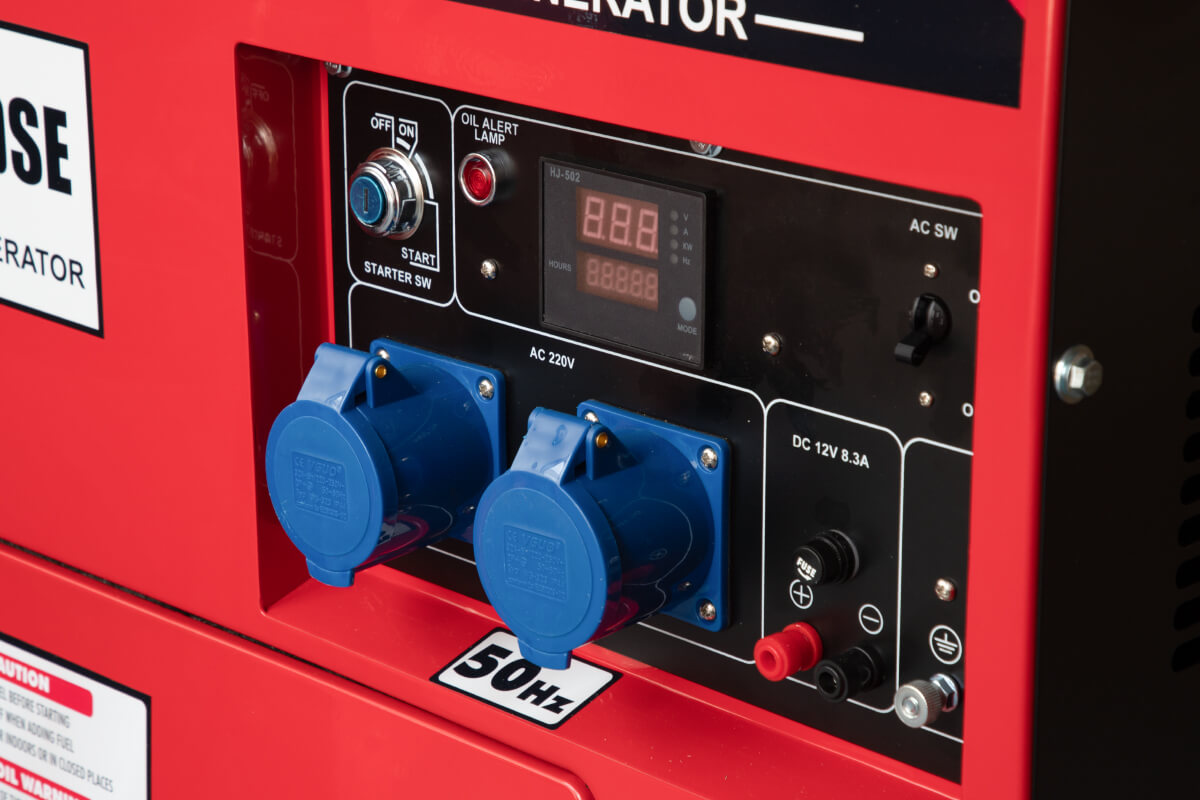

Standard configuration of voltmeter.
Powered by 4-stroke air-cooled diesel engine.
Portable, easy to fit wheels and handle.
Ideal for home emergency use or as standby power supply…

no brand	30 sets
OEM standard	50 sets
OEM special	100 sets

BS8500DSE Specifications

model	BS8500DSE
maximum power (KW)	7
rated power (KW)	6.5
rated output voltage (Volt)	1 phase / 3 phase (optional)
over load protector	yes
rated frequency (Hz)	50 / 60 Hz
rated current (Amp)	16
power factor	1.0 (single phase) / 0.8 (three phase)
fuel tank capacity	24L
fuel option	0# (summer)、-10#（winter) diesel
socket rating	16A
self start motor	electric start
fuel consumption at 100% Load	3.3L/h
fuel consumption at 75% Load	2.79L/h
fuel consumption at 50% Load	1.65L/h
continuous duration of operation at rated load (hour)	9

engine & emission specifications
engine model	BS195FE
fuel type	Diesel
engine speed	3000(50hz)/3600(60Hz)
bore * stroke	95*75
engine displacement	531
engine/motor type	single-cylinder、vertical、4-stroke、air-cooled、diesel engine
engine oil grade	10W/30SAE
fuel capacity	5.5L
oil capacity	1.7L
recoil start	No
electric start	Yes

alternator
type of alternator	100% copper (corrective wave)
rotor RPM	3000(50Hz)/3600(60Hz)
alternator size	204*140

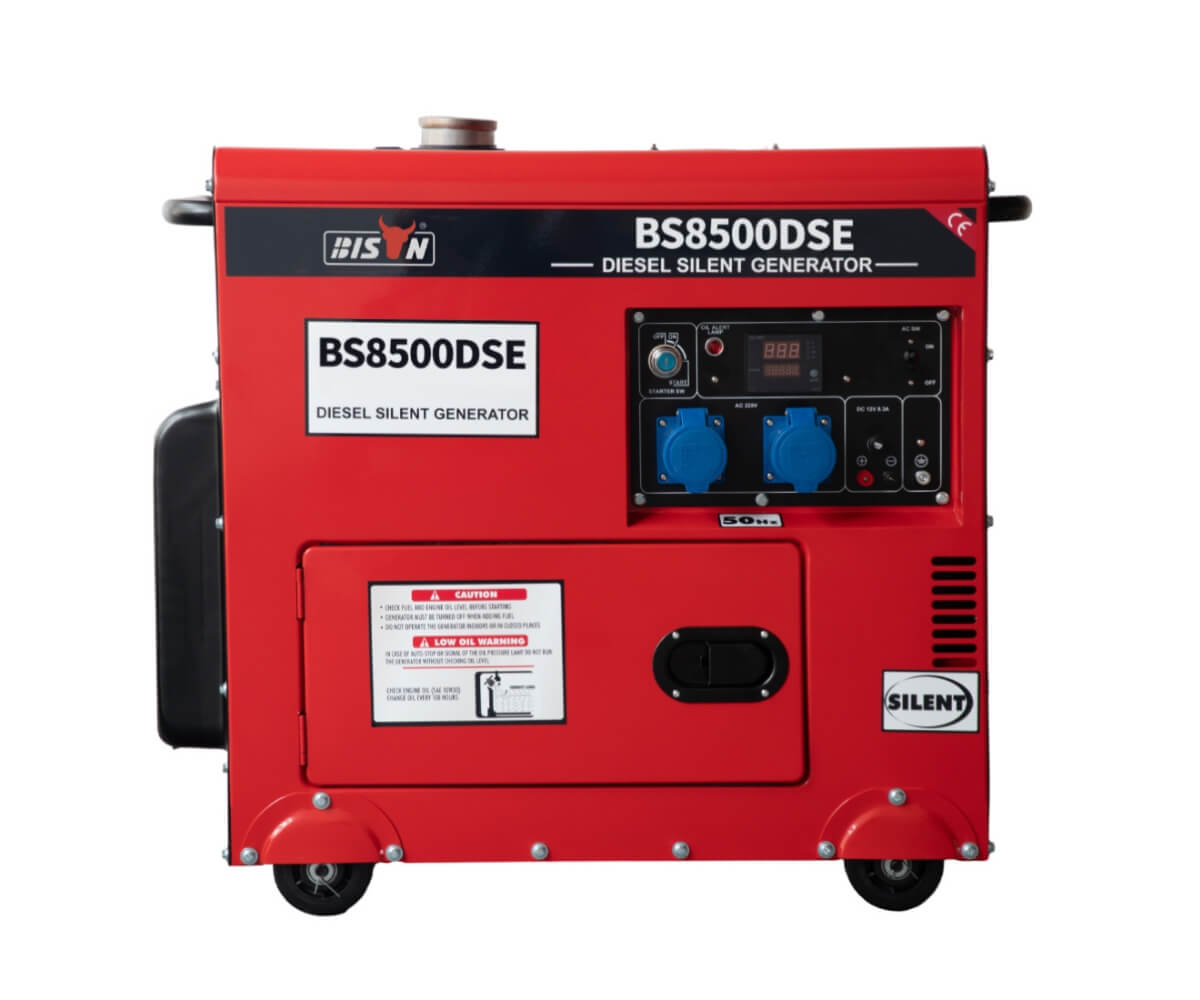

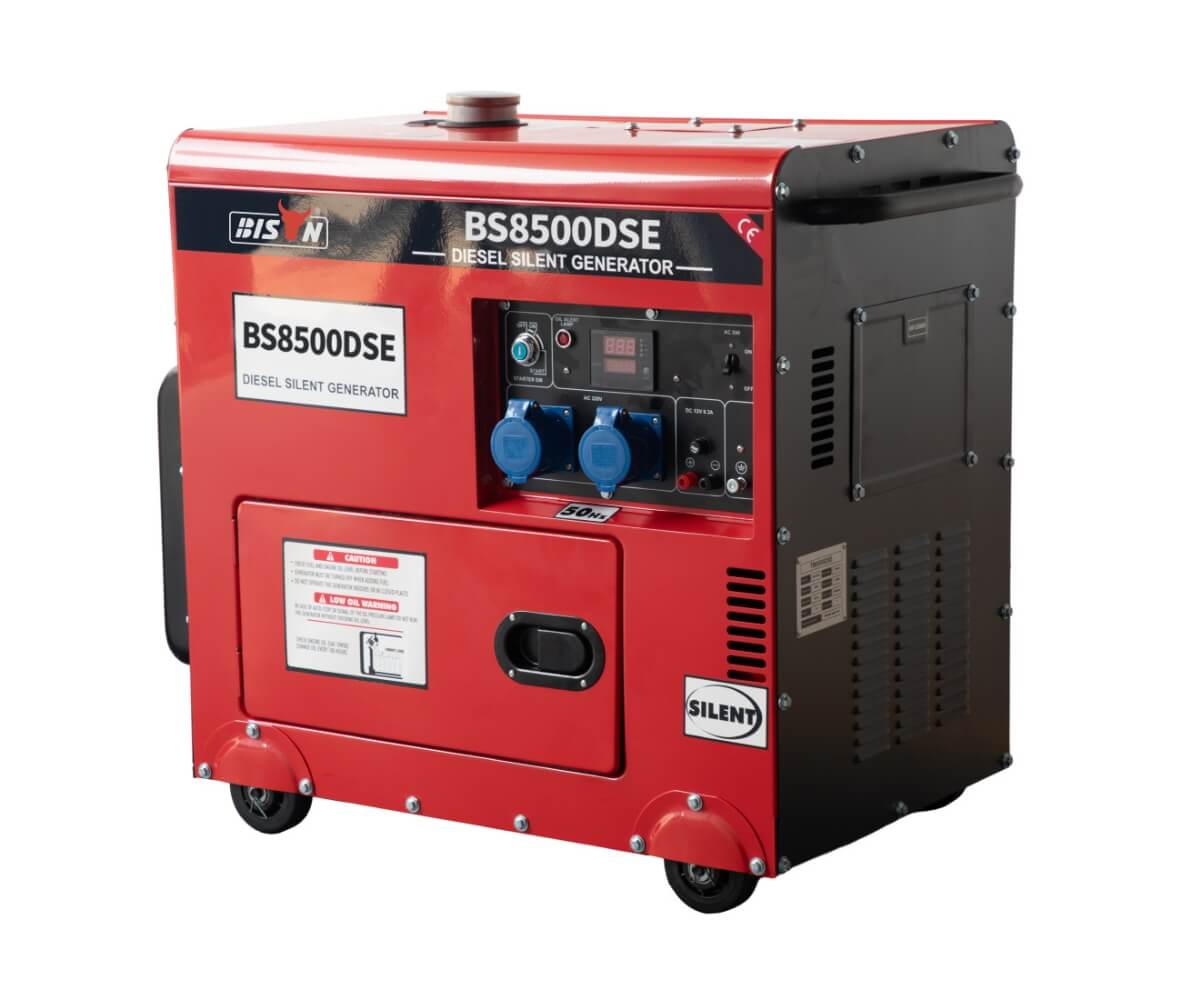

Introducing our standby diesel generator, the BS8500SE, engineered to deliver reliable power during critical moments. The rated voltage of this generator ensures a steady power supply, with a maximum power output of 7 KW and a rated power of 6.5 KW, making it a formidable power source. The alternator is crafted from durable copper, ensuring longevity and efficiency in power generation. Standby diesel generators are valued for their reliability, long runtime, and ability to handle heavy loads, making them an essential solution where uninterrupted power is crucial.

Leading features of BS8500DSE standby diesel generator
BISON standby diesel generators utilize advanced engine technology and optimized fuel delivery systems to significantly reduce operating costs. With its class-leading fuel economy, this generator extends runtime and minimizes the need for frequent refueling, offering maximum value for customers while enhancing your profit margins.

The electric start system simplifies the initiation process, making it convenient and hassle-free. Equipped with a 15-liter fuel tank, this generator offers extended run times for uninterrupted power supply. The model bs192f(e) boasts a bore and stroke of 92*75 and a displacement of 498 cc, resulting in efficient power generation. Moreover, equipped with sound-attenuated enclosure, the generator operates at a noise level of 72 dB, ensuring a quieter environment during operation.

With a gross weight of 175 kg, this generator is sturdy and built to endure challenging conditions, making it an ideal choice for both residential and commercial applications. Trust in the reliability and performance of BISON generators to keep your operations powered when it matters most. Featuring a heavy-duty, weather-resistant enclosure and robust components, this generator is built to withstand harsh environments and provide years of dependable service. By reducing the risk of failures and warranty claims, the BS8500DSE ensures customer satisfaction and peace of mind.

Dealers, boost your bottom line with BISON standby diesel generator. Designed to meet the diverse and evolving market needs of customers, this generator is an ideal choice for industries, commercial settings, and residential backup power applications. Our competitive pricing structure helps you maximize profitability, while our expert support team is always available to assist with sales, technical inquiries, and warranty needs. With fast and reliable shipping through our efficient network, you can minimize lead times and keep your inventory moving seamlessly. Contact us today to learn more about the BS8500DSE and how BISON can help dealers power your business success.

A class core parts

100% all-copper motor

Offering durability and superior energy efficiency

Fuel injection pump

Higher injection pressure, optimal injection rate, higher precision injection timing control and quantity control.

Powerful pull plate

Easy to start pull plate, guarantee more than 10,000 pulls

robust frames

Professional welding and painting process to ensure the beauty and stability of the rack

tight quality contorl

standby diesel generator Perfect inspection process

Inspection process leaves no room for compromise, ensuring that every diesel generator we produce is flawless.

Water Test: Ensures 100% cylinder tightness, detecting any possible leaks.
Unit Comprehensive Intelligent Test Cabinet: Each generator undergoes a full inspection to confirm reliability and accuracy.
Withstand Voltage Tester Inspection: Every generator is fully inspected, ensuring precise electrical safety measurements.
Strengthened Laboratory Standards: Our lab exceeds national sampling standards, resulting in superior product durability.

standby diesel generator assembly process

Use special equipment to assemble, ensure the beaning, oil seal, governor gear effectively fit
When assembling nuts for each muffler, spring pads need to be installed to ensure the fit of each component and the maximum noise reduction effect
Use a special air gun, and use different torque standards for different parts
Water test is required in each engine assembly to ensure the tightness of itself
Pay attention to small details, add thread glue and spring washers to the bolts; add support feet to the motor bracket
More than 20 debugging processes throughout the whole process to ensure that the machine 100% meets the factory requirements

Professional technicians with 15-20 years of experience

Performance Commissioning

diesel generator assembly

Artwork QA

Full Inspection

Generator Specialized Inspection

Parts assembly

Core Assembly

Power Specialized Inspection

Company profile

BISON is a company that produces generators in Taizhou city, which is near Ningbo port. Our company is based on “good quality best price” principle that we mix the parts from chongqing and Taizhou and match them perfectly to produce high quality goods. Our generators from 650w to 7000w all portables with two power ratings: continuous power(running watts) and maximum power(starting watts), 100% copper wire inside, with 10-inch wheels. All generators have 5 steps inspection before shipping: raw material inspection before in stocks, 100% product online testing, 100% complete products testing and ramdom inspeciton loading test. Our factory is very strict in every step because our aim is to help our clients can be benefitt from our business and we can be win-win together.

Warranty Information

Bison is not only a manufacturer of engine/water pump/generators and pressure washer. We work to offer you a comprehensive service that covers all the needs that may meet, from the search for the electric generator that best suits your needs, through commercial support and constant and transparent communication throughout the sales process, up to the resolution of any problem or incident, assistance in the installation of the machine, repair or simply its maintenance. A complete portfolio of after-sales services and the best technical team at your service so that everything goes well, before, during and after the start-up of the products.

All the products we sell with 1 year or 500H working time. During the warranty period, Bison will repair and replace the parts and components free which caused by quality reasons. If the damage due to the human factors, we can also offer the spare parts at a big discount to support. Under normal use, if equipment have quality problem, customer require us to change the part, we will change the part for free.(but the transportation expense outside china shall be pay by customer).
