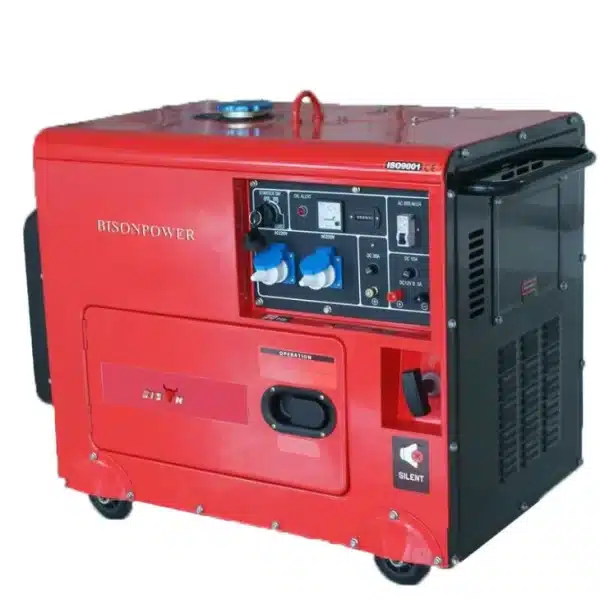

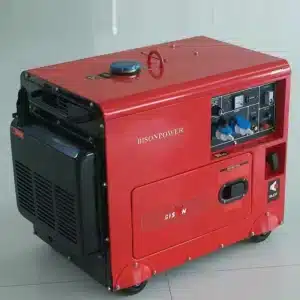

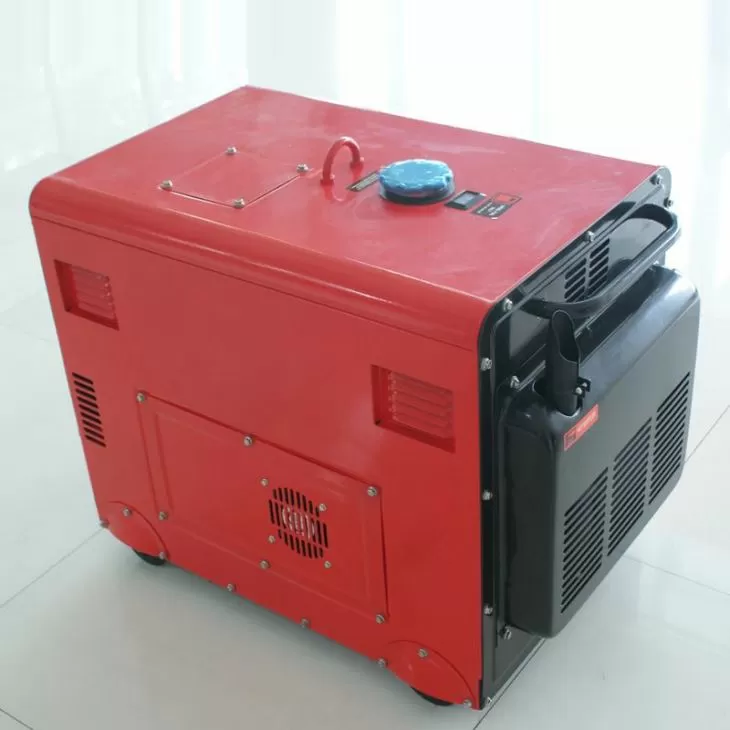

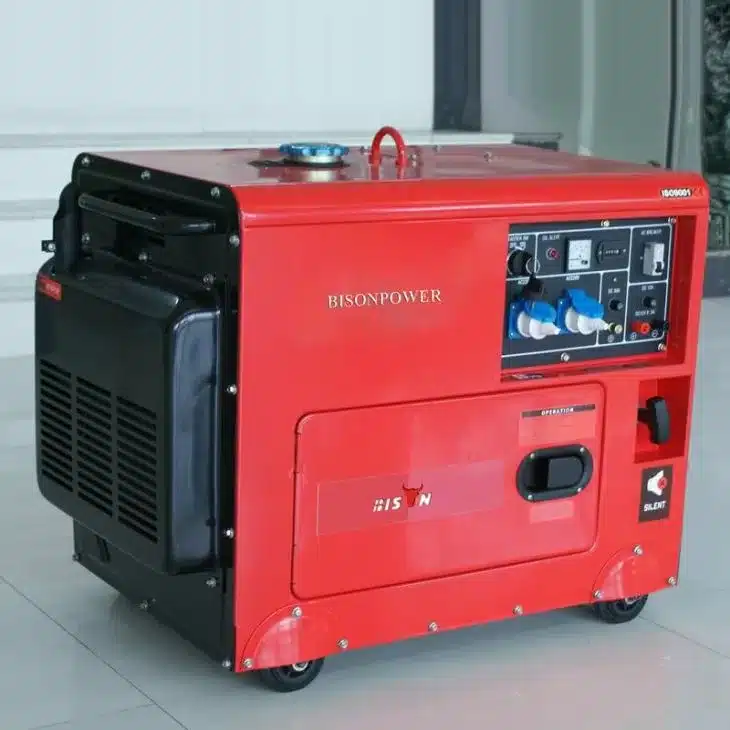

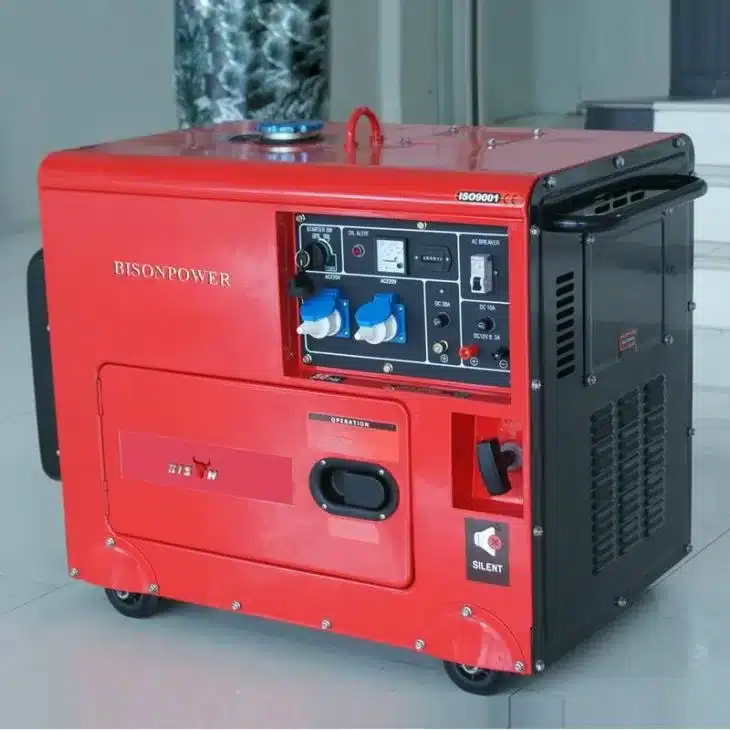

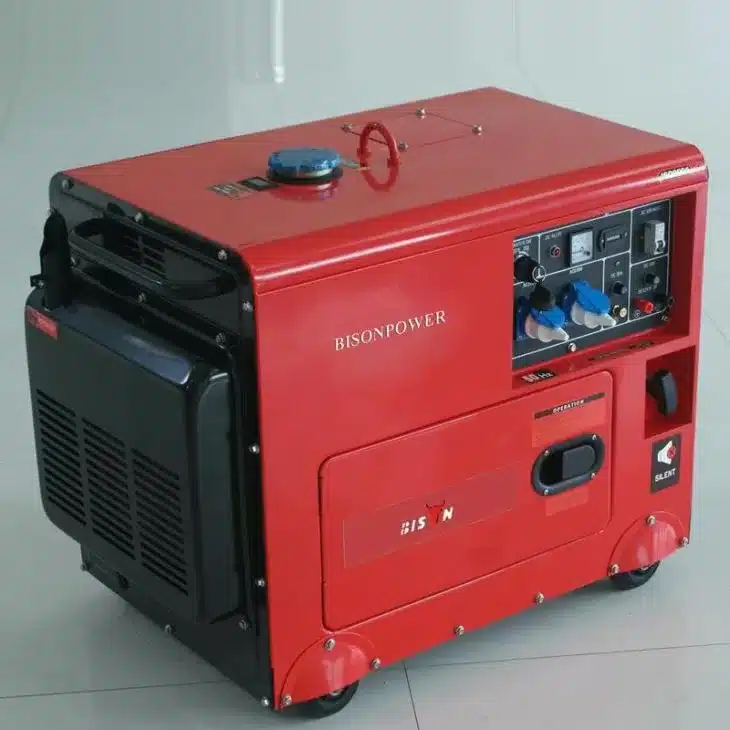

7kva diesel generator set
| no brand | 30 sets |
| OEM standard | 50 sets |
| OEM special | 100 sets |

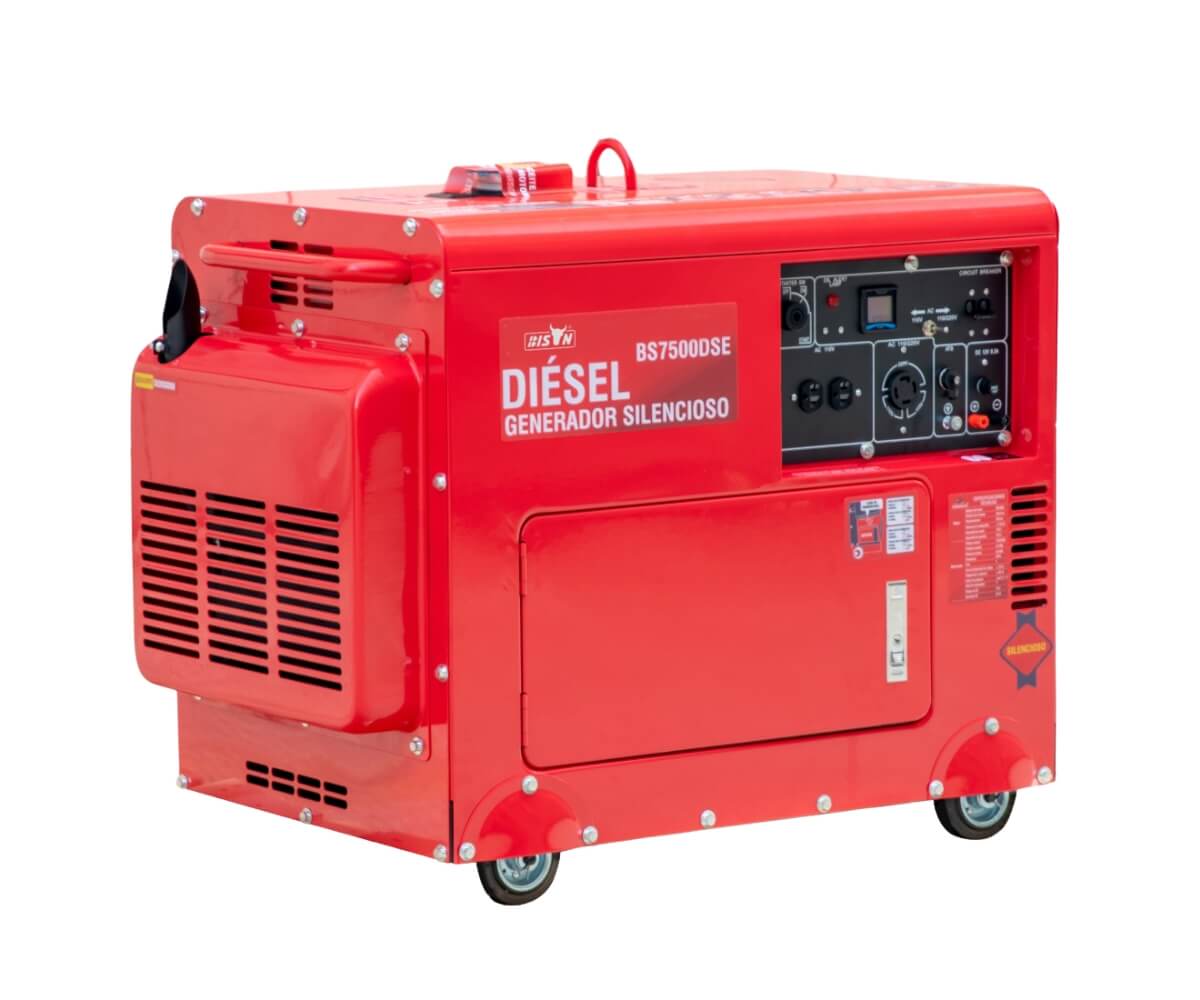

BS7500DSE Specifications
| model | BS7500DSE |
|---|---|
| rated power (Kva) | 7 |
| rated output voltage (Volt) | 1 phase / 3 phase (optional) |
| over load protector | yes |
| rated frequency (Hz) | 50 / 60 Hz |
| rated current (Amp) | 16 |
| power factor | 1.0 (single phase) / 0.8 (three phase) |
| fuel tank capacity | 14.5L |
| fuel option | 0# (summer)、-10#（winter) diesel |

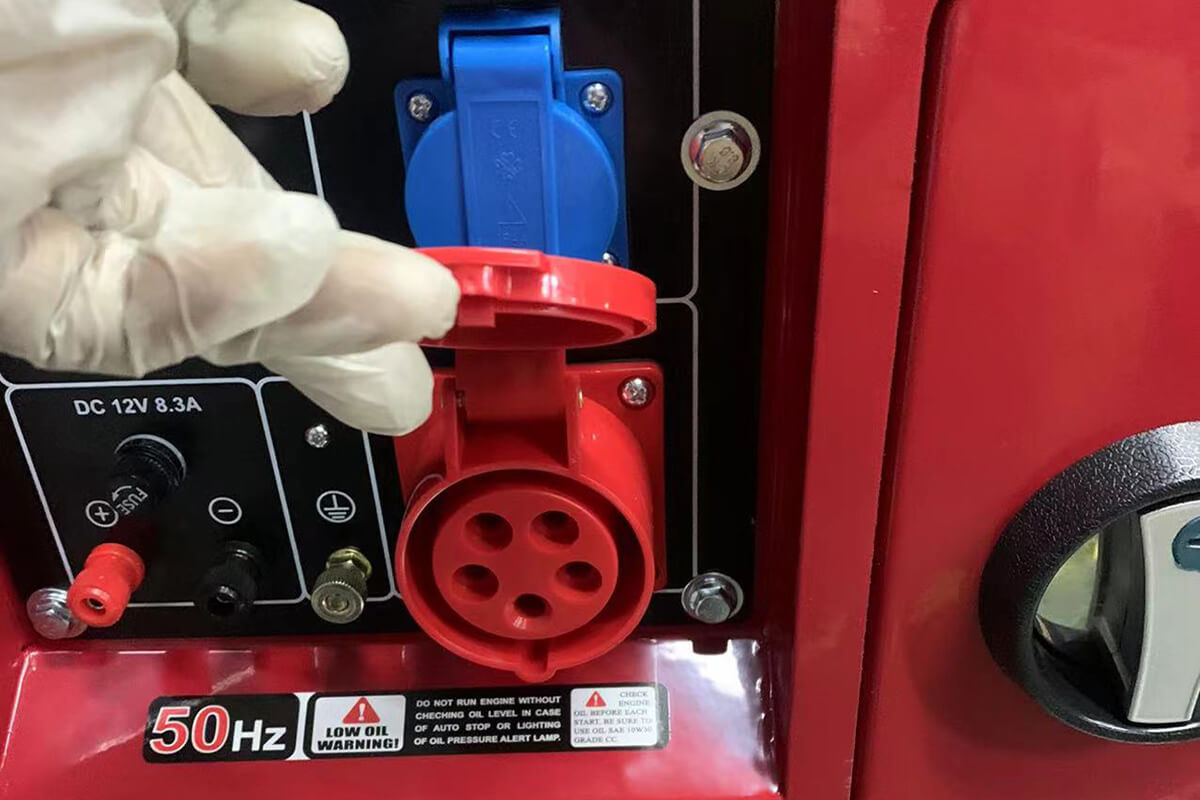

| socket rating | 16A |
| self start motor | electric start |
| fuel consumption at 100% Load | 1.9L/h |
| fuel consumption at 75% Load | 1.45L/h |
| fuel consumption at 50% Load | 0.95L/h |
| continuous duration of operation at rated load (hour) | 7.5 |
| engine & emission specifications | |
|---|---|
| engine model | BS188FE |
| fuel type | Diesel |
| engine speed | 3000(50hz)/3600(60Hz) |
| bore * stroke | 88*75 |
| engine displacement | 456 |
| engine/motor type | single-cylinder、vertical、4-stroke、air-cooled、diesel engine |
| engine oil grade | 10W/30SAE |
| fuel capacity | 5.5L |
| oil capacity | 1.7L |
| recoil start | No |
| electric start | Yes |
| alternator | |
|---|---|
| type of alternator | 100% copper (corrective wave) |
| rotor RPM | 3000(50Hz)/3600(60Hz) |
| alternator size | 190*140 |
products description
BISON 7kva diesel generator set has excellent fuel economy, strong protection mechanism and professional sales team. Providing sales potential for diesel generator dealers all over the world.
Why choose BISON 7kva diesel generator set?
- It has AVR to automatically regulate voltage. Say goodbye to power fluctuations, protect connected equipment continuously and reliably output 7kva power.
- Self-protection. Oil alert to shut down engine automatically when low oil is detected. Overload protector (OLP) also avoids electrical overload. Equipped with self-starting motor and electric start function at the same time. Fully guarantee safety from start to operation.
- Compact structure and light weight. The size of 935*525*680mm, the weight of 175kg and the design with wheels are easy to transport, which is very suitable for a wide range of applications from industry to residential.
- Easy maintenance with brushless alternator electric ignition.
- The visual control panel easily monitors and adjusts the generator performance.
- Large fuel tank for a long time of continuous running. At full load, it consumes only 1.9L/h and can run continuously for 7.5 hours.
A class core parts
100% all-copper motor
Offering durability and superior energy efficiency
Fuel injection pump
Higher injection pressure, optimal injection rate, higher precision injection timing control and quantity control.
Powerful pull plate
Easy to start pull plate, guarantee more than 10,000 pulls
robust frames
Professional welding and painting process to ensure the beauty and stability of the rack
tight quality contorl
7kva diesel generator set Perfect inspection process
Inspection process leaves no room for compromise, ensuring that every diesel generator we produce is flawless.
- Water Test: Ensures 100% cylinder tightness, detecting any possible leaks.
- Unit Comprehensive Intelligent Test Cabinet: Each generator undergoes a full inspection to confirm reliability and accuracy.
- Withstand Voltage Tester Inspection: Every generator is fully inspected, ensuring precise electrical safety measurements.
- Strengthened Laboratory Standards: Our lab exceeds national sampling standards, resulting in superior product durability.
7kva diesel generator set assembly process
- Use special equipment to assemble, ensure the beaning, oil seal, governor gear effectively fit
- When assembling nuts for each muffler, spring pads need to be installed to ensure the fit of each component and the maximum noise reduction effect
- Use a special air gun, and use different torque standards for different parts
Water test is required in each engine assembly to ensure the tightness of itself - Pay attention to small details, add thread glue and spring washers to the bolts; add support feet to the motor bracket
- More than 20 debugging processes throughout the whole process to ensure that the machine 100% meets the factory requirements
Professional technicians with 15-20 years of experience
Performance Commissioning
diesel generator assembly
Artwork QA
Full Inspection
Generator Specialized Inspection
Parts assembly
Core Assembly
Power Specialized Inspection
support
Our sales team supports our products with unrivaled expertise that includes a comprehensive level of presales support. Not only do we provide power generators, but we also provide reliable and professional consulting services, especially for customers who know less about our products. We provide an uninterrupted supply of electricity and professional support services to customers, allowing them to enjoy the advanced technology and expertise that BISON offers.
We have a highly qualified engineers and technicians’ team, which could support studying load requirements of generators to support various projects and the need for any other equipment such as ATS, Battery Charger, and mode of operation; synchronizing system or stand alone, type of enclosure with certain noise level or mounted on skid, etc. Believe that we will offer the generator just the one dealer require.

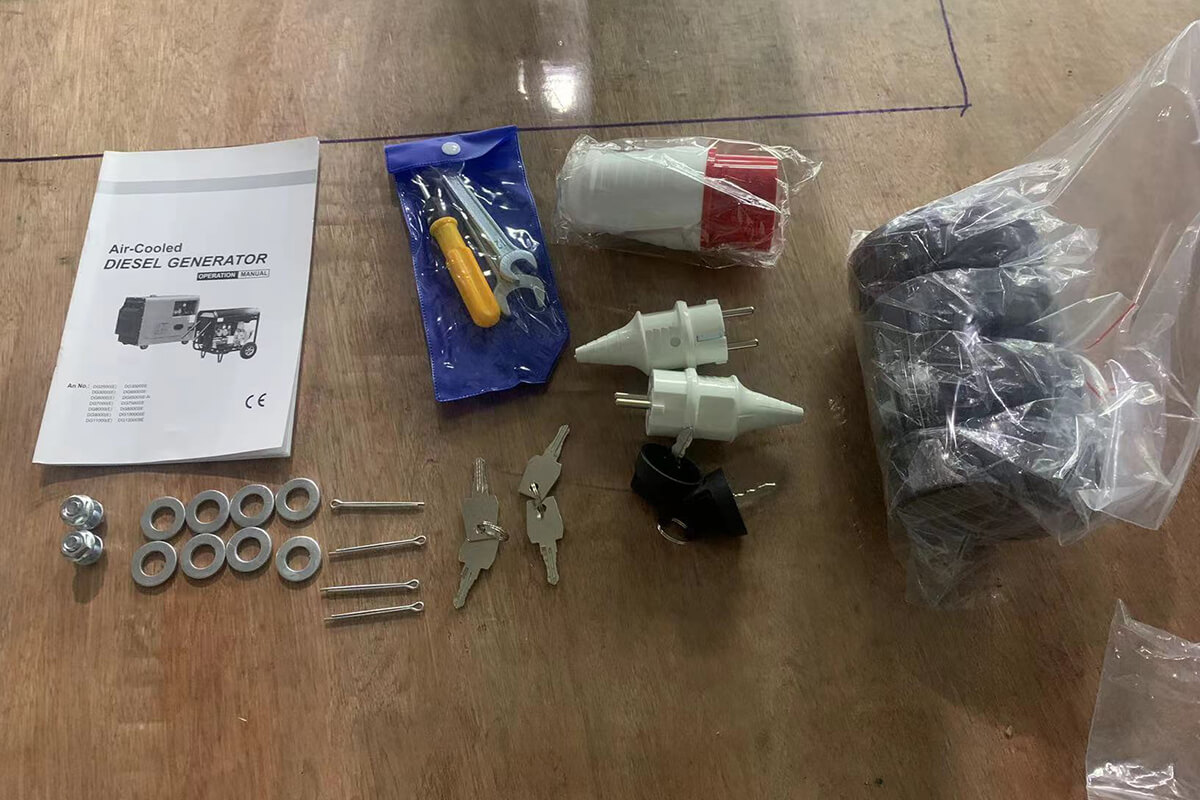

Discounted Accessories
24-hour online, 5-minute response
Engineer on-site service
Packaging & Delivery
Product packaging with a brown strong carton, the generator is protected with ploy bag, wool, 1pc / carton. Delivery and lead time is 20-25 days. BISON With 10 years of export experience, we have exported to these countries: Russia, Peru, Nigeria, Libya, Kuwait, Korea, Italy, Iraq, etc. Dealers can choose Ningbo or Shanghai Port.
