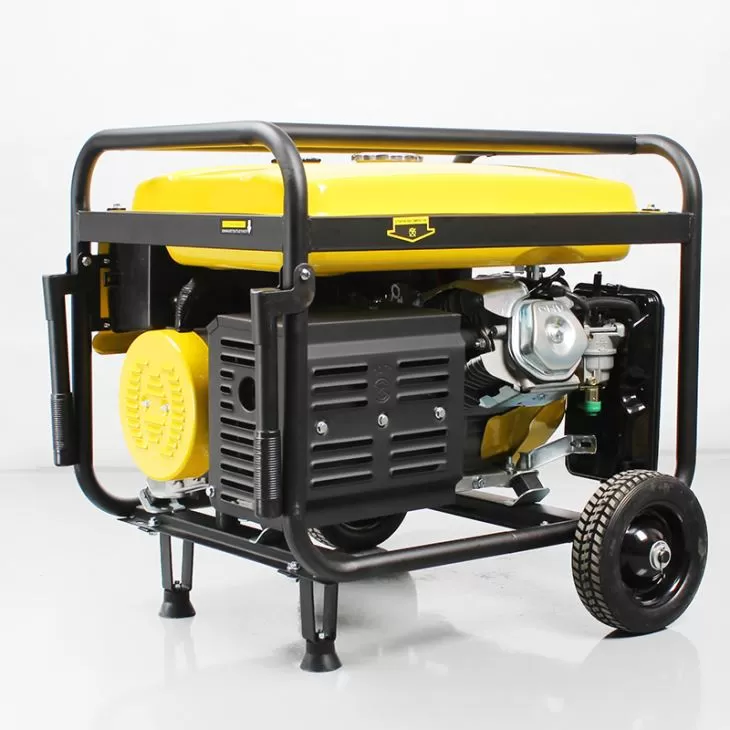

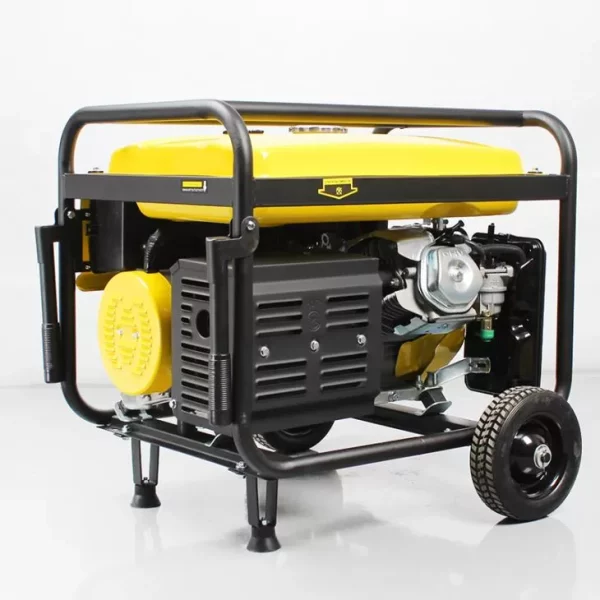

5000-watt portable power generator RV

4-stroke|15HP|5.0KW|110/220V
ce 1
tuv
nps
2 years warranty
epa 1
no brand30 sets
OEM standard50 sets
OEM special100 sets

BS6500 Specifications

Model BS6500
Maximum Power of the Generator (KW) 5500 W
Rated Power of the Generator (KW) 5000W
Rated output voltage (Volt) 1 Phase / 3 Phases (Optional)
Over Load Protector (OLP) YES
Rated frequency (Hz) 50 / 60 Hz
Rated Current (Amp) Depends On Your Socket And Generator Power
Power factor 1.0 (Single Phase) / 0.8 (Three Phases)
Fuel Tank Capacity 25L
Fuel option #92, #95 Unleaded Gasoline
Socket rating 16A/32A
Self start motor Recoil start/Electric start
Fuel consumption at 100% Load 3.0kg/h
Fuel consumption at 75% Load 2.8kg/h
Fuel consumption at 50% Load 2.6kg/h
Continuous Duration of operation at Rated load (hour) 6
Ignition system T.C.I
Noise Level (dB) at rated load (from 4-meter distance) 95
Engine & Emission Specifications
Engine Model BS190F
Fuel Type Gasoline
Engine Speed 3000(50 Hz) / 3600(60 Hz) RPM
Bore × Stroke 90*66mm
Engine Displacement 420cc
Engine/Motor Type 1-Cylinder, Air-Cooled, 4-Stroke, Direct Injected,OHV
Engine Oil grade #5W-40
Fuel Capacity 1.1L
Low Oil Shutdown/Alert Yes
Recoil Start Yes
Electric Start Optional
Alternator
Type of alternator 100% Copper (Corrective Wave)
Rotor RPM 3000
Alternator Size 190*140mm

Key Features

  • The 5000 watt portable power generator RV is a type of practical equipment which is able to provide a secondary source of electricity to the world. It is especially engineered to work with theRVs that it  can run many devices and appliances on your RV with no problems.Besides,it is widely used to provide power when disaster strikes or when there are other emergencies,greatly rescuing people.
  • With a quiet portable generator, anyone can have electricity anytime, anywhere.It is convenient to daily life that it makes that people can use the electric appliances without limitation.If the power failure occurs, it is able to provide electricity to maintain the machine operate normally.
  • With the advanced engine with 5000 watt, it is able to work continuously and steadily.Equipped with two wheels,it is available to move anywhere easily,reducing the labor and time of transportation.
  • It is manufactured with the high standard of the international and authoritative certification CE and ISO, which is of superior quality and excellent performance. Produced by the experienced workers,it has delicate appearance that every detail is well handled.

A class core parts

Dive deep into the world of BISON high-quality gasoline generators, where unrivaled performance meets highest reliability.

generators all copper motor

100% all-copper motor

Offering durability and superior energy efficiency

generators carburetor

Domestic top carburetor

high atomization level, ensuring optimal fuel efficiency and smooth engine operation.

generator pull plate

Powerful pull plate

Easy to start pull plate, guarantee more than 10,000 pulls

generators frames

robust frames

Professional welding and painting process to ensure the beauty and stability of the rack

tight quality contorl

product assembly process 1

5000-watt portable power generator RV assembly process

  • Use special equipment to assemble, ensure the beaning, oil seal, governor gear effectively fit
  • When assembling nuts for each muffler, spring pads need to be installed to ensure the fit of each component and the maximum noise reduction effect
  • Use a special air gun, and use different torque standards for different parts
  • Water test is required in each engine assembly to ensure the tightness of itself
  • Pay attention to small details, add thread glue and spring washers to the bolts; add support feet to the motor bracket
  • More than 20 debugging processes throughout the whole process to ensure that the machine 100% meets the factory requirements
product inspection process

5000-watt portable power generator RV inspection process

Inspection process leaves no room for compromise, ensuring that every gasoline generator we produce is flawless.



Professional technicians with 15-20 years of experience

performance commissioning

Performance Commissioning

machine assembly

Machine Assembly

artwork qa

Artwork QA

full inspection

Full Inspection

generator specialized inspection

Generator Specialized Inspection

parts assembly

Parts assembly

core assembly

Core Assembly

power specialized inspection

Power Specialized Inspection

Warranty Information

BISON is not only a manufacturer of engine/water pump/generators and pressure washer. We work to offer you a comprehensive service that covers all the needs that may meet, from the search for the electric generator that best suits your needs, through commercial support and constant and transparent communication throughout the sales process, up to the resolution of any problem or incident, assistance in the installation of the machine, repair or simply its maintenance. A complete portfolio of after-sales services and the best technical team at your service so that everything goes well, before, during and after the start-up of the products.

discounted accessories

Discounted Accessories

24 hour online 5 minute response

24-hour online, 5-minute response

engineer on site service

Engineer on-site service

Packaging & Delivery

Packaging Details: brown strong carton, generator is protected with poly bag, wooden, 1pc / carton. Lead Time: Shipped in 25 days after payment.
