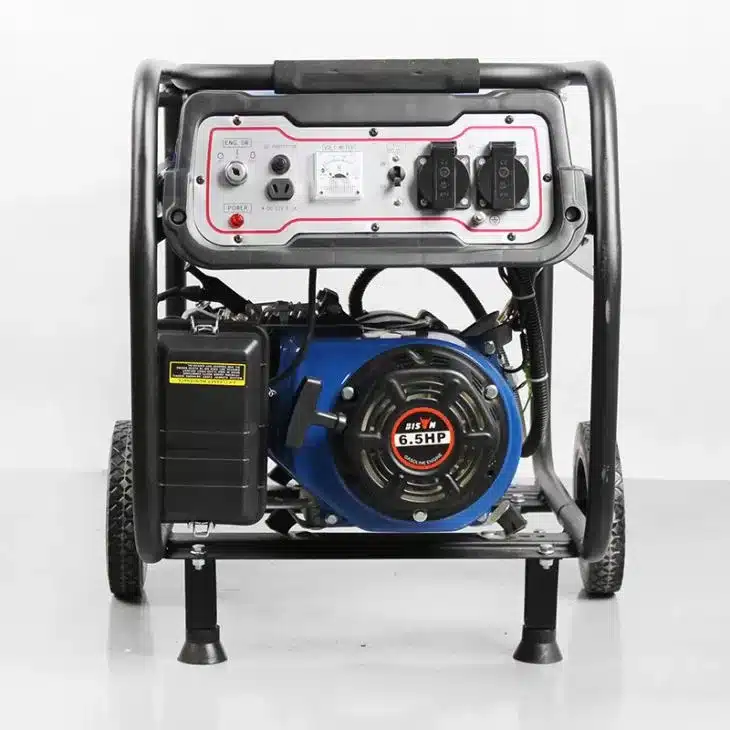

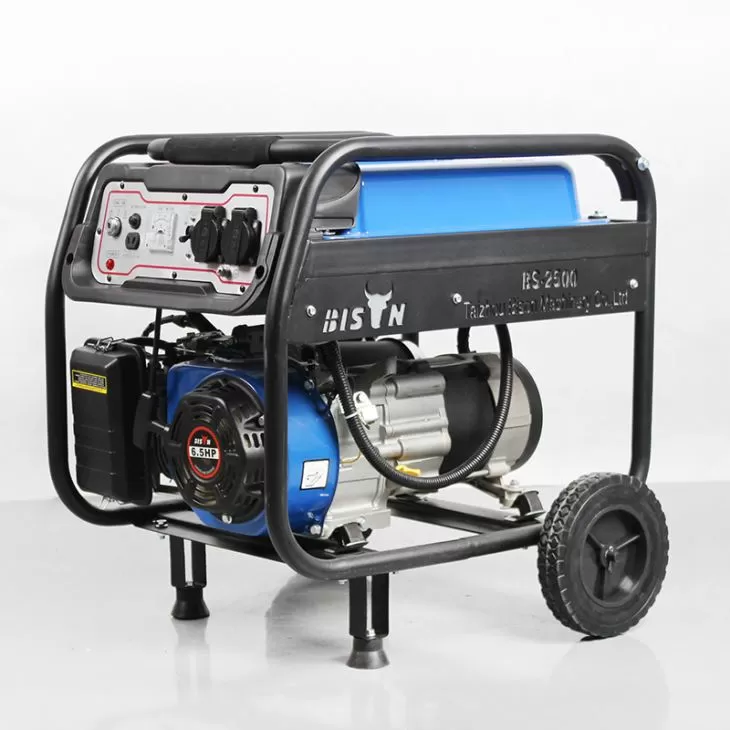

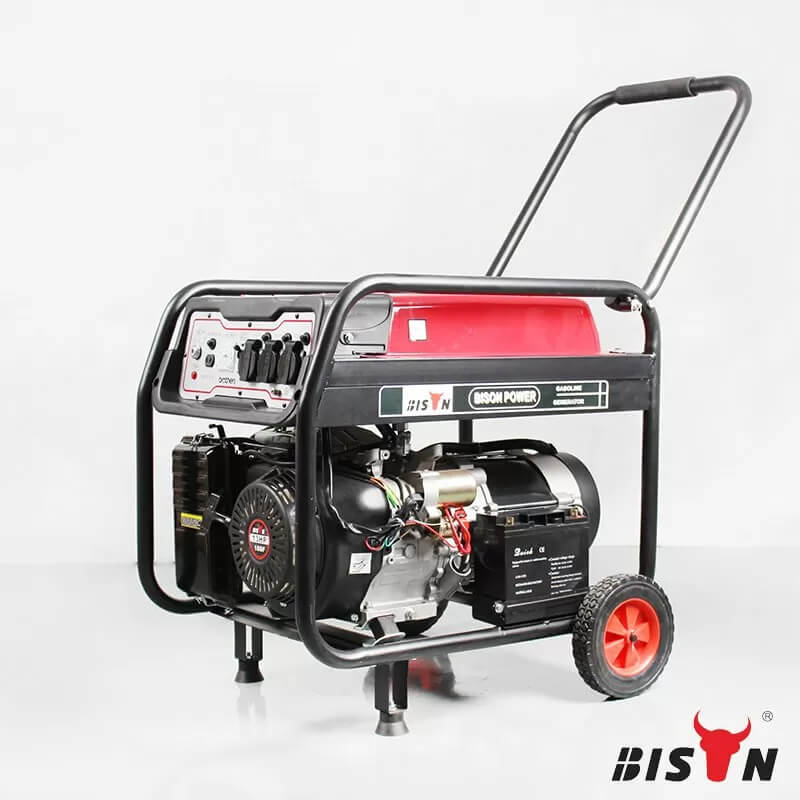

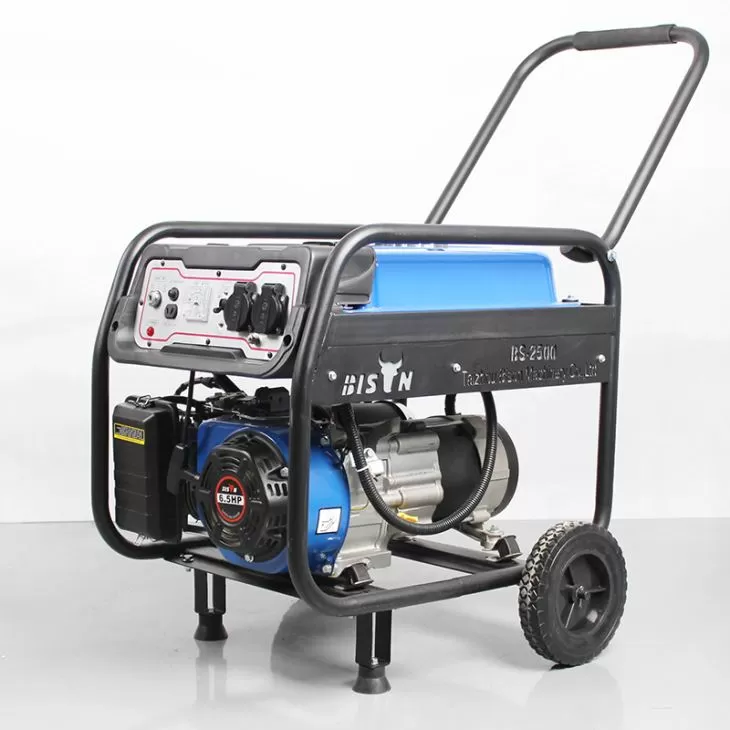

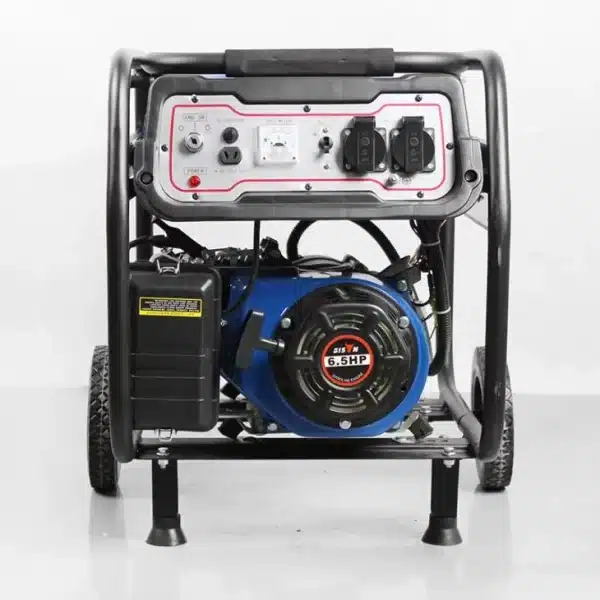

air cooled powerful gasoline generator
- Portable compact open structure.
- Excellent Air Cooling Technology
- Long run time – up to 13.5 hours
- AVR to automatically regulate voltage
- Circuit breaker to stop engine automatically when overloaded
- Powers fridge, furnace, lights, TV, computer, and much more
- CE, SONCAP, ISO certification approved
- One year or 500 hours warranty
| no brand | 30 sets |
| OEM standard | 50 sets |
| OEM special | 100 sets |
BS2500 Specifications
| Model | BS2500 |
|---|---|
| Maximum Power of the Generator (KW) | 2200 W |
| Rated Power of the Generator (KW) | 2000W |
| Rated output voltage (Volt) | 1 Phase / 3 Phases (Optional) |
| Over Load Protector (OLP) | YES |
| Rated frequency (Hz) | 50 / 60 Hz |
| Rated Current (Amp) | 16 |
| Power factor | 1.0 (Single Phase) / 0.8 (Three Phases) |
| Fuel Tank Capacity | 15L |
| Fuel option | #92, #95 Unleaded Gasoline |
| Socket rating | 16A |
| Self start motor | Recoil start/Electric start |
| Fuel consumption at 100% Load | 1.2kg/h |
| Fuel consumption at 75% Load | 1.1kg/h |
| Fuel consumption at 50% Load | 0.85kg/h |
| Continuous Duration of operation at Rated load (hour) | 8 |
| Ignition system | T.C.I |
| Noise Level (dB) at rated load (from 4-meter distance) | 93.2 |
| Engine & Emission Specifications | |
|---|---|
| Engine Model | BS168F-1 |
| Fuel Type | Gasoline |
| Engine Speed | 3000(50 Hz) / 3600(60 Hz) RPM |
| Bore × Stroke | 68*54mm |
| Engine Displacement | 196 cc |
| Engine/Motor Type | 1-Cylinder, Air-Cooled, 4-Stroke, Direct Injected，OHV |
| Engine Oil grade | #5W-40 |
| Fuel Capacity | 0.6L |
| Low Oil Shutdown/Alert | Yes |
| Recoil Start | Yes |
| Electric Start | Optional |
| Alternator | |
|---|---|
| Type of alternator | 100% Copper (Corrective Wave) |
| Rotor RPM | 3000 |
| Alternator Size | 160*85 mm |
products description
This air-cooled gasoline generator is specially designed for small power supply. Using air to cool down, the engine draws cold air from the atmosphere and blows it into the generator to realize cooling and ensure the normal operation of the generator. Because this generator is cooled by air, the price of this generator is much cheaper than that of a liquid-cooled generator because of air cooling. It is for convenience stores, restaurants, offices and more industrial and large buildings to reserve power.
Incorporate an air-cooled, powerful gasoline generator into your lineup and provide your customers with a product that stands out in terms of power, performance and advanced cooling technology.
Custom Generator Colors
A class core parts
Dive deep into the world of BISON high-quality gasoline generators, where unrivaled performance meets highest reliability.
100% all-copper motor
Offering durability and superior energy efficiency
Domestic top carburetor
high atomization level, ensuring optimal fuel efficiency and smooth engine operation.
Powerful pull plate
Easy to start pull plate, guarantee more than 10,000 pulls
robust frames
Professional welding and painting process to ensure the beauty and stability of the rack
tight quality contorl
air cooled powerful gasoline generator assembly process
- Use special equipment to assemble, ensure the beaning, oil seal, governor gear effectively fit
- When assembling nuts for each muffler, spring pads need to be installed to ensure the fit of each component and the maximum noise reduction effect
- Use a special air gun, and use different torque standards for different parts
- Water test is required in each engine assembly to ensure the tightness of itself
- Pay attention to small details, add thread glue and spring washers to the bolts; add support feet to the motor bracket
- More than 20 debugging processes throughout the whole process to ensure that the machine 100% meets the factory requirements
air cooled powerful gasoline generator inspection process
Inspection process leaves no room for compromise, ensuring that every gasoline generator we produce is flawless.
- Water Test: Ensures 100% cylinder tightness, detecting any possible leaks.
- Unit Comprehensive Intelligent Test Cabinet: Each generator undergoes a full inspection to confirm reliability and accuracy.
- Withstand Voltage Tester Inspection: Every generator is fully inspected, ensuring precise electrical safety measurements.
- Strengthened Laboratory Standards: Our lab exceeds national sampling standards, resulting in superior product durability.
Professional technicians with 15-20 years of experience
Performance Commissioning
Machine Assembly
Artwork QA
Full Inspection
Generator Specialized Inspection
Parts assembly
Core Assembly
Power Specialized Inspection
From the beginning of the product production, BISON skilled operate equipment to manufacture high level qualityair cooled powerful gasoline generator. All steps by our own workers.
Spare Parts support
We have around 2,000 SPARE PARTS IN STOCK !
we supply all kinds of spare parts for the maintenance and commissioning of generator sets. Our team of professionals has made a selection and classification of spare parts, with which we have developed our Bison 2018 spare parts catalogue. With this catalogue, we aim to help you with the selection of those components that you need for your electric generator.
Packaging & Delivery
Packaging Details: brown strong carton, generator is protected with poly bag, wooden, 1pc / carton. Lead Time: Shipped in 25 days after payment.
