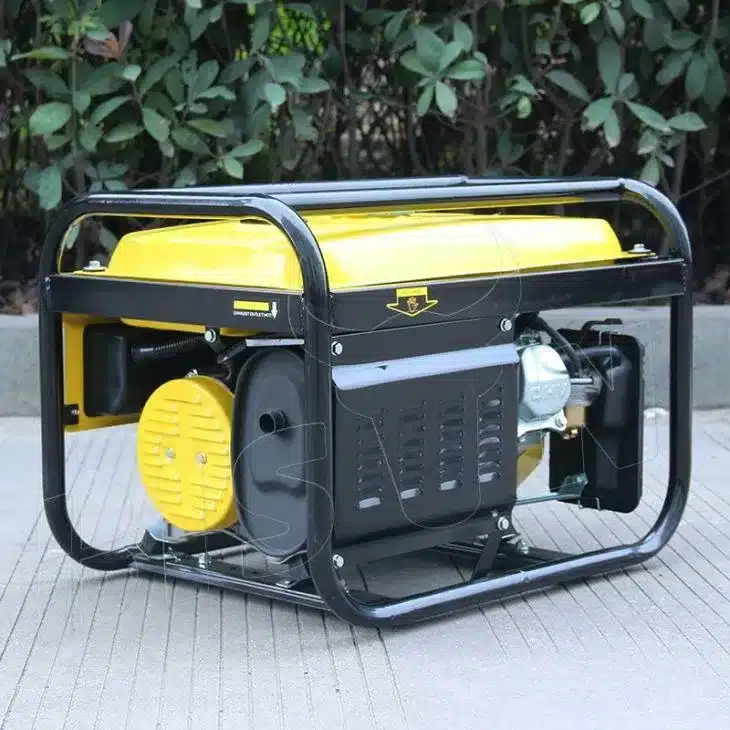

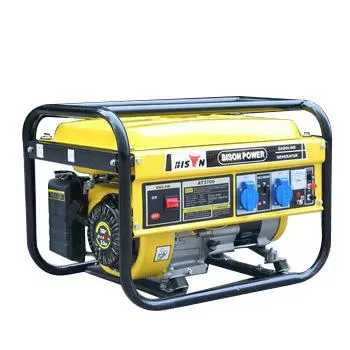

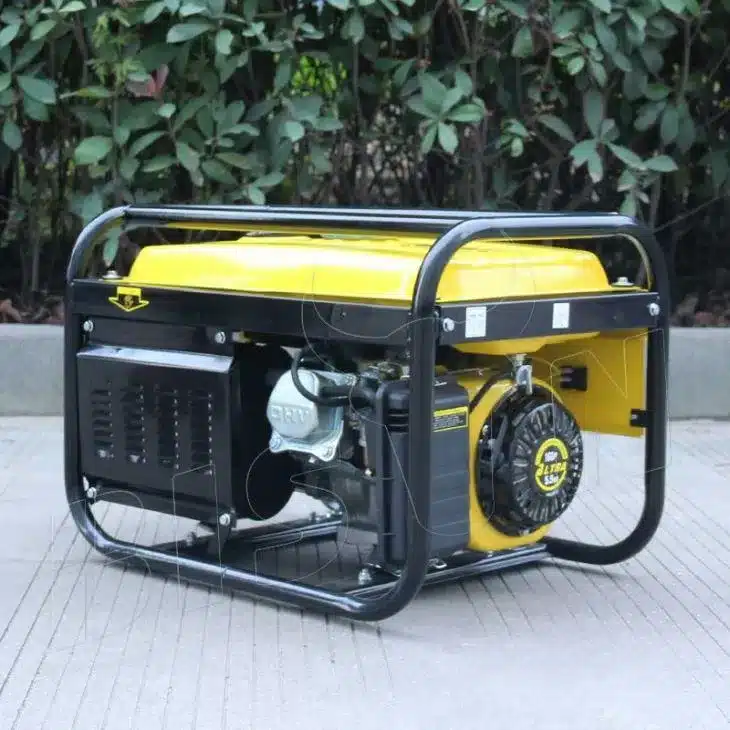

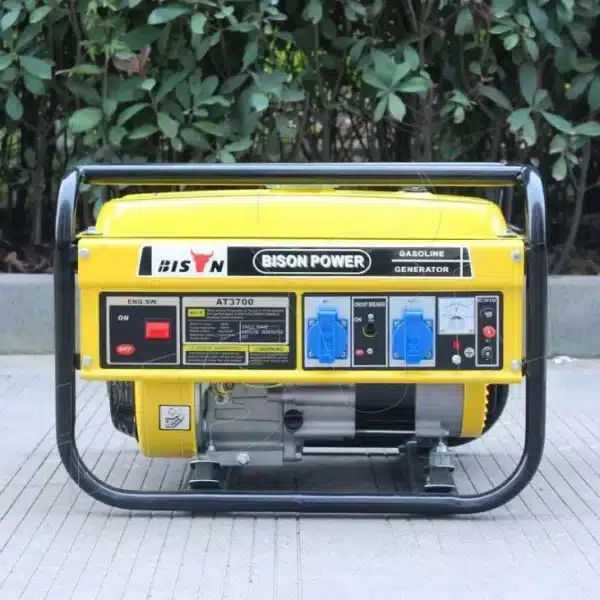

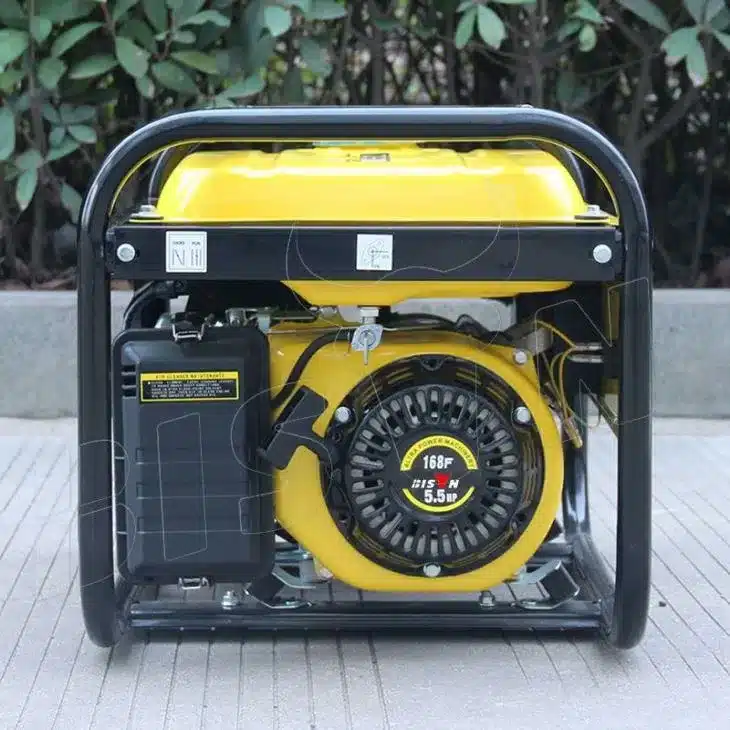

portable petrol gasoline generator

4-stroke|7HP|2.0KW|110/220V
ce 1
tuv
nps
2 years warranty
epa 1
  • Fuel-saving: Excellent combustion efficiency produces extremely high economic benefits.
  • Quiet: A low-noise generator set that can be used whenever and wherever.
  • Reliable: Stable automatic voltage regulation system and oil warning system, which greatly saves maintenance and maintenance time. When the device is loaded, AVR ensures smooth power. When the oil level is too low, the oil warning system automatically stops the engine and protects the engine from damage….
no brand30 sets
OEM standard50 sets
OEM special100 sets

BS2500 Specifications

Model BS2500
Maximum Power of the Generator (KW) 2200 W
Rated Power of the Generator (KW) 2000W
Rated output voltage (Volt) 1 Phase / 3 Phases (Optional)
Over Load Protector (OLP) YES
Rated frequency (Hz) 50 / 60 Hz
Rated Current (Amp) 16
Power factor 1.0 (Single Phase) / 0.8 (Three Phases)
Fuel Tank Capacity 15L
Fuel option #92, #95 Unleaded Gasoline
Socket rating 16A
Self start motor Recoil start/Electric start
Fuel consumption at 100% Load 1.2kg/h
Fuel consumption at 75% Load 1.1kg/h
Fuel consumption at 50% Load 0.85kg/h
Continuous Duration of operation at Rated load (hour) 8
Ignition system T.C.I
Noise Level (dB) at rated load (from 4-meter distance) 93.2
Engine & Emission Specifications
Engine Model BS168F-1
Fuel Type Gasoline
Engine Speed 3000(50 Hz) / 3600(60 Hz) RPM
Bore × Stroke 68*54mm
Engine Displacement 196 cc
Engine/Motor Type 1-Cylinder, Air-Cooled, 4-Stroke, Direct Injected,OHV
Engine Oil grade #5W-40
Fuel Capacity 0.6L
Low Oil Shutdown/Alert Yes
Recoil Start Yes
Electric Start Optional
Alternator
Type of alternator 100% Copper (Corrective Wave)
Rotor RPM 3000
Alternator Size 160*85 mm
portable petrol gasoline generator details 2
portable petrol gasoline generator details

A class core parts

Dive deep into the world of BISON high-quality gasoline generators, where unrivaled performance meets highest reliability.

generators all copper motor

100% all-copper motor

Offering durability and superior energy efficiency

generators carburetor

Domestic top carburetor

high atomization level, ensuring optimal fuel efficiency and smooth engine operation.

generator pull plate

Powerful pull plate

Easy to start pull plate, guarantee more than 10,000 pulls

generators frames

robust frames

Professional welding and painting process to ensure the beauty and stability of the rack

tight quality contorl

product assembly process 1

portable petrol gasoline generator assembly process

  • Use special equipment to assemble, ensure the beaning, oil seal, governor gear effectively fit
  • When assembling nuts for each muffler, spring pads need to be installed to ensure the fit of each component and the maximum noise reduction effect
  • Use a special air gun, and use different torque standards for different parts
  • Water test is required in each engine assembly to ensure the tightness of itself
  • Pay attention to small details, add thread glue and spring washers to the bolts; add support feet to the motor bracket
  • More than 20 debugging processes throughout the whole process to ensure that the machine 100% meets the factory requirements
product inspection process

portable petrol gasoline generator inspection process

All generators have 4 steps inspection before shipping:



  • raw material inspeciton before in stocks,
  • 100% product online testing
  • 100% comeplete products testing
  • ramdom inspeciton loading test

Our factory is very strict in every steps because our aim is to help our clients can be benift from our business and we can be win-win together.

Professional technicians with 15-20 years of experience

performance commissioning

Performance Commissioning

machine assembly

Machine Assembly

artwork qa

Artwork QA

full inspection

Full Inspection

generator specialized inspection

Generator Specialized Inspection

parts assembly

Parts assembly

core assembly

Core Assembly

power specialized inspection

Power Specialized Inspection

QC System

During the production, BISON care about the quality for each portable petrol gasoline generator, that’s why we strictly follow the step of our QC system. Every product will be well test during the production line, we separate the faulty one to special area-faulty zone, where the place will collect faulty product and send to repair.

Production system

From the beginning of the product production, BISON skilled operate equipment to manufacture high level quality portable petrol gasoline generator. All steps by our own workers.

Warranty Information

discounted accessories

Discounted Accessories

24 hour online 5 minute response

24-hour online, 5-minute response

engineer on site service

Engineer on-site service

Packaging & Delivery

Packaging Details: brown strong carton, generator is protected with poly bag, wooden, 1pc / carton. Lead Time: Shipped in 25 days after payment.
