12kw quiet standby generators for home
- Work cover compliant with RCD safety switch & external earth point
- electric starting with recoil pull-start option
- Single chip digital AVR, automatic voltage regulation
- Work with safety switch & vibration reduction
- All copper wire
| no brand | 30 sets |
| OEM standard | 50 sets |
| OEM special | 100 sets |
BS14000 Specifications
| Model | BS14000 |
|---|---|
| Maximum Power of the Generator (KW) | 13.0KW |
| Rated Power of the Generator (KW) | 12.0KW |
| Rated output voltage (Volt) | 220V/380V, Single Phase & Three Phase |
| Over Load Protector (OLP) | YES |
| Rated frequency (Hz) | 50Hz/60Hz |
| Rated Current (Amp) | Depends On Your Socket And Generator Power |
| Power factor | 1.0 (Single Phase) / 0.8 (Three Phases) |
| Fuel Tank Capacity | 30L |
| Fuel option | #92, #95 Unleaded Gasoline |
| Socket rating | 16A/32A |
| Self start motor | Recoil start/Electric start |
| Fuel consumption at 100% Load | 3.48kg/h |
| Fuel consumption at 75% Load | 2.8kg/h |
| Fuel consumption at 50% Load | 2.1kg/h |
| Continuous Duration of operation at Rated load (hour) | 6.5 |
| Ignition system | T.C.I |
| Noise Level (dB) at rated load (from 4-meter distance) | 95 |
| Engine & Emission Specifications | |
|---|---|
| Engine Model | 2V80F |
| Fuel Type | Gasoline |
| Engine Speed | 3000(50 Hz) / 3600(60 Hz) RPM |
| Bore × Stroke | 2-82*70mm |
| Engine Displacement | 740CC |
| Engine/Motor Type | Double Cylinder,4-Stroke(OHV) |
| Engine Oil grade | #5W-40 |
| Fuel Capacity | 1.5L |
| Low Oil Shutdown/Alert | Yes |
| Recoil Start | Yes |
| Electric Start | Optional |
| Alternator | |
|---|---|
| Type of alternator | 100% Copper (Corrective Wave) |
| Rotor RPM | 3000 |
| Alternator Size | / |
products description
For many people, noise is very important, especially if you want to use the equipment at home. so BISON decided to produce this quiet standby generator, not only for efficiency and reliability but also for control the operating noise level. believe it will be your best choice.

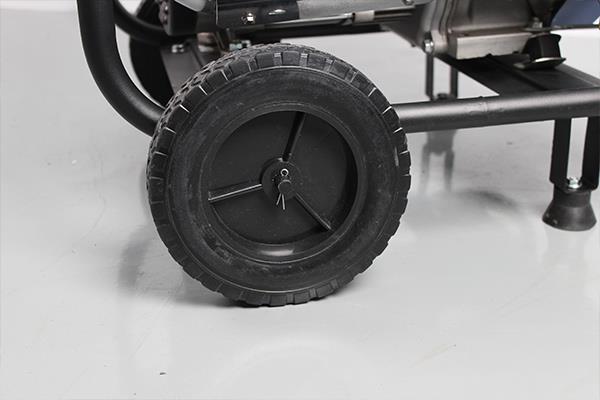

For whole-house use, it will be difficult to find a quieter standby generator than the BISON model. A heavy machine with a rated power of 12000 watts, can supply power to almost any equipment you plug in. It has a large fuel tank and electric propulsion start for work with. Although its size is quite large, convenient wheels make transportation easy. A happy critic wrote, “If it is connected, it can run my whole house. we are very happy to have it. ”
The outstanding feature of the BS14000 is its quiet operation. It utilizes noise reduction technology for quiet operation, making it ideal for use in residential areas or where noise control is important.
Unlike portable generators, our standby generators have the convenience of automatic operation. It is installed outside your home and turns on automatically whether you are at home or out. It can be completed within a few seconds after power failure. For homeowners, home-standby-generator will be a good choice.
In essence, our quiet standby generator provides an effective, quiet and automatic power solution that will appeal to a wide range of customers. By becoming a distributor of our products, you’re not just selling generators, you’re providing reliable, high-quality power solutions that meet the needs of a diverse range of customers.
A class core parts

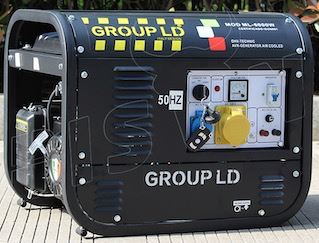

100% all-copper motor
Offering durability and superior energy efficiency

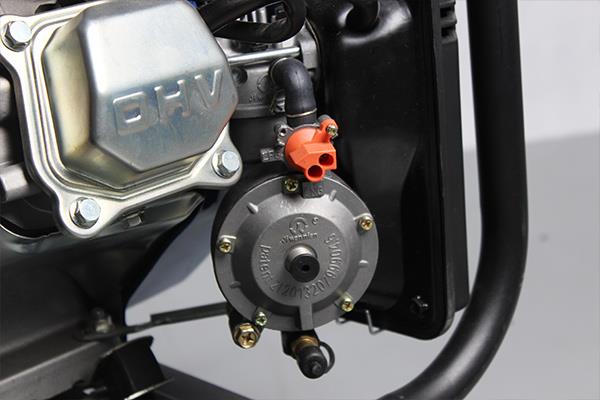

Domestic top carburetor
high atomization level, ensuring optimal fuel efficiency and smooth engine operation.

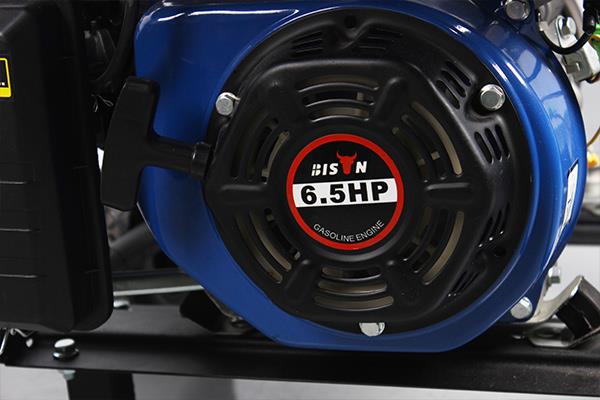

Powerful pull plate
Easy to start pull plate, guarantee more than 10,000 pulls

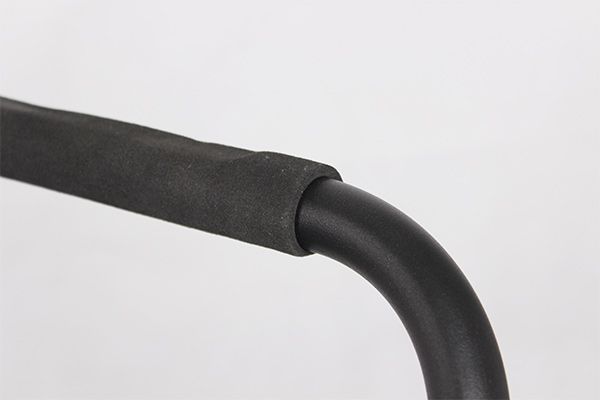

robust frames
Professional welding and painting process to ensure the beauty and stability of the rack
tight quality contorl
12kw quiet standby generators for home assembly process
- Use special equipment to assemble, ensure the beaning, oil seal, governor gear effectively fit

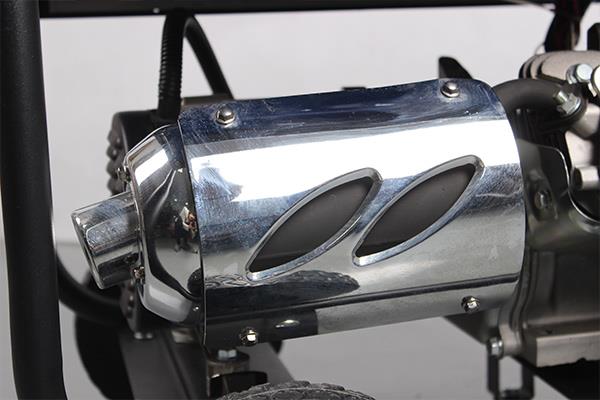

- When assembling nuts for each muffler, spring pads need to be installed to ensure the fit of each component and the maximum noise reduction effect
- Use a special air gun, and use different torque standards for different parts
- Water test is required in each engine assembly to ensure the tightness of itself
- Pay attention to small details, add thread glue and spring washers to the bolts; add support feet to the motor bracket
- More than 20 debugging processes throughout the whole process to ensure that the machine 100% meets the factory requirements
12kw quiet standby generators for home inspection process
Inspection process leaves no room for compromise, ensuring that every gasoline generator we produce is flawless.
- Water test: Ensures 100% cylinder tightness, detecting any possible leaks.
- Unit comprehensive intelligent test cabinet: Each generator undergoes a full inspection to confirm reliability and accuracy.
- Withstand voltage tester inspection: Every generator is fully inspected, ensuring precise electrical safety measurements.
- Strengthened laboratory standards: Our lab exceeds national sampling standards, resulting in superior product durability.
Professional technicians with 15-20 years of experience
Performance Commissioning
Machine Assembly
Artwork QA
Full Inspection
Generator Specialized Inspection
Parts assembly
Core Assembly
Power Specialized Inspection
support
BISON Group has focused on Timely after-sales service, we have English Spanish Russian language exclusive service, and tracking service principle make customer know their good real production information, and we have the professional after-sales service, Continue to handle the product situation until the situation is resolved
Based on our excellent quality and service, our company has long-term partnerships with many famous enterprises, and the products spreading all over the world.
why choose us
- Supply you quiet standby generator products with competitive price under the same quality level, to meet your different market demands.
- Strictly control the whole production process and guarantee punctual delivery, Test each of our products one by one before packing to ensure the quality.
- Supply you a good pre-sale, in-sale and after-sale Service. We’re not just working partners, but also Friends and Family.
- When you come to our Factory, we will try our best to supply you all services to make you feel like at home.
Discounted Accessories
24-hour online, 5-minute response
Engineer on-site service
Packaging & Delivery
Packaging details: Products passed endurance testing; drop testing etc, then in brown strong carton and are protected with ploy bag; wool; foam.
